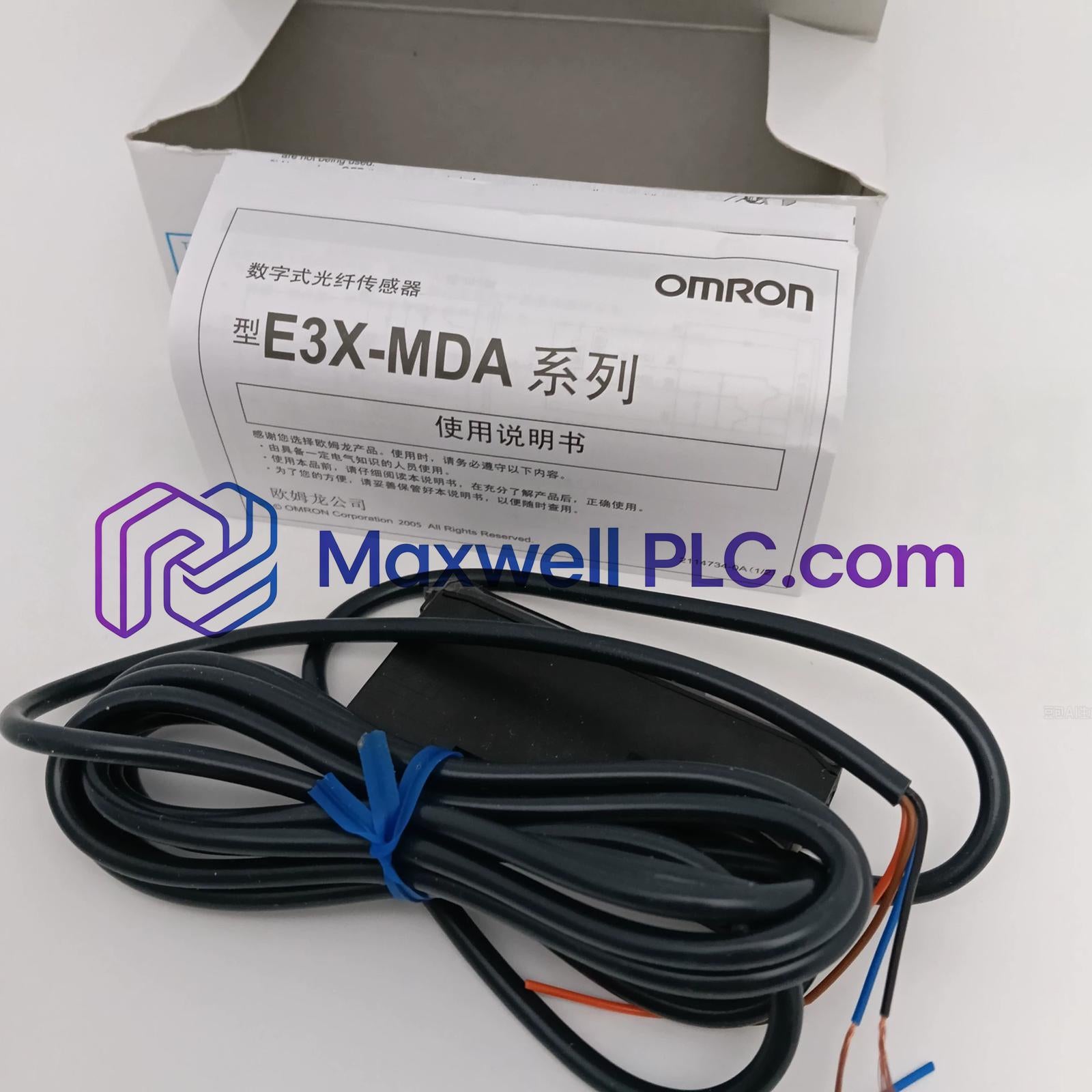

E3X-MDA11 2M Omron Digital Fiber Sensor Amplifier E3X-MDA Series

SKU: E3X-MDA11

In Stock

Dimensions: 10 x 32 x 74.3 mm
Country of origin: Japan
Payment: T/T, Western Union
Shipping port: Xiamen

Categories : All Products, Omron, Omron Sensors & Safety Products

Tags : Digital Fiber Sensor Amplifiers, Fiber Optic Sensors, Omron E3X Series, Omron Sensor Controllers

1 years warranty

Delivery time: 3-7 business days

Free 30 days return

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

The Omron E3X-MDA11 2M, also cataloged as the E3X-MDA11 Digital Fiber Sensor Amplifier, operates as a dedicated hardware component for optical signal amplification and dual-channel detection control within Omron factory automation sensor networks.

Model Configuration Information

The E3X-MDA11 belongs to the E3X-MDA two-channel digital fiber sensor amplifier series. The model provides two independent detection channels in a compact amplifier housing and supports AND/OR output control, digital sensitivity adjustment, power tuning, and mutual interference prevention functions.

The "2M" designation indicates the pre-wired cable configuration with a 2 m cable length.

Hardware Specifications

Parameter	Specification
Model	E3X-MDA11 2M
Brand	Omron
Product Type	Digital Fiber Sensor Amplifier
Series	E3X-MDA Series
Origin	Japan
Weight	Approx. 100 g (packed state, pre-wired model)
Shipping Dimensions	10 x 32 x 74.3 mm
Operating Temp	-25 to +55 deg C (1 to 2 amplifier units installed)
Storage Temp	-30 to +70 deg C (no icing or condensation)
Ambient Humidity	35% to 85% RH (no condensation)
Power Supply Voltage	12 to 24 VDC +/-10%, ripple 10% max.
Power Consumption	1,080 mW max.
Current Consumption	45 mA max. at 24 VDC
Light Source	Red LED, wavelength 635 nm
Response Time	130 us to 4 ms depending on detection mode
Control Output	NPN open collector, 26.4 VDC max., 50 mA max.
Residual Voltage	1 V max.
Output Configuration	Two independent channel outputs, AND/OR selectable
Sensitivity Adjustment	Teaching method or manual adjustment
Digital Display	Incident level and threshold value display
Mutual Interference Prevention	Up to 9 units (18 channels)
Protection Circuit	Reverse polarity protection and output short-circuit protection
Insulation Resistance	20 MOhm min. at 500 VDC
Dielectric Strength	1,000 VAC at 50/60 Hz for 1 minute
Vibration Resistance	10 to 55 Hz, 1.5 mm double amplitude, 2 hours each X/Y/Z direction
Shock Resistance	500 m/s2, 3 times each X/Y/Z direction
Protection Degree	IEC 60529 IP50 with protective cover attached
Connection Method	2 m pre-wired cable

Omron E3X-MDA Optical Processing Architecture

The E3X-MDA11 uses Omron industrial sensor control architecture for optical detection applications requiring dual-channel processing. The amplifier integrates digital light reception control, threshold adjustment, and output logic processing in a compact enclosure.

The unit supports I/O density scaling by combining two amplifier channels within a 10 mm housing width. The two-channel structure allows independent detection signals or logical combination through AND/OR output settings.

The amplifier can be integrated into Omron control systems where deterministic sensor response and compact panel installation are required. Firmware flash compatibility and parameter retention functions depend on the connected sensor configuration and accessory console.

Power Tuning and Detection Control Functions

The E3X-MDA11 provides digital power tuning to adjust emitted light power and reception gain according to the sensing condition. The function compensates for excessive incident light at short distances or insufficient received light at longer sensing distances.

The amplifier includes automatic power control (APC) for LED current regulation. The APC circuit maintains controlled optical output performance during continuous operation.

Ordering Information

1 x Omron E3X-MDA11 2M Digital Fiber Sensor Amplifier
1 x 2 m pre-wired connection cable
1 x Instruction manual
Compatible fiber sensor heads must be ordered separately
