Product Overview

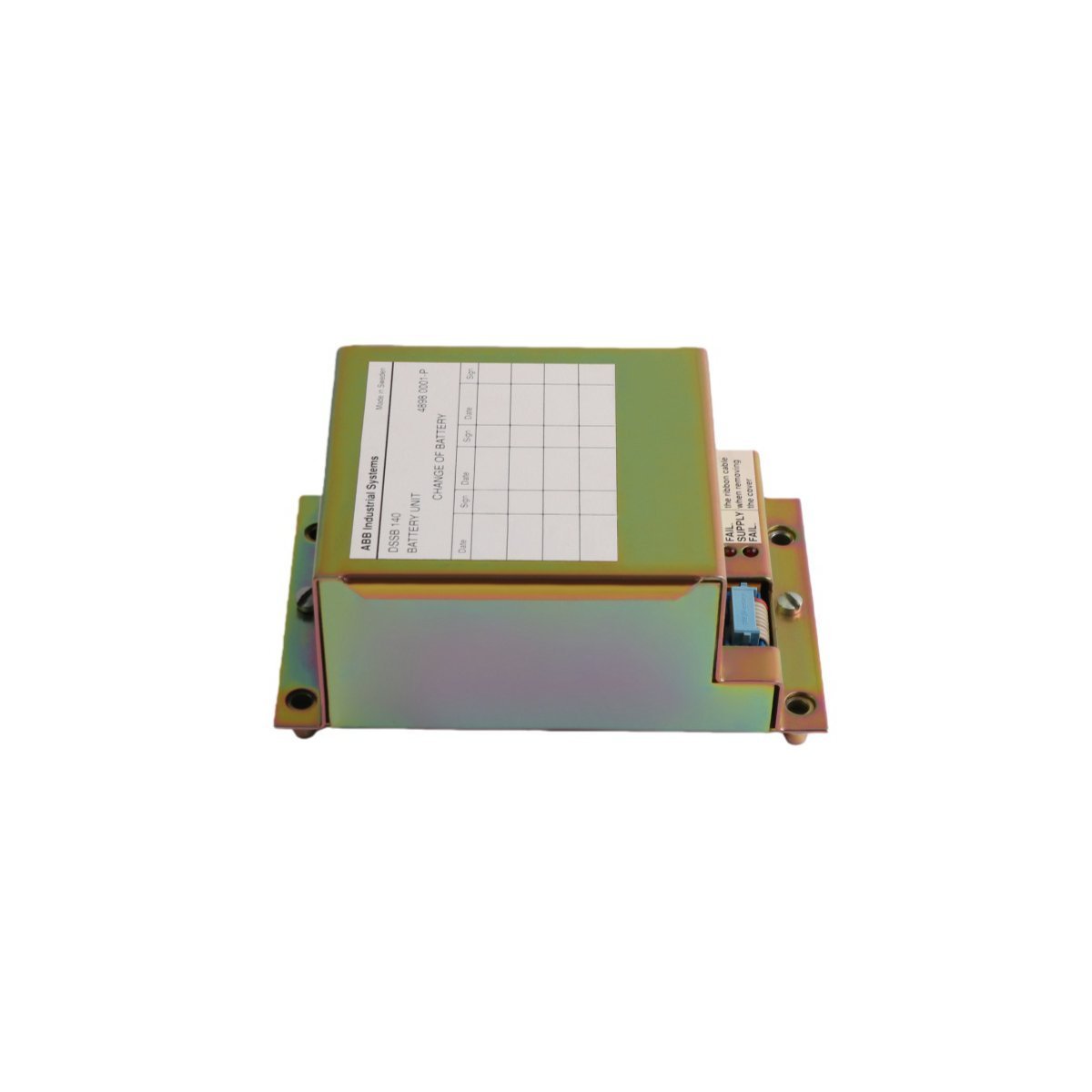

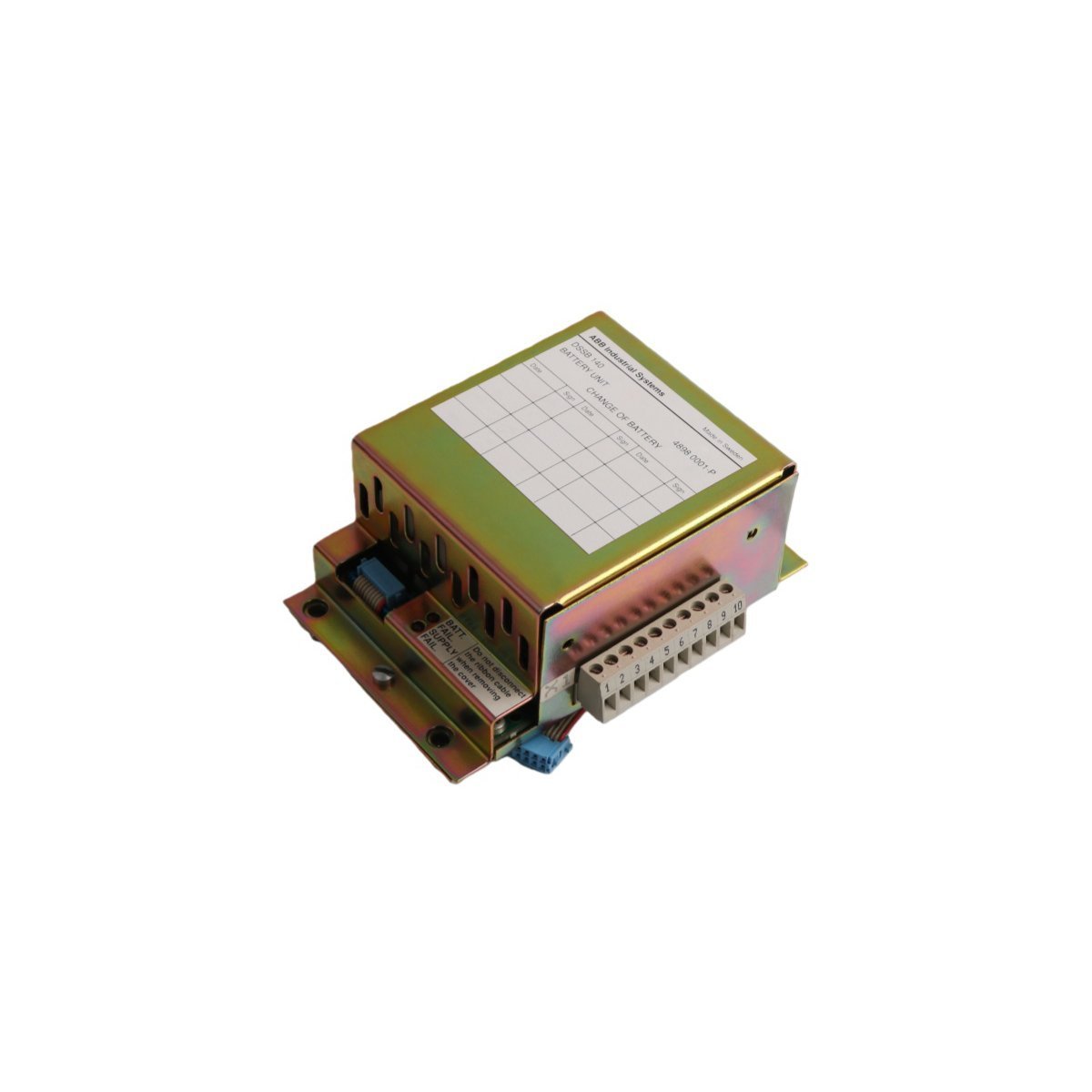

The DSSB140, identified by part number 48980001-P, is a specialized battery housing and interface module designed specifically for the ABB Advant Master process control family. This unit serves as the essential power backup hardware for volatile memory protection and real-time clock maintenance during main power excursions. Engineered to provide a secure mechanical and electrical connection point, the DSSB140 ensures that critical system parameters and application data are retained within MasterPiece 200 controllers and associated power supplies. Please note that this unit is provided as the interface and mounting assembly; batteries are typically sourced separately to meet specific site maintenance cycles.

Hardware Parameters and Technical Specifications

The DSSB140 is built to exacting industrial standards, ensuring seamless mechanical fitment and long-term electrical reliability within DCS cabinets.

• Manufacturer ABB

• Model Designation DSSB140

• Order Number 48980001-P

• Module Type Battery Backup Unit / Interface Module

• System Compatibility Advant Master, MasterPiece 200 (MP200)

• Functionality Data retention and backup power routing

• Mounting Format Integrated chassis mount for DCS power supply racks

• Construction Industrial-grade heat-resistant polymer and alloy

• Compliance Exempt from RoHS 2011/65/EU (Industrial high-reliability category)

• Physical Mass 1.22 kg (2.69 lbs)

• Unit Dimensions 24 cm x 19 cm x 5.3 cm

• Manufacturing Origin Sweden

• HS Code 8537101190

Industrial Applications and Operational Use Cases

The DSSB140 is a fundamental component for facilities utilizing ABB Advant OCS platforms where data persistence is a regulatory or operational requirement.

• MasterPiece 200 Memory Protection Providing the localized voltage source required to prevent the loss of RAM-resident user programs and system configurations during facility shutdowns.

• Continuous Process Industries Serving as a fail-safe power link for controllers in refineries and chemical plants where a "cold start" due to memory loss would result in significant production delays.

• Substation Automation Ensuring the real-time clock (RTC) remains synchronized for accurate event logging and time-stamping during power grid disturbances.

• Redundant Power Configurations Operating alongside secondary power supplies to provide a third-tier energy source for mission-critical logic solvers.

• System Maintenance and Overhaul Acting as a drop-in replacement for aging Advant Master hardware, allowing for easy battery cell rotation without disrupting the permanent wiring of the rack.
