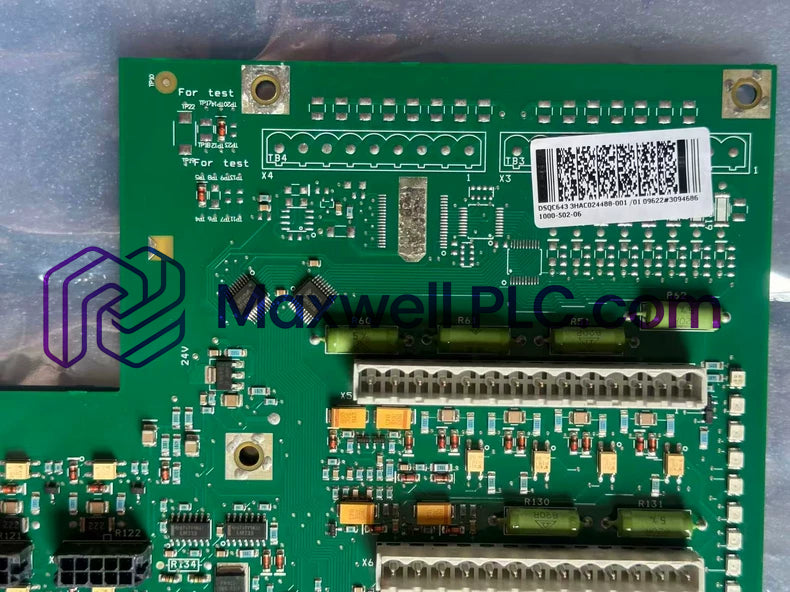

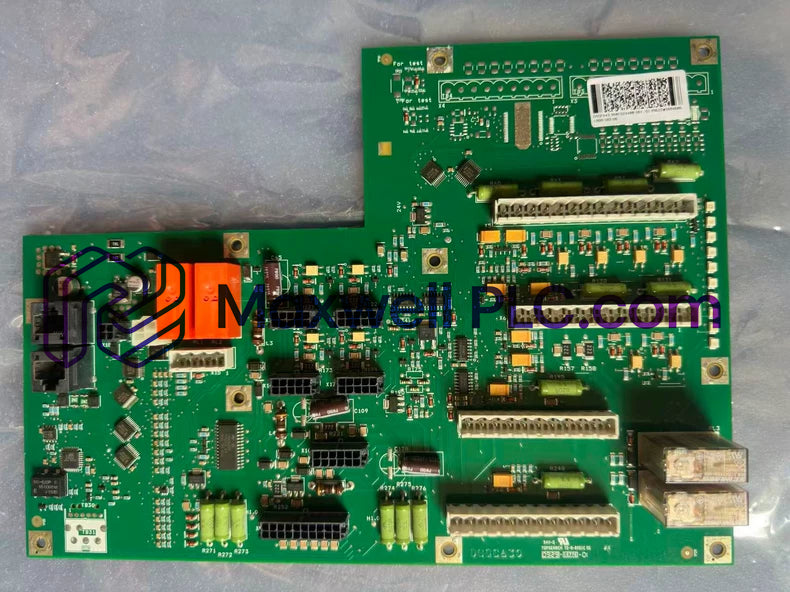

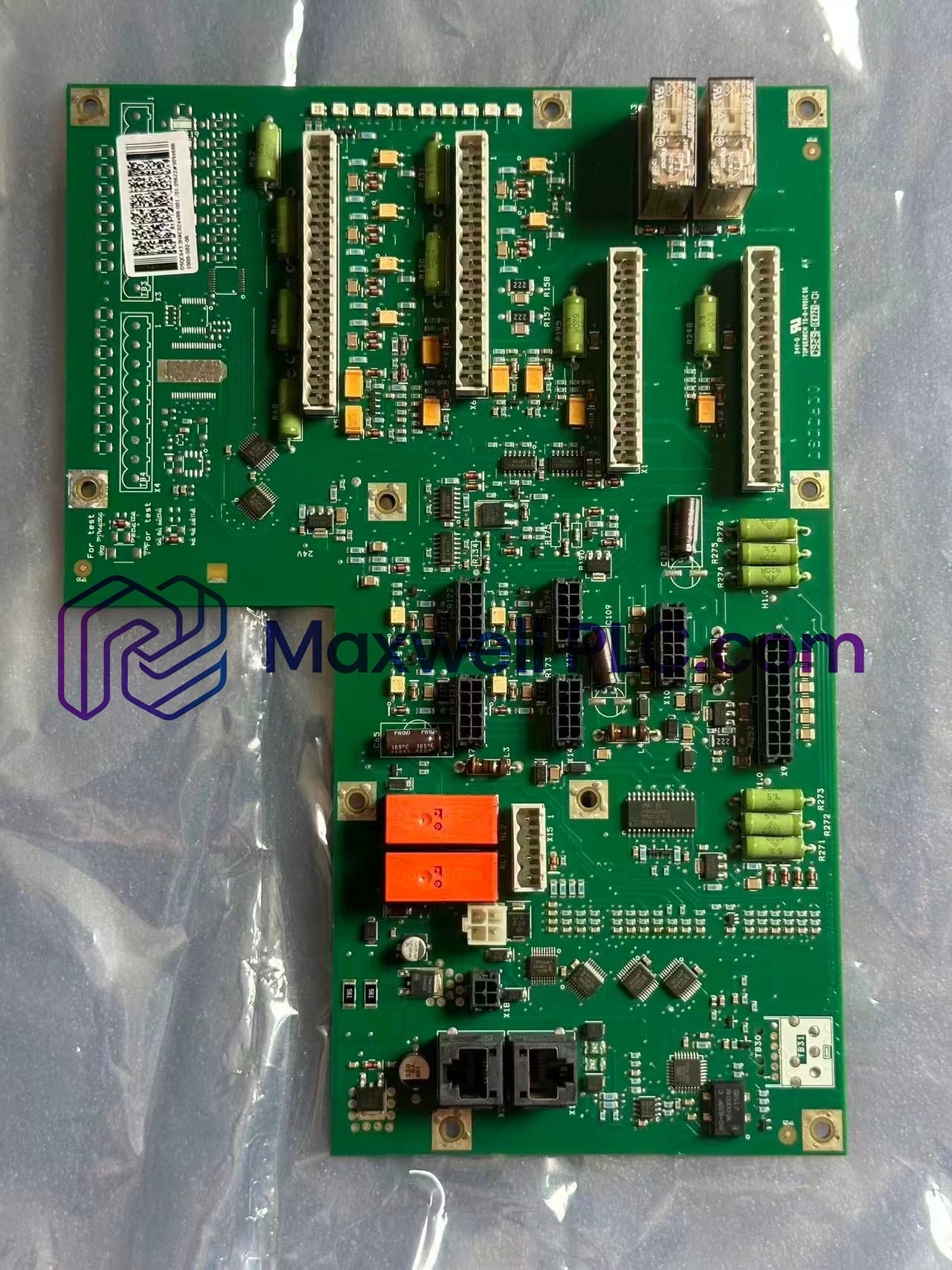

The ABB DSQC643, also cataloged as the 3HAC024488-001/01 Panel Board, operates as a dedicated hardware component for operator interface signal routing and power distribution within IRC5 robot controller cabinets featuring flat door designs.

Hardware Identification Matrix

• Primary Catalog Number: DSQC643

• Manufacturer Part Number: 3HAC024488-001/01

• Component Classification: Printed Circuit Board (Panel Board)

• System Compatibility: ABB IRC5 Robotics Controllers (Flat Door Cabinets)

Mechanical & Electrical Parameters

Internal Control Network & Signal Integrity

The DSQC643 panel board routes safety signals, emergency stop loops, and mode selection data directly into the IRC5 main computer architecture. Operating across proprietary ABB robot control buses, the board supports firmware flash compatibility during major system upgrades and maintains high-speed backplane bus communication velocity with the axis drive modules. By centralizing front-panel physical inputs, the DSQC643 ensures deterministic execution of operator commands without introducing signal latency into the robot's primary motion control algorithms.

Content of Delivery

• 1 x ABB DSQC643 (3HAC024488-001/01) Panel Circuit Board

Cabinet Installation & Maintenance Protocols

• Power down the IRC5 controller and engage the main rotary disconnect switch before opening the cabinet door.

• Disconnect all multi-pin ribbon cables and discrete wiring harnesses from the existing panel board, noting their original terminal locations.

• Remove the mounting standoffs securing the DSQC643 to the flat door interior panel.

• Align the replacement board with the mounting studs and secure using appropriate antistatic hardware.

• Reconnect all harnesses, ensuring locking tabs on ribbon cables click firmly into their headers.

Technical Clarifications

• Is the DSQC643 compatible with all ABB IRC5 cabinet types?

  No. This specific board (3HAC024488-001/01) is engineered exclusively for IRC5 controller cabinets equipped with a flat door design, and will not fit appropriately in standard pitched-door variants.

• Does this panel board process primary servo motor drive currents?

  No. The DSQC643 manages low-voltage logic signals, mode switch states, and operator interface data; it does not handle high-current drive power for the robot axes.

• Can the board be replaced while the IRC5 controller is powered?

  No. The controller cabinet must be fully de-energized to prevent short circuits and logical faults within the robot's main computer when disconnecting panel harnesses.

• Does the DSQC643 require specialized software calibration after replacement?

  Typically, no. The board functions primarily as a hardware routing and interface layer. The main IRC5 computer will recognize switch states immediately upon reboot.

• Are there replaceable fuses located directly on the DSQC643 board?

  Depending on the specific hardware revision, some low-voltage control circuits routed through the panel board may incorporate surface-mount or miniature cartridge fuses for localized protection.

• What are the physical dimensions of the DSQC643 shipping package?

  The replacement board ships in a static-shielded package measuring 28.0 x 20.3 x 2.7 cm, weighing exactly 0.4 kg.

• How are field wiring connections made to this circuit board?

  Connections are established via locking header strips and keyed ribbon cable connectors designed to prevent reversed polarity insertion during assembly.

• Does this component include the external mode selection keyswitch?

  No. The DSQC643 is the internal printed circuit board only. External hardware such as the mode selector switch or emergency stop button must be transferred or ordered separately.
