Product Overview

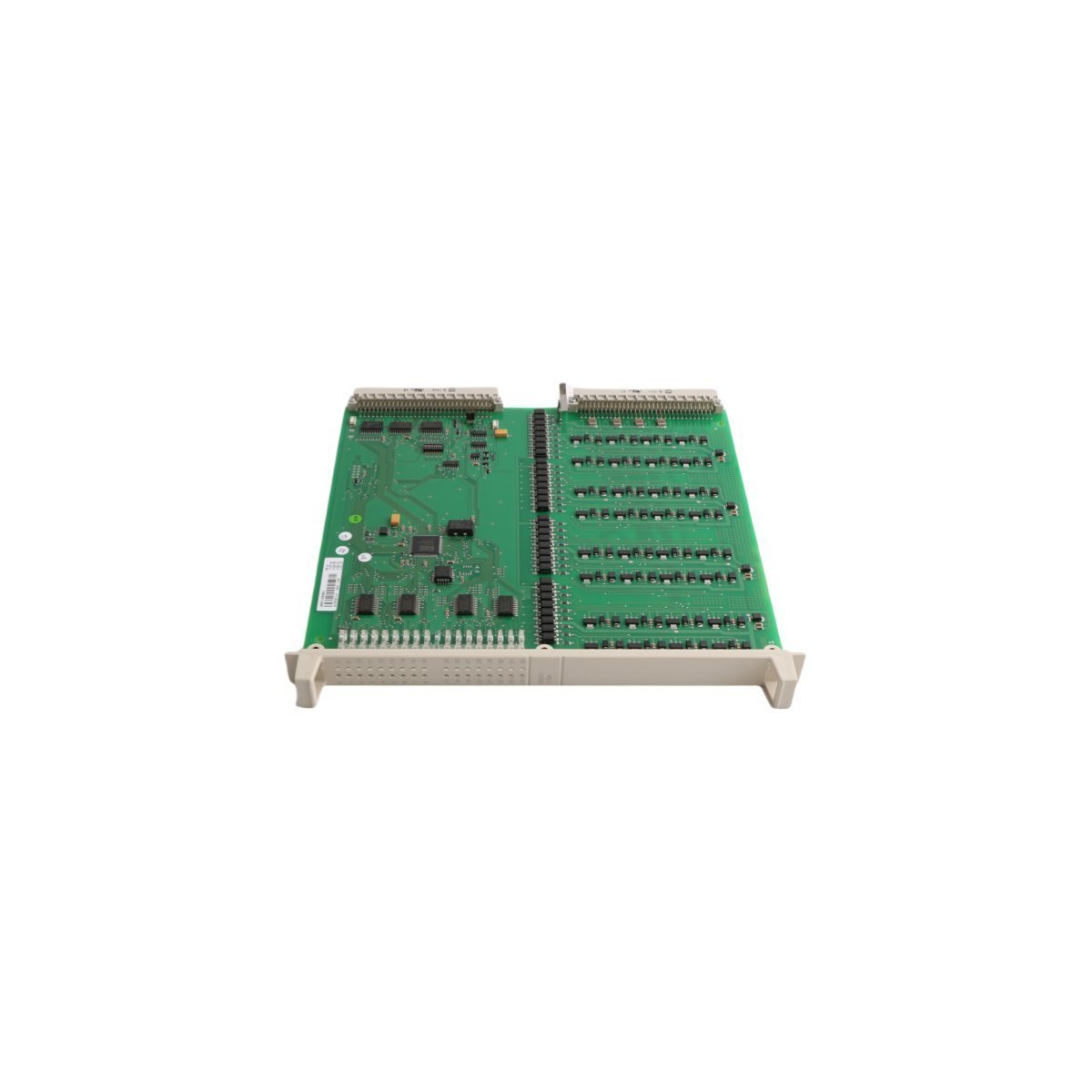

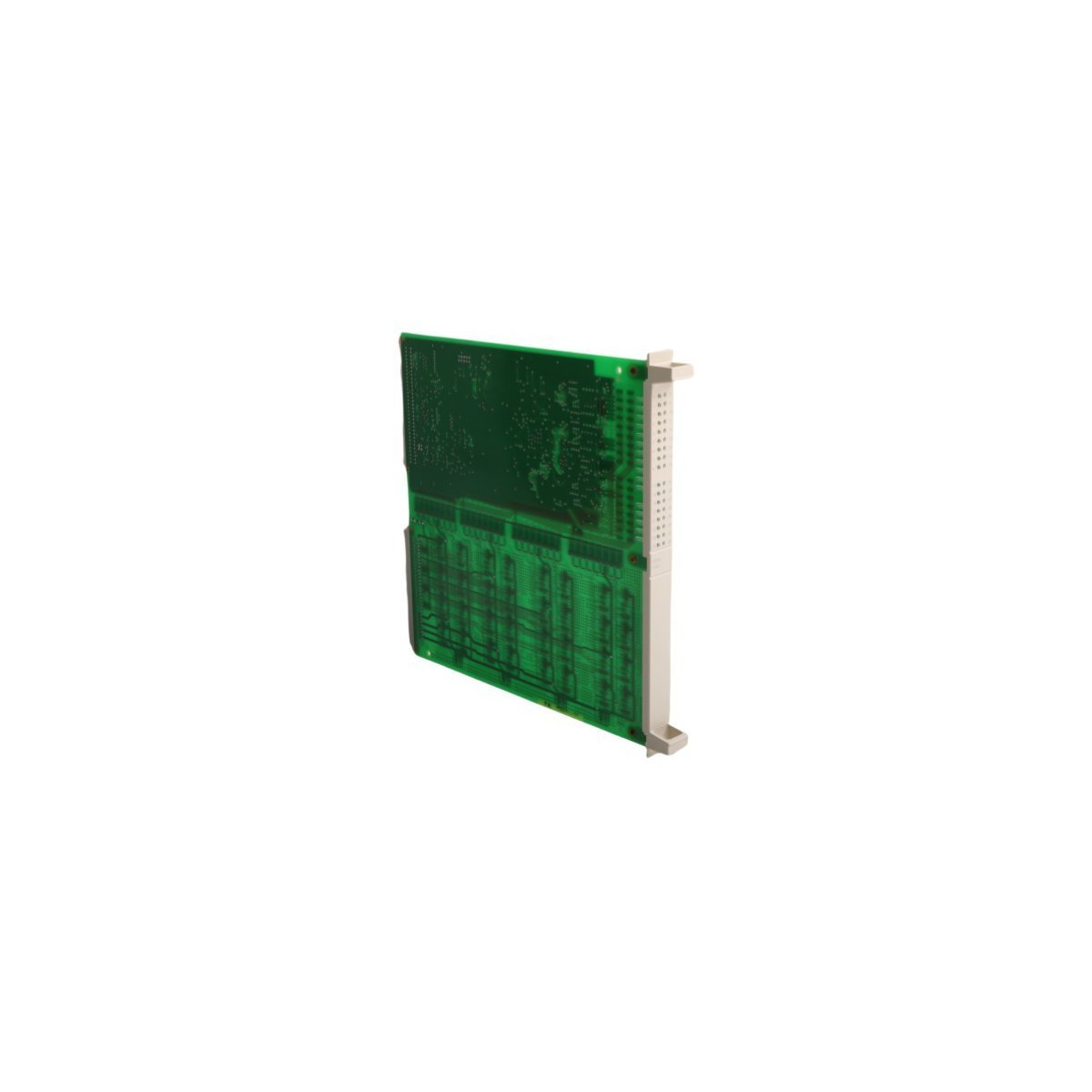

The 3BSE018298R1, designated as the DSDO115A, is a high-density digital output interface designed for the ABB S100 I/O rack system. This module provides 32 isolated channels, allowing for the precise management of discrete field devices within Advant OCS and MasterPiece 200 architectures. As a critical component for Distributed Control Systems (DCS), the DSDO115A converts internal controller logic into physical electrical signals to drive industrial loads. Its high-channel density significantly reduces the physical footprint within control cabinets while maintaining robust galvanic isolation between the control electronics and the field environment.

Engineering Specifications and Capabilities

• Model Number | DSDO115A

• Order Code | 3BSE018298R1

• Channel Density | 32 Independent Digital Outputs

• Isolation | Galvanically isolated channels to prevent ground loops

• Current Capacity | Rated for up to 2A per channel (load dependent)

• Switching Characteristics | High-speed response for rapid logic execution

• Diagnostic Interface | Per-channel LED status indicators for real-time monitoring

• Redundancy Support | Configurable for dual-board redundant operation

• Physical Weight | 0.32 kg

• Dimensions | 2 x 24.9 x 24.4 cm

• Country of Origin | Sweden

• Environmental Compliance | RoHS certified for industrial safety

Industrial Application Environments

The DSDO115A is optimized for large-scale automation where high-density switching and reliability are paramount:

• Energy and Utility Management: Managing large banks of relay coils and status indicators in power distribution centers and substations.

• Heavy Process Automation: Controlling 24V DC solenoid valves and pneumatic actuators in chemical processing and oil refineries.

• Motor Control Centers (MCC): Providing discrete start/stop signals and interlock logic for high-voltage motor starters.

• Automated Production Lines: Handling complex output sequences for sorting mechanisms, conveyors, and assembly station lighting.

• DCS Infrastructure Expansion: Enabling the scaling of existing Advant OCS systems by providing cost-effective, high-density I/O points in a single rack slot.
