Product Overview

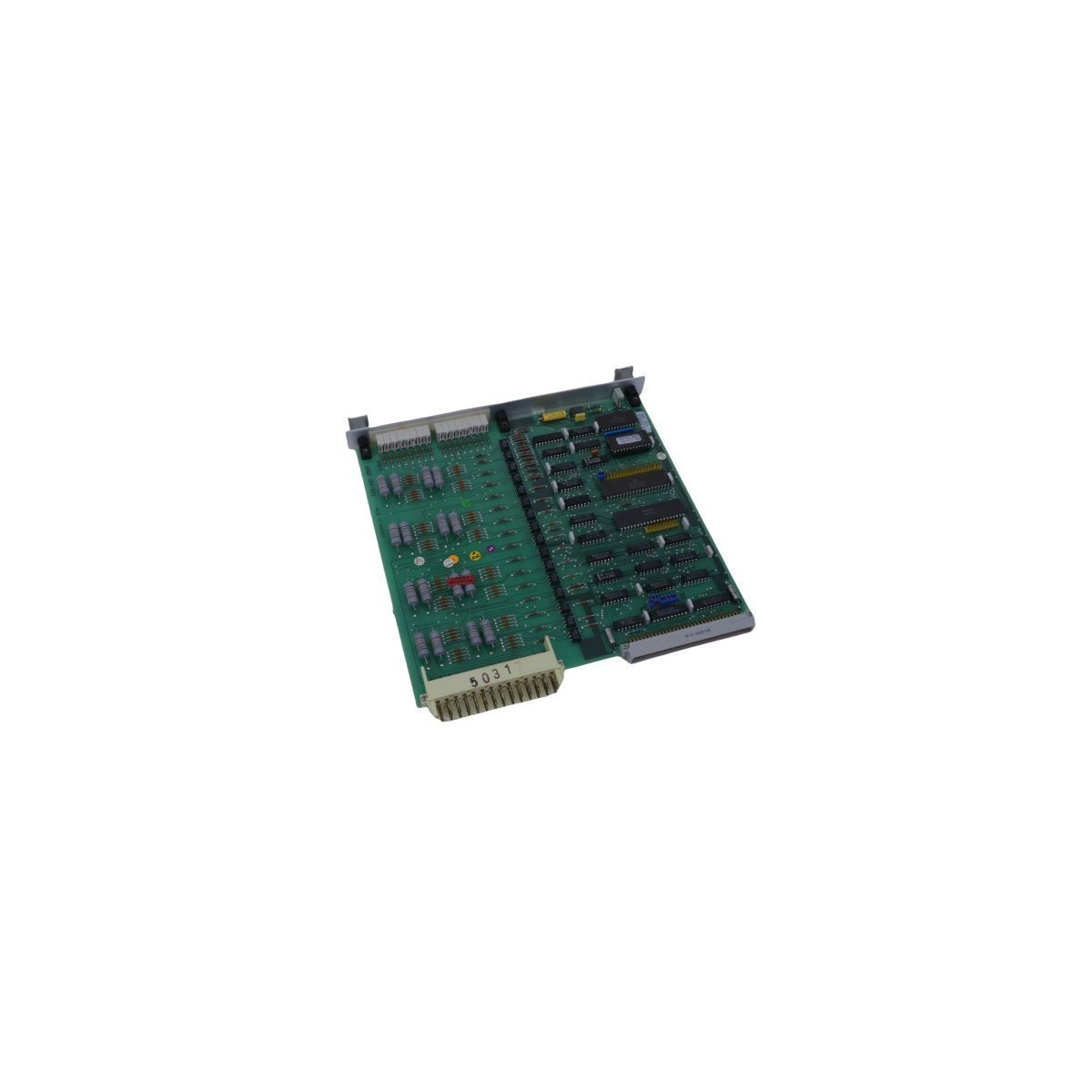

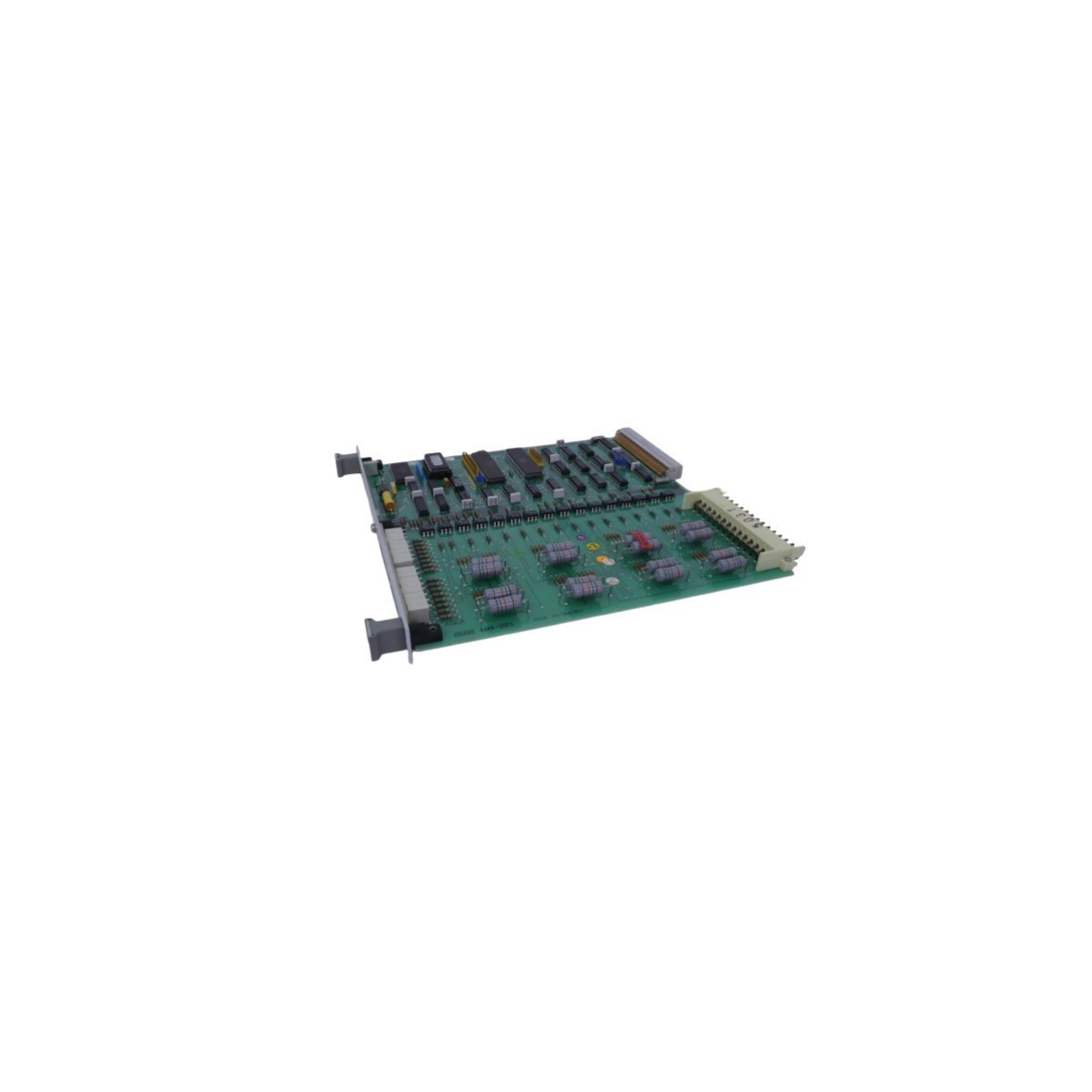

The DSDI130 is a specialized Analog Input Unit belonging to the ABB S100 I/O series, designed for high-fidelity signal acquisition within Distributed Control Systems (DCS). This module serves as a precision interface, converting continuous physical variables from the field—such as pressure, temperature, and flow—into digital data for the controller. Engineered to maintain signal integrity in electrically noisy environments, the DSDI130 utilizes sophisticated filtering and galvanic isolation to prevent ground loops and interference. Its architecture is optimized for the MasterPiece 200 and Advant OCS systems, providing a reliable pathway for critical process variables that require high-resolution sampling and deterministic processing.

Performance Benchmarks and Hardware Configurations

The DSDI130 is characterized by its high-resolution Analog-to-Digital (A/D) conversion and its ability to manage multiple signal types simultaneously with minimal drift.

• Module Designation: DSDI130

• Input Resolution: High-precision bit-depth for granular process monitoring

• Product Range: S100 I/O System

• Isolation Capabilities: Individual channel-to-system galvanic isolation

• Thermal Endurance: Hardened for reliable operation in extended temperature gradients

• Unit Mass: 0.46 kg

• Chassis Volume: 2.0 x 24.8 x 24.4 cm

• Signal Conditioning: Advanced noise rejection and low-pass filtering circuitry

• Integration Origin: Sweden

• System Hierarchy: DCS / Advant Master / MasterPiece

Professional Applications and Field Utility

The robust design and high precision of the DSDI130 make it a staple in heavy process industries where accurate sensor feedback is essential for plant safety and efficiency.

• Process Loop Regulation: Ideal for PID control loops in chemical refineries where minor deviations in analog input can affect product quality.

• Power Generation Monitoring: Used to track turbine temperatures and generator fluid pressures, providing real-time data to protective relay systems.

• Metals and Mining: Facilitates the precise positioning and tension control of rolling mills through high-speed analog feedback from transducers.

• Legacy System Modernization: Acts as a direct replacement for older S100 units, allowing plants to maintain their existing I/O infrastructure while upgrading to modern control logic.

• Environmental Control Systems: Manages large-scale HVAC and emission monitoring sensors in hazardous industrial environments.
