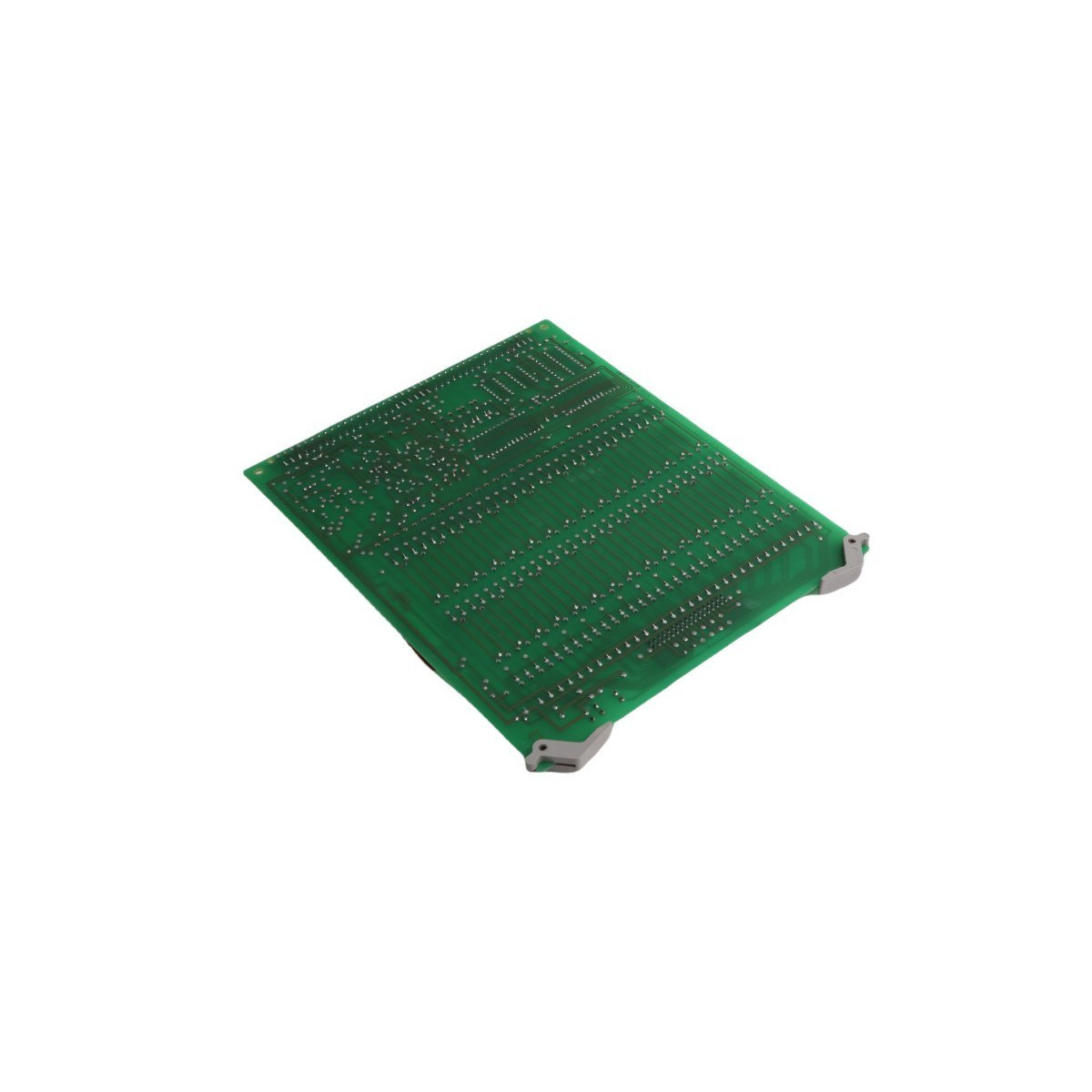

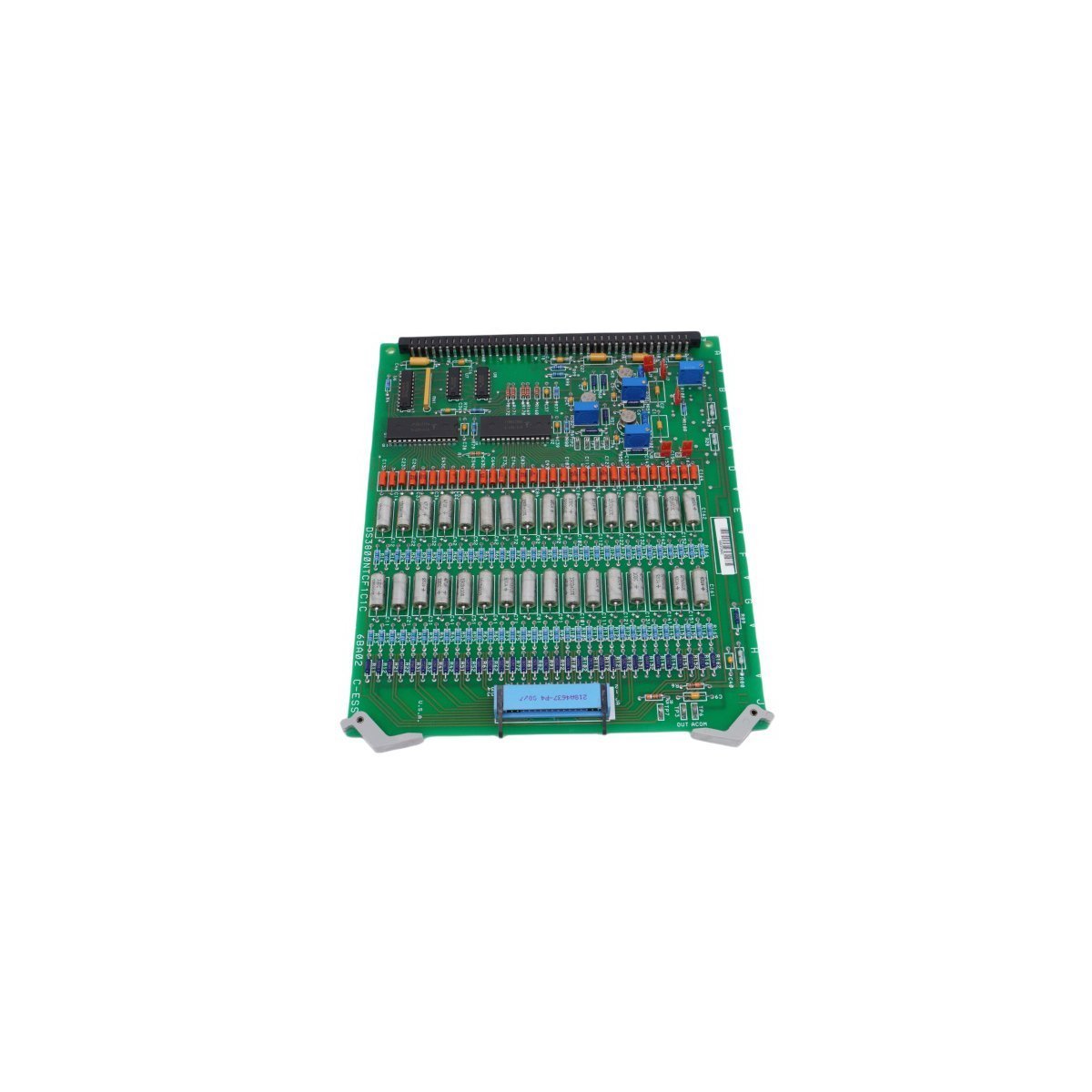

Product Overview

The DS3800NTCF1C1C is a specialized thermocouple conditioning PCB engineered by General Electric for the legacy Speedtronic Mark IV turbine control system. This module serves as a critical interface for thermal management, specifically designed to process high-temperature data from gas and steam turbine exhausts. As a refined version of the NTCF series, this board translates raw thermocouple millivolt signals into actionable data for the turbine's central processing logic. By monitoring real-time exhaust temperatures and comparing them against established safety setpoints, the card ensures that combustion remains stable and that the engine operates within safe thermal limits.

Hardware Architecture and Physical Specifications

• Weight: 0.3 kg

• Dimensions: 19.2 x 1.7 x 23.4 cm

• Control Interface: Equipped with four onboard potentiometers for precise voltage calibration and signal offset adjustment.

• Configuration Logic: Features five jumper switches and a resistor network to customize the card's behavior within the DCS loop.

• Connector Standards: Utilizes 218A4637-P4 and 218A4553-1 (Amp 533002-1) PCB connectors for secure system integration.

• Component Composition: High-stability polyester film and ceramic capacitors paired with metal film resistors to minimize thermal drift.

• Installation Features: Built-in nylon extractor clips facilitate rapid insertion and removal during maintenance intervals without damaging the PCB traces.

• Origin: Manufactured in the USA.

Critical Turbine Control Applications

In industrial power generation and mechanical drive environments, the DS3800NTCF1C1C is essential for maintaining the operational integrity of Speedtronic MKIV systems. Its primary deployments include:

• Exhaust Temperature Regulation: Typically deployed in a bank of thirteen identical cards to provide redundant, voting-logic monitoring of turbine exhaust spreads.

• Combustion Protection: Identifying signal corruption or temperature spikes to prevent engine damage or inefficient fuel combustion.

• Legacy System Maintenance: Serving as a direct replacement component for aging Mark IV control panels in gas and steam turbine facilities.

• Signal Normalization: Converting non-linear thermocouple inputs into stabilized signals suitable for the broader Distributed Control System (DCS) environment.
