DS3800NPSE1E1G General Electric Power Supply Module Mark IV
-
Dimensions: 23.8 x 17.7 x 4 cm
-
Country of origin: USA
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
The DS3800NPSE1E1G is a specialized Power Supply Board engineered by General Electric for the Speedtronic Mark IV turbine control system. This high-reliability module serves as a primary power distribution and regulation unit, ensuring that consistent and stabilized voltage is supplied to the sensitive logic and I/O circuits within the control rack. As a foundational component of the Mark IV architecture, the DS3800NPSE1E1G is designed to handle the rigorous demands of automated turbine operations, providing the electrical stability necessary for both gas and steam turbine safety systems. This board is critical for preventing system fluctuations that could lead to unplanned outages or hardware damage.
Technical Hardware Specifications and Topology
-

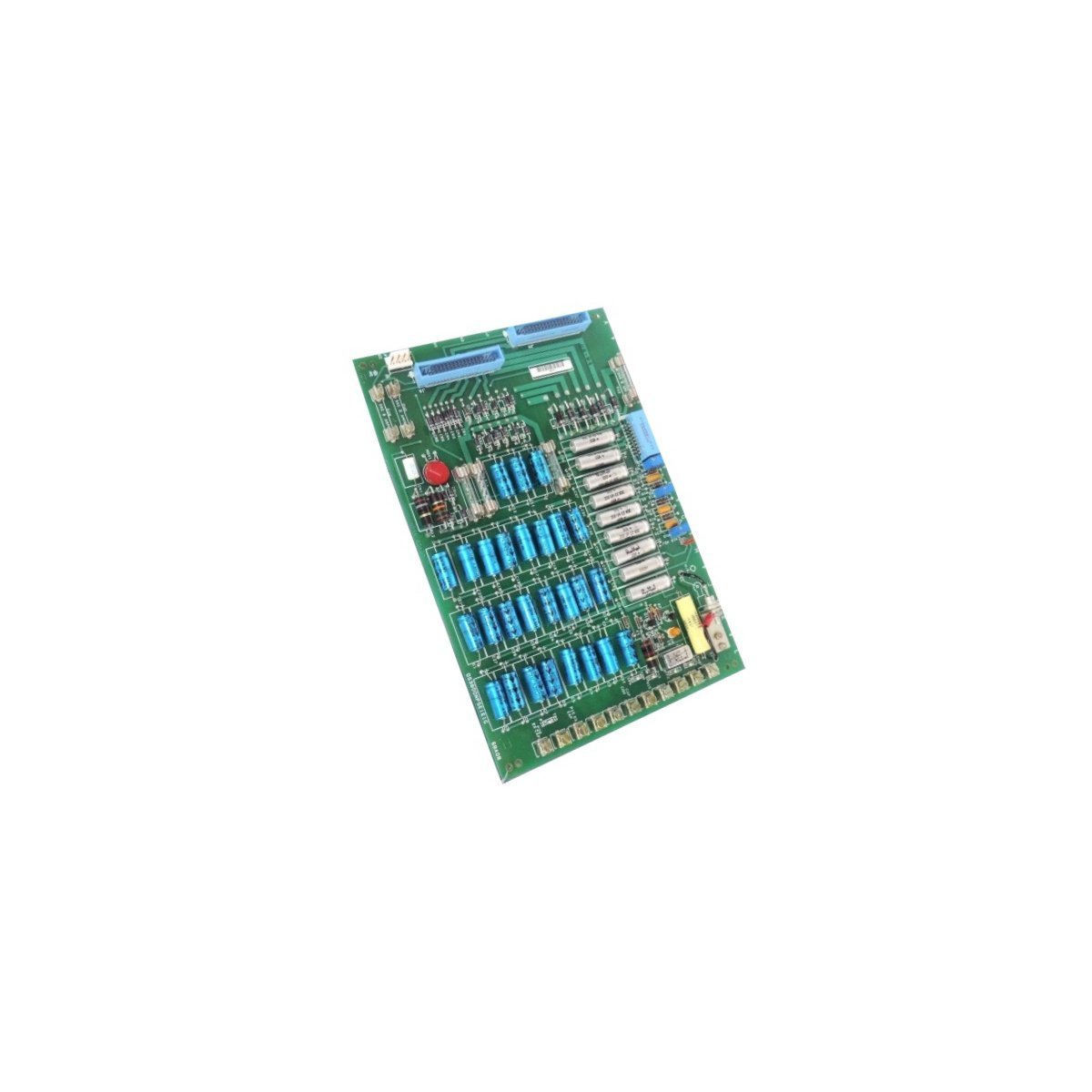

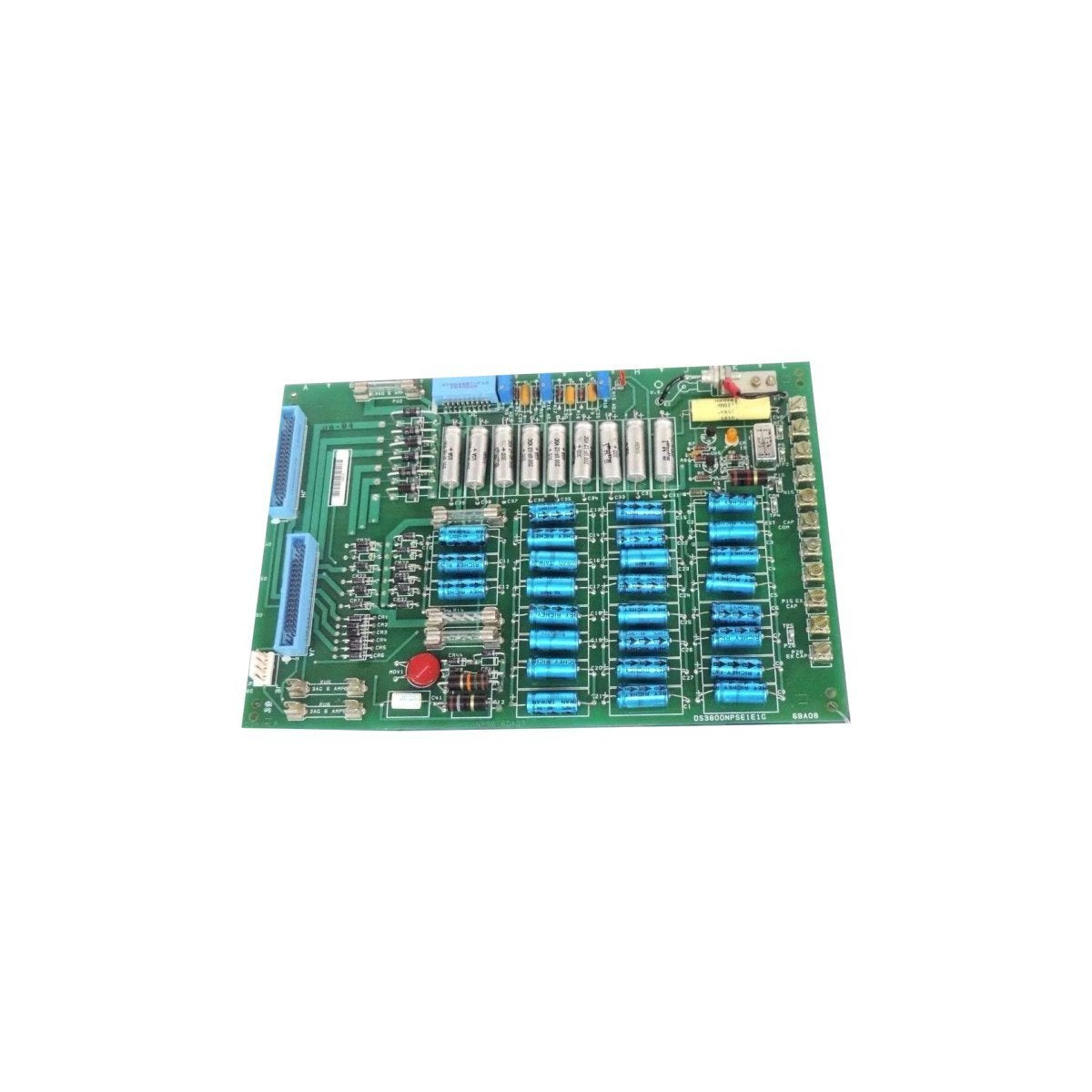

Capacitance Array: Features a high-density layout including 27 medium-sized blue electrolytic capacitors (C1-C27) for ripple filtering and 9 silver-housed capacitors (C31-C39) for energy storage.
-
Circuit Protection Suite: Integrated with four primary fuses and two auxiliary fuse expansion slots to safeguard the downstream electronics from overcurrent events.
-
Overvoltage Suppression: A Metal Oxide Varistor (MOV) is strategically positioned to clamp voltage spikes, protecting the system from industrial electrical surges.
-
Signal Interfacing: Equipped with two vertical light-blue male connectors on the left-hand flank and an additional localized connector at the top edge for system bus integration.
-
Calibration Controls: Three precision potentiometers are mounted at the top of the PCB, allowing technicians to manually calibrate resistance and voltage output levels.
-
Rectification and Flow: An array of 24 specialized black and grey diodes manages directional current flow to maintain DC rail integrity.
-
Form Factor: Standardized dimensions of 23.8 x 17.7 x 4 cm, optimized for the legacy Mark IV rack-mount footprint.
Primary Industrial Operations and Deployment
The GE DS3800NPSE1E1G is utilized in large-scale power generation and industrial environments where power consistency is non-negotiable. Its applications include:
| Application Context | Operational Value |
| Mark IV Turbine Control | Providing the primary DC power rails for gas and steam turbine governing systems. |
| Safety Loop Integrity | Ensuring that trip circuits and emergency logic boards have constant, filtered power. |
| Legacy DCS Maintenance | Serving as a critical replacement part for aging Speedtronic systems to maintain asset availability. |
| Cogeneration Facilities | Regulating power for automated turbine drives in combined heat and power (CHP) plants. |
| Voltage Regulation | Acting as a buffer against fluctuations in plant-side auxiliary power supplies. |
