Product Overview

The DS3800NGDC1A1A is a specialized safety monitoring component engineered for the General Electric Speedtronic Mark IV turbine control ecosystem. This Ground Detector Board functions as a critical diagnostic tool, continuously sensing electrical leakage or ground faults within the control system’s circuitry. By identifying insulation breakdowns or unintended grounding paths early, it protects gas and steam turbine assets from catastrophic electrical failure and unscheduled downtime. This board is an integral part of the system's fault-detection layer, ensuring that startup, synchronization, and power generation occur within strictly defined safety parameters.

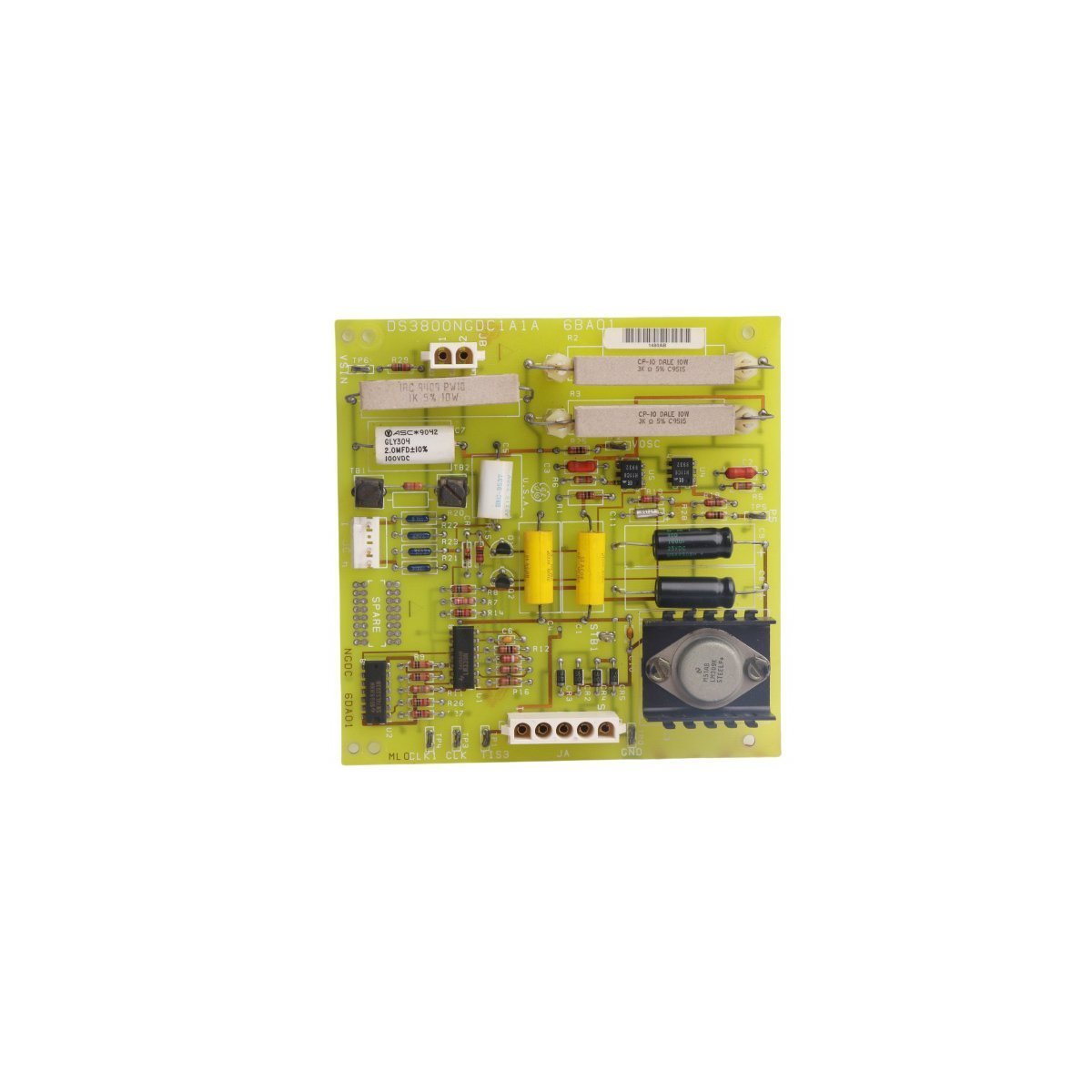

Component Architecture and Hardware Configuration

The DS3800NGDC1A1A is built with high-specification discrete electronics to ensure precision sensing and long-term thermal stability.

• Integrated Circuits: Features four specialized ICs designed for signal processing and fault logic.

• Thermal Management: Includes a heavy-duty Motorola NPN power transistor mounted to a dedicated heat sink to handle power dissipation.

• On-Board Diagnostics: Equipped with six precision test points (TP0-TP5), with TP0 serving as the primary reference ground for field calibration.

• Capacitance Ratings: Utilizes Seacor 600V DC foil and film capacitors alongside high-stability 25V 100μF electrolytic capacitors.

• Power Resistors: Features three cement wire-wound resistors, two of which are elevated via nylon standoffs to promote airflow and prevent heat transfer to the PCB.

• Connection Interface: Contains a 3-pin male header, a two-position terminal block, and a five-position PC mount strip for versatile wiring.

Strategic Industrial Applications

The deployment of the DS3800NGDC1A1A is vital for high-availability energy environments where electrical integrity is paramount.

Gas Turbine MonitoringIn GE Speedtronic gas turbine setups, this board monitors the DC control bus for ground faults that could interfere with sensitive fuel valve positioning or ignition sequences.

Steam Turbine ProtectionUsed in utility-scale steam plants to prevent control logic corruption caused by stray currents, ensuring that overspeed protection and governor controls remain isolated and reliable.

DCS Fault IsolationWithin a Distributed Control System (DCS) framework, the DS3800NGDC1A1A provides real-time alerts for grounding issues, allowing maintenance teams to localize faults to specific racks without shutting down the entire plant.

Harsh Environment Power GenThe board's robust construction—featuring elevated resistors and high-voltage film capacitors—makes it suitable for the thermal fluctuations and electromagnetic interference typical of industrial power houses.
