Product Overview

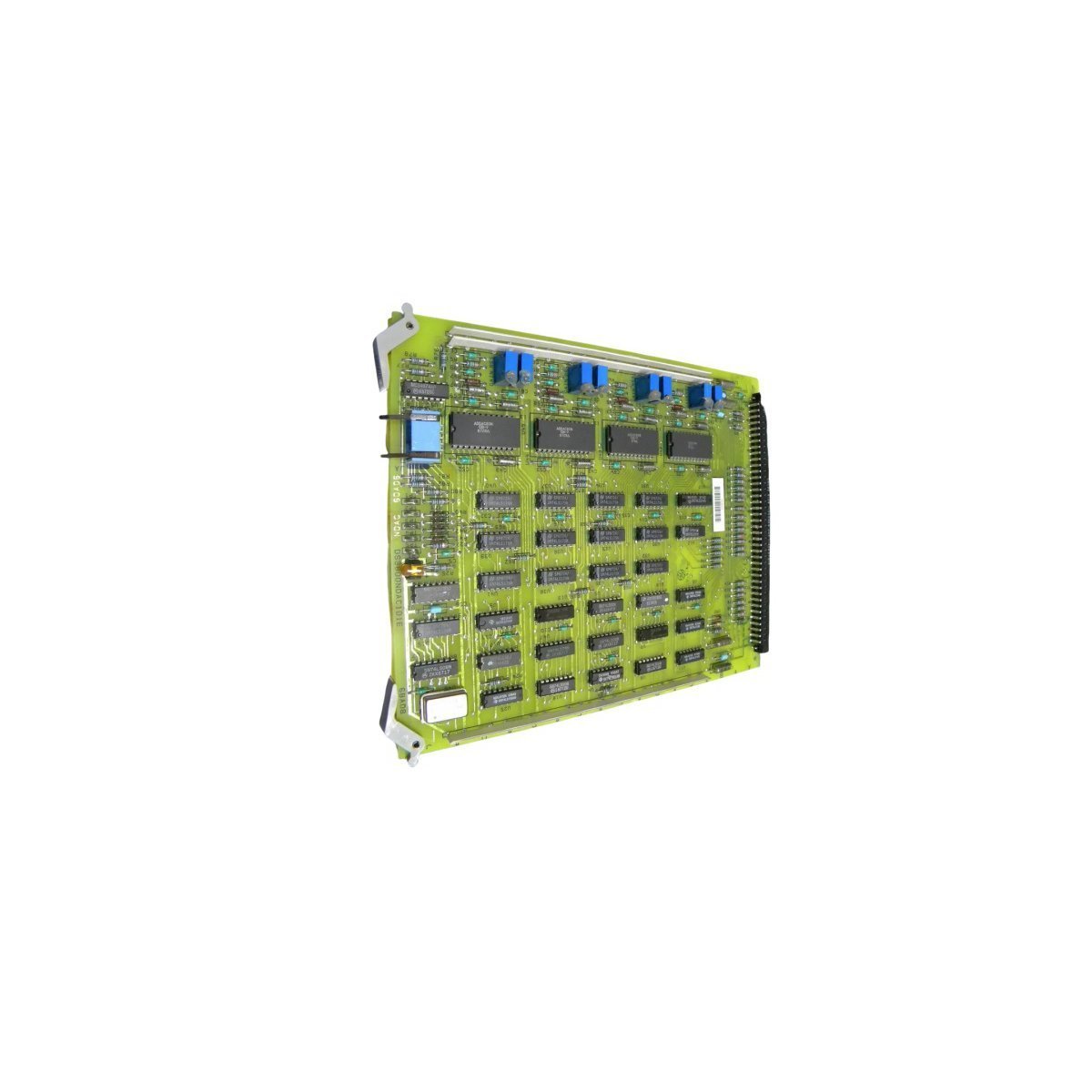

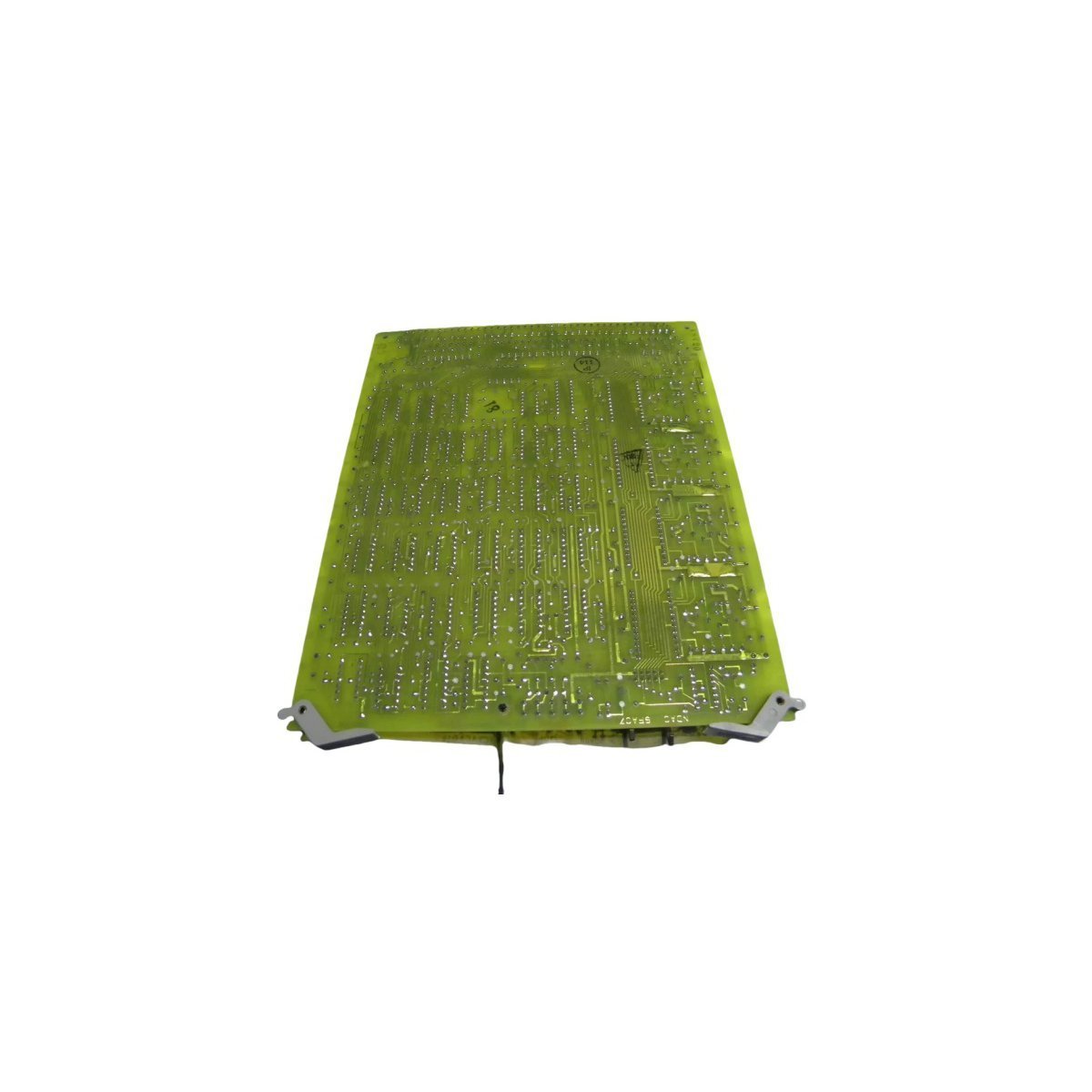

The DS3800NDAC1D1E is a high-precision analog output circuit board manufactured by General Electric as a foundational component for the Speedtronic Mark IV turbine control system. This module is engineered to convert digital control logic into the continuous analog signals required to drive field actuators, valves, and positioning instruments. Designed for high-reliability industrial automation, the board features a modular layout with clearly labeled sections (A through J) to facilitate rapid identification and maintenance within a DCS environment. As a genuine GE industrial component, it ensures seamless compatibility and restores the original control performance of legacy turbine management systems.

Hardware Configuration and Component Architecture

The DS3800NDAC1D1E utilizes a sophisticated array of timing and tuning components to maintain signal integrity across diverse operating conditions.

• Precision Tuning: Equipped with eight independent potentiometers (variable resistors), allowing technicians to fine-tune signal output levels for specific mechanical requirements.

• Memory and Logic: Features factory-programmed EPROMs that support field reprogramming for system updates, complemented by more than ten EEPROM chips containing essential operational firmware.

• Clock Integrity: An onboard crystal oscillator provides a stable, high-accuracy frequency source to ensure deterministic system timing.

• Visual Diagnostics: Integrated with a pale yellow LED status indicator that provides immediate visual confirmation of current flow and board activity.

• Interface Connectivity: Utilizes a robust 40-pin female plastic port for secure multi-channel communication with the Mark IV backplane.

• Component Density: The board architecture includes a specialized network of 74 resistors and multiple color-coded diodes to regulate internal voltage paths.

Industrial Applications and Strategic Utility

The DS3800NDAC1D1E Analog Output Card is deployed in critical control loops where signal deviation must be strictly minimized.

Gas and Steam Turbine ControlIn the power generation sector, this board is primarily used within Mark IV control racks to regulate fuel valve actuators and inlet guide vane (IGV) positions. The adjustable resistors allow for the precise calibration necessary to meet specific heat rate and emission targets.

Process Automation and DCS IntegrationBeyond turbine management, the DS3800NDAC1D1E serves as a reliable output interface for large-scale distributed control systems. It provides the stable 4-20mA or voltage signals required for complex chemical processing and refinery instrumentation.

Retrofit and Maintenance SupportThis board is an essential spare for facilities maintaining legacy GE infrastructure. Its reprogrammable EPROMs ensure that it can be adapted to various firmware revisions found across different Mark IV installations, providing a versatile solution for long-term asset lifecycle management.
