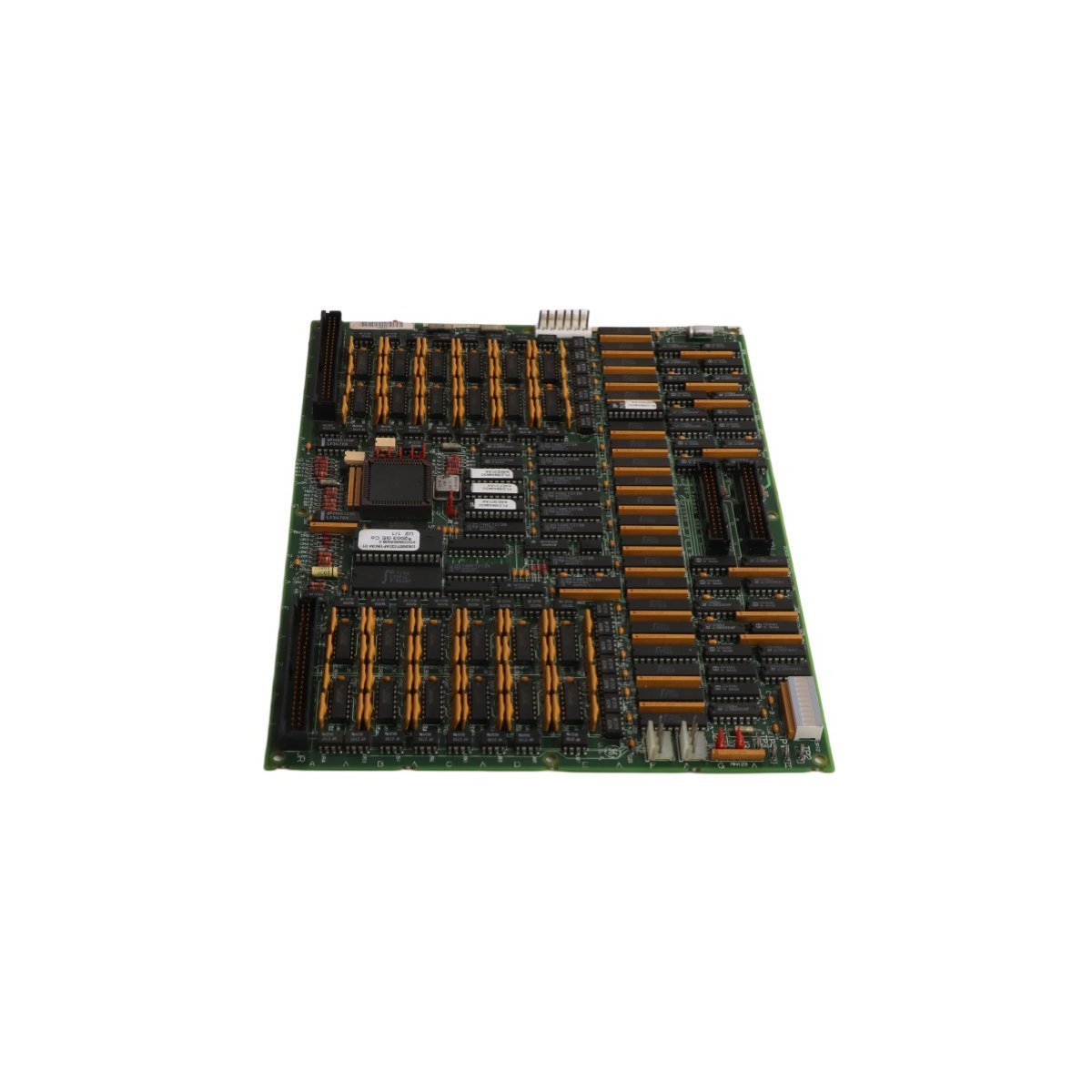

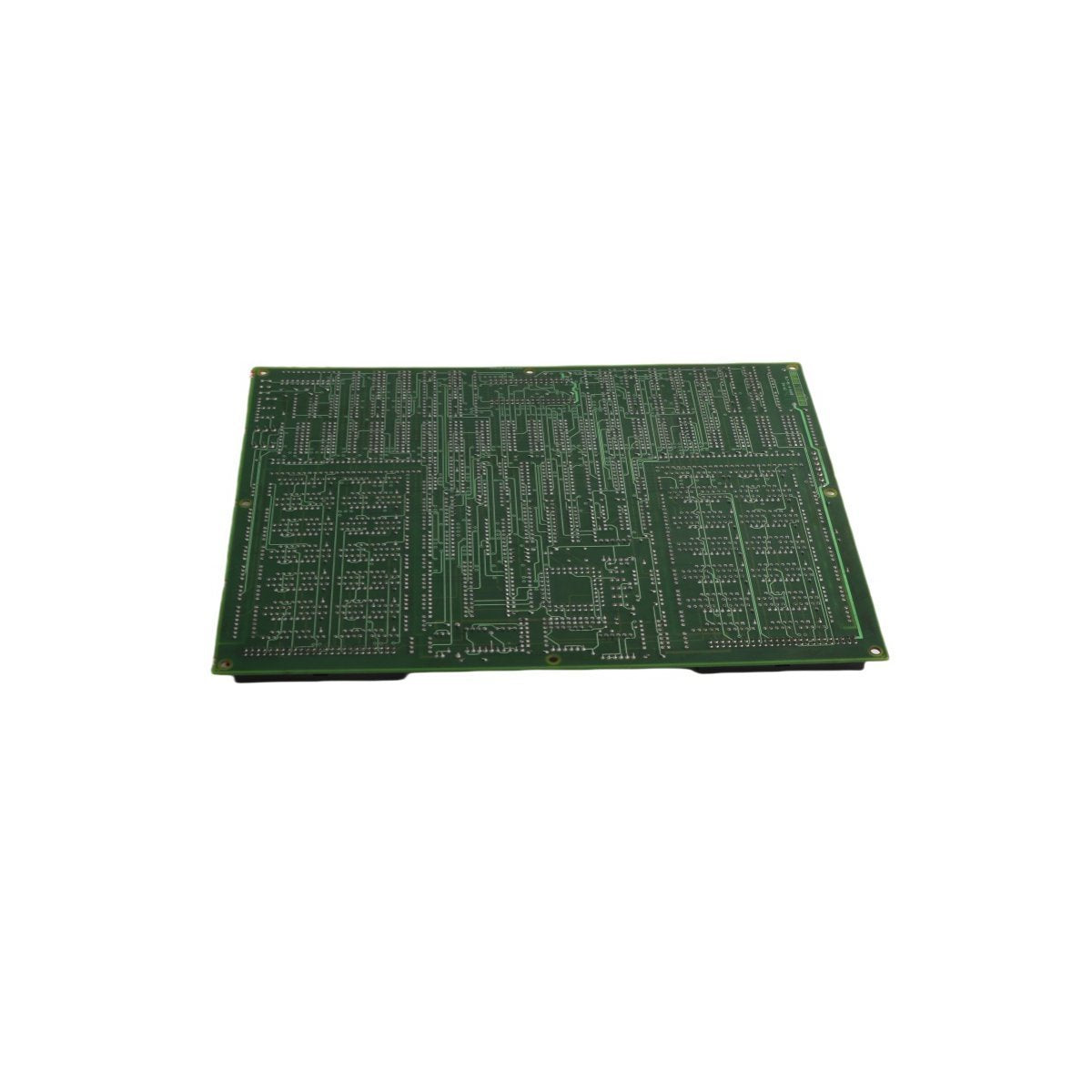

DS200TCTGG1A General Electric Mark V DS200TCTGG1AFF Simplex Trip Board
-
Dimensions: 28.8 × 7.2 × 3.8 cm
-
Country of origin: USA
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
The GE DS200TCTGG1AFF is a simplex trip board used in legacy Speedtronic turbine control assemblies to implement discrete trip and shutdown interfacing. The board is built around relay-based output switching, allowing the control system to drive trip-related circuits and route contact states through cabinet harnessing. In simplex architectures, this module supports a single-channel trip implementation where relay logic is used for permissives, shutdown paths, and turbine protection interlocks.
This board is typically installed within a Mark V rack/cabinet, and it is serviced as a replaceable relay module. Correct replacement requires matching the complete part number and revision to maintain connector pinout and relay allocation.
Hardware Parameters
| Item | Specification |
|---|---|
| Model / Part number | DS200TCTGG1AFF |
| Module category | Simplex Trip Board |
| Platform association | Mark V / Speedtronic legacy |
| Output method | Relay-based discrete trip switching |
| Relay count | 21 plug-in relays (K1–K21 identifiers commonly used) |
| Primary connectors | 3 × 50-pin connectors (JLY, JLX, JLZ) |
| Auxiliary connectors | 2 × 12-pin connectors (JN, JM) |
| Serviceability | Plug-in relays retained with metal straps for field replacement |
| Condition | Brand New |
| Lead time | In Stock |
| Weight | 0.32 kg |
| Dimensions (listing) | 28.8 × 7.2 × 3.8 cm |
| Country of origin (listing) | USA |
| HS code (listing) | 8537101190 |
| System category | DCS / turbine control |
-
Maintenance notes
-
De-energize the cabinet and follow lockout/tagout procedures before servicing trip circuits
-
Document relay positions and connector locations prior to removal to avoid miswiring during reassembly
-
Verify relay specifications and contact behavior against the site shutdown logic documentation after replacement
Industrial Applications
-
Simplex turbine trip and shutdown wiring in Mark V control cabinets
-
Relay output switching for permissive and protective interlocks in gas and steam turbine installations
-
Replacement module for installed-base Speedtronic systems where original relay trip topology is retained
-
Maintenance programs supporting legacy turbine controls where relay health and contact integrity are critical
