Product Overview

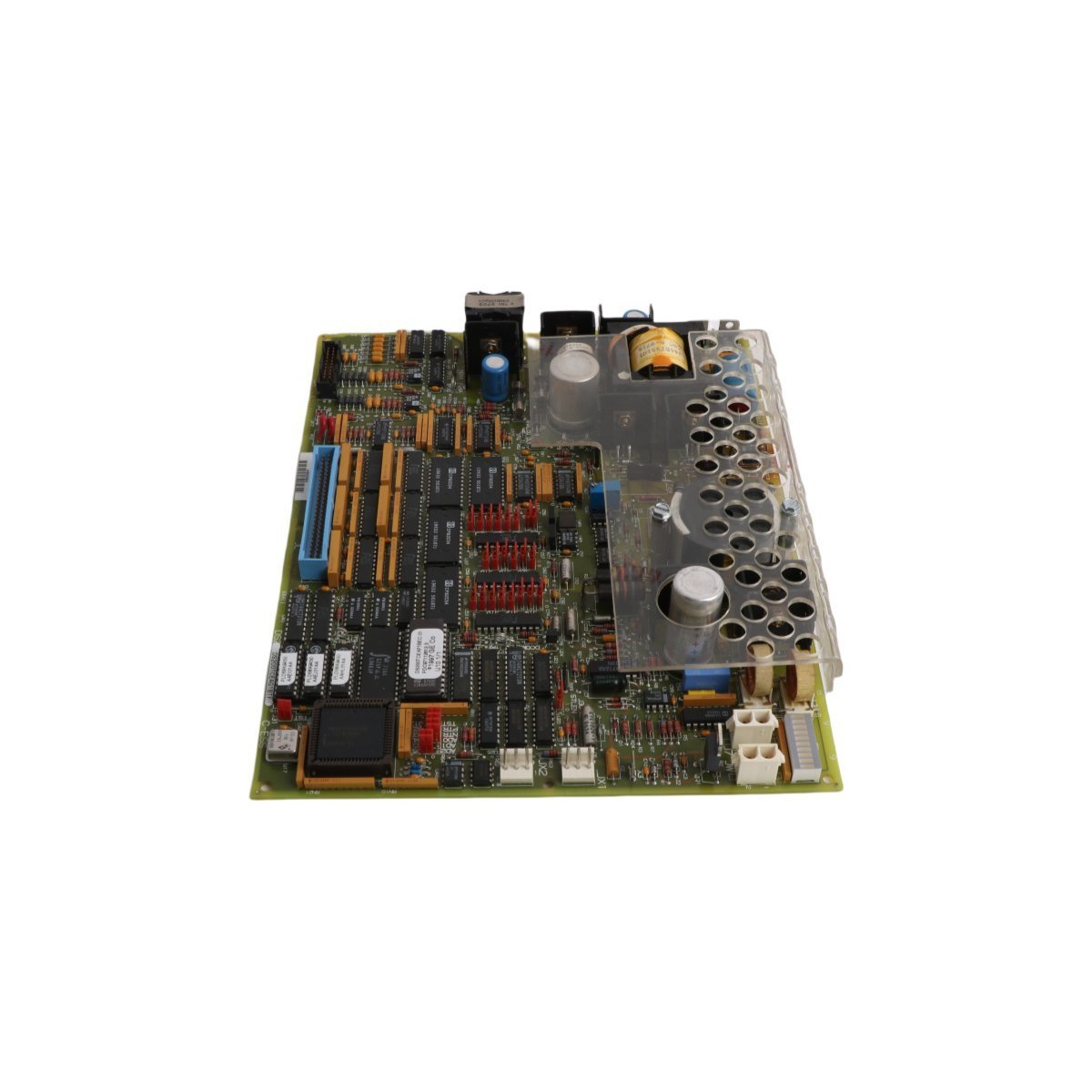

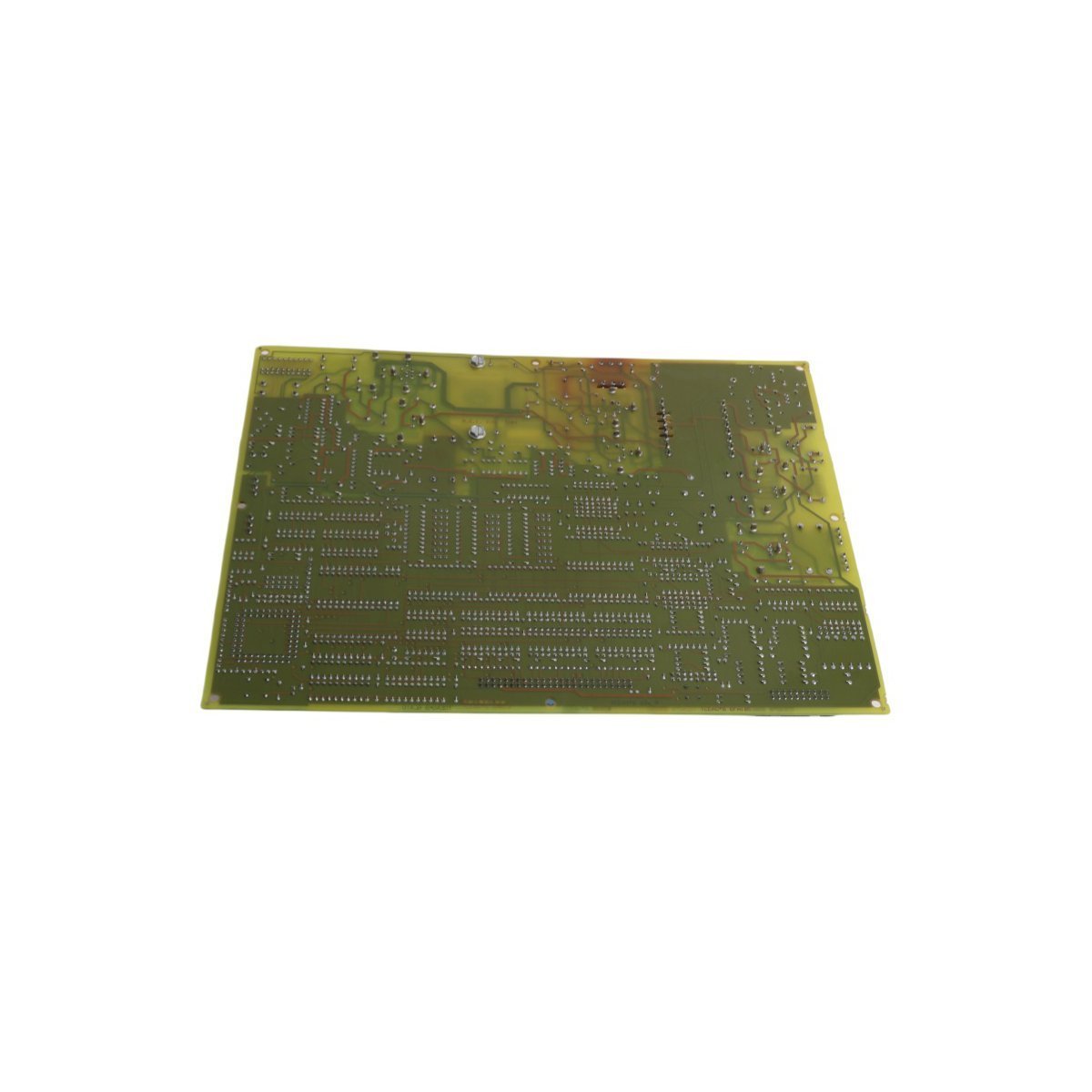

The DS200TCEAG1BSF is a high-integrity Emergency Overspeed Board engineered by General Electric specifically for the Speedtronic Mark V control system. This module functions as a critical safety watchdog, providing independent hardware-based protection for gas and steam turbines. Its primary role is to monitor high-speed pulse inputs and immediately trigger emergency trip sequences if rotational speeds exceed predefined safety thresholds. By integrating flame detection processing and emergency manual trip interfaces, the DS200TCEAG1BSF serves as a cornerstone of the turbine's protective shell, ensuring that mechanical failures are prevented even if the primary control processors encounter an error.

Hardware Performance and Environmental Ratings

The engineering specifications of the DS200TCEAG1BSF reflect its role in mission-critical safety environments:

• Logic Isolation: Features robust 1500V AC electrical isolation to shield sensitive control signals from high-voltage field interference.

• Power Efficiency: Operates on a standard 24V DC (±10%) input with a nominal power draw of only 8 watts, minimizing heat generation within the control cabinet.

• Thermal Resilience: Designed for continuous operation in extreme climates, with a rated temperature range of -40°C to +70°C.

• Signal Integrity: Specialized circuitry for processing low-voltage signals from magnetic speed pickups and flame scanners without data degradation.

• Physical Profile: A compact footprint of 25.4 x 10.2 x 3.5 cm allows for straightforward installation in standard Mark V VME-style racks.

• Environmental Tolerance: Supports operation in humidity levels ranging from 5% to 95% (non-condensing), suitable for power plant environments worldwide.

• Firmware Support: Equipped with programmable read-only memory (PROM) modules to house site-specific safety logic and trip curves.

Mission-Critical Deployment Scenarios

The GE DS200TCEAG1BSF is a fundamental requirement for heavy-duty rotating equipment where failsafe operation is mandatory. Key applications include:
