Product Overview

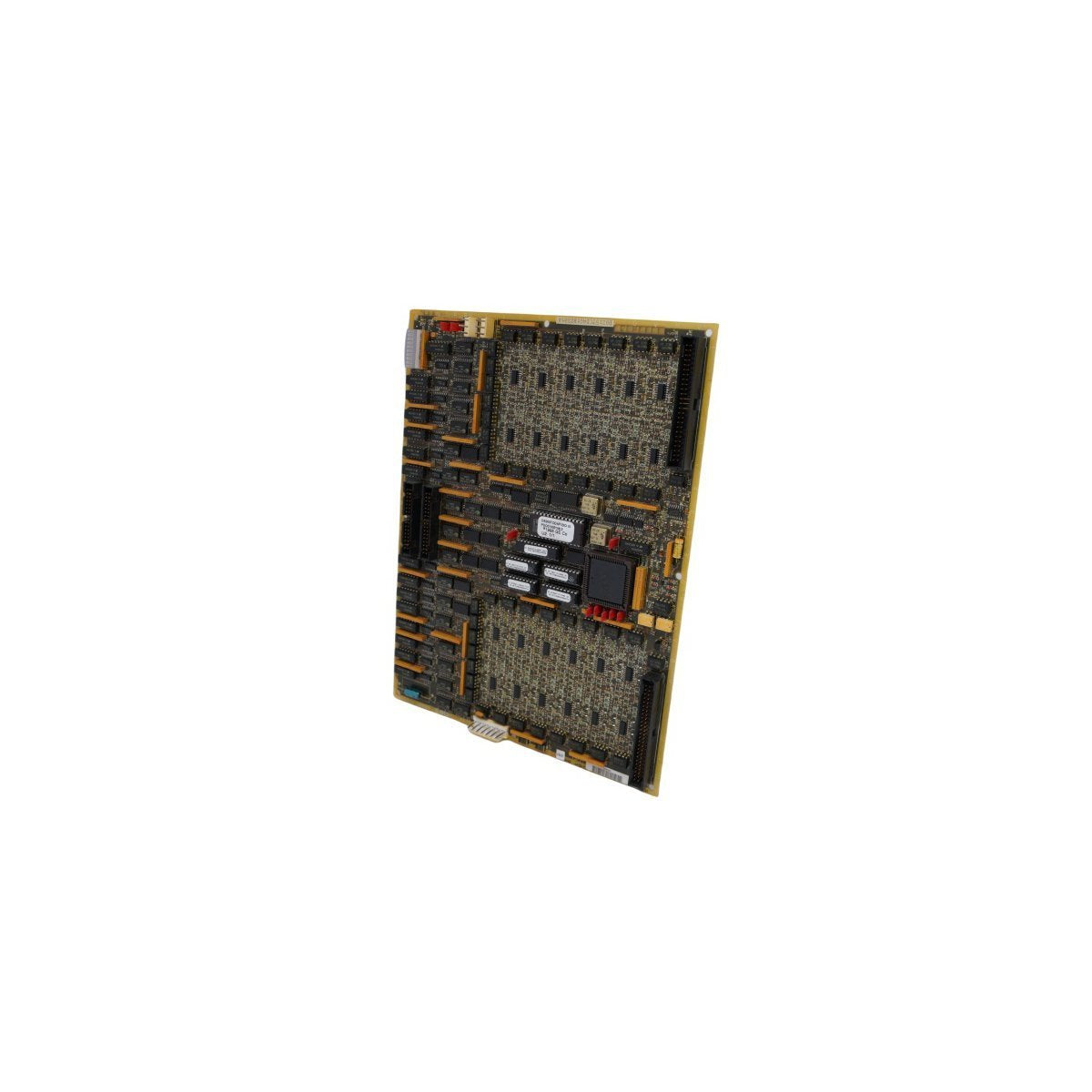

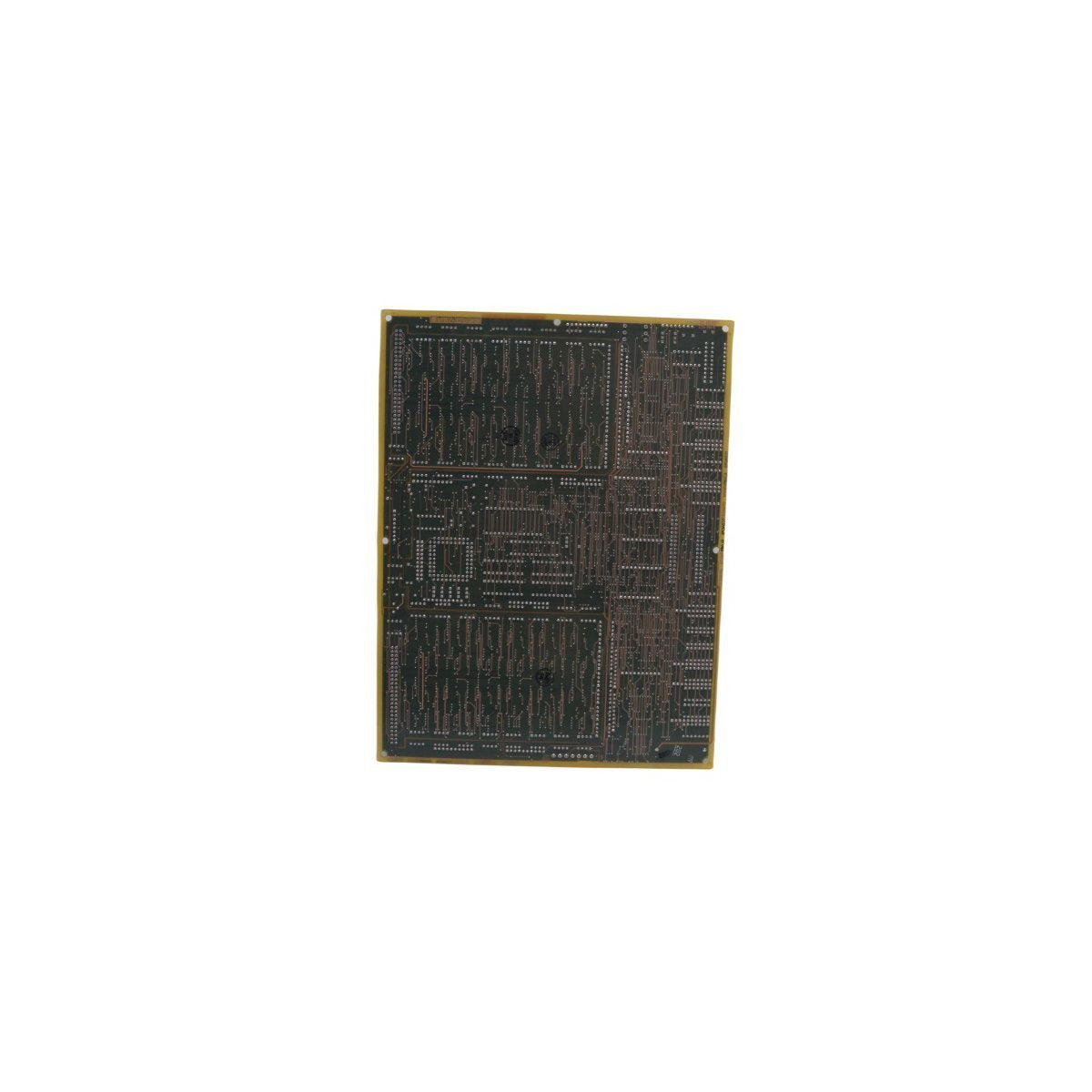

The DS200TCDAG1BFD is a high-density digital input/output printed circuit board manufactured by General Electric for the Speedtronic Mark V and EX2100 Excitation control systems. This board functions as a sophisticated interface module, managing discrete signals between the turbine control processor and various field devices. Built with a high-performance microprocessor and dedicated Programmable Read-Only Memory (PROM) modules, the DS200TCDAG1BFD ensures low-latency execution of digital logic. This "BFD" revision represents an enhanced version of the TCDA baseline, featuring improved reliability and updated firmware compatibility for modern industrial drive assemblies and automated power generation systems.

Hardware Architecture and Interface Parameters

• Microprocessor Core: Integrated processing unit for local digital signal management and logic execution.

• Visual Diagnostics: Features an onboard block of 10 red LEDs for real-time status monitoring and a dedicated side-mounted LED for system health indication.

• Connectivity Interface: Equipped with dual 50-pin JX1 and JX2 ribbon cable connectors, designed for high-integrity signal routing to the control rack.

• Configuration Logic: Includes 8 hardware jumpers allowing for manual board-level customization of signal paths and operational modes.

• Physical Footprint: 27.8 x 21.2 x 2 cm with a mass of approximately 0.3kg.

• Signal Integrity: Designed for high RFI and EMI rejection to maintain data fidelity in heavy industrial electrical environments.

• Legacy Support: Specifically engineered to be backward compatible with Mark V Series architectures while offering B-rated performance enhancements.

Industrial Deployment and System Roles

The GE DS200TCDAG1BFD is primarily deployed in critical energy infrastructure where precise digital control is required to manage high-output turbines and generators. Key application areas include:
