Product Overview

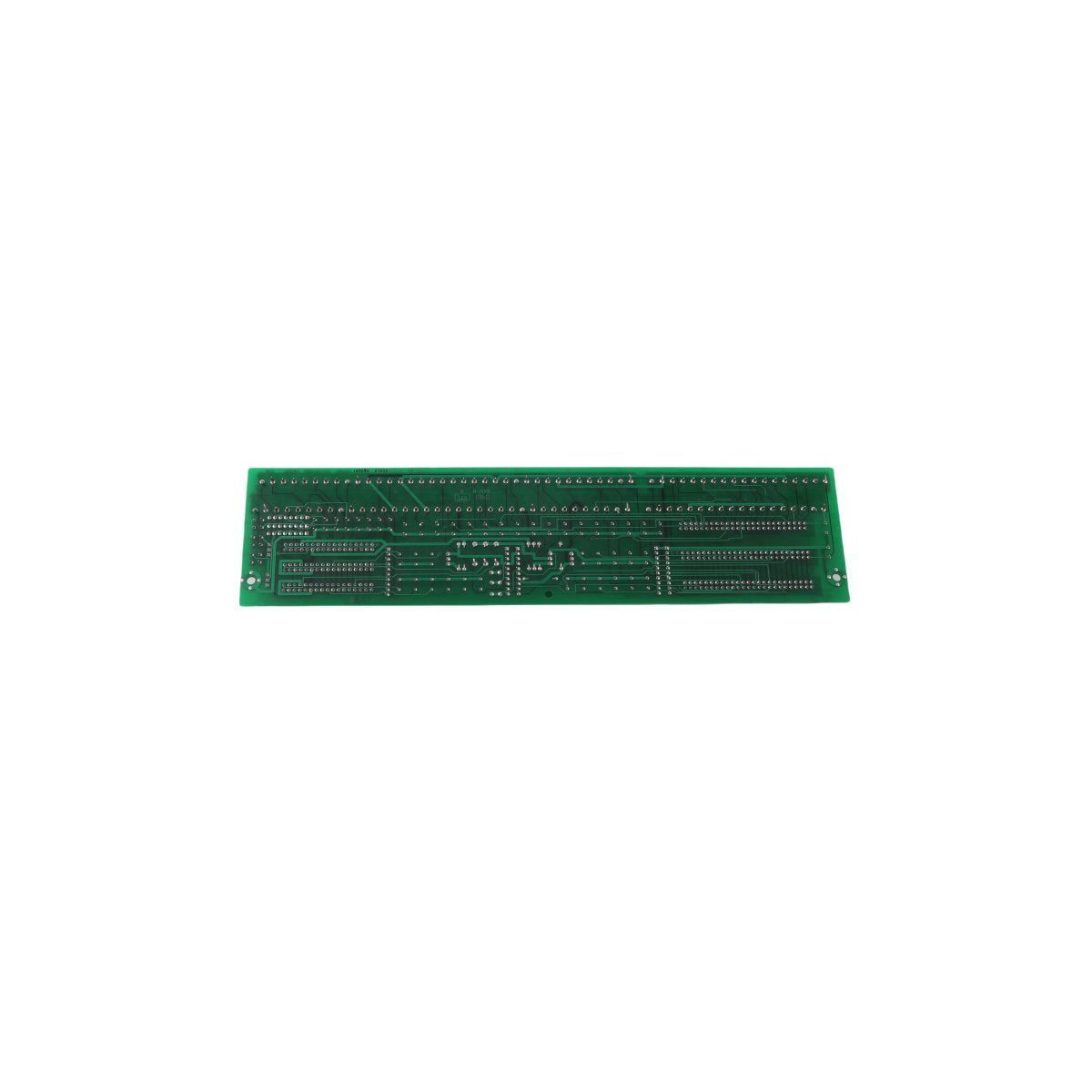

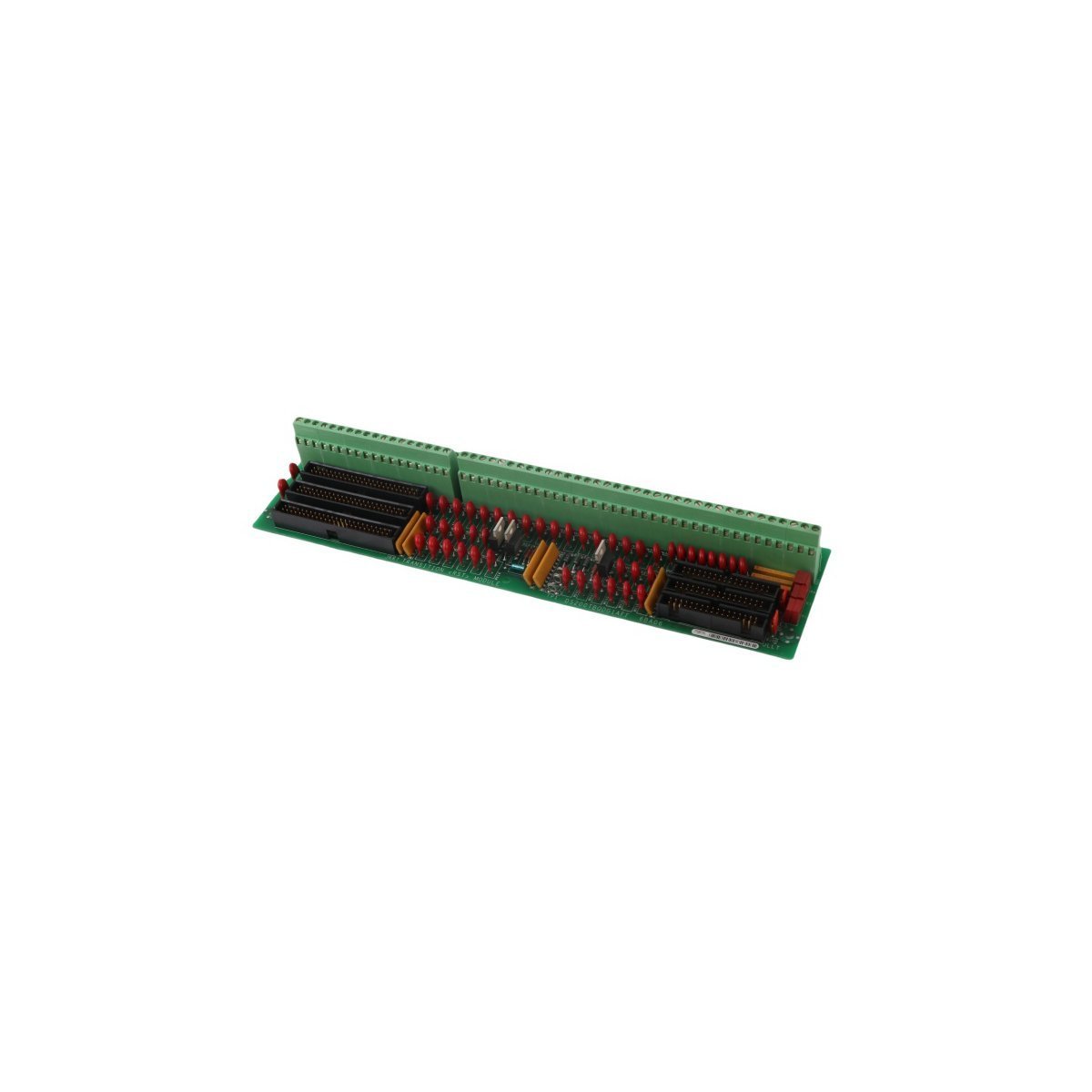

The DS200TBQDG1AFF serves as a specialized RST Extension Terminal Board within the General Electric Speedtronic Mark V control ecosystem. This module is engineered to expand the interfacing capabilities of the primary control processors, specifically handling the distribution and termination of critical signals for the R, S, and T cores. As a high-performance evolution of the TC2000 subseries, this board facilitates the bridge between field-side wiring and the internal analog/digital processing modules. It is a vital component for maintaining the Triple Modular Redundant (TMR) architecture of legacy power generation systems, ensuring that gas, steam, and wind turbine operations remain synchronized and fault-tolerant.

Technical Architecture and Hardware Capabilities

• Processing Core: Utilizes an onboard 80196 microprocessor to manage localized logic and signal arbitration.

• Firmware Storage: Features multiple erasable Programmable Read-Only Memory (PROM) modules, allowing for firmware updates and specific instruction set storage.

• Connectivity Nodes: Outfitted with two high-density 50-pin interface connectors (designated as JCC and JDD) to ensure secure ribbon cable transitions.

• Signal Expansion: Acts as the primary extension for the TC2000 I/O analog framework, supporting complex signal routing for automated drive assemblies.

• Visual Status: Integrated side-view LED indicator provides immediate hardware health diagnostics for maintenance personnel.

• Physical Profile: Robust PCB construction measuring 28.6 x 21.3 x 4 cm, designed to resist the thermal and vibrational stresses of industrial control cabinets.

• Revision Level: This "AFF" version incorporates multiple engineering enhancements over earlier iterations, optimizing electromagnetic compatibility (EMC).

Operational Use Cases and Industrial Roles

The GE DS200TBQDG1AFF is a cornerstone for high-availability turbine control and DCS infrastructure. Its primary deployment scenarios include:
