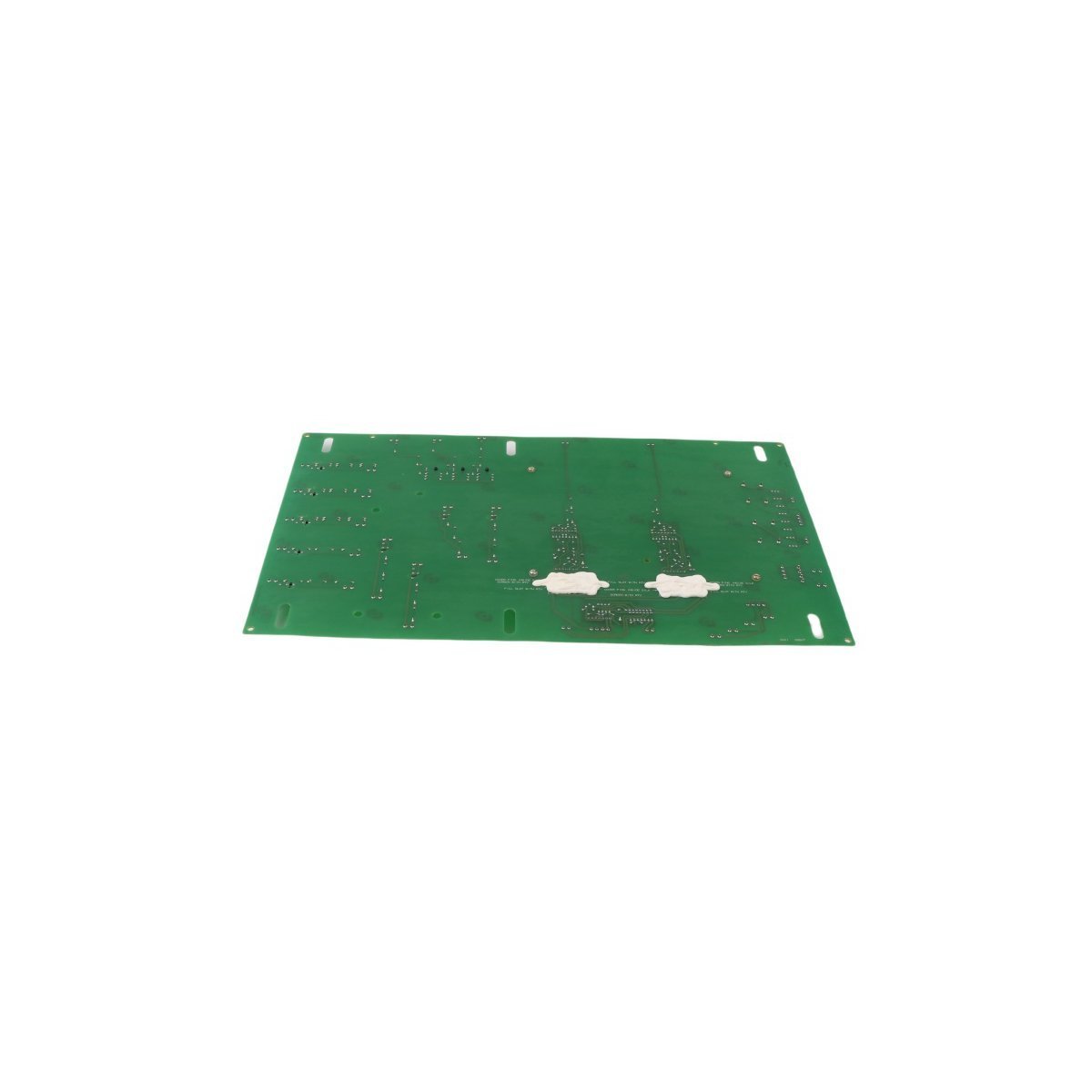

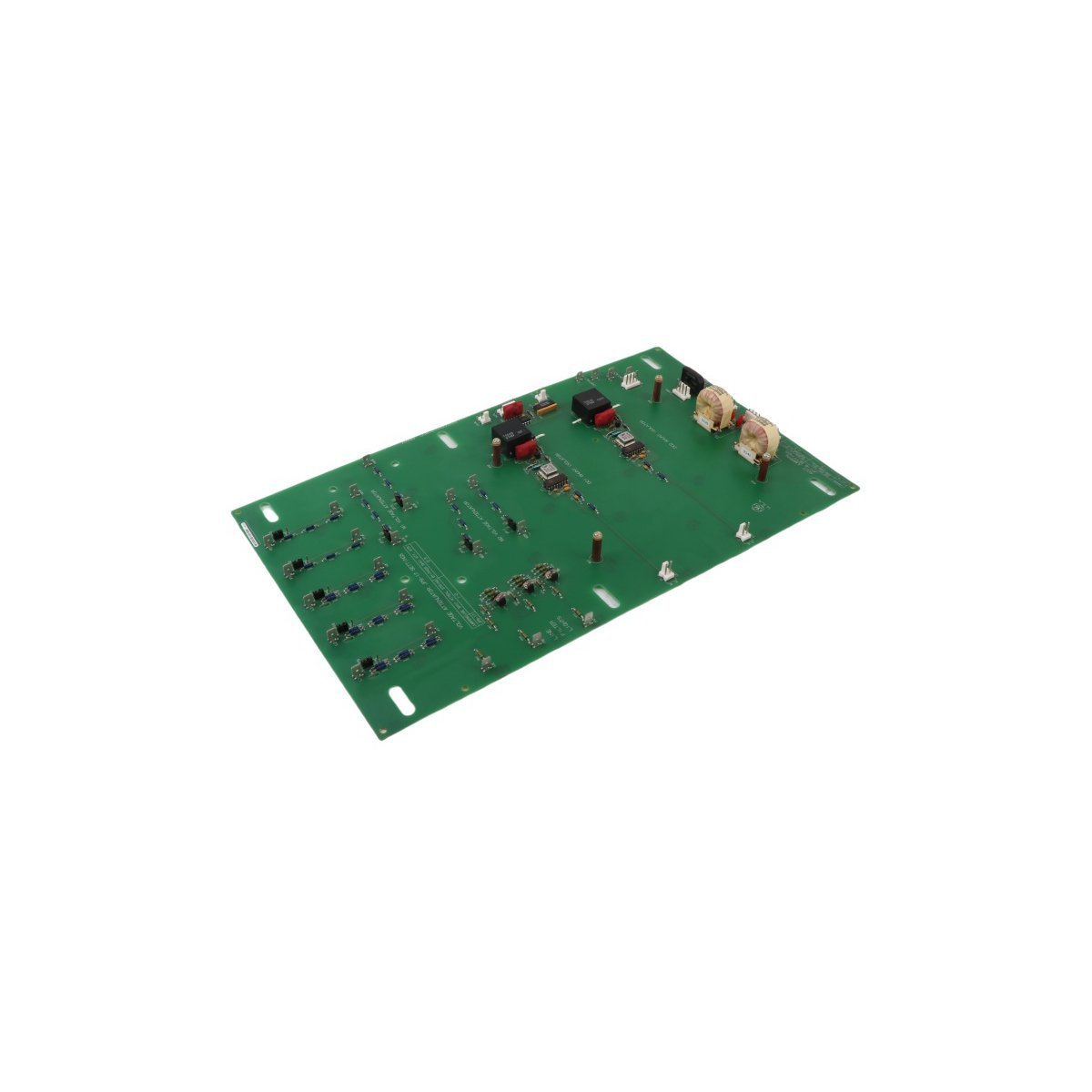

DS200SHVIG1B General Electric Mark V DS200SHVIG1BGD SCR High Voltage Board
-
Dimensions: 18.8 × 14.2 × 2 cm
-
Country of origin: USA
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
The GE DS200SHVIG1BGD is an SCR high voltage interface board used in legacy GE drive and power conversion assemblies. Its function is to support high-voltage sensing and interface requirements associated with SCR-controlled power sections, helping the control system monitor and manage the power bridge behavior under operating and transient conditions. This module is typically installed inside the drive cabinet in proximity to the SCR bridge and related high-energy wiring, where proper clearances, grounding, and insulation practices are essential.
This listing text previously referenced a thermocouple termination board, which is not applicable to DS200SHVIG1BGD. The DS200SHVIG1BGD should be treated as a high-voltage interface PCB for SCR applications, and replacement should be verified strictly by part number and cabinet documentation.
Hardware Parameters
| Item | Value |
|---|---|
| Model / Part number | DS200SHVIG1BGD |
| Module category | SCR High Voltage Board |
| Functional role | High-voltage interface/sensing support for SCR power bridge control (system dependent) |
| Typical installation | Drive cabinet, near SCR bridge / high-energy section (cabinet dependent) |
| Service approach | Replace as a matched spare by full part number and revision code |
| Handling requirements | ESD precautions and high-voltage safety procedures required |
| Condition | Brand New |
| Lead time | In Stock |
| Weight | 0.24 kg |
| Dimensions (listing) | 18.8 × 14.2 × 2 cm |
| Country of origin (listing) | USA |
| HS code (listing) | 8537101190 |
| System category | DCS / drive control |
-
Safety and commissioning notes
-
De-energize and discharge DC bus circuits before touching any cabinet hardware
-
Inspect insulation barriers, standoffs, and connector condition during replacement
-
Perform post-installation verification per site procedures (HV sensing checks and fault-free startup)
Industrial Applications
-
GE drive systems using SCR bridges where high-voltage interface feedback is required for regulation and protection
-
Replacement of aging high-voltage interface boards to address nuisance faults, unstable sensing, or startup lockouts
-
Installed-base maintenance of legacy GE power conversion cabinets in industrial plants
-
Service support for turbine auxiliary drives and other SCR-controlled equipment where original cabinet design is retained
