Product Overview

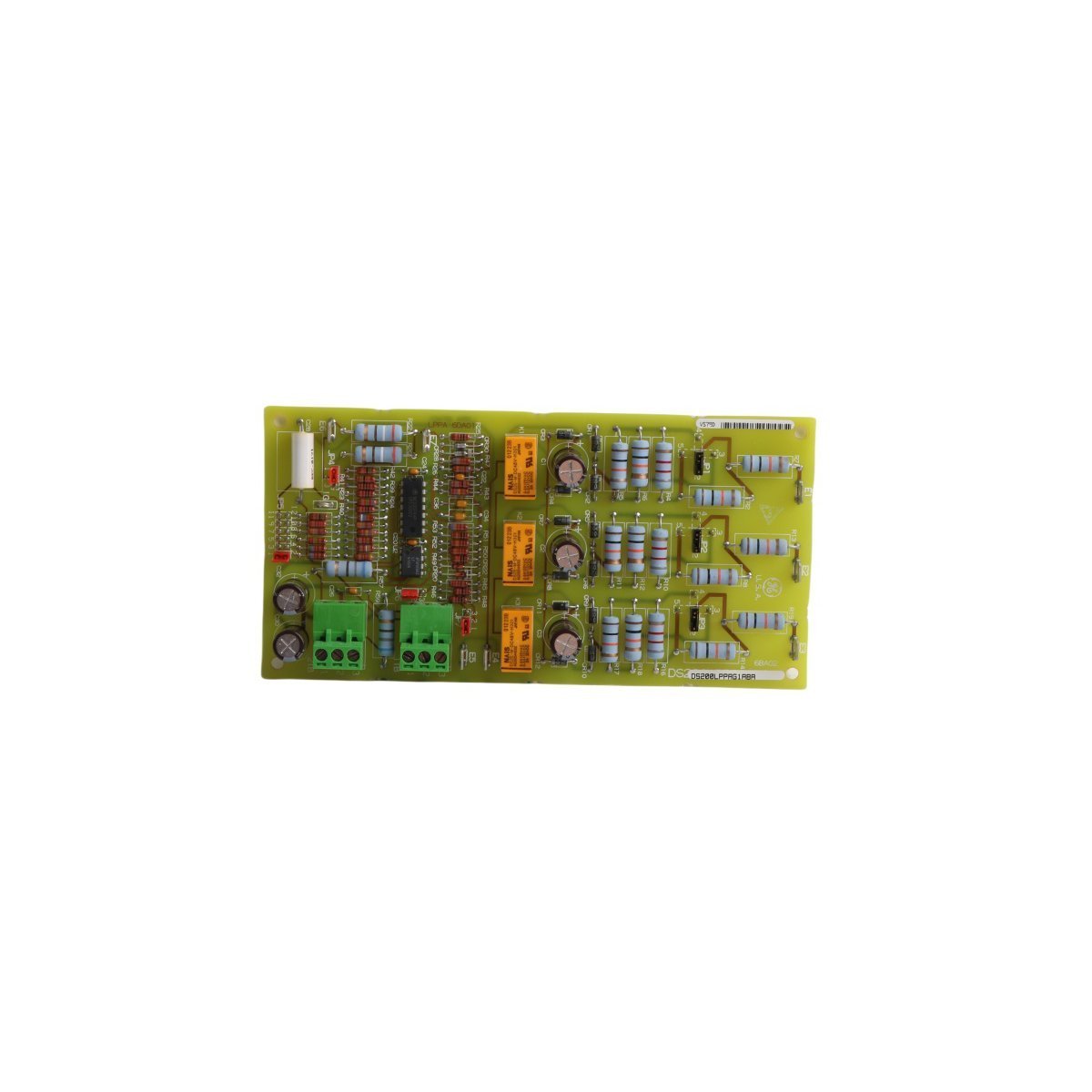

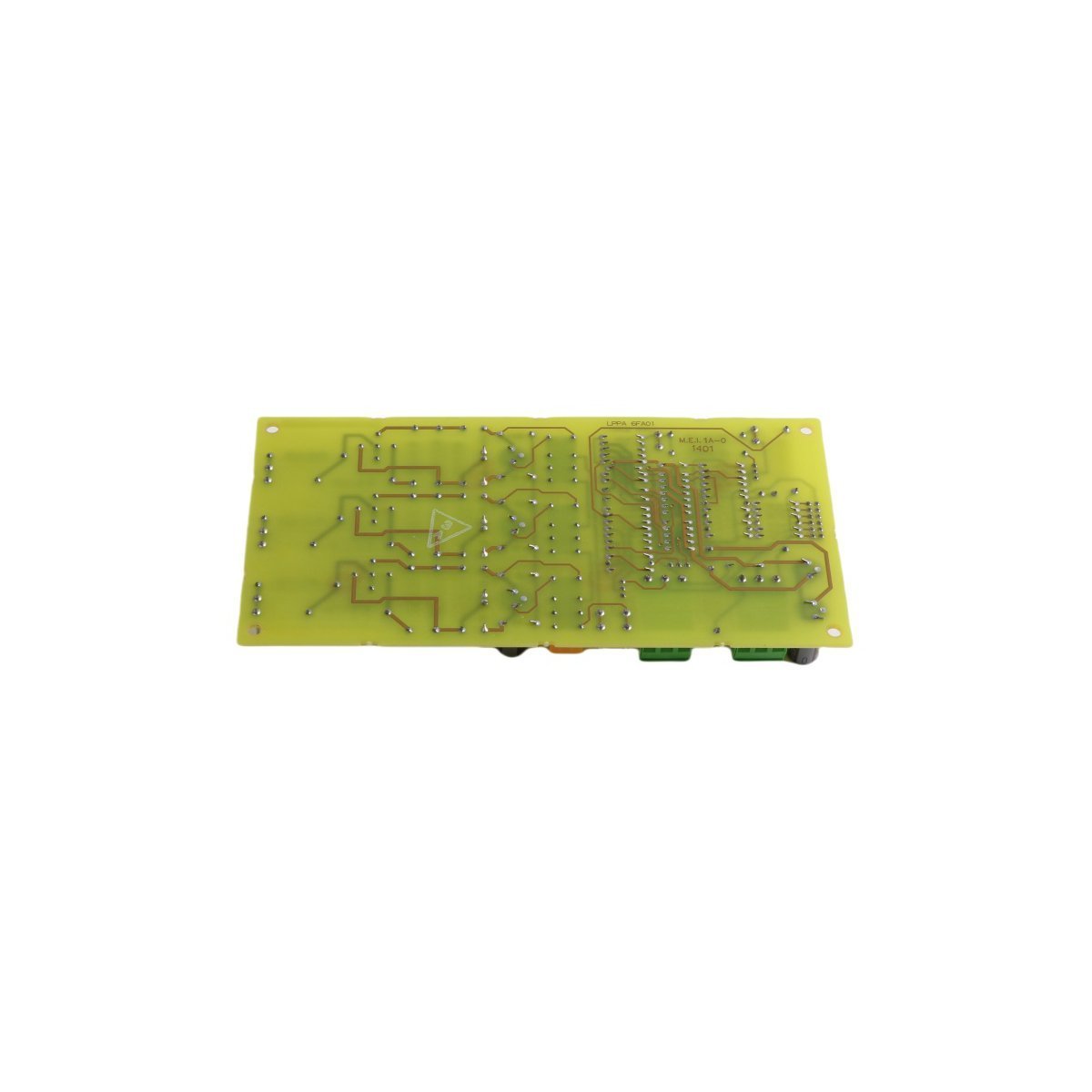

The GE DS200LPPAG1A is a line protection printed circuit board used in Mark V Speedtronic turbine control systems. It is designed to help protect control circuitry from electrical disturbances by providing suppression and protection components on a dedicated card assembly. This board is typically installed as part of a Mark V control cabinet to support reliable operation of turbine control and monitoring hardware.

The DS200LPPAG1A is an A-revision variant within the DS200LPPAG1 family. It is handled as a static-sensitive electronic assembly and should be installed using standard ESD controls and proper cabinet grounding practices.

Hardware Parameters

• Model / Order Number: DS200LPPAG1A

• Product Family: Mark V

• Product Type: Line Protection Card (PCB)

• System Type: Turbine Control / DCS cabinet electronics

• Board Features:

• 7 onboard jumpers (JP1 to JP7) for configuration

• 2 terminal blocks, 3 positions each

• Test points for service checks

• Protection component network including capacitors, diodes, and integrated circuits

• Protective coating to reduce surface tracking and voltage-related damage risk

• Revision Identification: A functional revision within the DS200LPPAG1 series

• Handling Requirement: ESD-sensitive, use grounded wrist strap and static-safe work surface

• Condition: Brand New, In Stock, Active

• Origin: USA

• Weight: 0.14 kg

• Dimensions: 17.7 × 8.8 × 2.5 cm

• HS Code: 8537101190

• MOQ: 1

Industrial Applications

• Replacement board for Mark V turbine control cabinets in gas and steam turbine installations

• Lifecycle support for legacy Speedtronic Mark V systems requiring line protection hardware

• Maintenance spares for power disturbance mitigation circuits within control panels

• Refurbishment projects where original DS200LPPAG1 series boards must be restored to service
