Product Overview

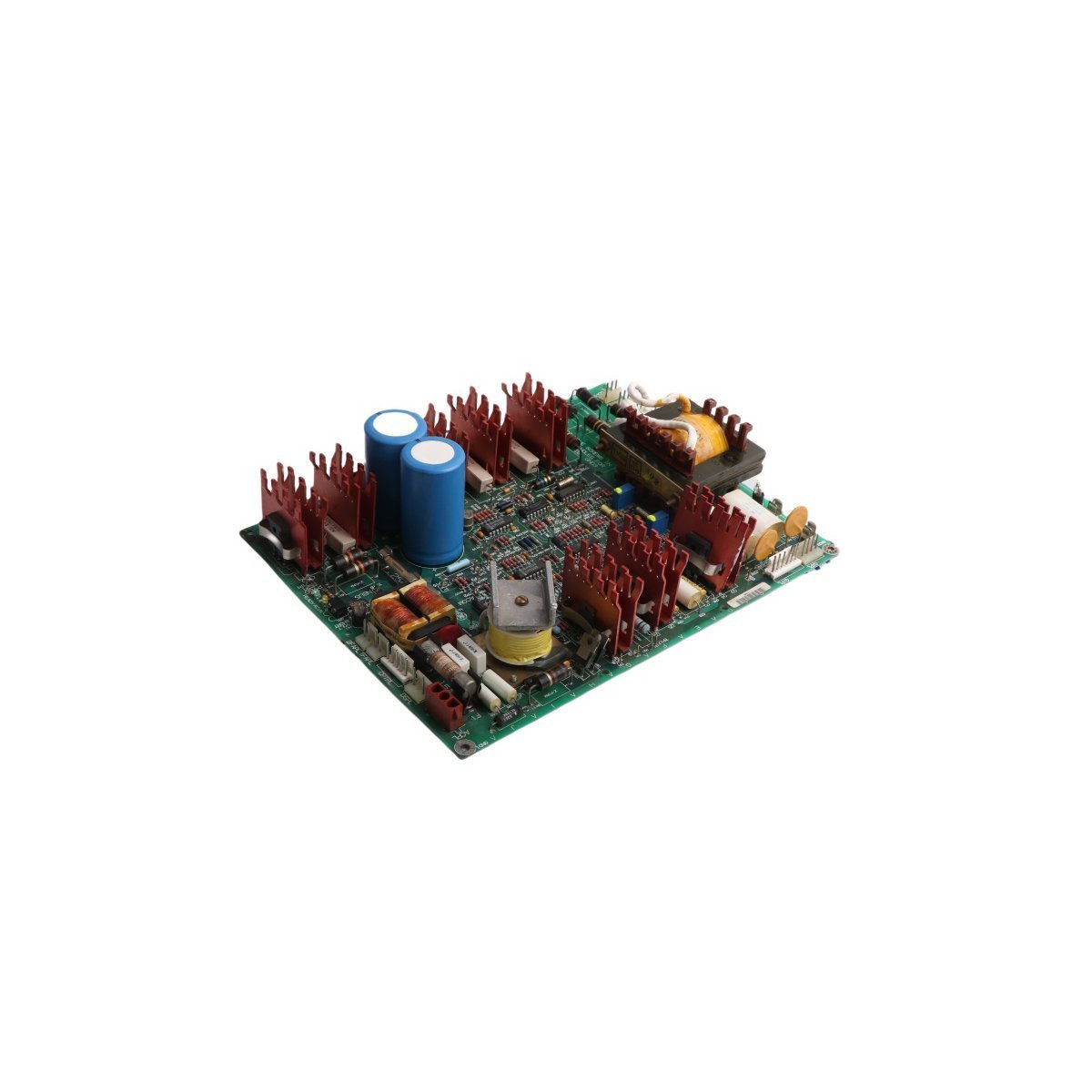

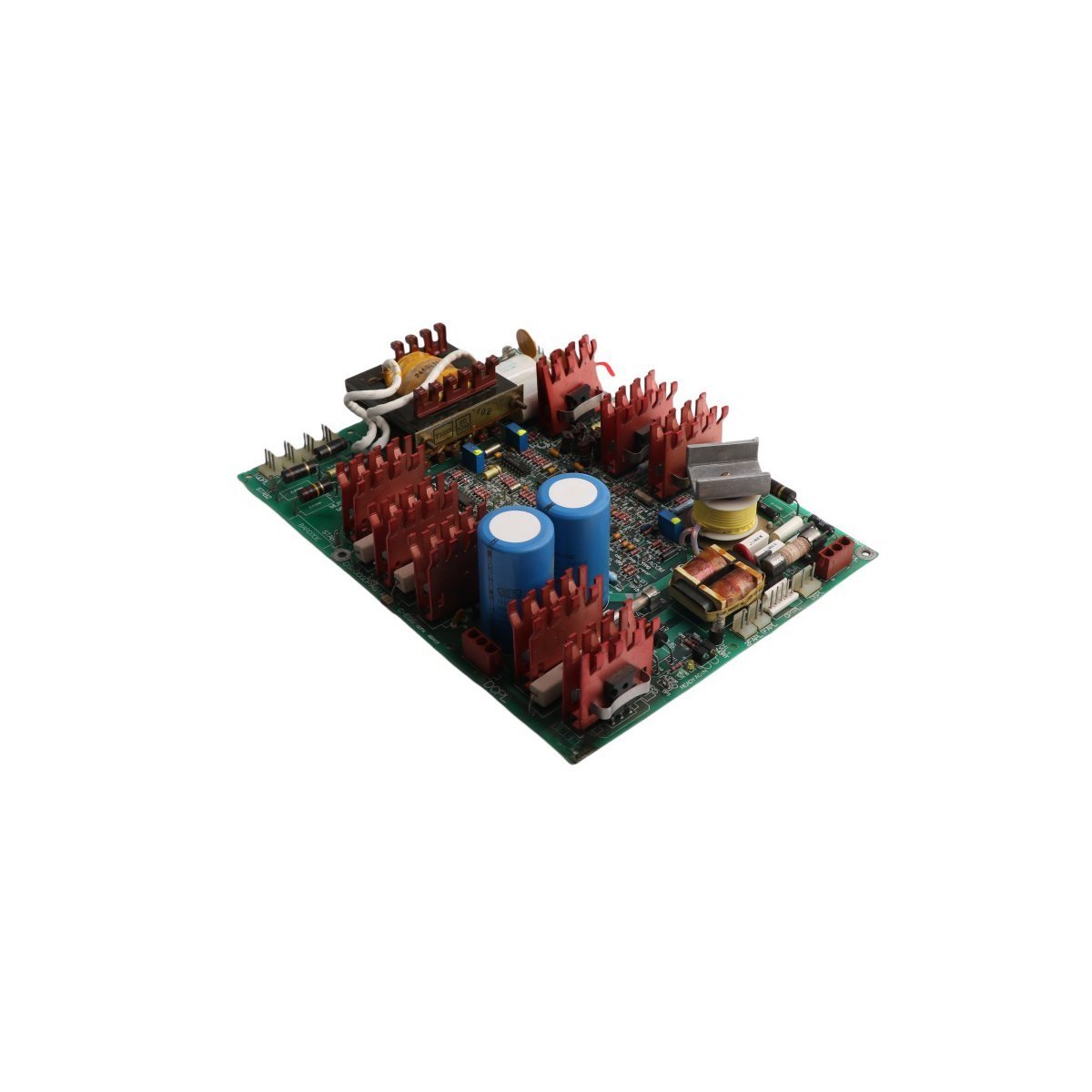

The General Electric DS200GDPAG1AEB is a high-frequency power supply board for Mark V control and drive-related platforms. It converts incoming AC or DC control power into regulated internal supply rails used by associated drive/exciter circuitry. The board integrates rectification, filtering, regulation, and high-frequency inversion to deliver stable power for control electronics, while providing onboard status indication for service and troubleshooting.

Designed for industrial environments, this board is typically applied where consistent control power and protective monitoring are required to support reliable operation of GE drive and exciter systems.

Key Technical Characteristics

• Product series: Mark V

• Module type: High-frequency power supply board

• Power rating: 600–700 W class

• Input power options:

• AC input range: 80–132 VAC

• DC input range: 105–140 VDC

• Internal power conversion architecture:

• Input rectifier and filter stage

• Regulation and protective circuitry

• High-frequency inverter (27 kHz)

• Integrated outputs and supplies:

• 120 VDC power supply section

• 50 VAC transformer output section

• Control power supply circuitry

• Monitoring and indication:

• Four onboard LED status indicators

• Two neon indicators for quick visual diagnostics

• Electrical design note:

• Input isolation to reduce sensitivity to spikes and disturbances

Physical and commercial data

• Dimensions: 28 × 21.4 × 7 cm

• Weight: 1.4 kg

• Condition: Brand New

• Availability: In Stock

• MOQ: 1

• Origin: USA

• Product status: Active

Industrial Applications

• Mark V control cabinets requiring regulated high-frequency control power conversion

• GE drive and exciter systems using Mark V board families

• Turbine control and auxiliary power distribution within DCS-style installations

• Maintenance replacement for aging power conversion boards in industrial plants

• Applications where stable internal supply rails and clear fault indication support uptime
