Product Overview

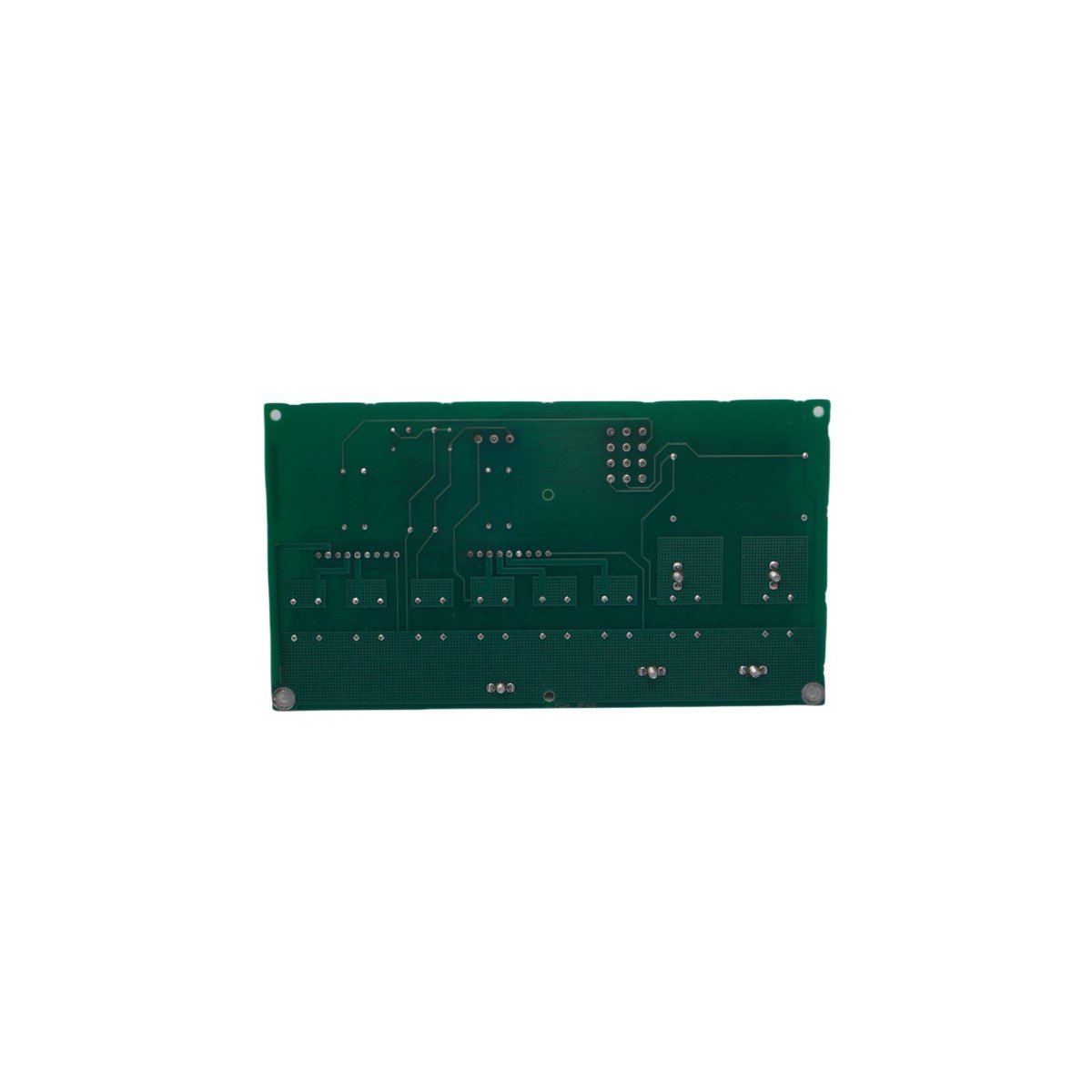

The DS200FCSAG2ACB is a high-performance Gate Distribution and Status Interface Card developed by General Electric for the Speedtronic Mark V and EX2100 control lineages. Engineered to manage current sensing and signal distribution, this board acts as a critical communication bridge between various power circuit boards within a drive or excitation system. It is designed to support both Simplex and Triple Modular Redundant (TMR) architectures, ensuring high availability and fault tolerance in mission-critical power generation environments. Despite its status as a legacy component, its robust design remains a staple for maintaining the operational integrity of existing Speedtronic control frameworks.

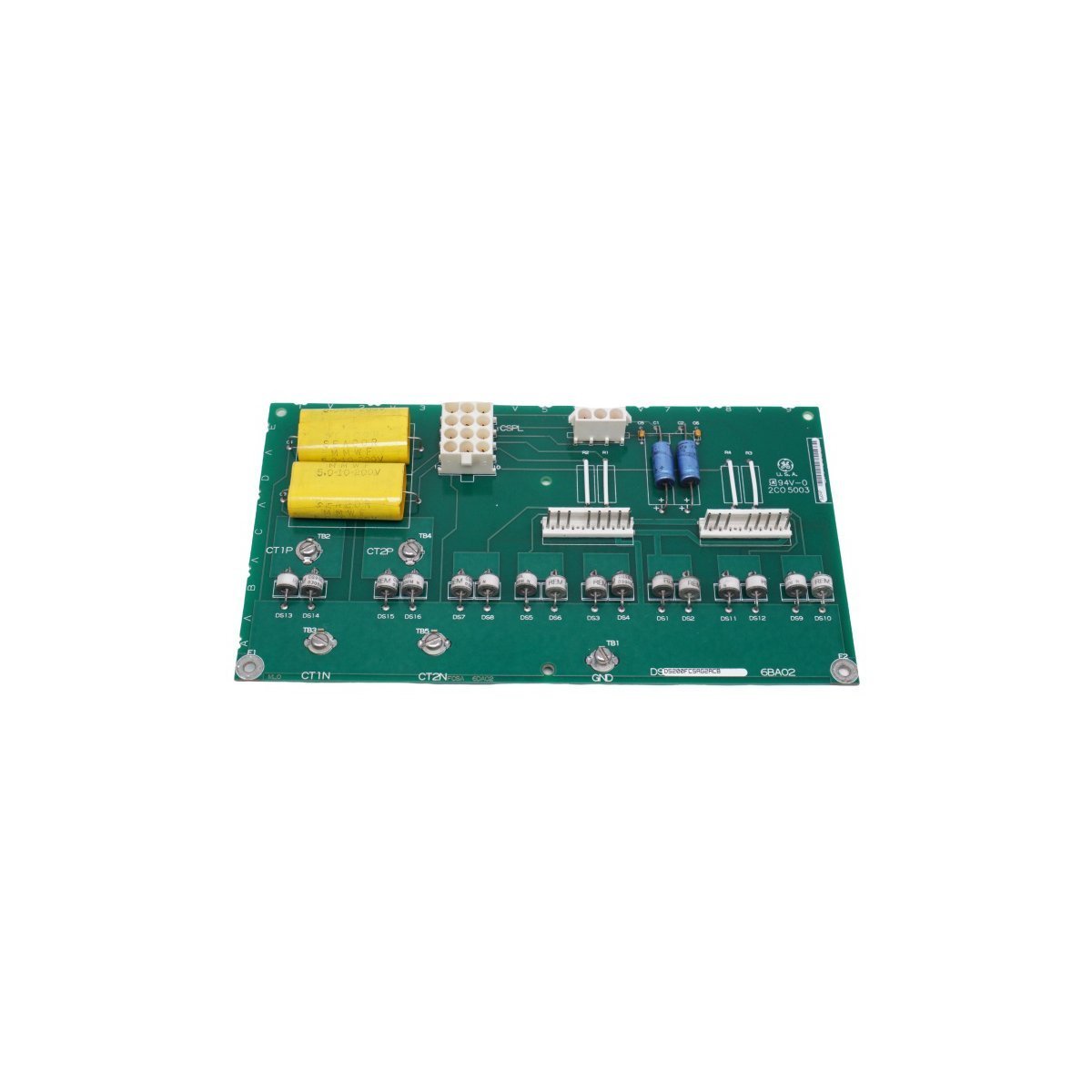

Engineering Specifications and Component Architecture

• Circuitry Protection: The assembly is finished with a specialized conformal coating to shield against moisture, dust, and chemical contaminants.

• Grounding Design: Features four precision-drilled corner mounting holes, with two conductively ringed to facilitate chassis grounding and EMI reduction.

• Connector Interface: Integrated with two multi-pin header connectors and two high-durability Mate-N-Lok power connectors for secure electrical paths.

• Passive Components: Equipped with high-stability electrolytic and polyvinyl capacitors designed for ripple filtering and energy storage.

• Rectification Array: Contains sixteen high-speed diodes organized in eight balanced pairs to manage directional signal flow.

• Traceability: Hard-coded with the 6BA02 identification string and alphanumeric edge markers to ensure error-free installation and field replacement.

• Physical Dimensions: Compact 2x18.6x26.1cm footprint allowing for standard rack or cabinet integration.

Functional Roles in Industrial Systems

The GE DS200FCSAG2ACB is deployed in heavy industrial settings where precise excitation and turbine control are mandatory. Its primary roles include:
