Product Overview

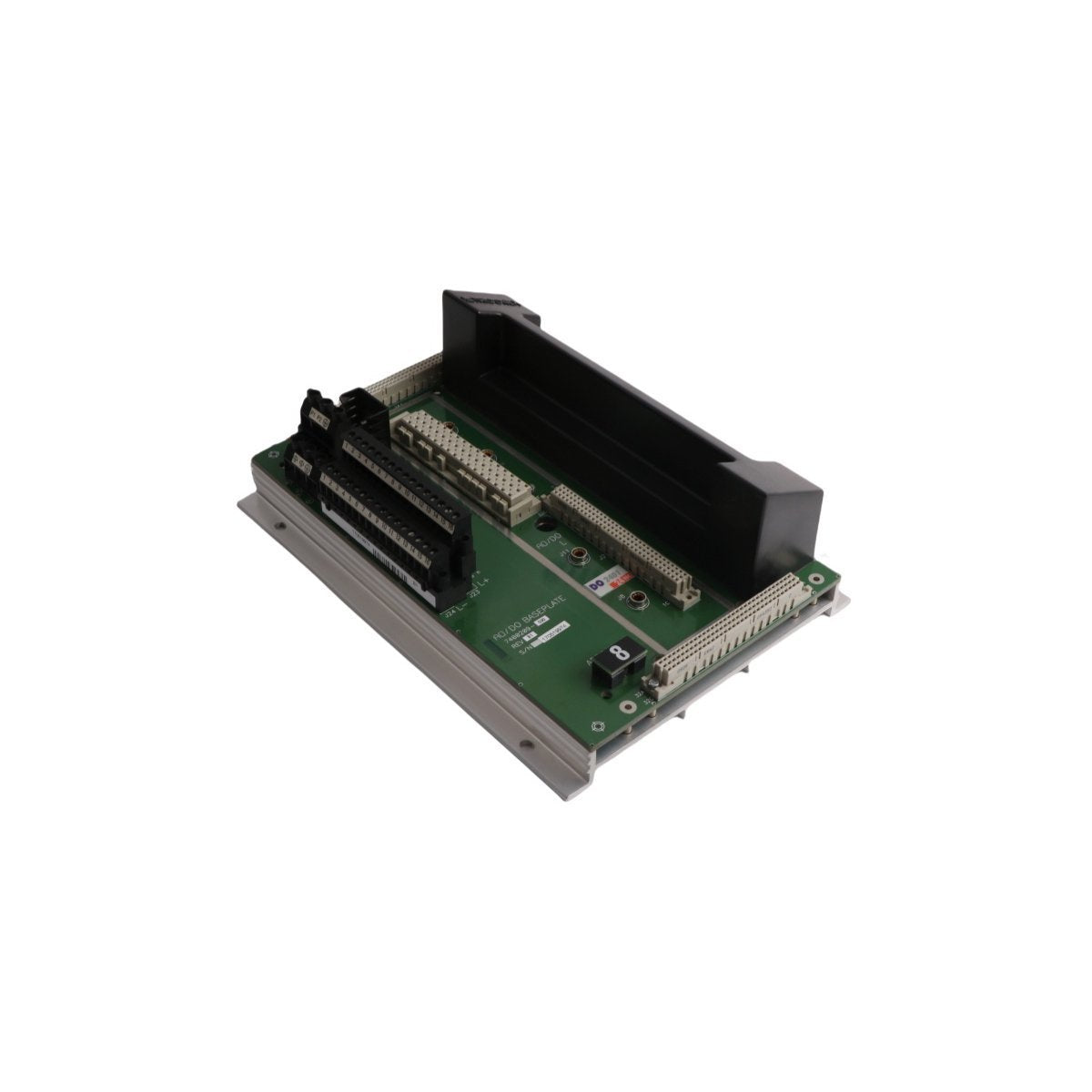

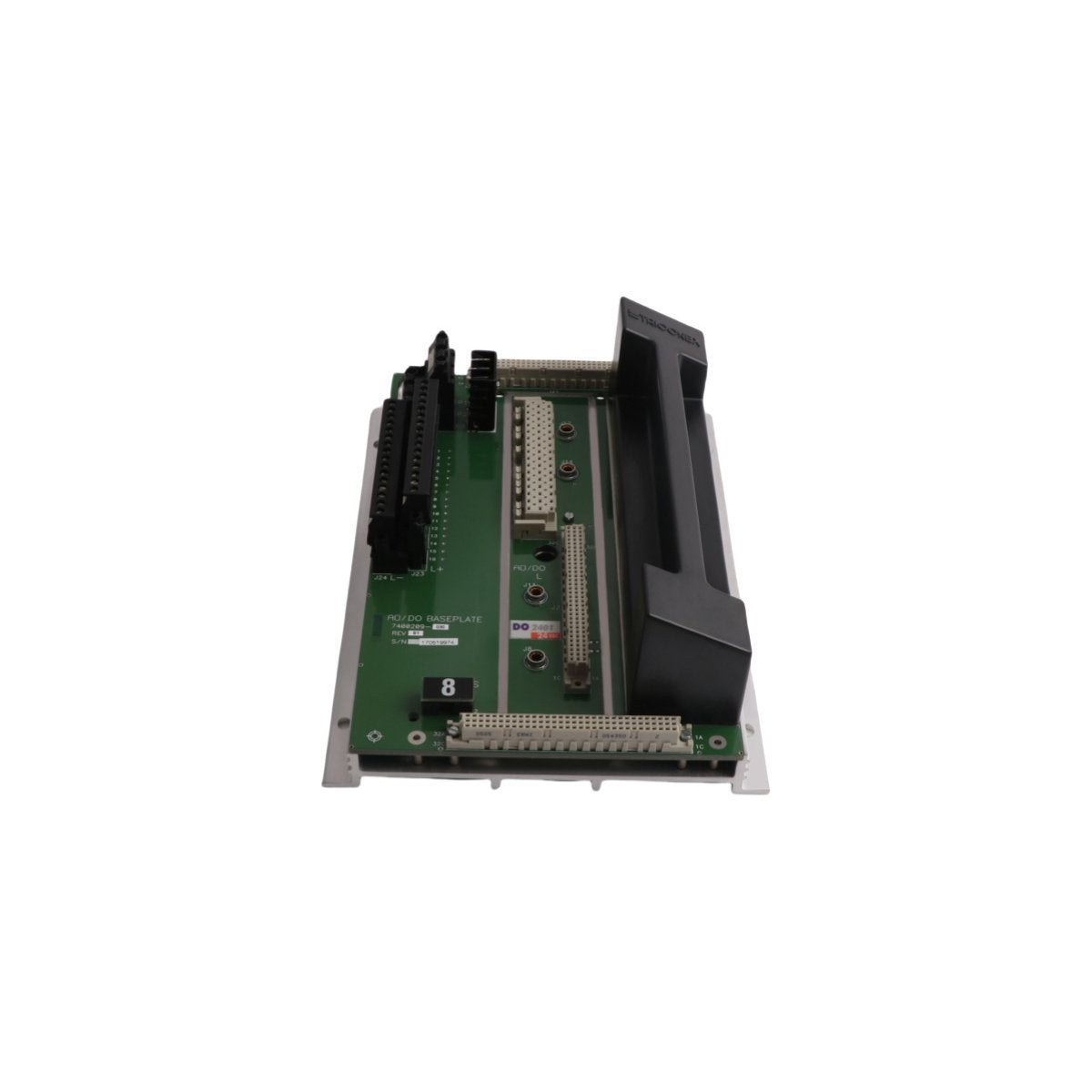

The Triconex 7400209-030, commercially designated as the DO2401, is a high-integrity digital output baseplate engineered for the Tricon v10 and v11 safety platforms. This 32-channel module is a cornerstone of Triple Modular Redundant (TMR) architectures, providing the physical and electrical interface for safety-critical command signals. Designed for high-availability environments, the DO2401 ensures that failure-proof logic is translated into reliable field actions, such as actuating solenoids or triggering emergency trips. Its SIL 3 certification confirms its suitability for the most demanding Safety Instrumented Systems (SIS), where downtime and signal errors are not permissible.

Critical Engineering Specs and Hardware Profile

The DO2401 is built to provide robust electrical management and fault-tolerant signal distribution across high-density control racks.

• Output Capacity: 32 independent digital output channels.

• Voltage Range: Supports 24V to 48V DC field power distribution.

• Current Loading: Rated for 500mA per channel, providing ample power for industrial relays and valves.

• Redundancy Logic: Full Triple Modular Redundant (TMR) circuitry for internal voting and error correction.

• Electrical Protection: 1500V AC/DC optical isolation safeguards the system backplane from field transients.

• Operational Continuity: Hot-swappable architecture allows for live module replacement without interrupting process safety.

• Thermal Endurance: Rated for operation in extreme climates ranging from -40°C to +70°C.




Primary Deployment Scenarios and Industrial Utility

The 7400209-030 DO2401 is an essential asset for reliability engineers managing complex, high-risk processes.

Emergency Shutdown (ESD) Systems: Controlling final control elements in oil and gas refineries to ensure predictable and rapid isolation of process units during alarm conditions.

Fire and Gas (F&G) Mitigation: Actuating deluge valves, audible alarms, and visual beacons upon detection of hazardous gas leaks or flame presence.

Turbine Protection Logic: Interfacing with trip solenoids to safely shut down high-speed rotating assets in power generation plants when vibration or overspeed limits are exceeded.

Burner Management Systems (BMS): Managing the sequential control of fuel and pilot valves in large-scale industrial boilers and furnaces.

Offshore and Subsea Safety: Providing vibration-resistant and temperature-hardened digital outputs for critical safety loops on remote production platforms.
