Product Overview

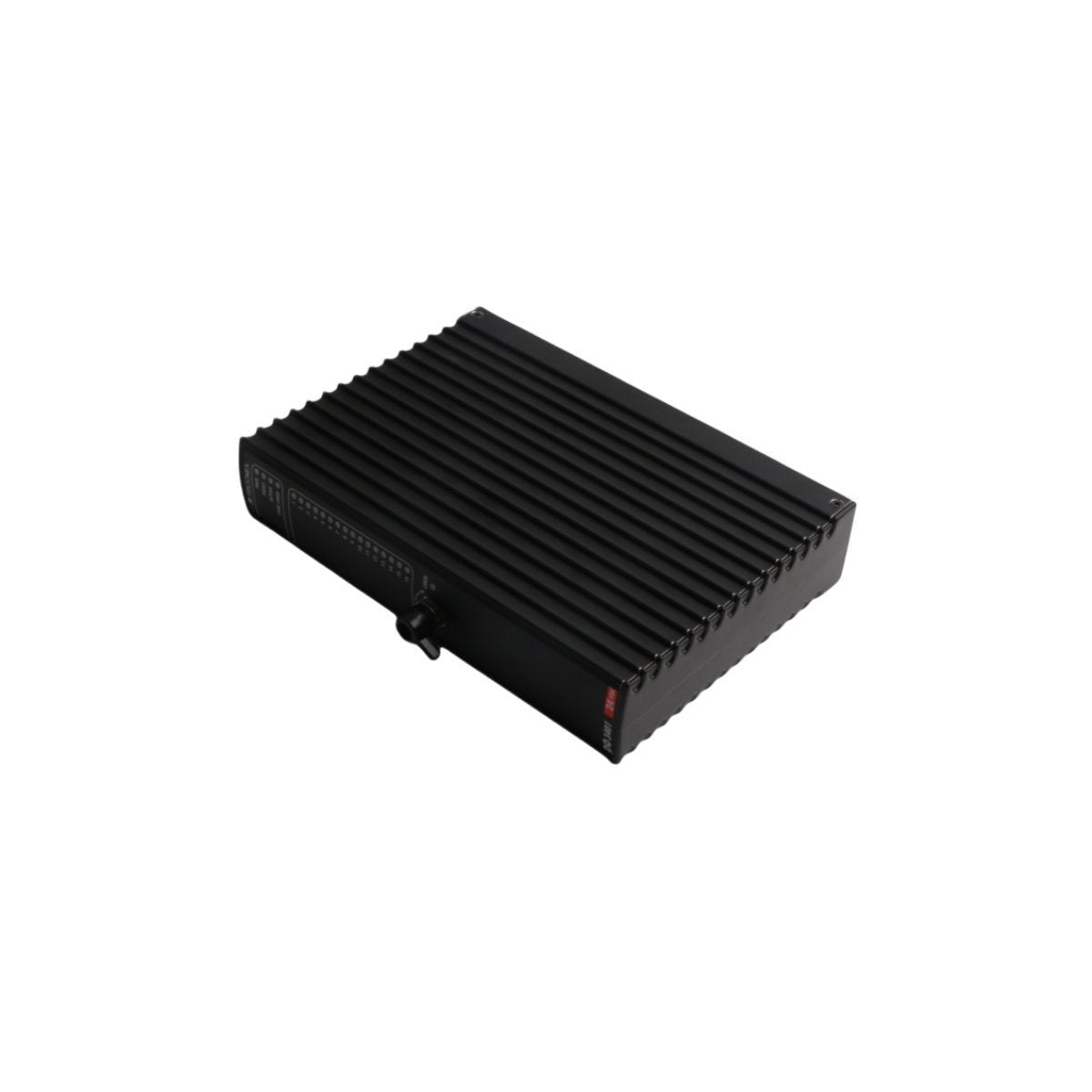

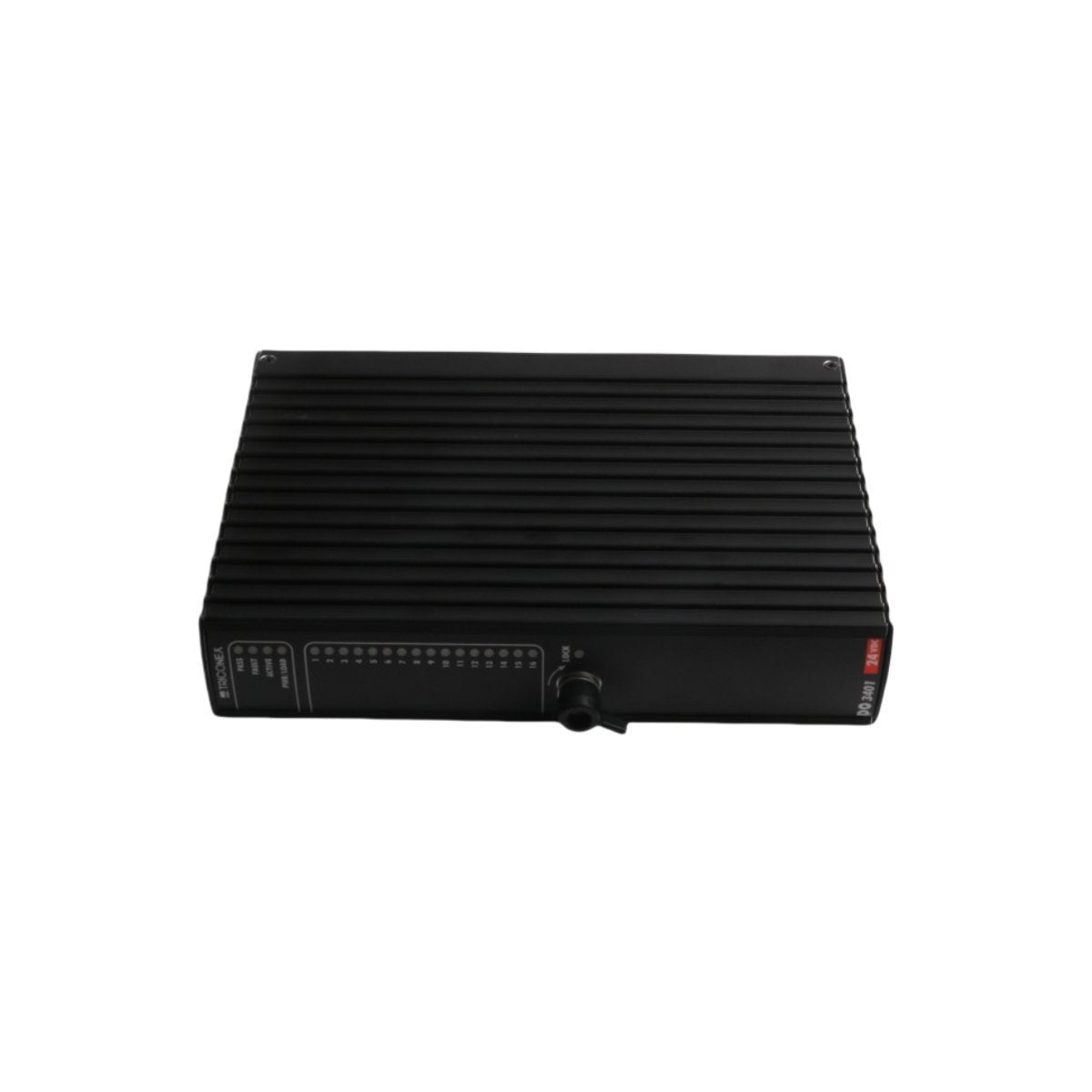

The Triconex DO 3401 is a high-availability Digital Output (DO) module engineered for use within the Triple Modular Redundant (TMR) safety architecture. This 16-channel unit serves as the executive interface between the Tricon safety controller and field-level actuators, providing fail-safe switching for critical industrial loops. To ensure uncompromising reliability, the DO 3401 utilizes a triplicated internal circuit design where three independent paths are continuously voted upon (2-out-of-three logic). This fault-tolerant approach eliminates single points of failure, allowing the module to maintain precise control even if an internal component malfunction occurs. Certified for SIL 3 safety functions, it is a primary choice for high-hazard environments where operational continuity and environmental protection are paramount.

Critical Engineering Parameters and Logic Design

The DO 3401 is designed with a focus on self-surveillance and robust power delivery to ensure every output command is executed accurately.

• Voting Architecture: Implements hardware-based 2oo3 (two-out-of-three) voting across three parallel output circuits per point.

• Output Density: 16 independent digital output channels optimized for 24 VDC industrial loads.

• Serviceability: Features a hot-swappable chassis design, enabling module replacement while the system is live to prevent costly production downtime.

• Load Supervision: Onboard diagnostics continuously monitor for open circuits and short circuits in the field wiring.

• Synchronization: Maintains millisecond-level timing alignment with the Tricon Main Processors across the system backplane.

• System Integrity: Full galvanic isolation between field-side electronics and the sensitive logic backplane.

Industrial Protection and Strategic Utilization

The DO 3401 is deployed in sectors where an uncommanded output change or a failed trip signal could result in catastrophic asset damage.

Emergency Shutdown (ESD) SystemsIn offshore platforms and oil refineries, the DO 3401 acts as the final driver for blowdown valves and isolation solenoids. Its triplicated logic ensures that the "Fail-Safe" state is always prioritized, protecting the facility against overpressure events.

High-Reliability Burner Management (BMS)The module provides the precise electrical signals required to manage fuel supply interlocks in utility-scale boilers. By ensuring that fuel valves only actuate when all safety conditions are met, the DO 3401 prevents hazardous gas accumulation.

Automated Fire and Gas (F&G) MitigationThis module is frequently used to trigger fire suppression solenoids and plant-wide alarm beacons. The integrated diagnostic monitoring ensures the control loop is healthy and ready to respond instantly during a fire or toxic gas release.

Turbine Auxiliary ControlIn power generation, the DO 3401 manages auxiliary motor starters and lubricant pumps. Its ruggedized construction allows it to handle the vibration and thermal stressors found in close proximity to rotating turbine machinery.
