Product Overview

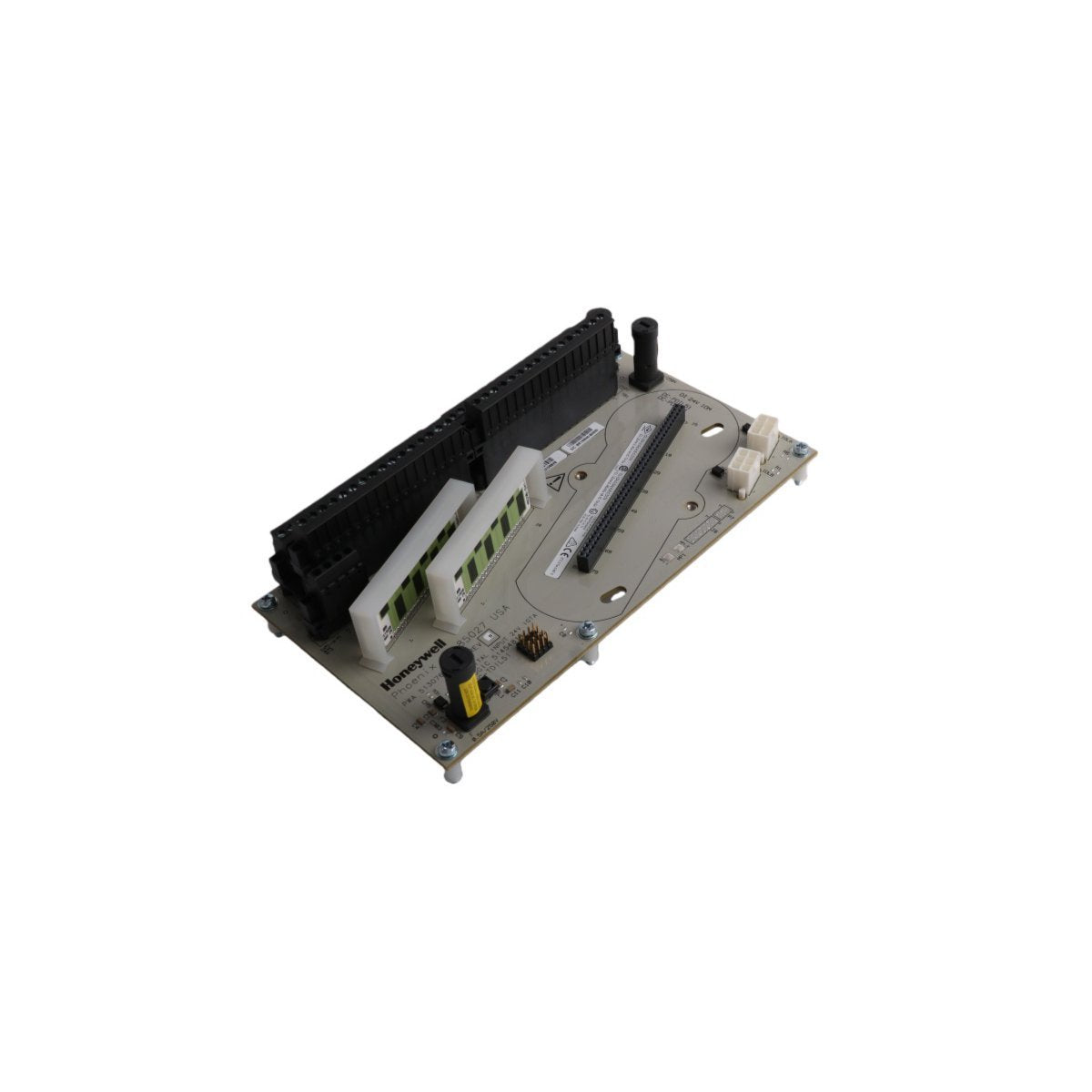

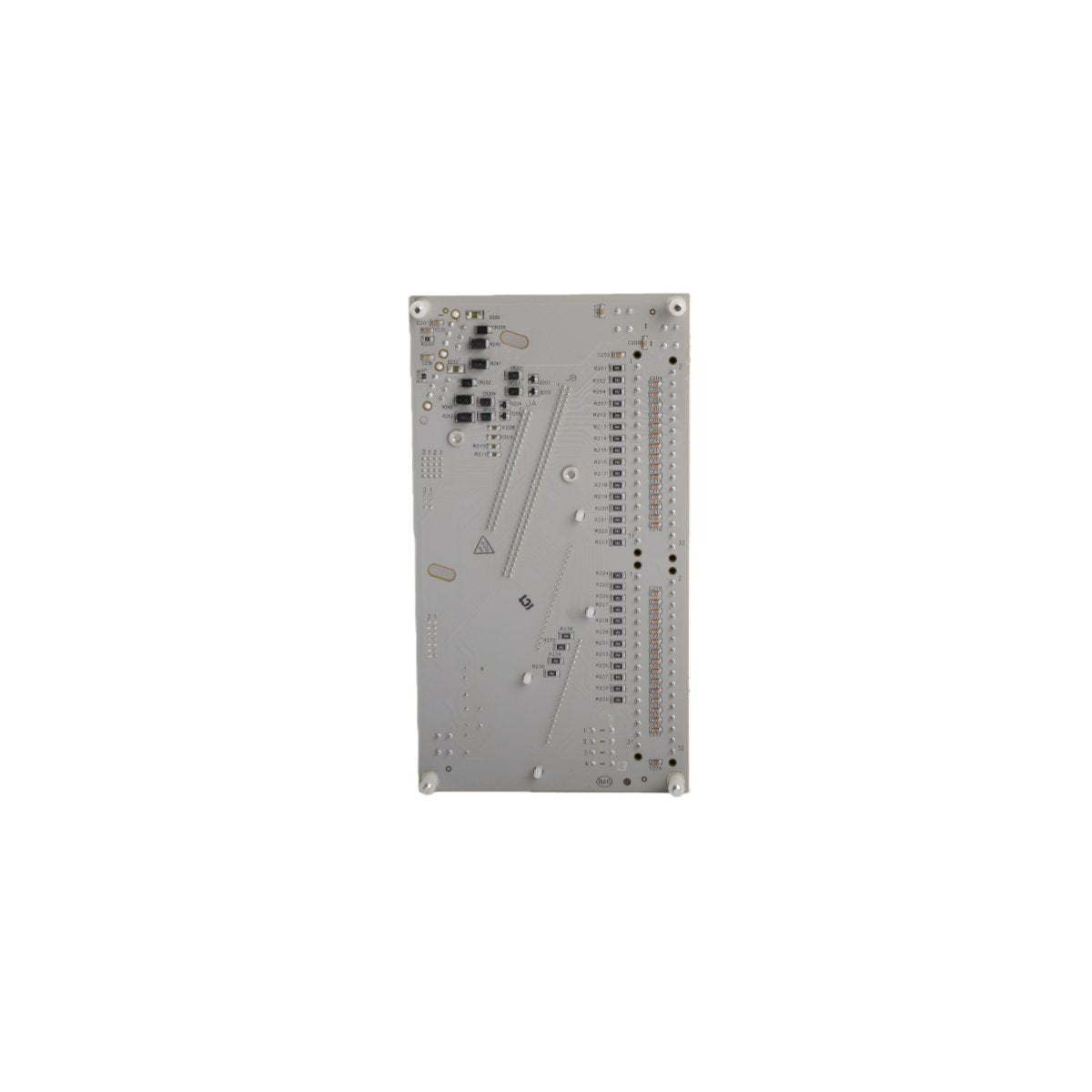

The Honeywell DC-TDOD51 is a high-performance discrete output component developed for the Experion PKS Series C environment. This module is engineered to manage 24V DC bussed digital signals, utilizing a common return architecture for efficient field wiring. It serves as a reliable control interface between the DCS logic and field-side actuators. A standout feature of the DC-TDOD51 is its flexible excitation logic, which allows the unit to draw power either from the internal system bus or from an independent external source. This flexibility, combined with per-channel fail-safe state configuration, makes it an essential tool for engineers seeking a balance between high-density discrete control and robust operational safety.

Technical Specifications and Hardware Architecture

• Module Identity DC-TDOD51

• Signal Type 24V DC Bussed Digital Output

• Channel Architecture Non-redundant, common return (bussed) design

• Power Excitation Options Internal (System-powered) or External (Field-powered)

• Galvanic Protection Complete isolation between field circuitry and Series C logic when using external power

• Fail-Safe Logic FAILOPT support (Hold Last Value or Shed to Safe State) on a per-channel basis

• Interface Mounting Compatible with Series C I/O Termination Assemblies (IOTA)

• Unit Weight 0.4 kg

• Physical Footprint 7x14x14.5cm

• Standard Compliance HS Code 8537101190 | USA Origin

Industrial Deployment and Control Utility

The DC-TDOD51 is designed for non-redundant applications where precise discrete command execution is required. Its ability to isolate field power from the control logic makes it ideal for complex industrial power grids.

• Solenoid and Valve Management: Executing high-speed opening and closing commands for process valves in water treatment or food and beverage manufacturing.

• Field Power Isolation: Utilizing external 24V DC sources to prevent field-side electrical noise from propagating back into the sensitive Series C DCS backplane.

• Critical Fail-Safe Sequencing: Leveraging FAILOPT settings to ensure that in the event of a communication loss, specific outputs (such as alarms or safety vents) transition to a pre-defined "safe" orientation.

• Pilot Light and Indicator Control: Centralized management of status beacons and control panel indicators across large-scale industrial facilities.

• Motor Starter Interfacing: Driving 24V interposing relays for motor control centers (MCCs) in low-to-medium complexity automation loops.
