Product Overview

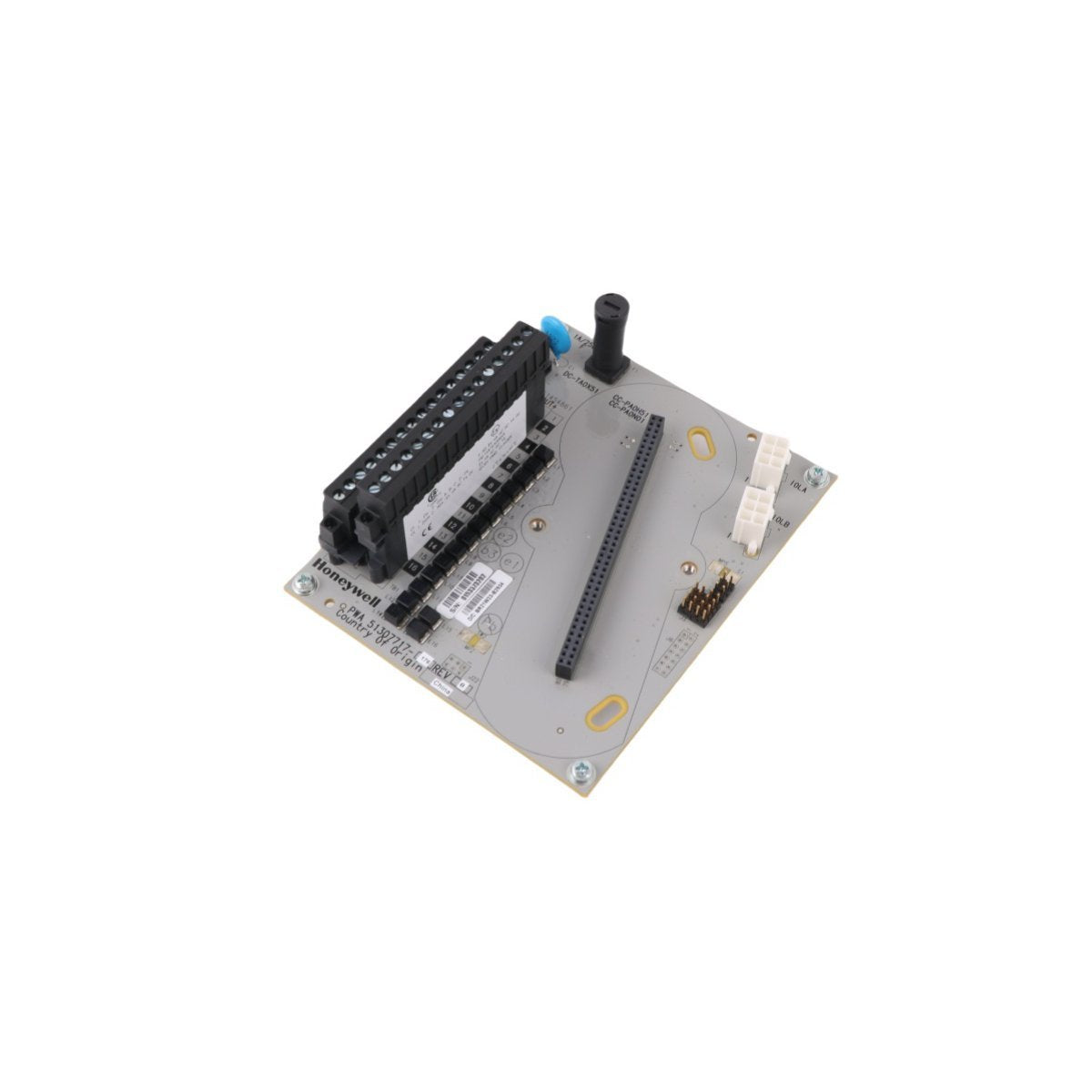

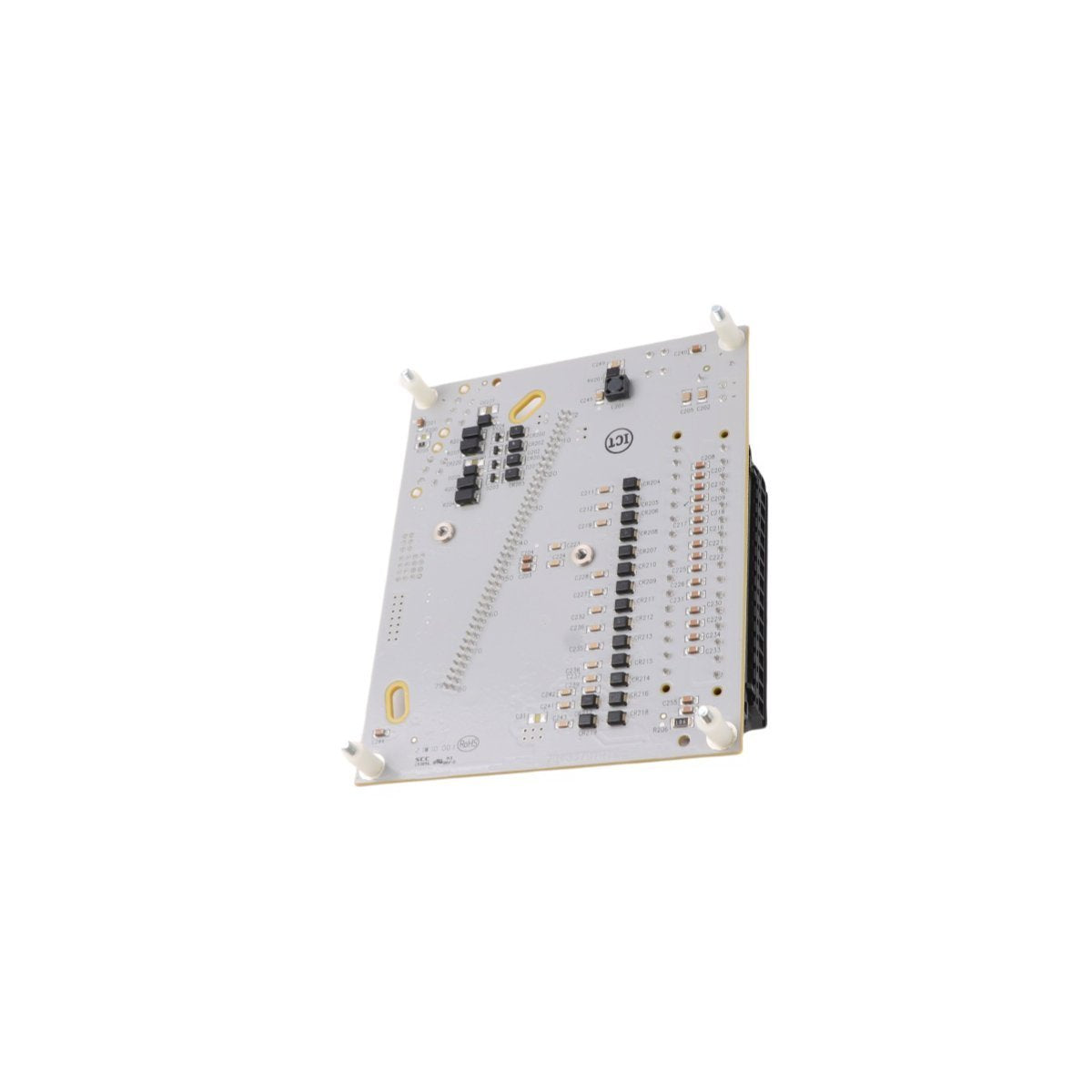

The Honeywell DC-TAOX11 is a high-performance Analog Output Module engineered for the Experion PKS Series C platform. This module is designed to provide precise control signals for field actuators, valves, and other modulating devices within a Distributed Control System (DCS) environment. By utilizing an IOTA (Input Output Termination Assembly) mounting system, the DC-TAOX11 integrates both the electronic processing unit and field terminations into a single, space-saving footprint, eliminating the need for traditional chassis-based hardware.

Technical Specifications

• Channels: 16 Isolated Outputs

• Signal Range: 4-20mA with HART digital communication support

• Accuracy: ±0.1% of full scale

• Mounting: IOTA-based (Series C)

• Power Supply: Sourced via IOTA backplane (no external power wiring required)

• Redundancy: Supports 1:1 hardware redundancy without external cables

• Weight: 0.38 kg

• Dimensions: 29.4 x 12 x 17 cm

• Origin: USA

Core Functional Characteristics

The DC-TAOX11 is distinguished by its advanced thermal management and high-density design. The physical orientation of the module within the cabinet is optimized for vertical airflow, ensuring that even in high-density installations, the hardware maintains its precision rating. The module features a distinctive "information circle" status indicator, providing maintenance personnel with immediate visual diagnostics regarding the health and communication status of the unit.

For mission-critical loops, the DC-TAOX11 offers seamless redundancy. When two modules are installed on a redundant IOTA, they synchronize automatically to ensure uninterrupted process control in the event of a hardware failure. Furthermore, the module includes integrated electronic circuit protection, which removes the necessity for external fuses and simplifies the overall wiring architecture.

Maintenance and Installation

Field wiring is facilitated through a two-level detachable terminal block system. This allows for the pre-wiring of the IOTA base before the electronic module is plugged in, significantly reducing commissioning time and allowing for "hot-swapping" during maintenance cycles without disturbing field connections. The module is fully compatible with HART-capable field devices, allowing for remote configuration and diagnostic data pass-through to the Experion PKS host.
