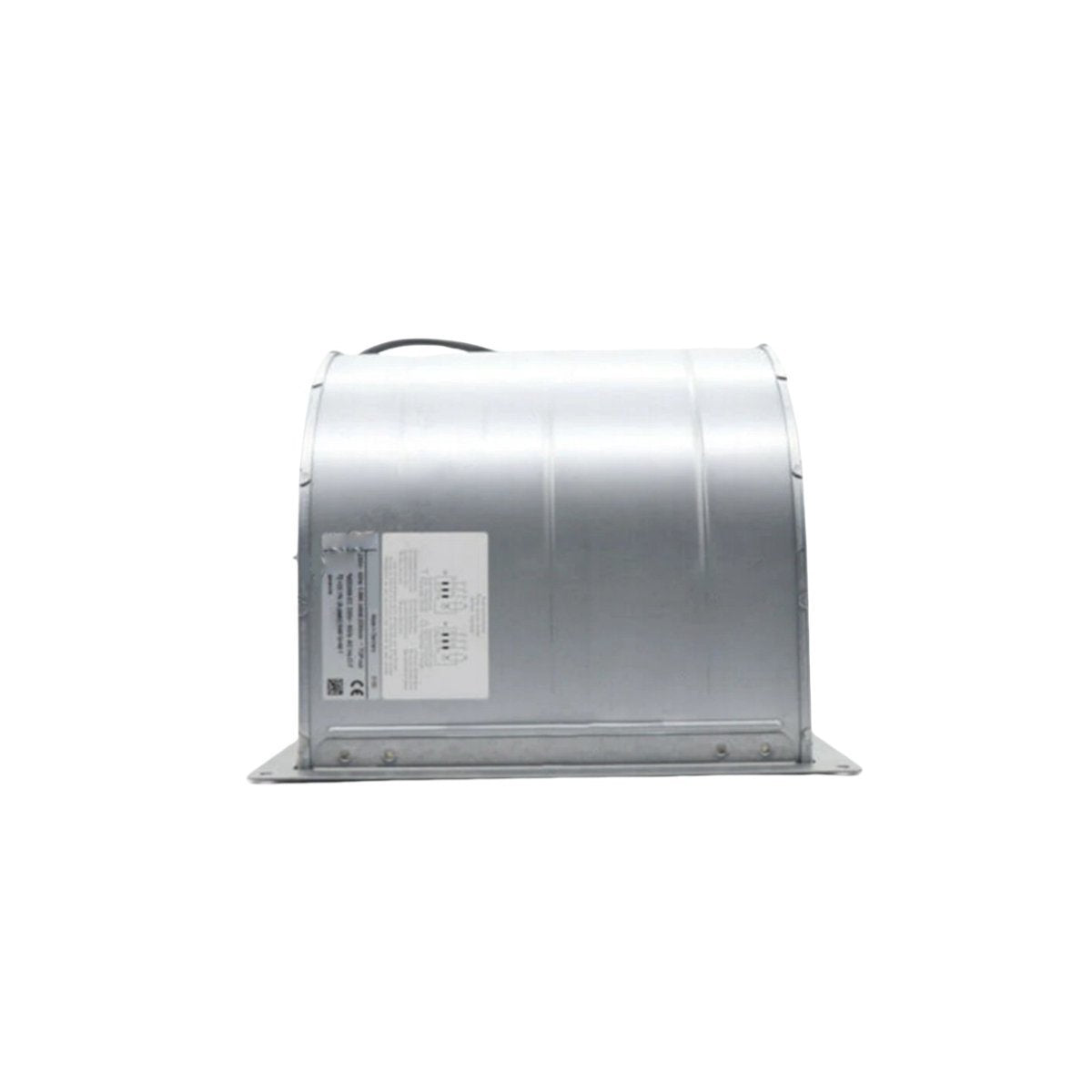

D2D146-AA02-22 ABB Centrifugal Fan

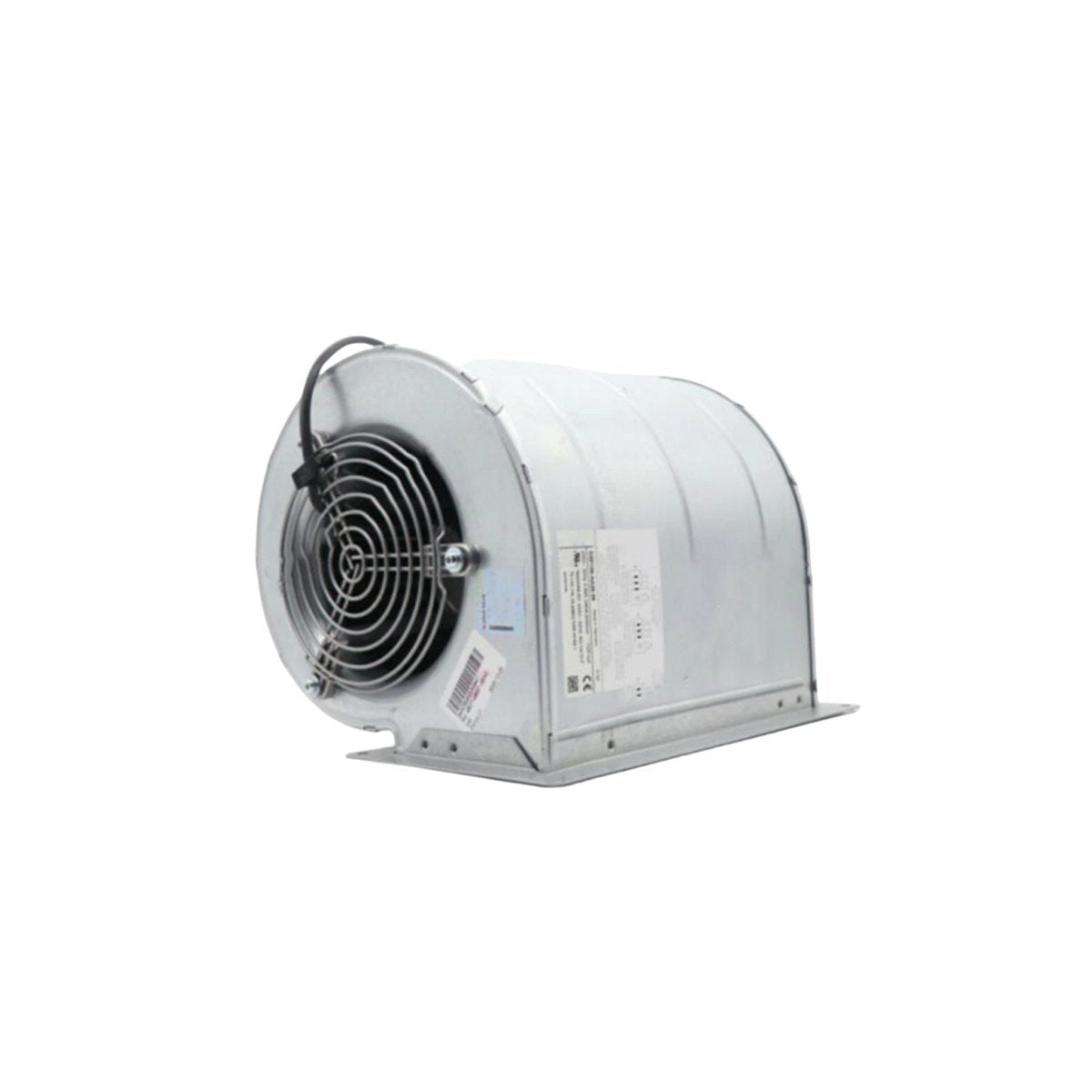

D2D146-AA02-22 ABB Centrifugal Fan
D2D146-AA02-22 ABB Centrifugal Fan
ABB

D2D146-AA02-22 ABB Centrifugal Fan

SKU: D2D146-AA02-22
Categories : ABB
In Stock
  • Dimensions: 36 x 26 x 25 cm
  • Country of origin: Sweden
  • Payment: T/T, Western Union
  • Shipping port: Xiamen
1 years warranty
Delivery time: 3-7 business days
Free 30 days return

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

Product Overview

The ABB D2D146-AA02-22 is a high-performance centrifugal fan engineered to address critical thermal management challenges within industrial control cabinets and Distributed Control Systems (DCS). Excess heat is the leading cause of premature failure in sensitive power electronics; this unit resolves that issue by providing high-velocity forced-air cooling. Specifically designed for high-pressure applications, the D2D146-AA02-22 ensures that airflow remains consistent even when passing through dense internal components or filters. Its robust AC motor and aerodynamic impeller design are optimized for continuous 24/7 operation, making it a vital component for maintaining the operational stability of large-scale automation frameworks.

Technical Specifications

Property Details
Manufacturer ABB
Model Number D2D146-AA02-22
Product Type Centrifugal Fan (Double Inlet)
Voltage Rating 230 V AC
Frequency 50 / 60 Hz
Power Consumption 290 W
Current Draw ~1.25 A (Startup) / 0.81 A (Nominal)
Rotational Speed 2250 RPM
Static Back Pressure 275 Pa (Minimum)
Net Weight 4.8 kg
Dimensions 36 x 26 x 25 cm
Origin Sweden

Model Code Breakdown

The model designation D2D146-AA02-22 provides essential data regarding the fan's mechanical and electrical configuration:

  • D2D: Indicates the fan series, specifically a double-inlet centrifugal design which allows for maximum air intake and high pressure-to-volume efficiency.

  • 146: Refers to the diameter of the impeller in millimeters, defining the physical scale and airflow capacity of the unit.

  • AA02: Represents the motor winding and housing configuration, optimized for standard industrial 230V AC power grids with specific mounting hole patterns.

  • 22: This suffix denotes the specific electrical termination and bearing type. Revision 22 typically signifies high-endurance ball bearings designed for extended service life in high-temperature environments.

Installation Guidelines and Wiring

To ensure maximum cooling efficiency and motor longevity, the following installation protocols are recommended:

  • Airflow Orientation: Centrifugal fans intake air from the sides and discharge it at 90 degrees through the outlet. Ensure the intake areas are free from obstruction and the exhaust is aligned with the cabinet’s primary heat-dissipation path.

  • Secure Mounting: Use all designated mounting points to secure the fan housing to the drive or cabinet frame. Given the 2250 RPM speed, any looseness will cause vibrations that can damage both the fan and nearby electronics.

  • Electrical Connection: Ensure the 230V AC supply is stable. It is highly recommended to use a motor protection switch or a dedicated fuse to protect the windings from phase failure or voltage surges.

  • Capacitor Maintenance: This AC fan typically requires a run capacitor for start-up and phase shifting. Always verify the capacitor's microfarad ($\mu F$) rating matches the motor nameplate during replacement.

FAQ: Frequently Asked Questions

Does this fan support speed control?

While this is a fixed-speed AC fan, it can be regulated using basic voltage controllers or frequency inverters, provided they are rated for permanent split capacitor (PSC) motors. However, running at very low speeds may reduce cooling efficiency below safe levels.

How often does the D2D146-AA02-22 require maintenance?

The unit features maintenance-free ball bearings. The primary maintenance task is the periodic inspection of the impeller for dust buildup, which can cause imbalances and noise. In dusty environments, cleaning should occur every 6–12 months.

Is this fan compatible with ACS800 or ACS880 drive cabinets?

Yes, this specific model is frequently utilized as the primary cooling solution for ABB’s large-frame industrial drives and DCS cabinets due to its high static pressure capabilities.
