Product Overview

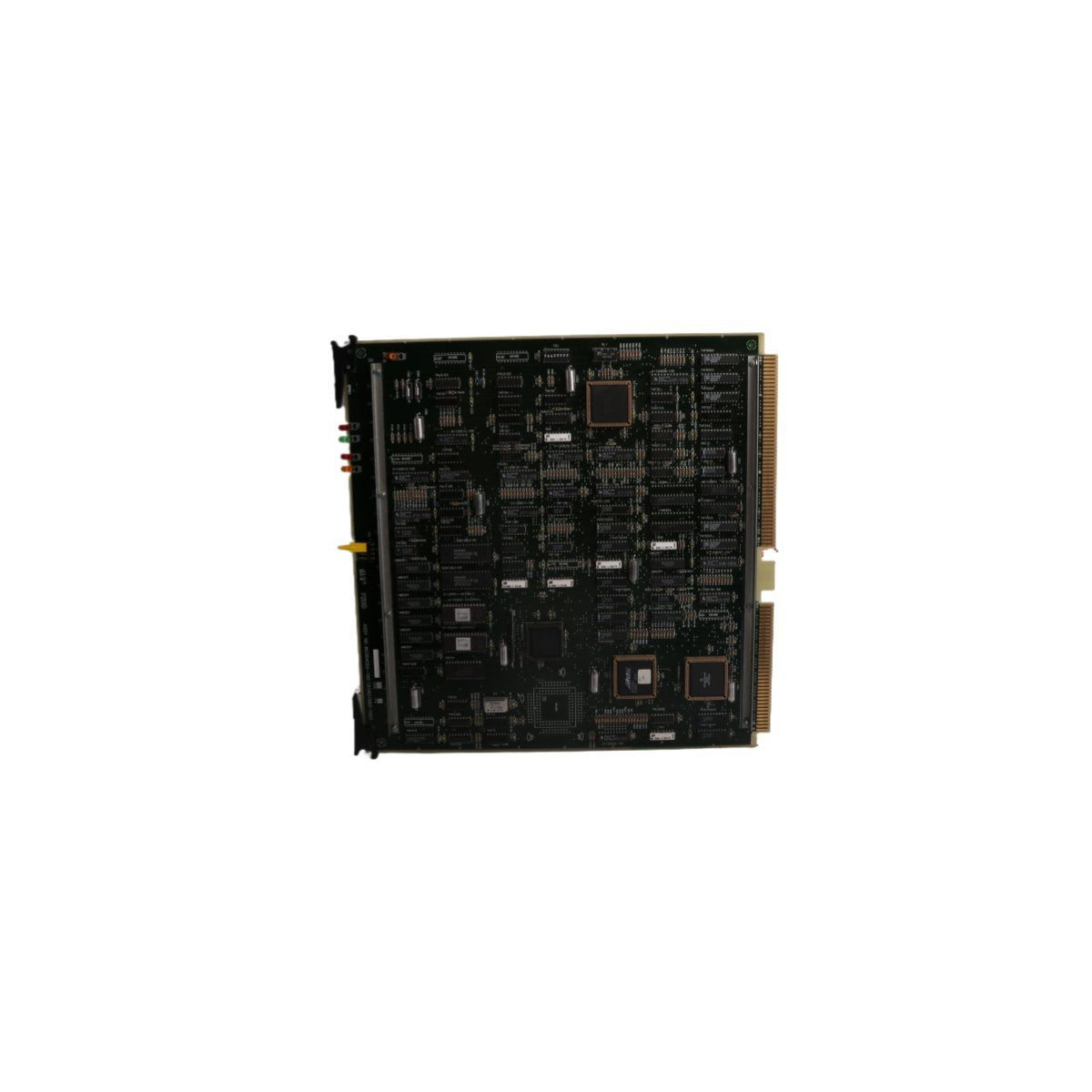

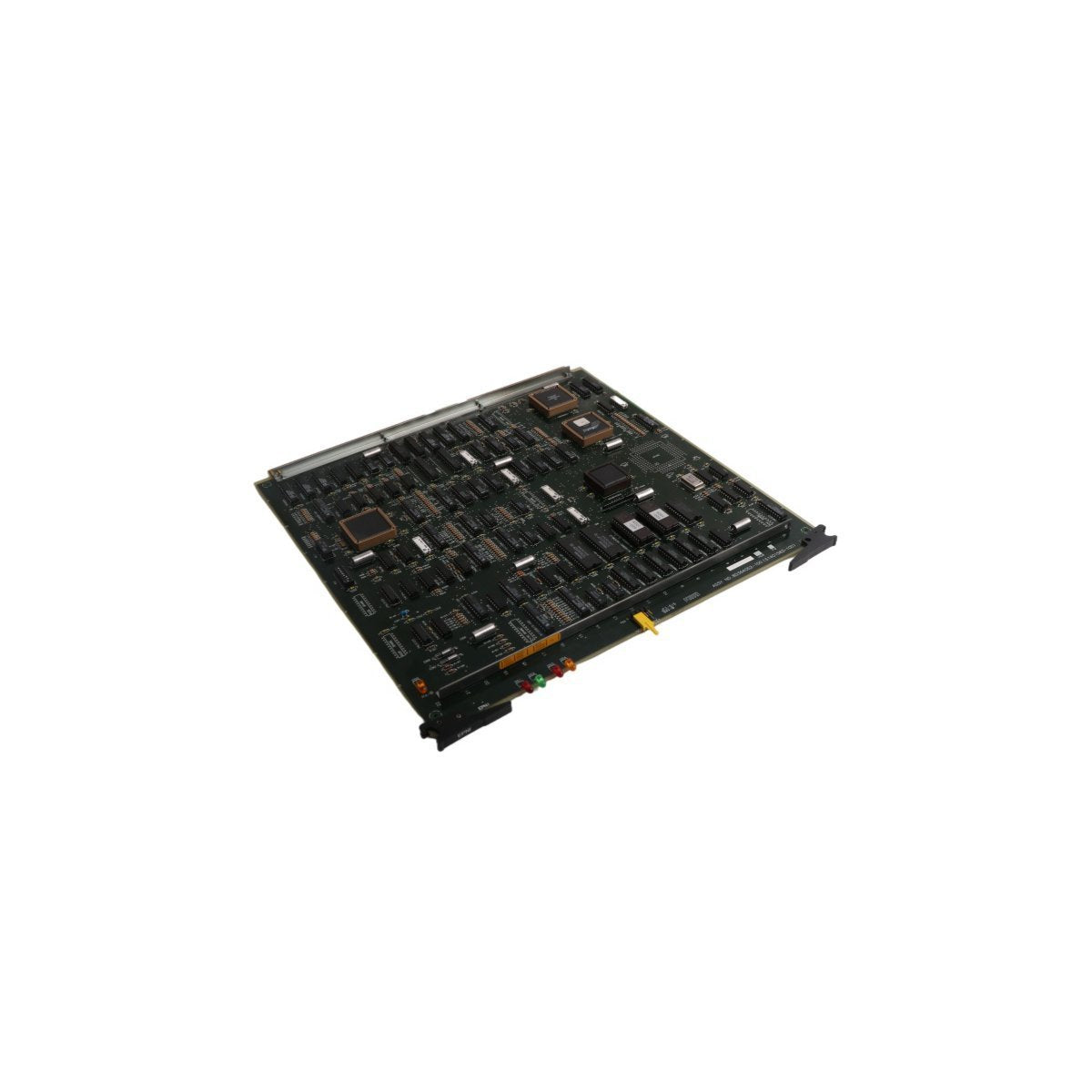

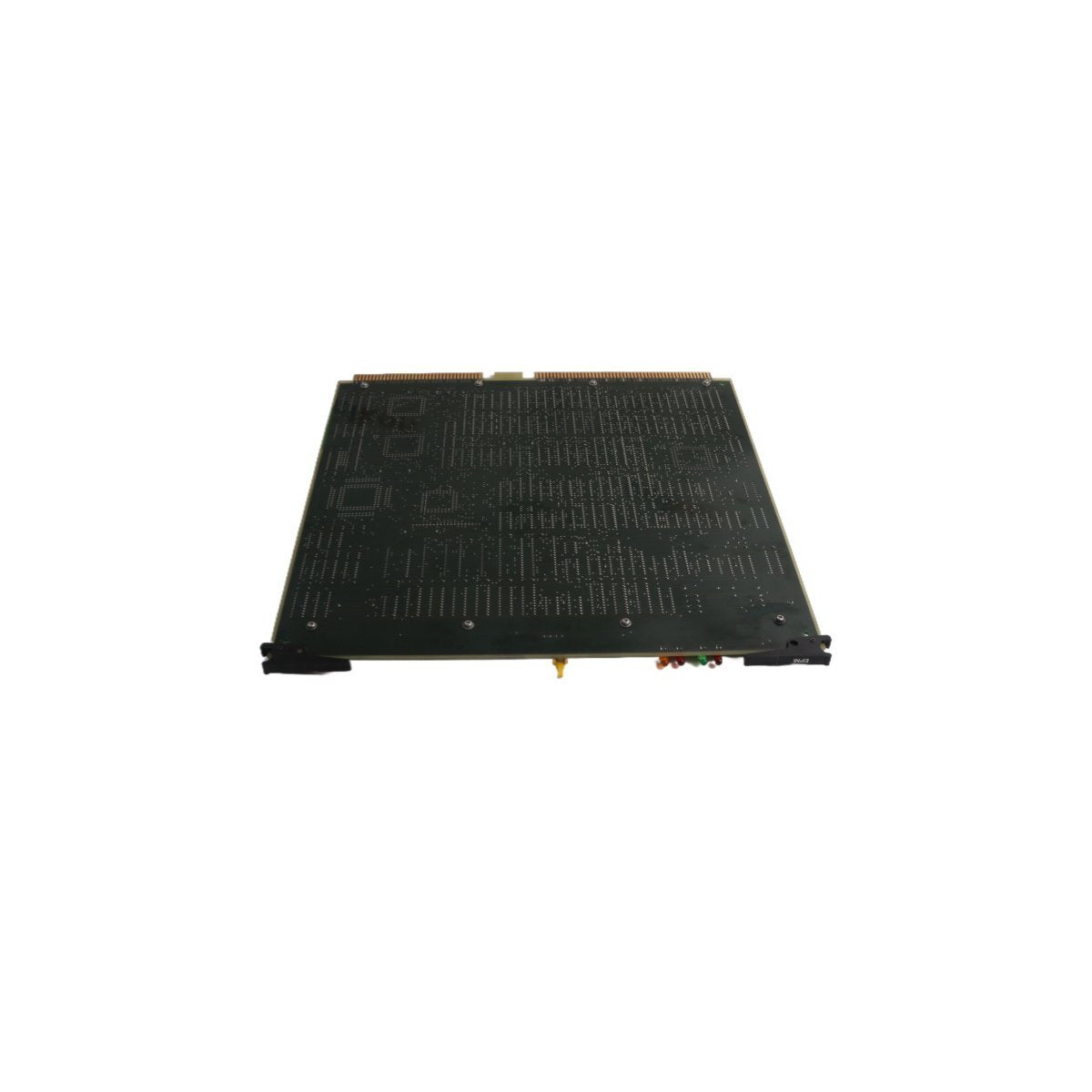

The Honeywell CV-QVC02K is a high-capacity Quality Vessel Control System (QVCS) engine designed for large-scale industrial automation environments. This module provides a robust processing environment for managing up to 2000 individual control points, ensuring high-fidelity monitoring and regulation of critical process variables. It serves as a central intelligence unit within the control hierarchy, facilitating complex logic execution and data acquisition to maintain optimal vessel performance and safety standards.

Essential System Attributes

• Point Capacity: Supports a maximum of 2000 active control points for extensive I/O density.

• Processing Unit: High-speed dedicated logic controller for real-time computational tasks.

• System Dimensions: 160mm x 115mm x 45mm.

• Unit Weight: 0.82 kg (approximately 1.8 lbs).

• Connectivity: Integrated high-speed data bus interface for seamless integration with backplane architectures.

• Memory Architecture: Non-volatile flash memory for secure configuration retention during power cycles.

• Power Requirements: Standard 24V DC input with built-in surge protection.

• Environmental Rating: Engineered for operation within industrial cabinets ranging from 0°C to 60°C.

Deployment Scenarios

The CV-QVC02K is primarily utilized in sectors requiring precise chemical or physical regulation within large containment units. In pharmaceutical manufacturing, it manages the intricate balance of pressure and temperature across massive reactor vessels. Within the petrochemical industry, it facilitates the monitoring of storage tanks and distillation columns where 2000-point density is required to capture comprehensive sensor data. Furthermore, it is a standard component in large-scale food and beverage processing lines to ensure batch consistency through centralized point management.

FAQ

Q: Does the CV-QVC02K support expansion if the 2000-point limit is reached?

A: This specific module is hard-capped at 2000 points; however, multiple units can be networked within a distributed control system to scale the total point count of the facility.

Q: What is the primary function of the QVCS acronym in this model?

A: QVCS stands for Quality Vessel Control System, which refers to Honeywell’s specialized logic for maintaining strict environmental parameters within industrial process vessels.

Q: Is the CV-QVC02K hot-swappable during active process operations?

A: While the hardware is robust, hot-swapping procedures depend on the specific chassis and backplane configuration being used. Always refer to your system's safety manual before removing powered components.

Q: Does this module include internal diagnostic capabilities?

A: Yes, the unit features integrated self-diagnostics that monitor hardware health and communication integrity, reporting errors directly to the operator workstation.

Q: What type of cabling is required for the interface?

A: The module typically interfaces through standard Honeywell proprietary backplane connectors, though external communication may utilize shielded twisted-pair or Ethernet depending on the setup.
