Product Overview

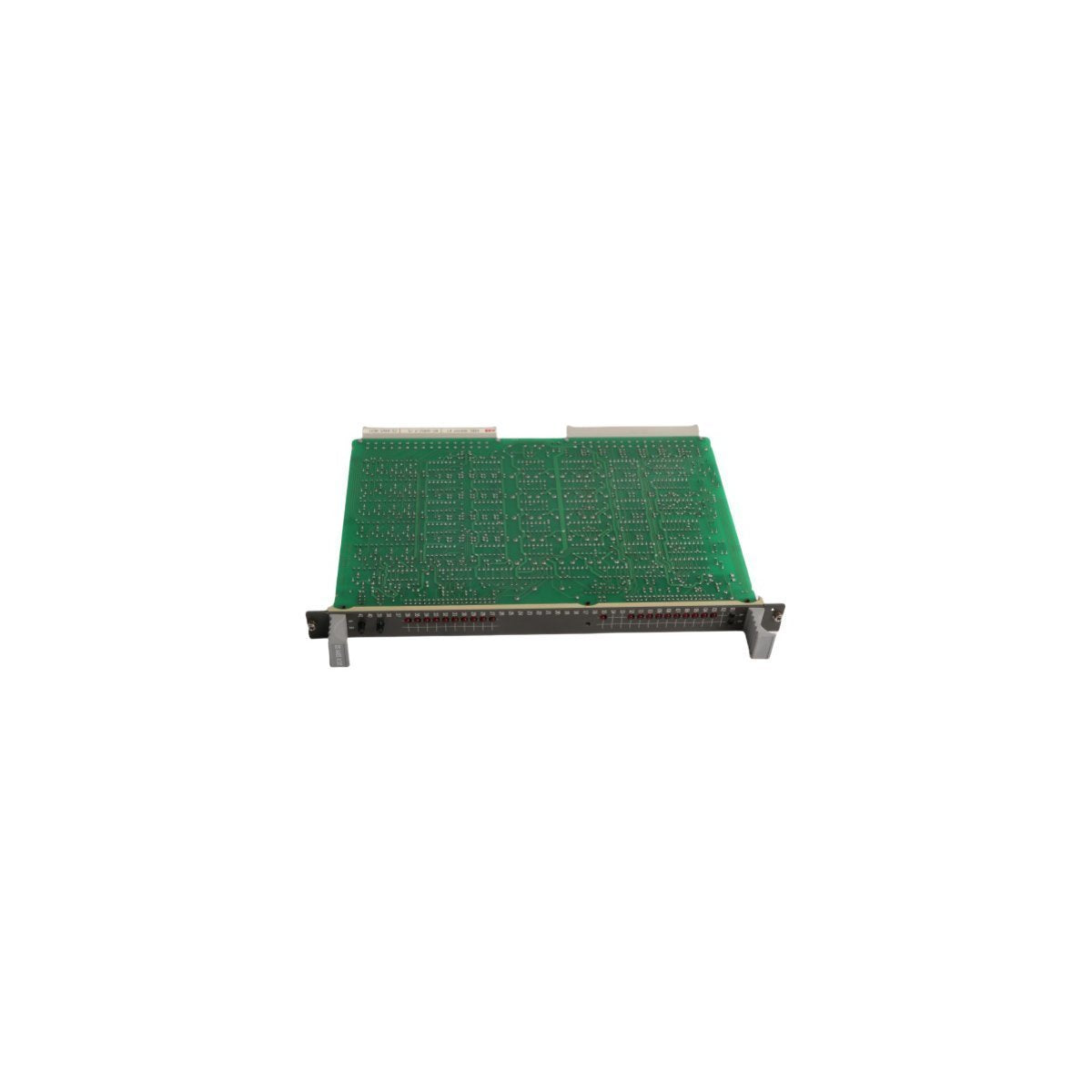

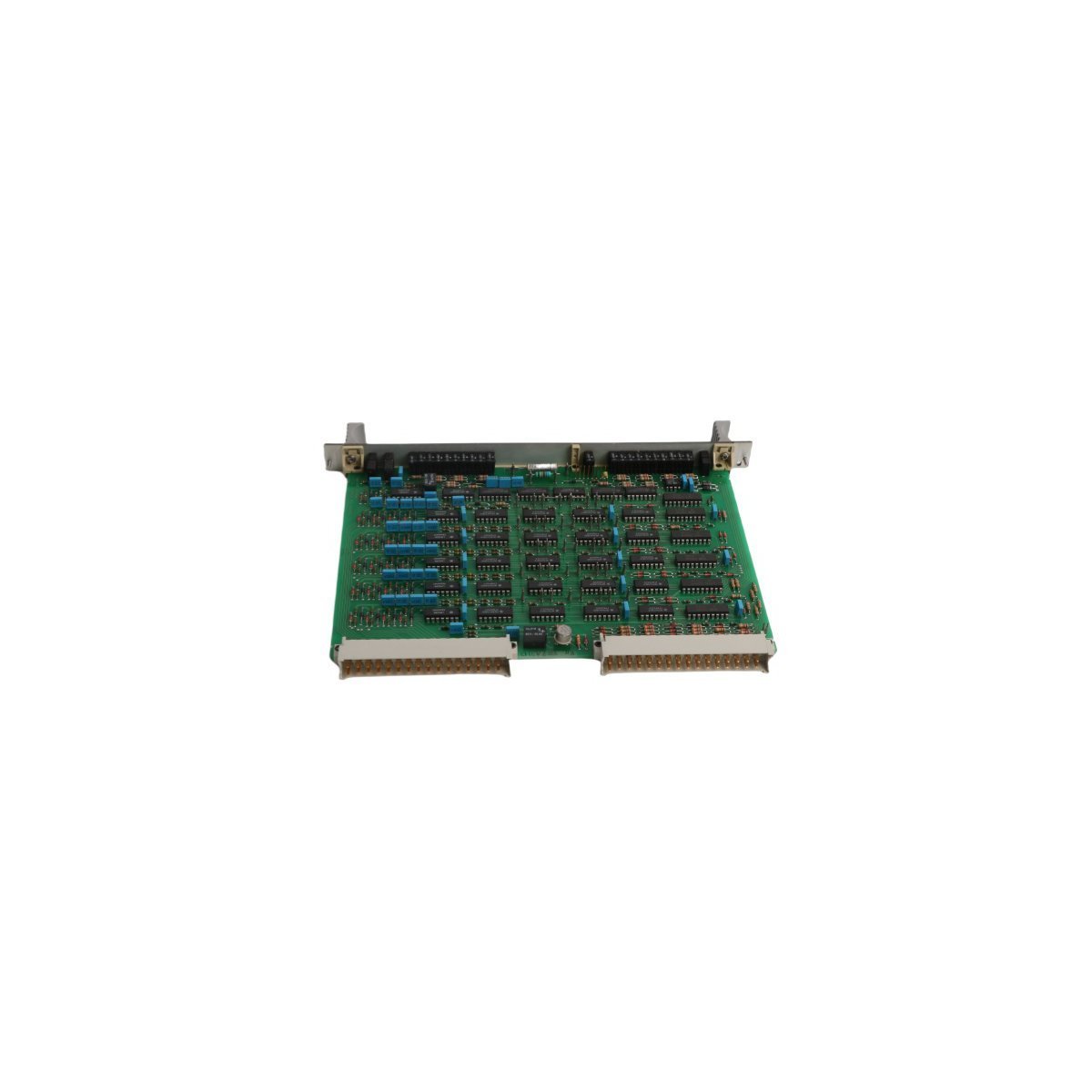

The ABB HIEE400109R1, cataloged under the designation CS A465 AE01, is a precision-engineered logic circuit board developed for the UNITROL series of excitation systems. This module serves as a high-speed signal processing hub within Distributed Control Systems (DCS), managing the complex logic required for generator voltage regulation and field current control. By utilizing advanced semiconductor technology, the CS A465 AE01 ensures real-time data integrity and low-latency execution of control commands. It is designed to act as a reliable interface between the digital control environment and the power electronics hardware, maintaining grid stability and protecting high-value power generation assets.

Hardware Infrastructure and Physical Build

• Component Designation Industrial Logic PCB / Control Module

• Model Identifier CS A465 AE01

• Order Reference HIEE400109R1

• Network Interfacing RS-485 Serial Port / Ethernet Router Support

• Signal Integrity Advanced digital signal processing (DSP) logic

• Weight / Mass 0.3kg

• Physical Proportions 1.8cm x 19.6cm x 26.1cm

• Thermal Operating Range -20°C to +55°C

• Safety Compliance CE and UL Certified

• Country of Origin Sweden

• Power Efficiency Low-wattage architecture for heat reduction

Strategic Industrial Implementations

This logic board is primarily deployed in high-integrity power utilities, including thermal, hydroelectric, and nuclear energy plants. Within the UNITROL framework, the HIEE400109R1 facilitates the synchronization and reactive power management of large generator sets. Its ruggedized construction and RS-485 compatibility allow it to be integrated into diverse automation networks, where it manages the handshaking between the local excitation unit and the plant-wide control bus. Because it is engineered for extreme reliability in harsh industrial zones, it is an essential component for facilities that require 24/7 operational continuity and precise mechanical control over synchronous machinery.

FAQ

Q: Is the HIEE400109R1 CS A465 AE01 a direct replacement for older A465 revisions?

A: While the CS A465 AE01 is a standard revision within the UNITROL series, you should verify that your specific system firmware version is compatible with the AE01 designation to ensure all logic functions are fully supported.

Q: What is the benefit of the RS-485 interface on this logic board?

A: The RS-485 communication protocol allows the board to participate in robust, multi-drop serial networks over long distances, which is critical for maintaining signal integrity in large-scale power plant environments with high electrical noise.

Q: Does the unit require specialized mounting hardware?

A: The module is designed for standard vertical slot insertion within the UNITROL sub-rack system. Its slim 1.8cm profile ensures efficient use of space and facilitates proper passive airflow across the PCB components.

Q: How does the board handle power fluctuations during generator startup?

A: The HIEE400109R1 features integrated voltage regulation and filtering to protect its internal logic from the transients often encountered during high-energy excitation sequences.

Q: Is this board pre-programmed before shipping?

A: The board contains factory-loaded core logic; however, site-specific parameterization is typically required during the commissioning phase to align the excitation control with your specific generator’s output curves.
