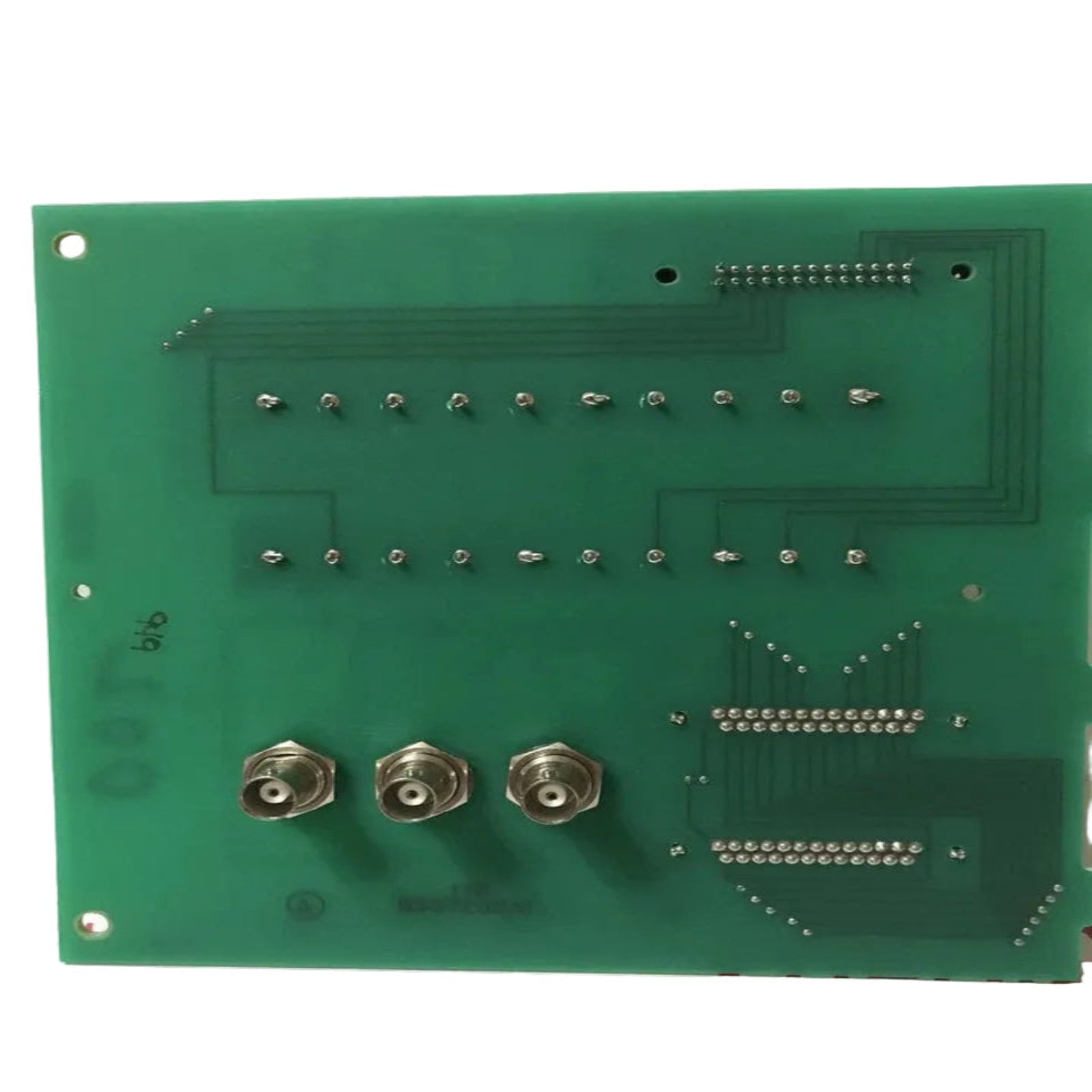

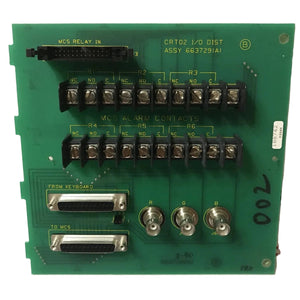

The ABB CRT02, also cataloged as the CRT02 MCS Alarm Contact Module, operates as a dedicated hardware component for discrete alarm output switching and electrical fault signaling within Bailey Infi 90 Series platforms. This hardware option utilizes mechanical or solid-state contacts to transmit critical trip indicators from the system bus to external annunciator panels or hardware safety interlock chains. It provides direct physical switching action, ensuring continuous status tracking across parallel processing loops without software-induced output delays.

Hardware Operational Data

Backplane Bus Communication and Deterministic Arrays

This alarm module interfaces directly with automated backplane tracks to maintain standard backplane bus communication velocity across the internal rack architecture. The module logic processes command bits from the main bus using the +5 VDC local power rail, supporting stable I/O density scaling options within composite multi-slot chassis setups. This separated circuit layout prevents inductive switching fields generated by the 8 output channels from degrading parallel data lines or disrupting system firmware flash compatibility. The 1500 Vrms galvanic isolation block prevents external 24 VDC field circuit surges from penetrating the internal processing environment.

Technical Engineering Inquiries

Q: What are the specific hot-swap constraints regarding this alarm module?

A: This module must not be extracted from the Euro-card slot while backplane bus communication is active or while the external 24 VDC field circuit is under load conditions. Live removal risks causing pin-level arcing on the 120-pin connector, which can corrupt data on adjacent active channels.

Q: How does a firmware flash compatibility update affect this module?

A: The CRT02 functions as a hardware discrete switching interface driven by direct register mapping. It does not contain independent microcode, meaning master controller firmware flash compatibility changes do not alter module behavior, provided the base I/O register allocation remains constant.

Q: What failures occur if the 1500 Vrms channel-to-bus isolation barrier leaks?

A: If the 1500 Vrms isolation barrier degrades due to physical component breakdown, high-voltage switching transients from the field side can penetrate the +5 VDC logic bus. This condition can drop the backplane bus communication velocity or cause unintended shutdown states in the main processor.

Field Installation Guidelines

• Euro-Card Alignment & Pin Preservation: Line up the module board edges with the designated chassis slot tracks. Slide the unit inward smoothly until the rear J1 120-pin Euro-card connector sits flush against the backplane socket housing.

• External Power Termination: Connect the external 24 VDC field supply lines to the proper termination block screws. Verify line potential and polarity metrics using an absolute multi-meter before closing the supply breaker.

• Inductive Load Suppression: Install external suppression diodes or RC snubbers across all external inductive relay coils driven by the 8 output channels. Suppressing inductive spikes is necessary to prevent premature contact wear and maintain local electrical isolation.

Package Manifest Inventory

• 1 x ABB Bailey Infi 90 CRT02 Alarm Contact Module

• 1 x Euro-Card Sled Locking Assembly Set

• 1 x Factory Component Electrical Parameter Leaflet

Logistics Manifest Configuration

Delivery time: 3-5 days when payment finish verification is cleared by our scheduling group. Consignments are dispatched from our distribution hub in Xiamen, China using global carriers including DHL, FEDEX, or UPS. The board is sealed within an anti-static industrial packaging film enclosure and placed inside an impact-resistant container lined with thick, anti-static contour cushioning inserts to safeguard the integrated components from static build-up and physical stress during air cargo transit.
