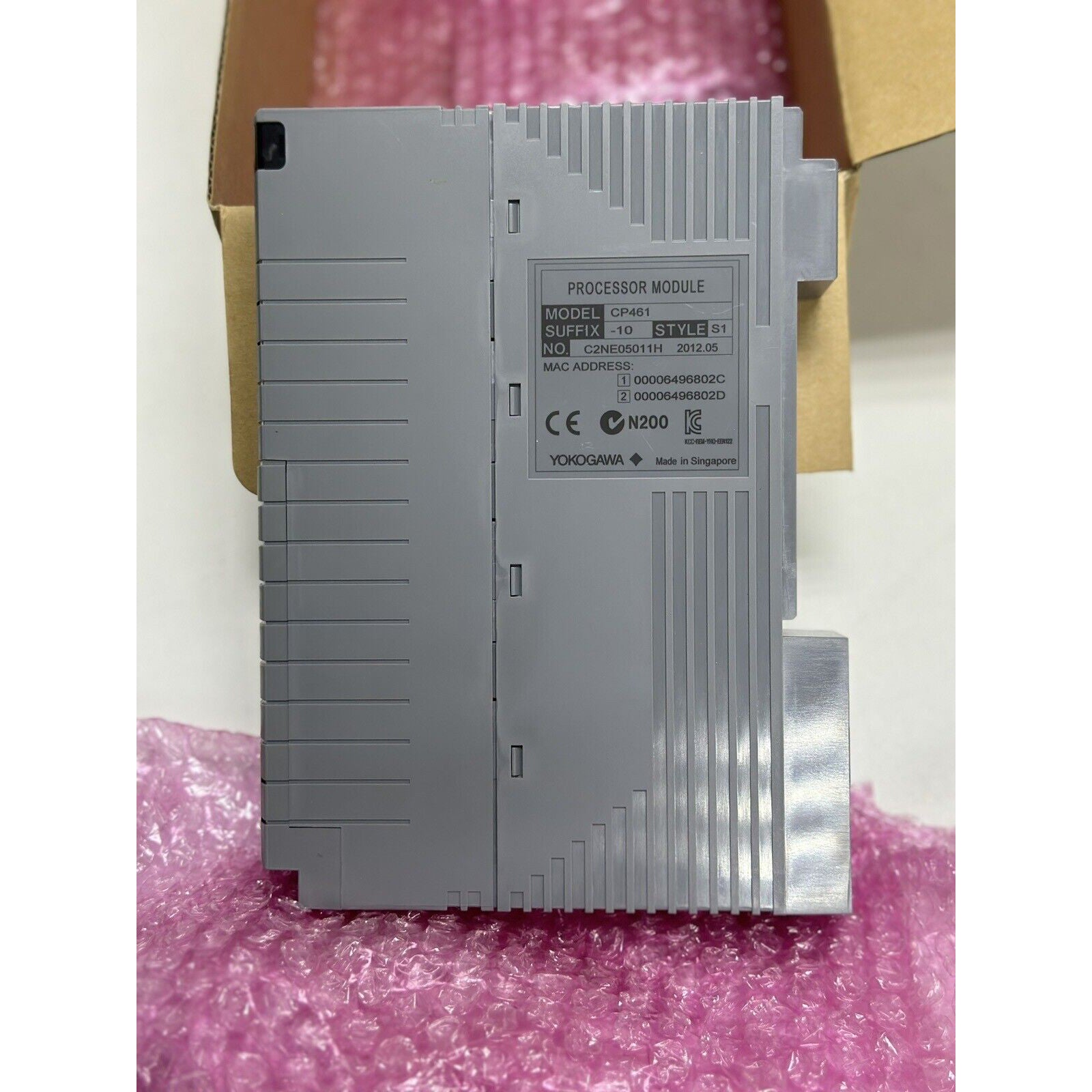

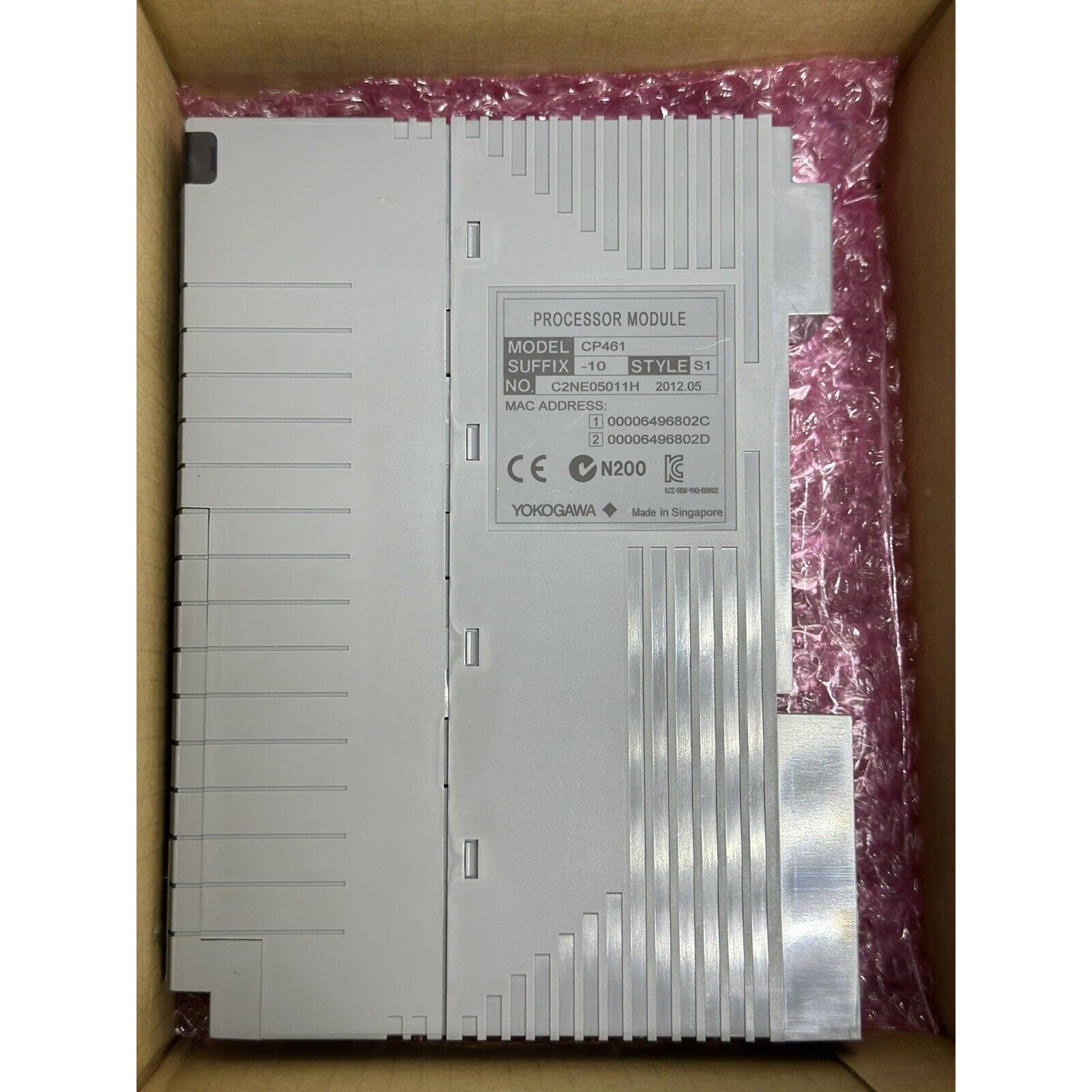

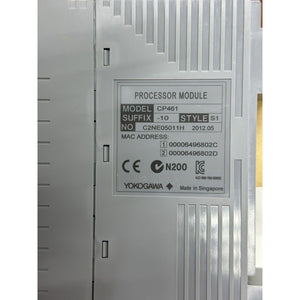

Product Overview

The Yokogawa CP461-10 S1 is a high-performance central processing component engineered for the CENTUM VP and CENTUM CS Distributed Control Systems (DCS). Operating as a primary controller module, it manages high-speed data processing and deterministic communication across the VNET/IP network. This module is the "brain" of the Field Control Station (FCS), responsible for executing complex control algorithms, managing I/O data scanning, and ensuring synchronized coordination between field instruments and the human-machine interface. The CP461-10 S1 is specifically designed for integration into AFV-series control units, offering a robust architecture that supports redundant configurations to eliminate single points of failure in mission-critical industrial environments.

Core Architecture and Hardware Parameters

The CP461-10 S1 is built to sustain continuous operation under rigorous industrial loads, utilizing a dual-bus architecture for maximum connectivity.

• Main Processor Function: VNET/IP Control and Data Management

• Network Interface: Dual-redundant bus ports for VNET/IP communication

• Operating Voltage: 24 VDC (Standard range)

• Energy Consumption: 1.2A current draw (Approx. 28.8W)

• Operating Thermal Range: -20°C to +60°C

• Storage Thermal Range: -30°C to +80°C

• Environmental Humidity: 5% to 95% RH (Non-condensing)

• Unit Mass: 0.7 kg (Approx. 1 lb 10.1 oz)

• Physical Dimensions: 20.3 cm x 15.2 cm x 2.5 cm (8.0" x 6.0" x 1.0")

• Hardware Compatibility: Designed for AFV30S, AFV30D, AFV40S, and AFV40D units

Deployment Scenarios and Field Utility

The CP461-10 S1 is an essential upgrade or replacement component for plants requiring stabilized control cycles.

• Continuous Process Control: Ideal for refineries and chemical plants that utilize the AFV30/AFV40 series controllers to manage high-density I/O loops.

• Network Redundancy: Applied in duplexed controller setups where two CP461-10 S1 modules operate in parallel to provide instantaneous failover without process interruption.

• Infrastructure Modernization: Used to transition older CENTUM CS architectures to the modern VNET/IP high-speed Ethernet backbone.

• Harsh Industrial Monitoring: Suitable for remote instrument enclosures where temperature fluctuations are common, thanks to its wide -20°C to 60°C operational rating.

FAQ

Q: Can the CP461-10 S1 be used in a non-redundant (simplex) configuration?

A: Yes, this processor module is compatible with both simplex (AFV30S/AFV40S) and duplex (AFV30D/AFV40D) Field Control Units. In a duplex setup, two modules are required to ensure full redundancy.

Q: What is the primary communication protocol supported by this module?

A: The CP461-10 S1 is designed specifically for VNET/IP, which is Yokogawa’s high-speed, 1 Gbps control network based on standard Ethernet technology.

Q: Does this module require specialized cooling?

A: Under standard operating conditions (-20°C to 60°C), the module relies on natural convection within the Yokogawa rack assembly. Ensure that cabinet ventilation is not obstructed to maintain long-term reliability.

Q: Is the CP461-10 S1 compatible with the older Vnet protocol?

A: This module is primarily optimized for VNET/IP. For older Vnet-based systems, hardware compatibility should be verified against the specific Field Control Station model (e.g., AFS or AFG series).

Q: What do the front-panel status LEDs indicate?

A: The module typically includes status lights for "HRDY" (Hardware Ready), "CTRL" (Control Active), and "COPY" (Data Synchronization in redundant mode), which assist in real-time diagnostics and maintenance.
