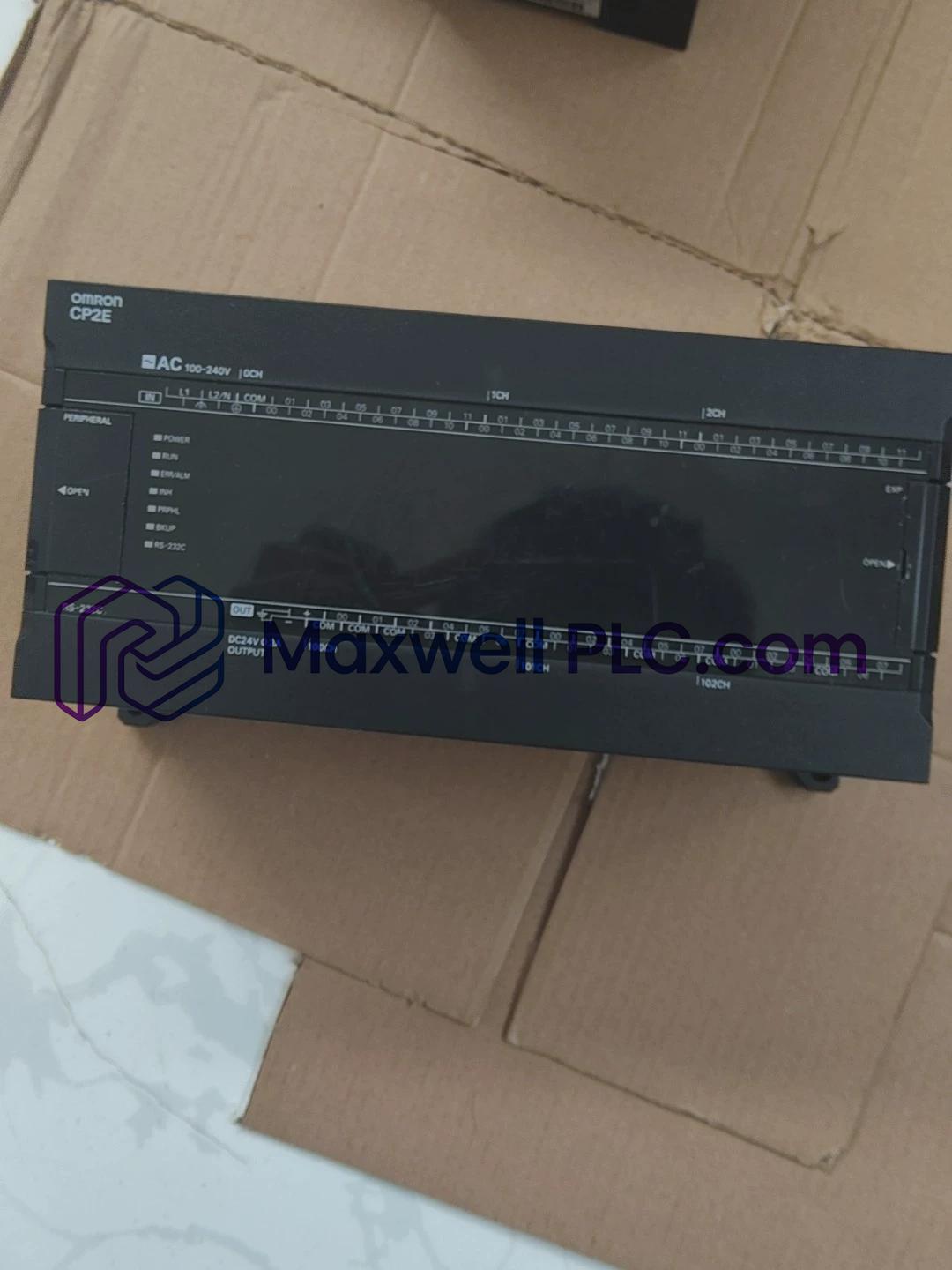

Configured for discrete machine control in the OMRON CP2E PLC platform, the OMRON CP2E-E60DR-A (CP2E-E Programmable Controller) provides 36 digital inputs and 24 relay outputs in a 60-point CPU Unit. It uses a 100 to 240 VAC supply and provides 4K steps of program capacity and 4K words of DM Area capacity.

Model Configuration

The CP2E-E60DR-A is the 60-point relay-output configuration of the CP2E-E Essential family. OMRON specifies 36 inputs, 24 relay outputs, 4K-step program capacity and 4K words of DM Area capacity for this model.

Hardware Specifications

OMRON specifies the 60-point CP2E CPU Unit dimensions as 90 mm x 80 mm x 195 mm and maximum weight as 780 g. The same specification table gives 50 VA maximum at 100 VAC and 70 VA maximum at 240 VAC for 30/40/60-point AC CPU Units.

I/O Density and CPU Processing

The CP2E-E60DR-A integrates 60 I/O points directly into the CPU Unit, divided into 36 inputs and 24 relay outputs. The E-type uses a 4K-step program area and 4K words of DM Area memory. Its execution architecture uses stored-program control with cyclic scan and immediate refreshing of I/O.

For expansion, the 60-point CP2E configuration can connect up to three CP1W-series Expansion I/O Units or Expansion Units. With three 40-point expansion units, the specified maximum system capacity is 180 I/O points.

The CPU instruction timing is specified at 0.23 us for LD instructions and 1.76 us for MOV instructions, with an overhead processing time of 0.1 ms for the CP2E-E type.

Ordering Information

• 1x OMRON CP2E-E60DR-A Programmable Controller
• 1x 60-point CPU Unit configuration
• 36x digital input points integrated into the CPU
• 24x relay output points integrated into the CPU
• CP1W-series Expansion I/O Units are ordered separately when required
• Additional option hardware is ordered separately where applicable

Field Installation Guidelines

Power Wiring

• Connect the CPU Unit to a 100 to 240 VAC, 50/60 Hz supply.
• The specified operating range is 85 to 264 VAC.
• Provide upstream circuit protection and an appropriate disconnect device.
• Do not apply DC power directly to the AC supply terminals.
• Account for the specified inrush current when selecting upstream protective components.

Relay Output Wiring

• Confirm the load voltage and current before connecting field devices to relay outputs.
• Use external suppression for inductive loads where required by the load circuit.
• Keep relay-load wiring physically separated from low-level signal wiring.
• Do not exceed the applicable relay contact ratings defined in the CP2E hardware documentation.

Expansion Configuration

• A CP2E-E60DR-A system can accommodate up to three CP1W-series Expansion I/O Units or Expansion Units.
• Verify the complete expansion configuration before calculating total I/O capacity.
• The maximum specified I/O capacity for the 60-point configuration is 180 points.

Panel Installation

• Mount the CPU Unit inside the control panel using the specified mounting arrangement.
• Maintain sufficient clearance for terminal wiring and heat dissipation.
• Route AC power and relay-load conductors separately from low-level control wiring.
• Connect the protective grounding system according to the applicable CP2E installation requirements.

Frequently Asked Questions

• What is the I/O configuration of CP2E-E60DR-A?

  The CPU Unit contains 60 built-in I/O points: 36 digital inputs and 24 relay outputs. The inputs and outputs are integrated into the CPU Unit.

• What power supply does this model require?

  CP2E-E60DR-A uses a 100 to 240 VAC, 50/60 Hz supply. Its specified operating voltage range is 85 to 264 VAC.

• What is the maximum program capacity?

  The E-type CP2E CPU Unit provides 4K steps of program capacity and 4K words of DM Area capacity. The function block capacity is also 4K steps.

• Can additional I/O units be connected?

  Yes. The 60-point configuration supports up to three CP1W-series Expansion I/O Units or Expansion Units, giving a specified maximum system capacity of 180 I/O points.

• What type of outputs are installed?

  CP2E-E60DR-A uses relay outputs. The CPU provides 24 output points, distinguishing this model from transistor-output CP2E configurations.

• What are the physical dimensions of the CPU Unit?

  The specified dimensions are 90 mm x 80 mm x 195 mm, equivalent to 9.0 cm x 8.0 cm x 19.5 cm. Maximum specified weight is 780 g.

• What is the specified current consumption?

  The listed current consumption is 0.16 A at 5 VDC and 0.13 A at 24 VDC. These values should be considered when evaluating the associated internal power requirements.

• What is the operating temperature range?

  The CP2E CPU Unit is specified for an ambient operating temperature range of -20 to 60 deg C. Panel installation should provide adequate thermal conditions within this range.
