Product Overview

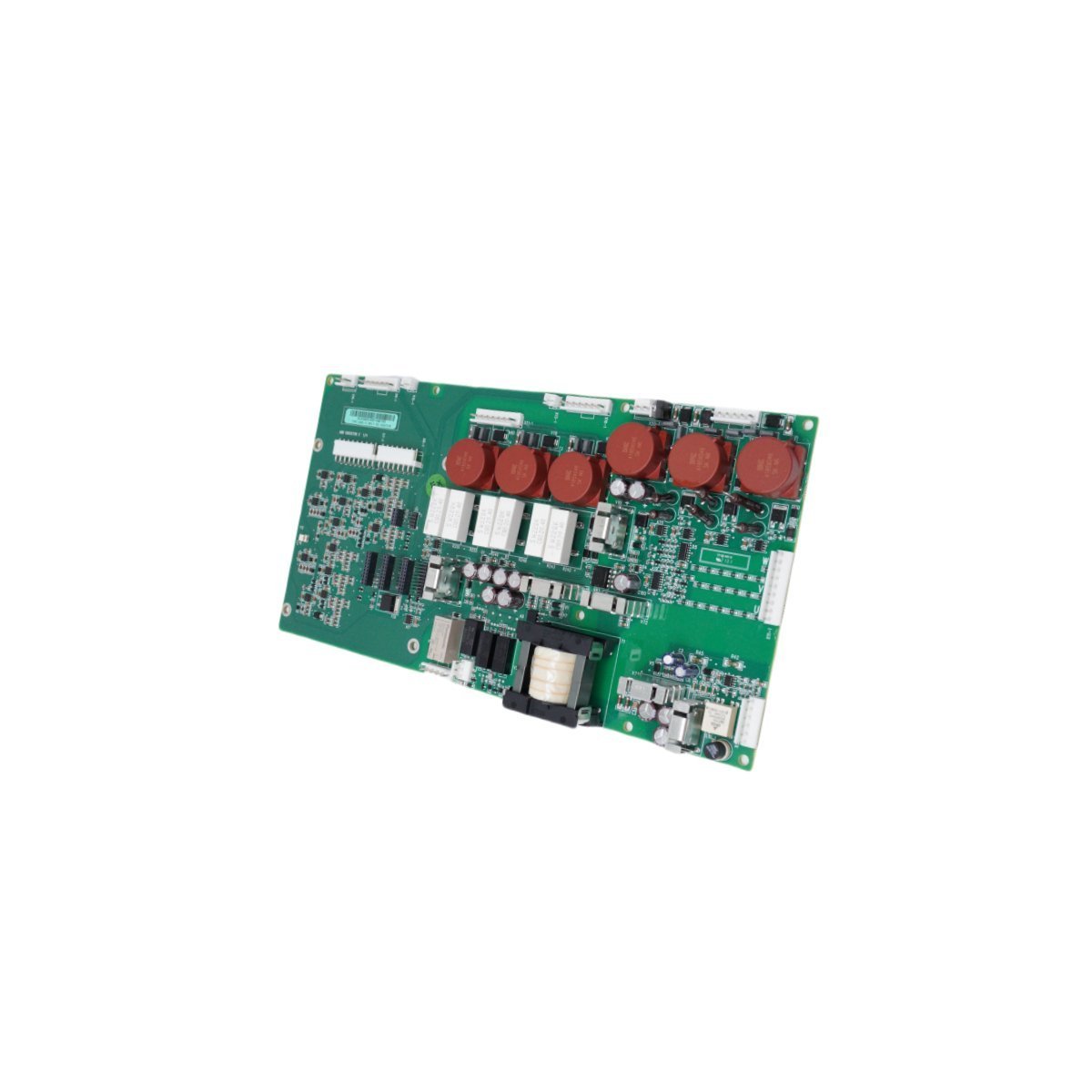

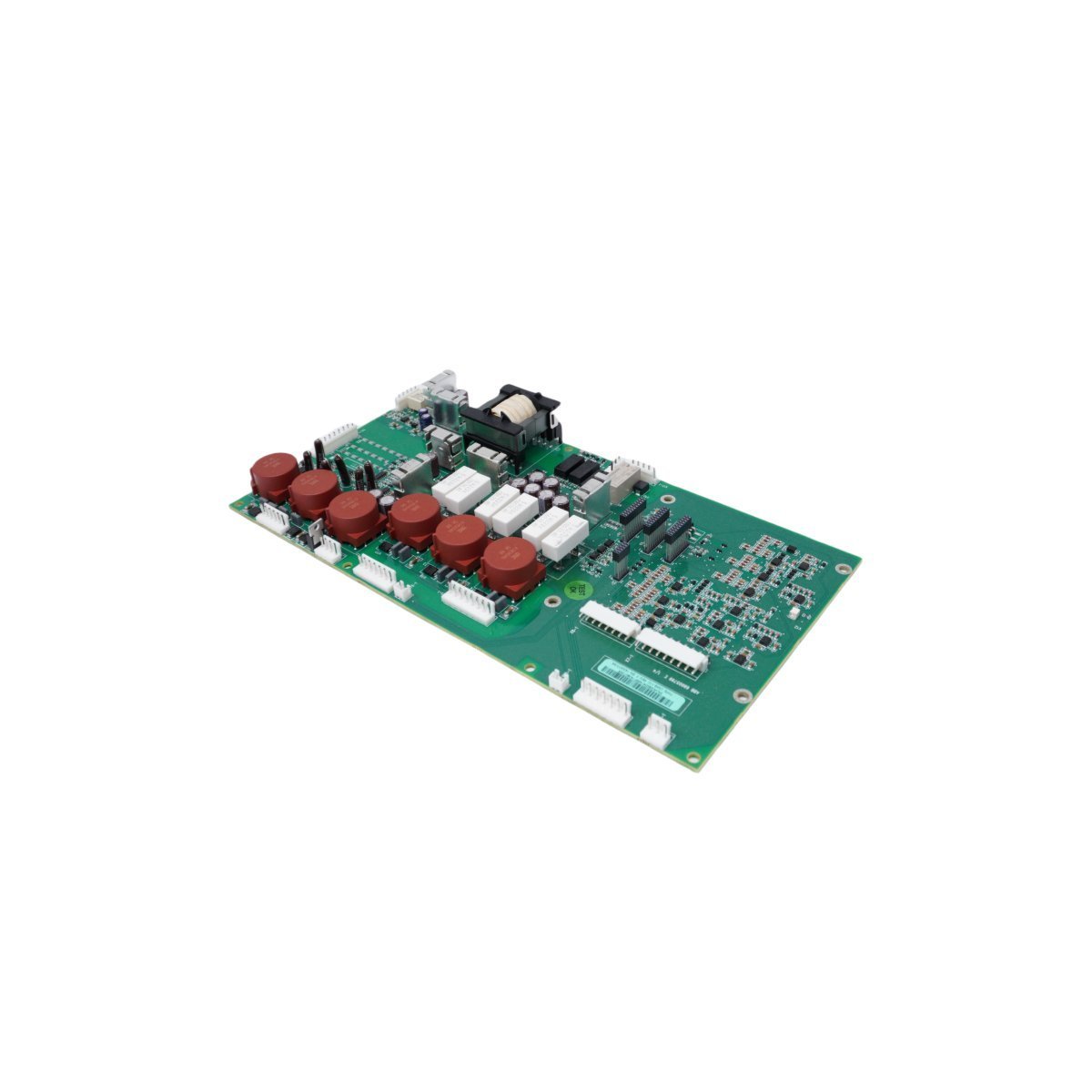

The ABB CMIB-11C is a specialized Main Circuit Interface Board specifically engineered for the ACS800 series rectifier units and high-power inverter systems. Functioning as a high-speed communication and control bridge, this module facilitates the critical data exchange between the drive's power semiconductors and the central control unit. It is designed to handle complex signal processing requirements in real-time, ensuring precise firing of power components and consistent monitoring of operational parameters. By integrating advanced diagnostics at the hardware level, the CMIB-11C helps maintain optimal synchronization within Distributed Control Systems (DCS) and prevents costly downtime in heavy-duty drive applications.

Critical Technical Parameters and Physical Build

• Component Designation Main Circuit Interface / Power Control Board

• Product Model CMIB-11C

• Drive Compatibility ACS800 Series Rectifier and Inverter Units

• Control System Integration AC500 / DCS Frameworks

• Signal Processing Real-time firing and diagnostic monitoring

• Interface Protocol Proprietary ABB Drive Communication / Ethernet Capable

• Module Weight 0.12kg

• Form Factor Dimensions 1.5 cm x 18.6 cm x 12.8 cm

• Standard Certification CE / UL Compliant Industrial Grade

• Production Origin Sweden

• HS Classification 8537101190

Industrial Deployment Scenarios

This interface board is primarily utilized in large-scale motor control centers and industrial automation networks where ABB ACS800 drives manage high-torque machinery. It is an essential component in sectors such as mining, maritime propulsion, and heavy-duty water treatment, where the rectifier units must communicate flawlessly with the broader control network. The CMIB-11C's robust construction allows it to withstand the thermal cycling and high electromagnetic interference found in high-voltage drive cabinets. Its ability to support both legacy and modern communication protocols ensures it remains a versatile solution for both system maintenance and new automation expansions.

FAQ

Q: Is the CMIB-11C compatible with all versions of the ACS800 drive?

A: The CMIB-11C is specifically designed for the ACS800 rectifier and inverter modules. However, it is always recommended to verify the revision (e.g., Rev E) of your current board to ensure exact firmware and hardware parity.

Q: What is the primary function of this board within the rectifier unit?

A: It serves as the physical and logical interface between the high-power main circuit components and the low-voltage control electronics, handling signal conditioning and diagnostic feedback.

Q: Does the CMIB-11C require specialized mounting hardware?

A: No, it is designed for direct mounting within the ACS800 drive's internal control tray. Its compact 1.5 cm thickness allows for efficient space utilization in high-density power modules.

Q: How does the CMIB-11C handle system faults or diagnostic errors?

A: The board includes integrated monitoring circuits that detect anomalies in the firing sequence or signal integrity, passing this data instantly to the DCS or HMI for operator action.

Q: Can this module be used in systems involving Ethernet routing?

A: Yes, while it communicates via internal drive protocols, it is designed to bridge seamlessly with ABB systems that utilize Ethernet routers for plant-wide data aggregation and remote monitoring.
