Product Overview

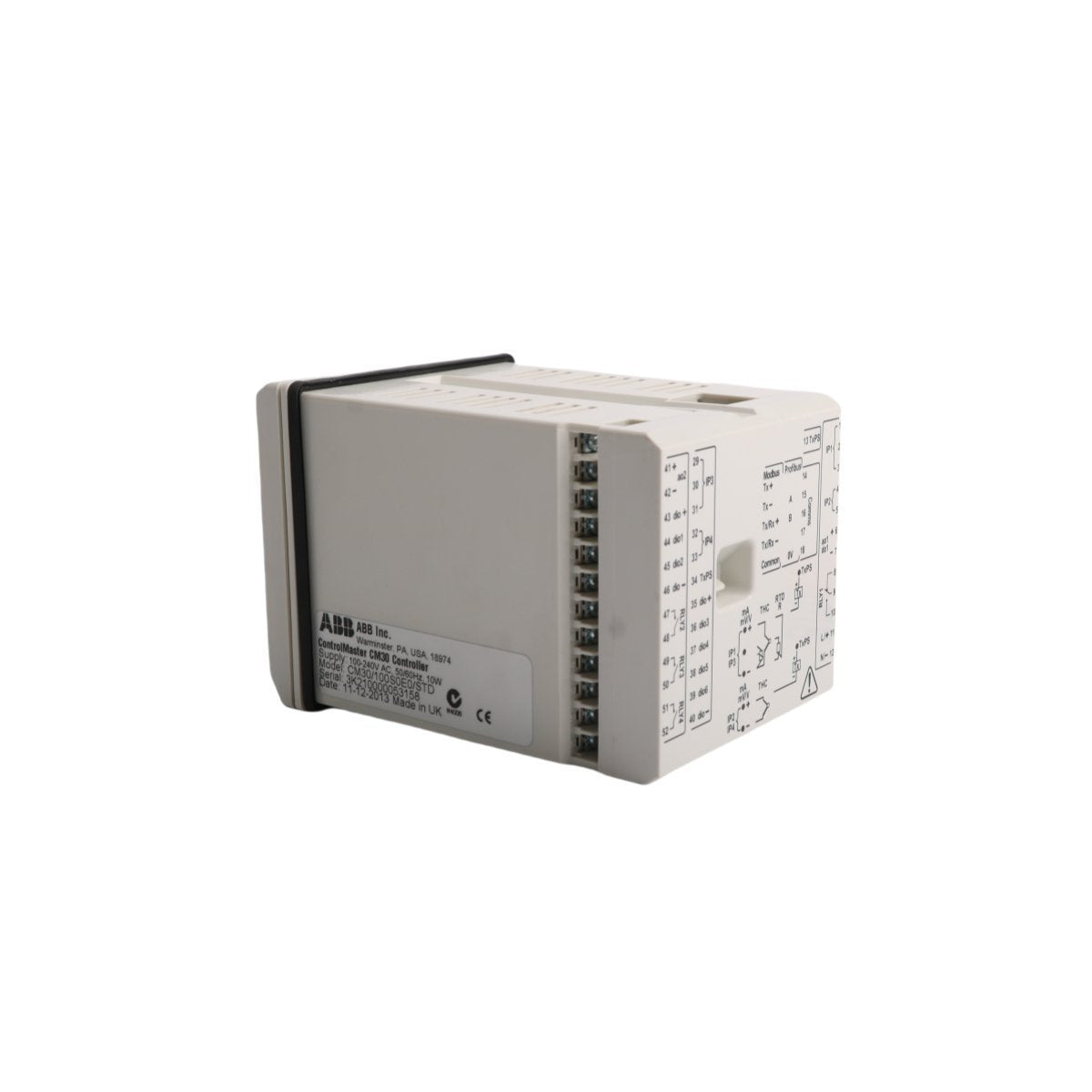

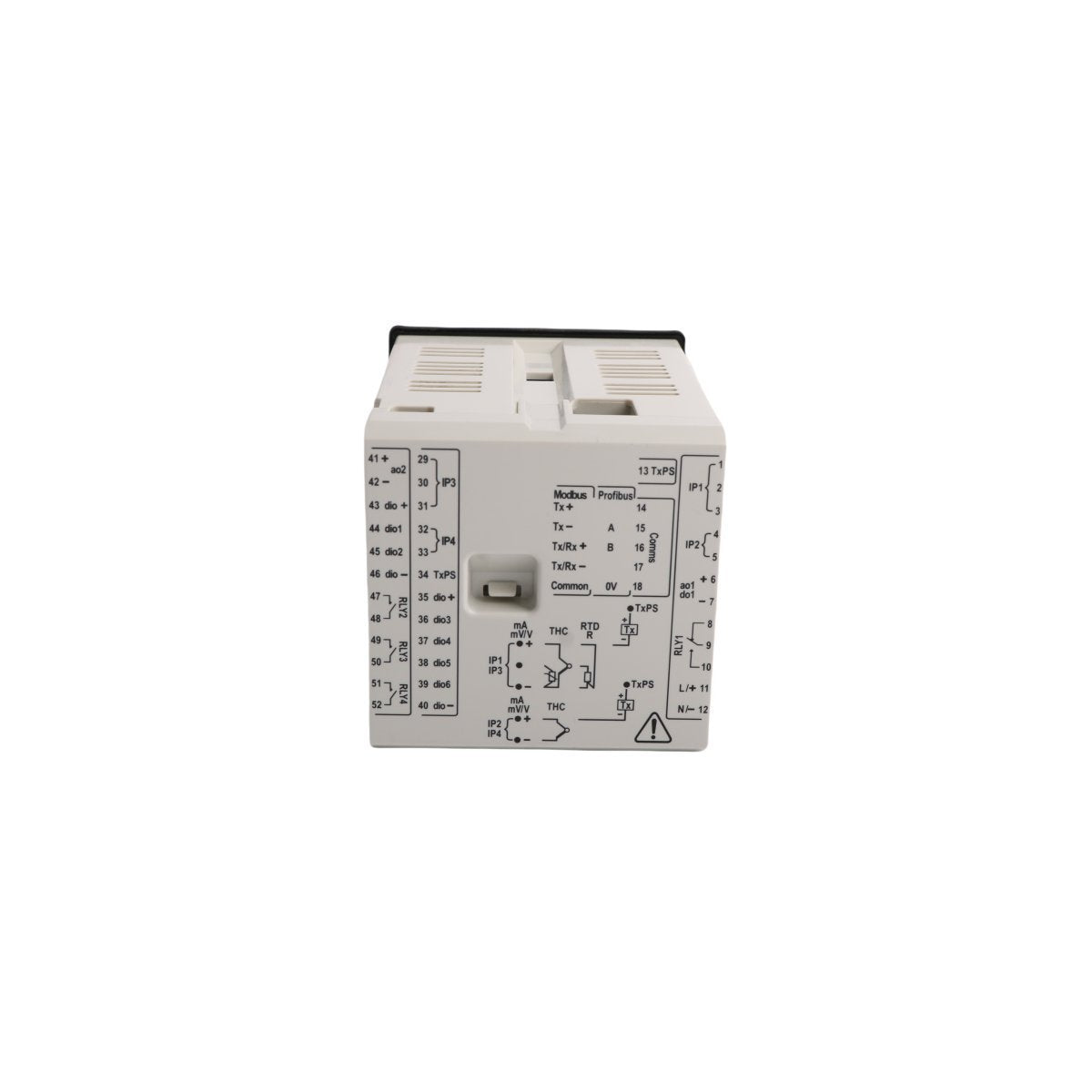

The ABB CM30/100S0E0/STD is a high-specification 1/4 DIN universal process controller part of the ControlMaster CM30 series. Designed for exceptional versatility, this unit provides precise PID control for a wide array of industrial variables, including temperature, pressure, flow, and level. The CM30/100S0E0/STD features a full-color TFT display that offers operators a clear, crystal-intuitive interface for real-time monitoring and parameter adjustment. Its scalable architecture allows it to function as a localized single-loop controller or as an integrated component within a larger Distributed Control System (DCS), bridging the gap between field-side instrumentation and supervisory management through advanced communication protocols.

Hardware Infrastructure and Physical Metrics

• Component Category Universal PID Process Controller

• Model Designation CM30/100S0E0/STD

• Display Technology 5.5 cm (2.2 in.) Full-color TFT with customizable interface

• Control Functionality Single loop, heat/cool, and auto-tuning PID logic

• Interface Options Integrated Ethernet port with Modbus TCP support

• Environmental Sealing IP66 / NEMA 4X front panel protection

• Input/Output Logic High-accuracy analog and digital I/O for sensor interfacing

• Net Weight 0.5kg

• Physical Proportions 9.5cm x 9.5cm x 14.6cm

• Manufacturing Origin Sweden

• Tariff Code (HS) 8537101190

Industrial Deployment and Site Applications

The CM30/100S0E0/STD is engineered for high-uptime sectors such as food and beverage processing, chemical manufacturing, and steam generation. In heat treatment applications, its precision PID algorithms ensure strict adherence to thermal profiles, preventing product spoilage and optimizing energy consumption. The unit's robust 0.5kg chassis and IP66-rated front face make it ideal for wash-down environments and areas with significant ambient dust or moisture. Furthermore, the inclusion of an Ethernet router-compatible interface allows facilities to perform remote data logging and configuration audits. By centralizing diagnostic tools within the controller, maintenance teams can identify sensor drifts or control loop irregularities before they impact production quality, making it a cornerstone for B2B industrial process optimization.

FAQ

Q: How does the "STD" designation in the model number impact functionality?

A: The STD suffix refers to the standard software and hardware build. This typically includes the base level of I/O and communication features required for most universal process control tasks.

Q: Is the CM30/100S0E0/STD compatible with existing AC500 PLC networks?

A: Yes, through its Modbus TCP or serial communication options, the ControlMaster CM30 can be easily integrated into the AC500 ecosystem to act as a specialized localized display and control interface.

Q: Can I perform firmware updates or configurations via the front USB port?

A: The CM30 series supports easy configuration backup and firmware updates via a front-accessible port (when equipped), significantly reducing the time required for site-wide commissioning.

Q: What is the benefit of the full-color TFT display compared to traditional LED controllers?

A: The color display provides much clearer alarm notifications, trending charts, and multi-language support, which reduces operator error and simplifies the interpretation of complex process data.

Q: Does this 0.5kg unit support auto-tuning for PID loops?

A: Absolutely. The CM30 includes advanced auto-tune functionality that automatically calculates the optimum Proportional, Integral, and Derivative terms, ensuring the loop is stabilized quickly without manual trial and error.
