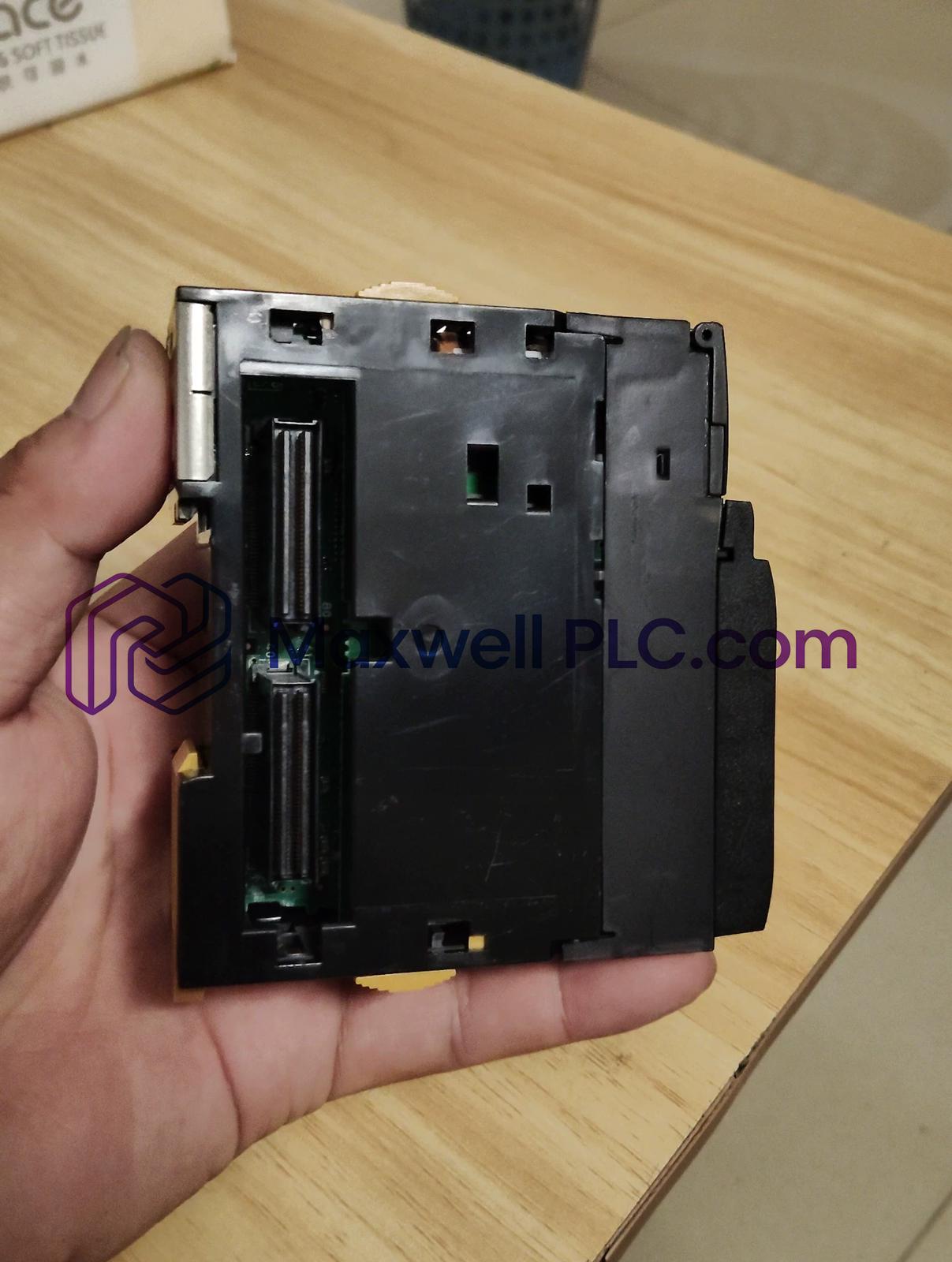

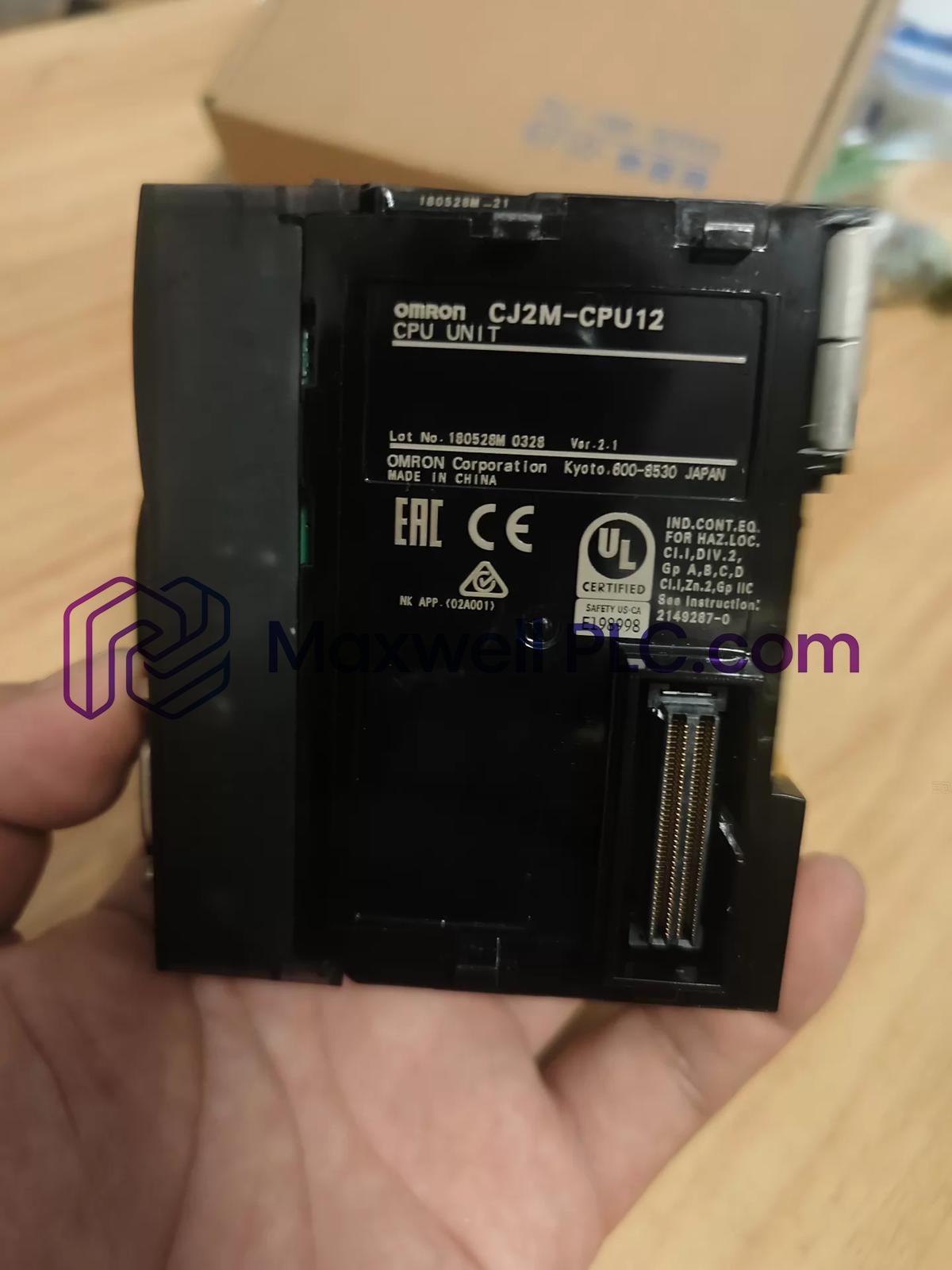

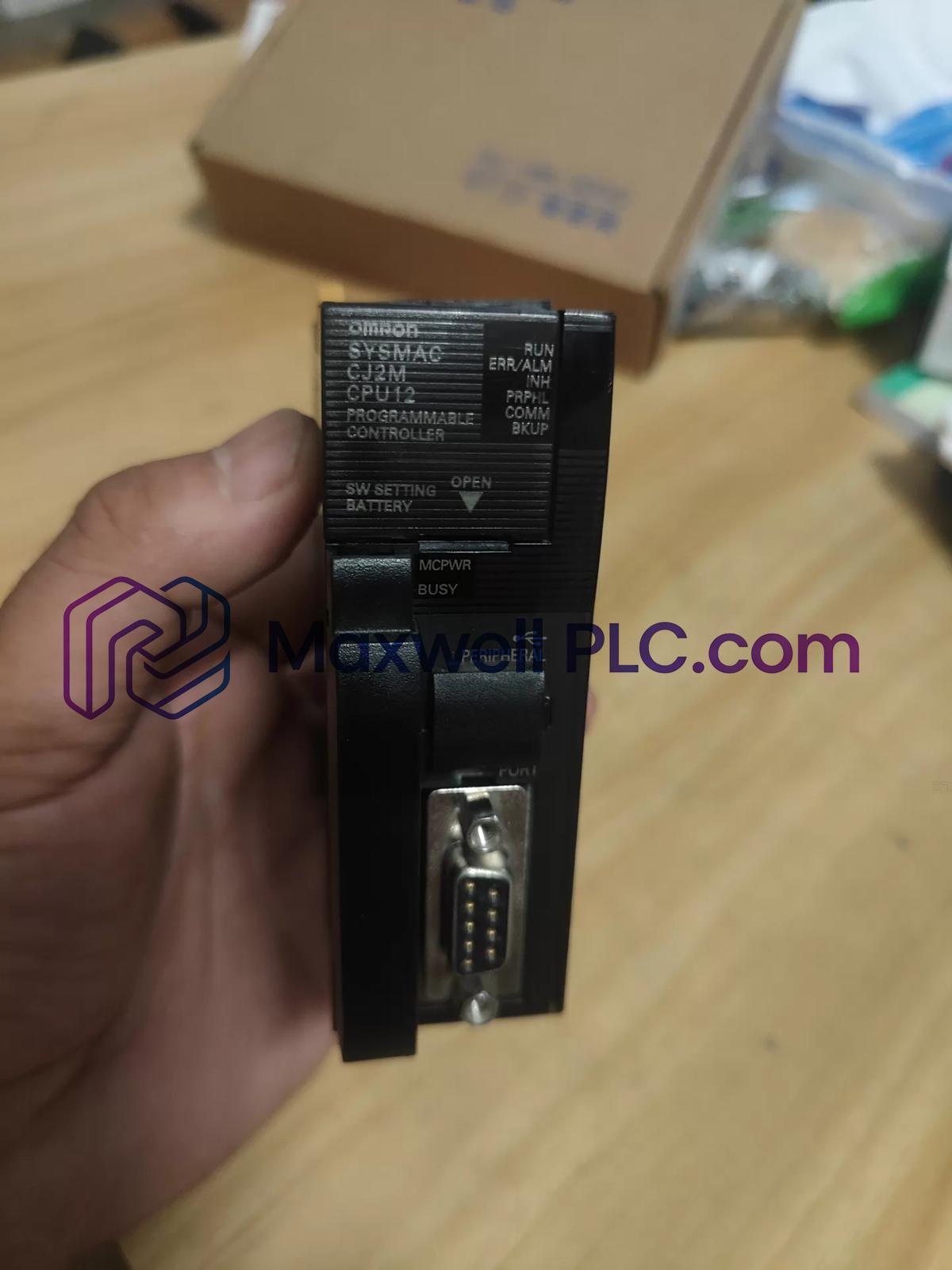

Configured for high-speed program execution and centralized system logic management in SYSMAC CJ Series control architectures, the Omron CJ2M-CPU12 (CJ2M-CPU12 CPU Unit) provides direct physical/electrical execution across local and expansion backplanes.

Architecture Designation & Model Breakdown

• Series Family: SYSMAC CJ2 Series PLC System.
• Processor Class: CJ2M Series modular CPU with scalable program memory and execution hardware.
• Capacity Level: 12 designation indicates 10k steps of program capacity paired with 64K words of Data Memory (DM).

System Performance & Mechanical Specifications

Backplane Bus Communication Velocity & Firmware Scaling

The CJ2M-CPU12 unit utilizes high-speed internal bus arbitration to maximize backplane bus communication velocity across up to 40 mountable units. This architecture minimizes overhead cycles during high-density I/O data refreshing. Embedded flash memory handles firmware flash compatibility and system routine storage, sustaining deterministic execution times of 0.04 us for basic LD operations across multi-rack topologies.

Shipping Package Contents

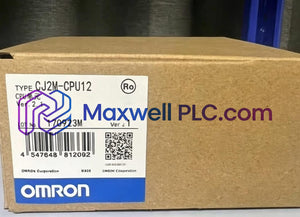

• 1 x Omron CJ2M-CPU12 CPU Unit
• 1 x CJ-Series End Cover (Right Side)
• 1 x Operation Manual Sheet

Field Mounting & Integration Guidelines

• Rack Assembly Procedure

  Lock the CPU unit to the power supply unit on the CPU Rack. Always install the provided End Cover on the rightmost unit of the backplane bus to ensure electrical termination.

• Expansion Interconnection

  Connect expansion racks using dedicated I/O connecting cables. Do not exceed the maximum limit of 3 expansion racks or a total length of 12 meters across all expansion cables.

• Earthing Isolation

  Connect the functional ground terminal on the CPU rack directly to a dedicated ground stake (under 100 ohms resistance) to prevent high-frequency noise interference on the backplane.

Frequently Asked Questions

• Does the CJ2M-CPU12 support hot-swapping during operational run mode?

  No, removing or inserting modules on the main CPU rack or expansion racks while power is applied disrupts backplane communication and may cause system damage.

• What is the execution speed for basic instructions?

  Basic ladder logic (LD) instructions execute in 0.04 us, enabling fast processing cycle times for complex sequential control routines.

• How many total I/O points can this processor address directly?

  The processor supports up to 2,560 local and expansion I/O points distributed across a maximum of 40 installed I/O modules.

• How is user memory retained during a power shutdown?

  Program capacity and system settings reside in non-volatile flash memory, while data memory retention relies on an internal battery backup circuit.

• What is the purpose of the right-side End Cover included with the unit?

  The End Cover terminates the high-speed backplane bus lines; without it installed on the last slot, a bus error will block system operation.

• Can the CPU firmware be upgraded via memory card?

  Yes, firmware updates can be flashed to the unit using compatible memory cards formatted to official system update specifications.

• How many expansion racks can be connected to a single CPU unit?

  A maximum of 3 expansion racks can be connected to the CPU rack via dedicated expansion cables without degrading bus timing.

• Does the unit include an onboard EtherCAT port?

  No, the CJ2M-CPU12 relies on dedicated bus communication modules installed on the backplane to interface with external deterministic networks.
