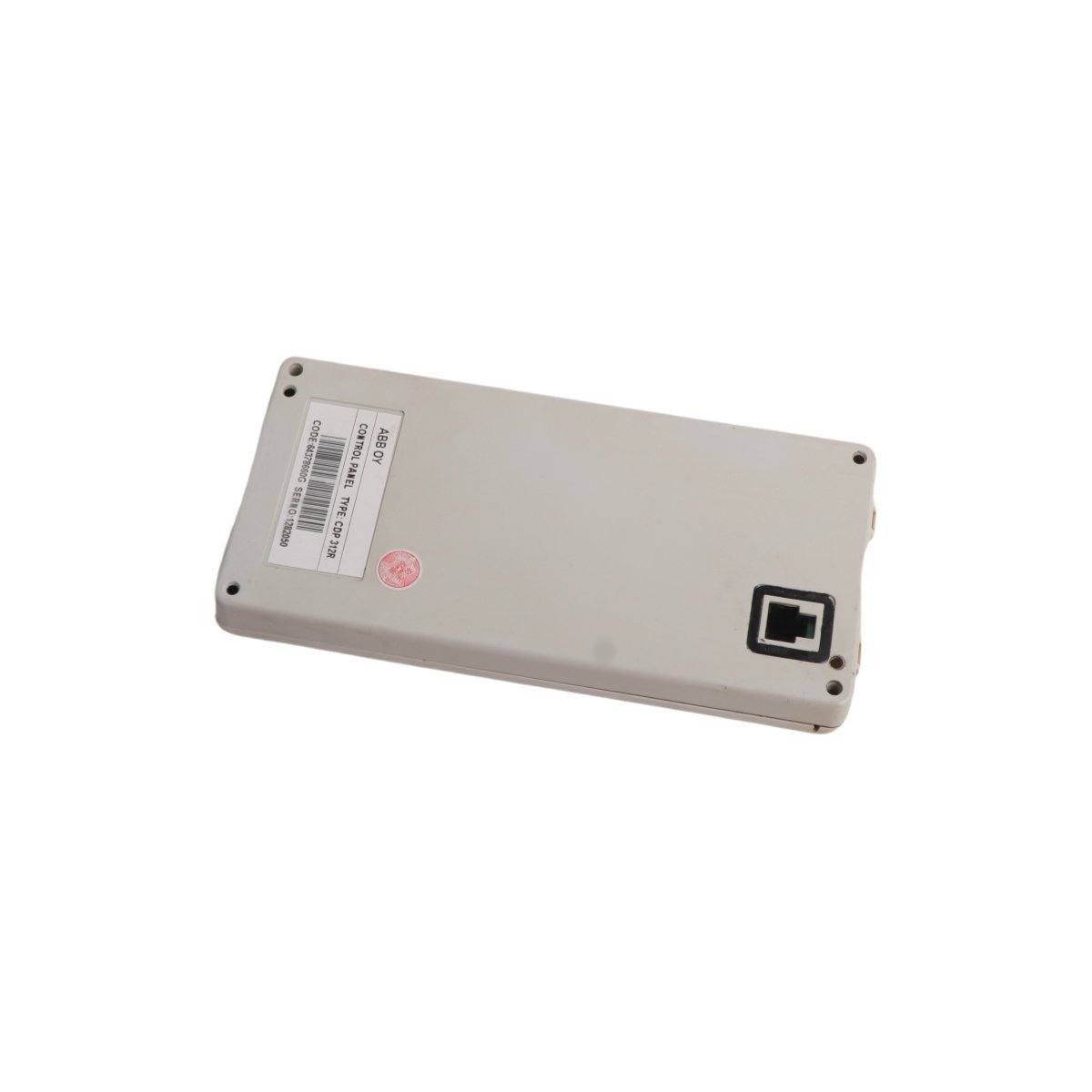

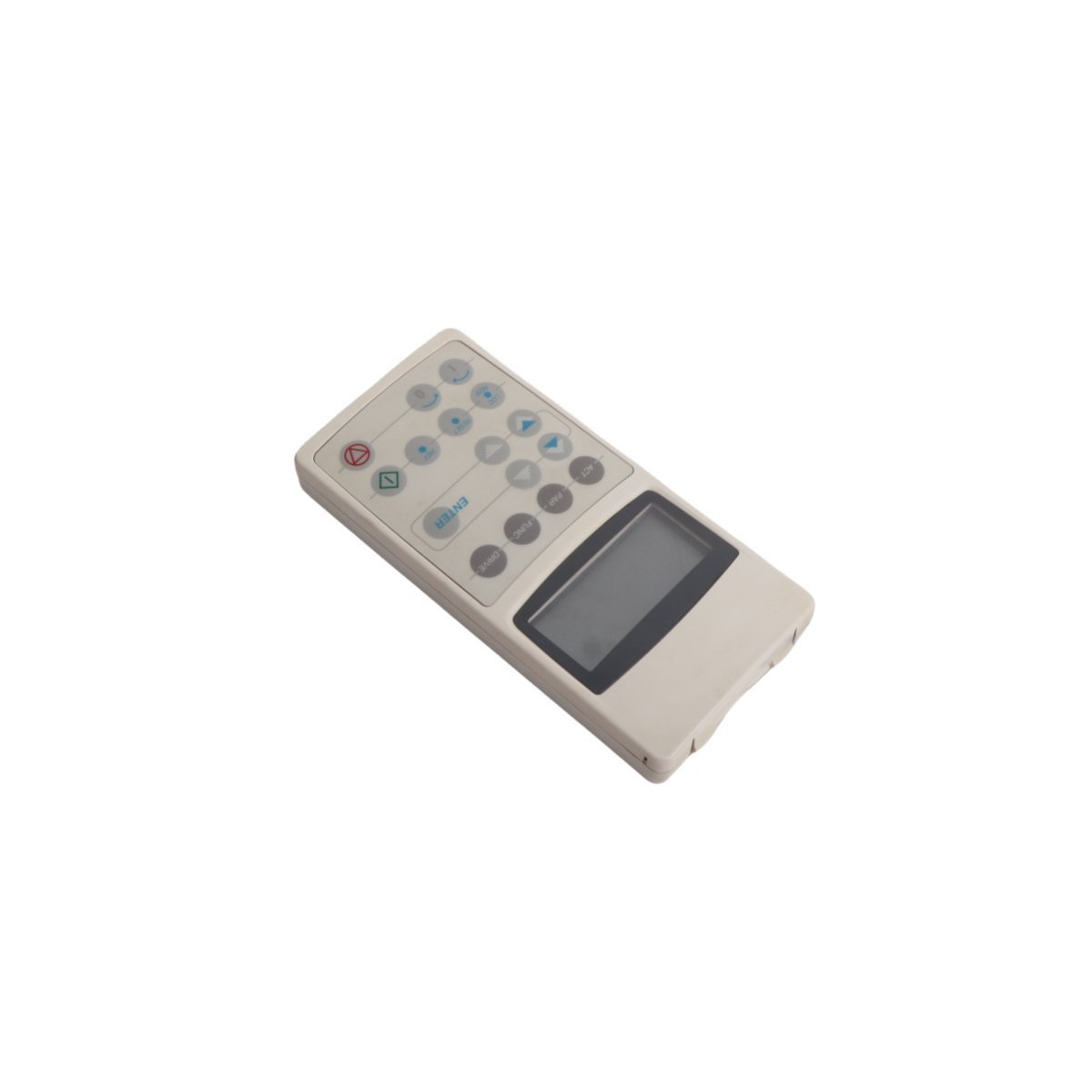

Product Overview

The ABB CDP312R is a high-performance Human-Machine Interface (HMI) designed for the seamless management of motor drive systems and PLC architectures. Featuring a high-contrast LCD screen capable of displaying four lines of text with 20 characters each, this unit provides operators with immediate access to real-time process data, parameter configurations, and system diagnostics. The CDP312R acts as a centralized command hub, allowing for intuitive navigation through drive menus and the ability to toggle between multiple drive units from a single interface. Its design prioritizes operational clarity and accessibility, supporting multi-language initialization to accommodate global industrial standards.

Hardware Interface & Physical Attributes

• Model Identification CDP312R

• Display Matrix 4-line x 20-character alphanumeric LCD

• Operational Mass 0.16 kg

• Casing Dimensions 7.8 x 2 x 17 cm

• User Input Tactile membrane keys with dynamic functionality

• Navigation Keys Single arrow (step) and double arrow (fast-scroll) keys

• Dedicated Function Keys ACT (Signal), PAR (Parameter), FUNC (Function), and DRIVE (Select)

• Manufacturing Location Sweden

• Drive Compatibility Optimized for ACS800 and DCS800 series

Operational Deployment Scenarios

This control panel is the primary interface for ABB ACS800 and DCS800 drive lineups, serving as the essential tool for commissioning, troubleshooting, and daily monitoring. It is extensively utilized in sectors ranging from wastewater treatment to heavy-duty mining and chemical processing. Beyond simple drive control, the CDP312R is often integrated with AC 500 PLC systems to provide a localized viewing window for complex automation logic. Its robust, lightweight construction allows it to be door-mounted on control cabinets or used as a handheld diagnostic tool, providing engineers with the flexibility to modify system setpoints and monitor actual signal values in high-stress factory environments.

Technical Support Q&A

Q: Can the CDP312R control more than one drive at a time?A: Yes, by utilizing the dedicated DRIVE key, operators can switch the panel’s focus to different drives connected on the same panel link.

Q: Does this panel support different languages for international technicians?A: Absolutely. Upon initial startup, the user can define the preferred language interface via parameter 99.01.

Q: What is the difference between the single and double arrow keys on this unit?A: Single arrows are used for incremental scrolling or changing values, whereas double arrows allow for rapid movement through different parameter groups.

Q: Is the CDP312R compatible with the AC 500 PLC series?A: Yes, it is frequently integrated into AC 500 automation architectures to provide a clear, reliable operator interface.

Q: How do I access real-time motor data using this panel?A: Pressing the ACT key immediately enters the "Actual Signal Display Mode," showing live operational data such as speed, current, and torque.
