Product Overview

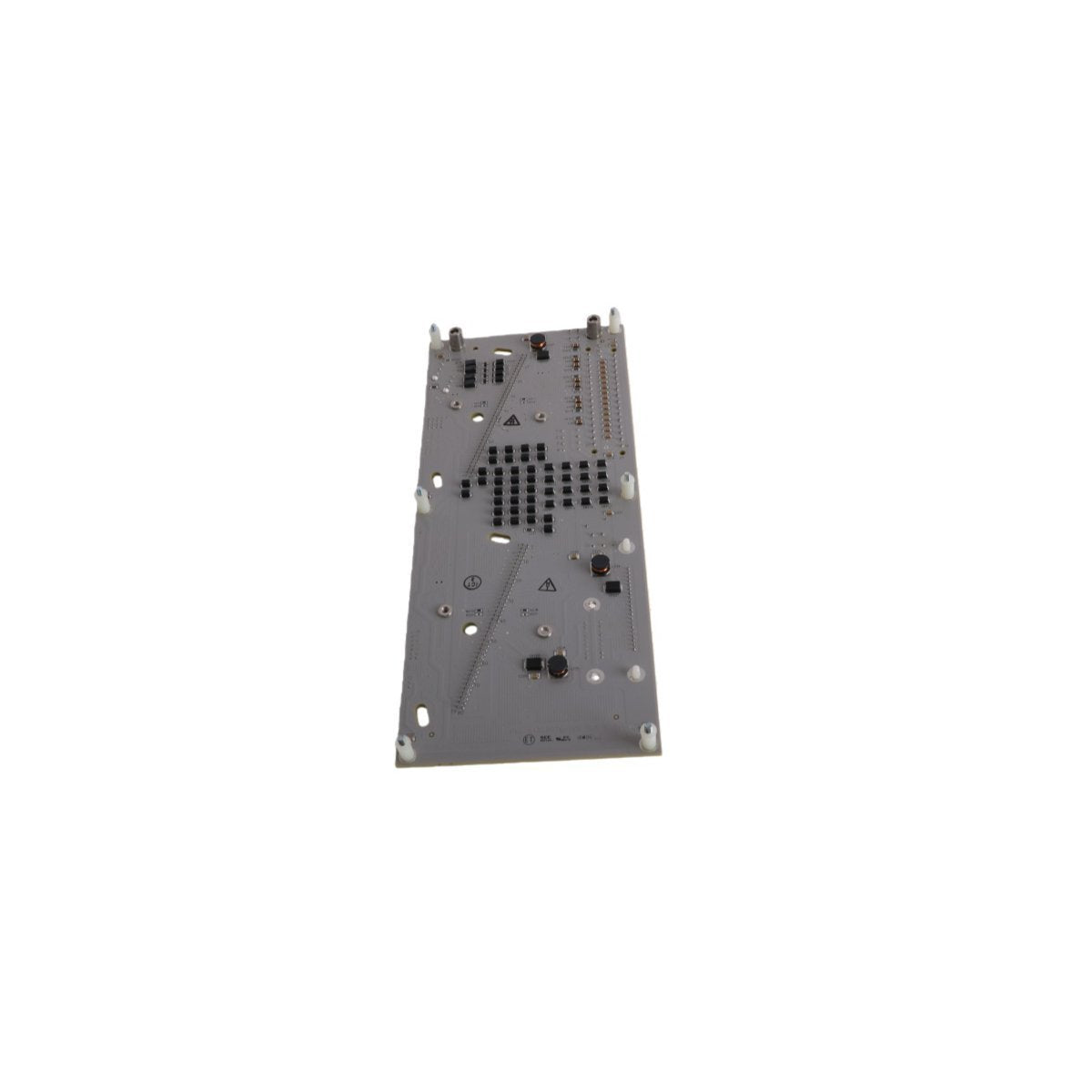

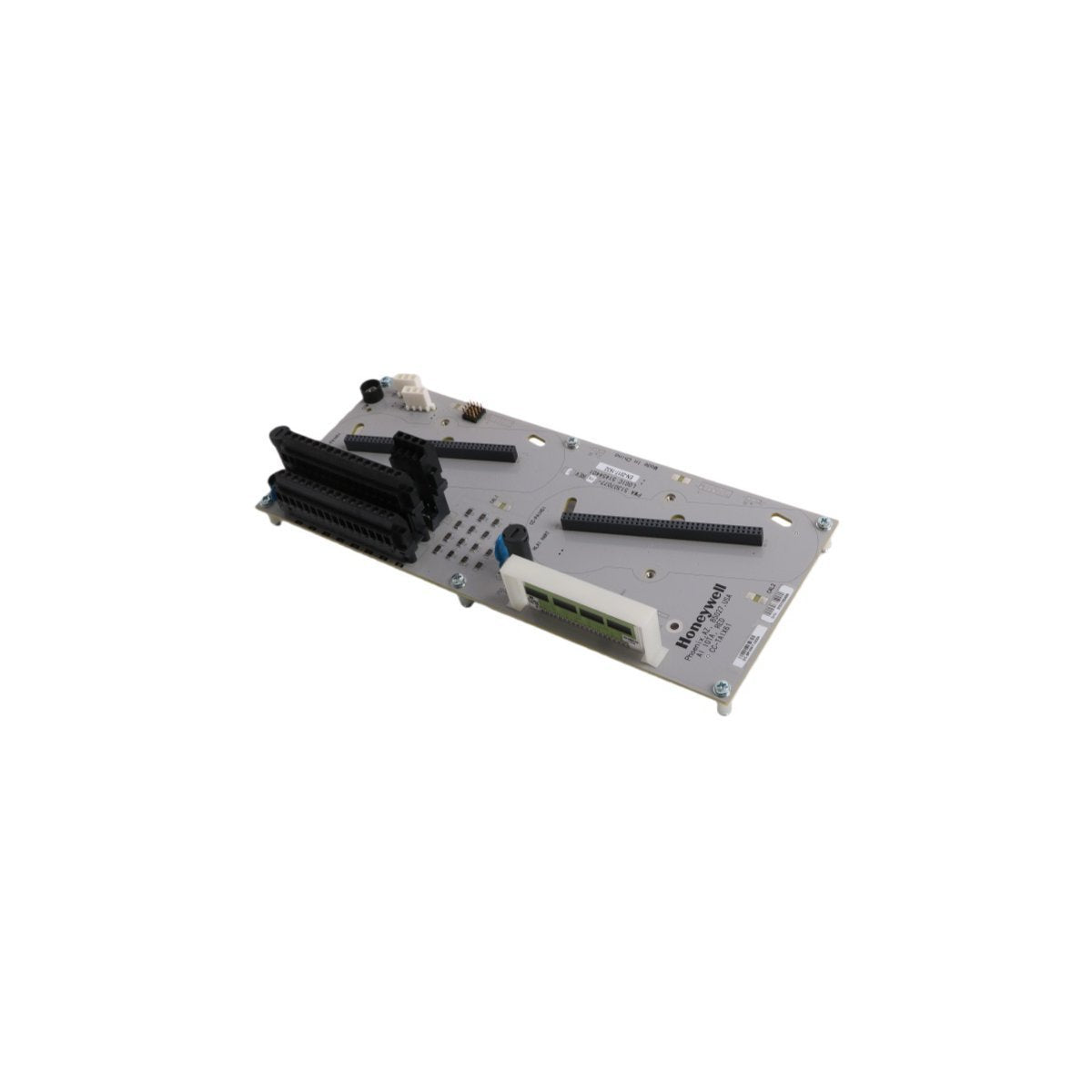

The Honeywell CC-TAIX61 is a high-availability Analog Input IOTA (Input Output Termination Assembly) designed for the Experion PKS Series C architecture. This 12-inch redundant module is engineered to provide a continuous, fail-safe interface for 16 single-ended channels, specifically processing standard 4-20 mA signals from both loop-powered and self-powered field transmitters. By utilizing a redundant hardware configuration, the CC-TAIX61 ensures that process monitoring remains uninterrupted; in the event of a primary electronics failure, the system performs an instantaneous switchover to the secondary unit. This makes it an indispensable component for mission-critical control loops where signal loss could result in costly downtime or safety compromises.

Precision Engineering and Hardware Attributes

The CC-TAIX61 is built to provide laboratory-grade accuracy within the rigors of an industrial plant environment.

• Conversion Resolution: 16-bit Analog-to-Digital (A/D) conversion for ultra-fine data granularity.

• Measurement Accuracy: Within ±0.075% of full scale under standard conditions.

• Sampling Velocity: Rapid 50ms input scan rate for real-time process responsiveness.

• Common Mode Rejection: 70 dB to filter out parasitic electrical noise.

• Normal Mode Rejection: 19 dB at 60 Hz, ensuring signal stability against AC interference.

• Channel Isolation: Crosstalk minimized to -60 dB to prevent signal bleed between adjacent inputs.

• Interface Type: 16-Channel Single-Ended Current Inputs (4-20 mA).

• Physical Mass: 0.4 kg.

• Dimensions: 7cm x 14cm x 14.5cm.

Industrial Applications and Strategic Deployment

This module is specifically optimized for high-reliability sectors that demand extreme data purity and hardware redundancy.

• Petrochemical Refining: Managing critical temperature and pressure inputs on distillation columns where precision is required for product quality and explosion prevention.

• Power Generation Monitoring: Integrating feed-water and steam flow signals into the DCS logic with high-speed 50ms responsiveness to manage turbine efficiency.

• Chemical Batch Processing: Ensuring that self-powered mass flow meters and pH sensors are monitored without interruption, even during hardware maintenance, thanks to the redundant switchover capability.

• Offshore Oil Platforms: Deploying in space-constrained control rooms where the 12-inch IOTA format provides high-density connectivity with robust noise immunity against heavy machinery interference.

• Remote Asset Management: Utilizing 16-bit high-resolution data to detect subtle drifts in field instrument performance, enabling predictive maintenance strategies.
