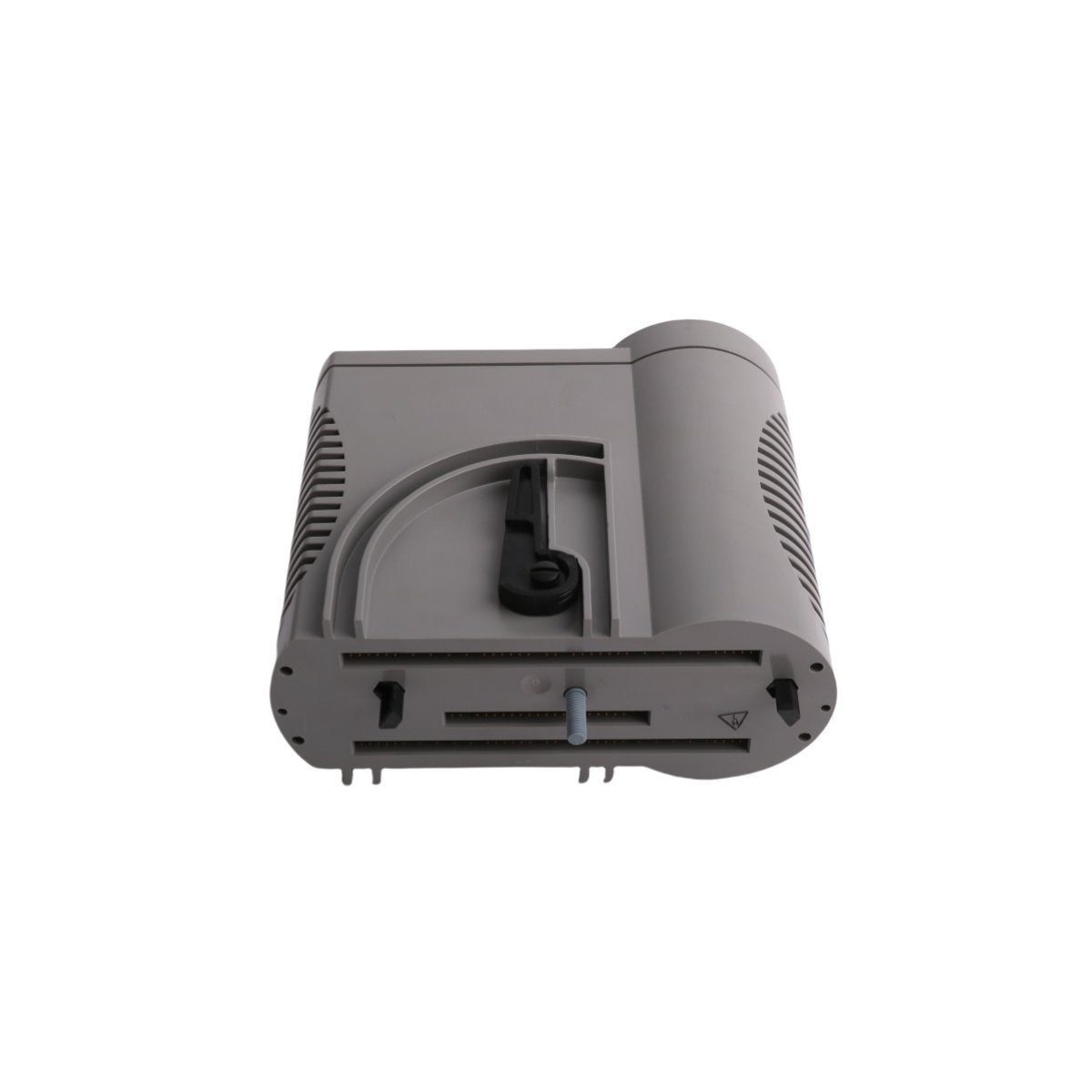

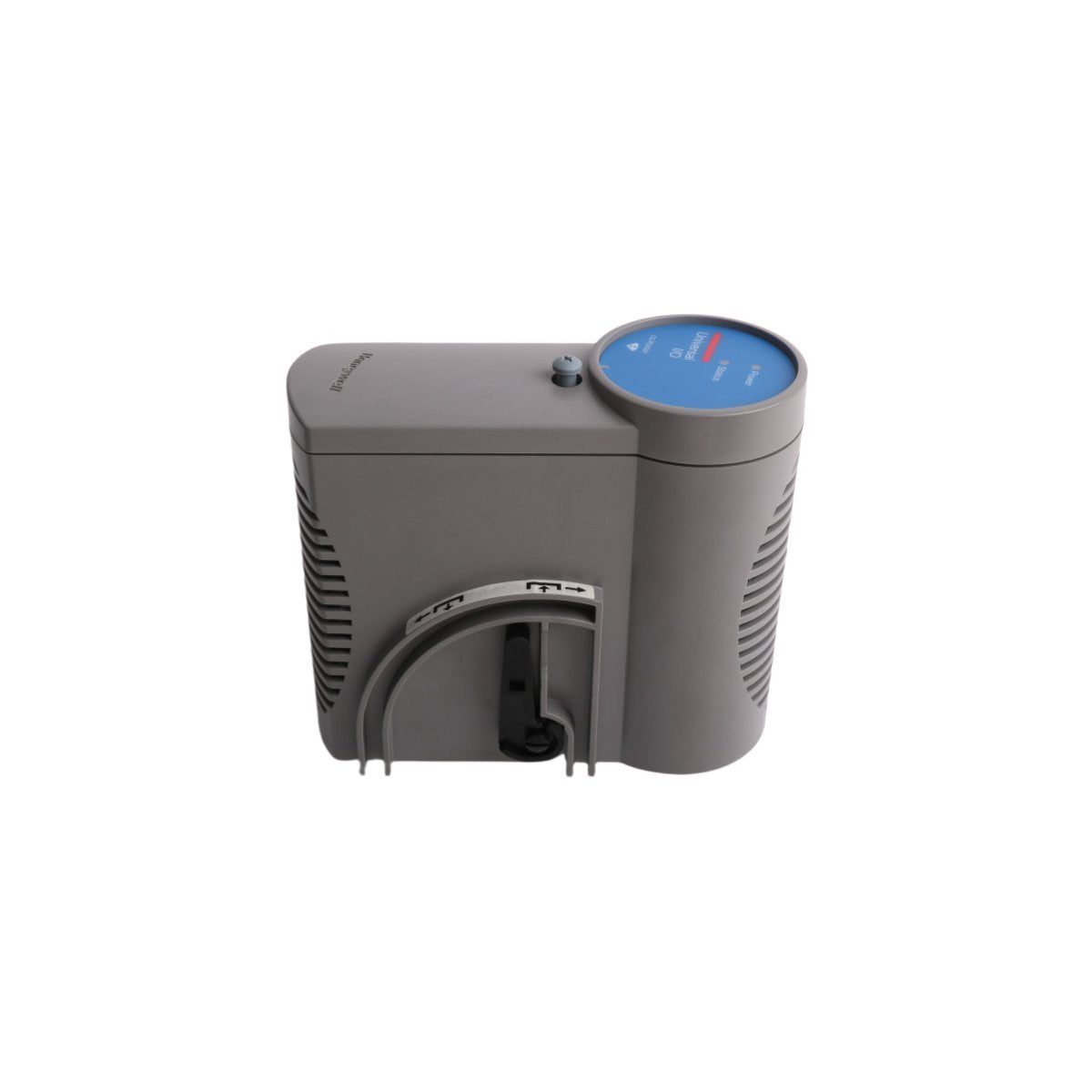

Product Overview

The Honeywell CC-PUIO01 is a software-configurable Universal I/O (UIO) module designed for the Experion PKS Series C environment. This highly adaptive component revolutionizes traditional I/O design by allowing each of its 32 channels to be individually programmed as an Analog Input, Analog Output, Digital Input, or Digital Output. By eliminating the need for signal-specific hardware, the CC-PUIO01 drastically reduces spare parts inventory and simplifies cabinet engineering. It serves as a central hub for field signals, utilizing advanced HART-capable circuitry to provide seamless communication with smart field instruments while maintaining the deterministic performance required for complex Distributed Control System (DCS) architectures.

Advanced Hardware Configuration and Technical Specs

The CC-PUIO01 architecture is built for high-density, mission-critical applications, providing a unified hardware platform for diverse signal types.

• Channel Density: 32-Channel Universal Configuration

• Programmable Modes: AI (4-20mA), AO (4-20mA), DI (Dry contact/24V), DO (Sourcing)

• HART Support: Integrated HART pass-through for smart device diagnostics

• System Platform: Honeywell Experion PKS Series C / C300 Controller

• Redundancy: Supports fully redundant I/O pair configurations

• Isolation: Galvanic isolation between system and field circuits

• Hot-Swappable: Supports Removal and Insertion Under Power (RIUP)

• Net Mass: 0.6 kg

• Chassis Dimensions: 7.3 x 15.5 x 16.5 cm

• Manufacturing Origin: USA

• Customs Identification: HS Code 8537101190

Industrial Deployment and Field Utility

This Universal I/O module is the preferred solution for modern industrial facilities seeking to maximize flexibility and minimize engineering overhead.

• Refinery Modernization: Consolidating a mix of pressure transmitters (AI) and solenoid valves (DO) into a single module to save cabinet space during plant upgrades.

• Offshore Platform Integration: Managing high-density I/O counts on oil rigs where physical footprint is limited and signal types may change during project phases.

• Chemical Batch Control: Providing precise analog output for control valves while simultaneously monitoring digital feedback from agitator safety switches.

• Remote Instrument Enclosures: Serving as a versatile field hub for geographically dispersed sensors where maintaining multiple module types is logistically difficult.

• Smart Device Management: Utilizing onboard HART capabilities to perform remote calibration and asset health monitoring of field-mounted transmitters.
