Product Overview

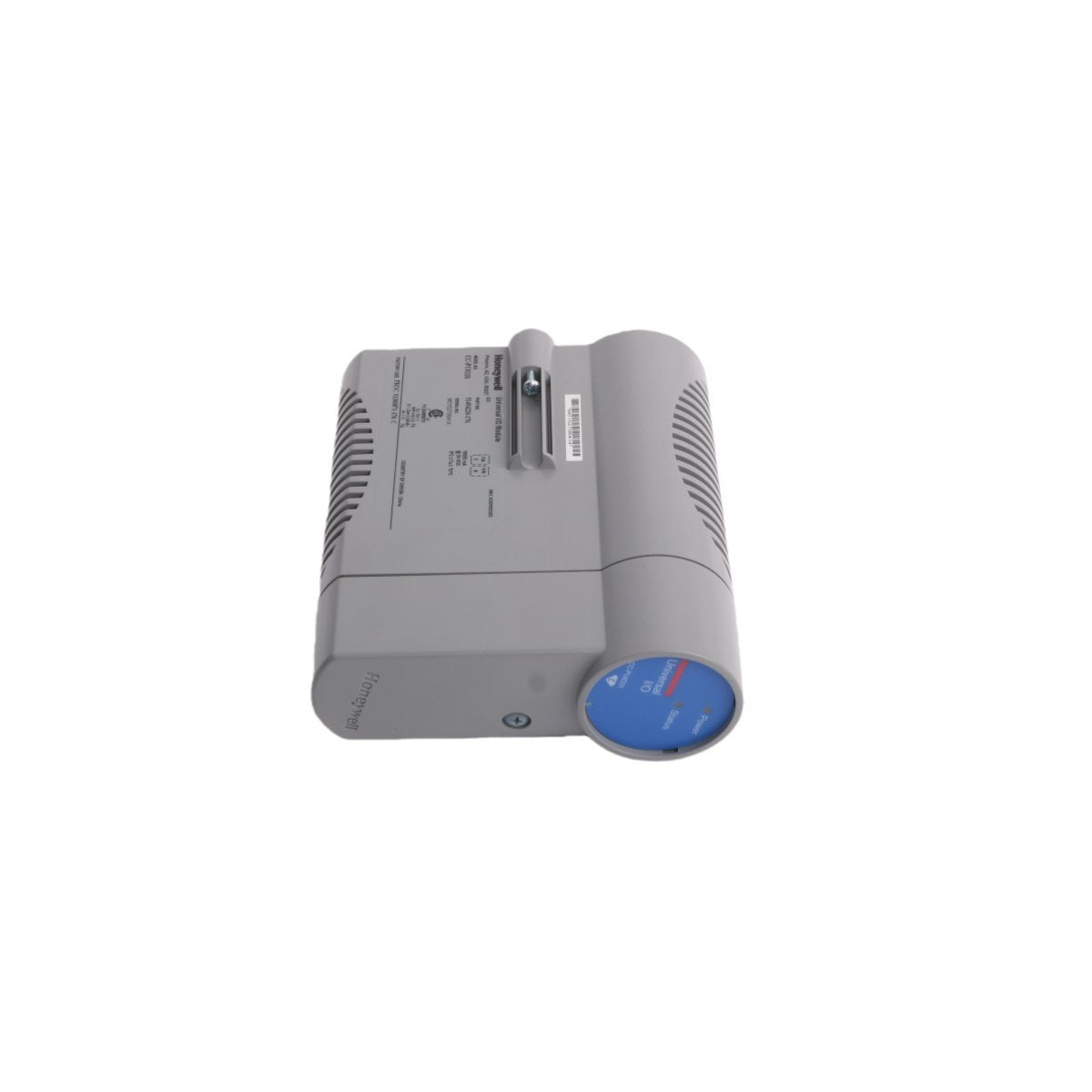

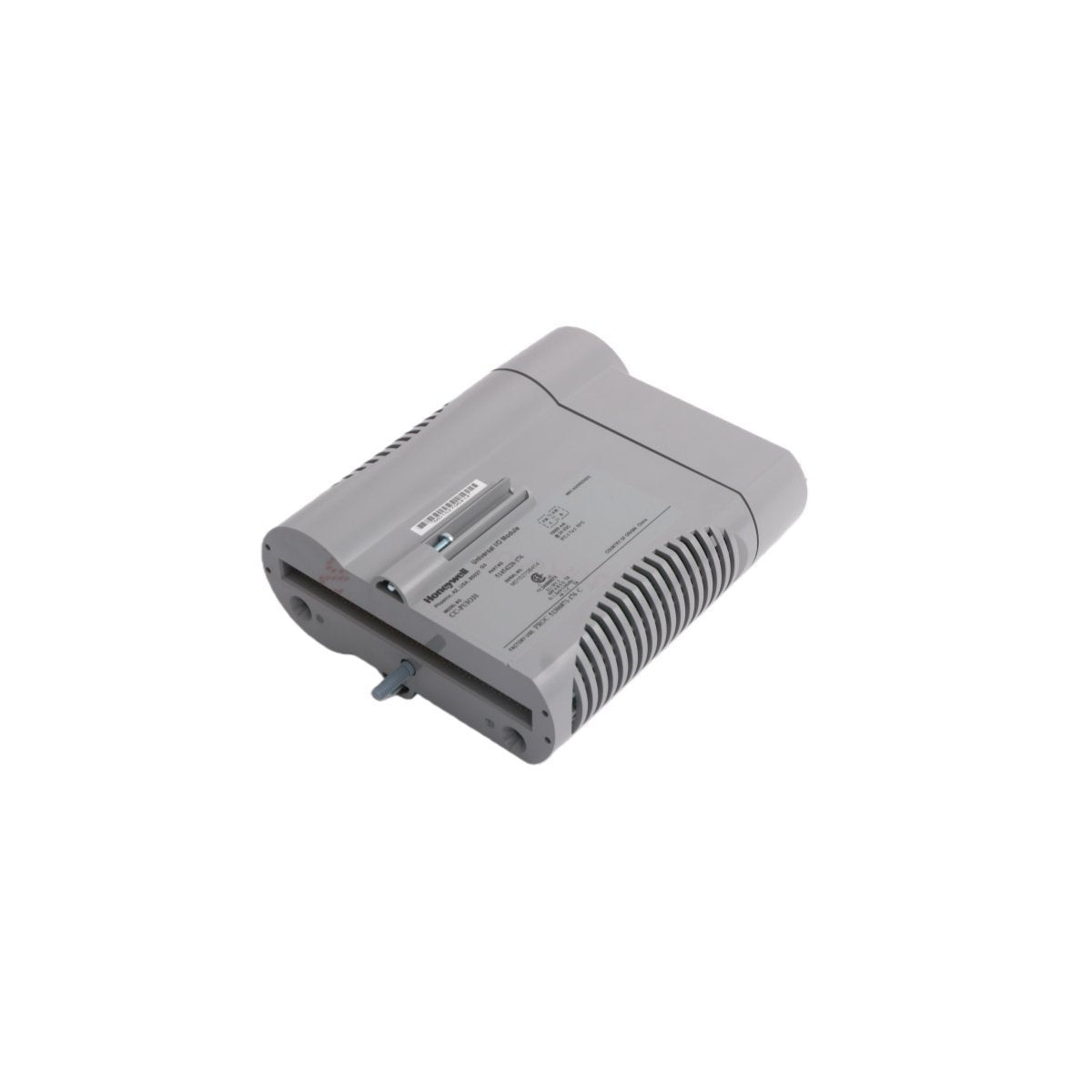

The Honeywell CC-PUI031 is a sophisticated Universal Input/Output (UIO2) module engineered for the Experion PKS Series C architecture. This module represents a significant advancement in I/O flexibility, featuring 32 channels that are entirely software-configurable. By eliminating the need for separate dedicated hardware for different signal types, the CC-PUI031 allows for high-density terminal layouts and simplified spare parts management. It serves as a primary interface in Distributed Control Systems (DCS), capable of handling analog and digital signals simultaneously while maintaining high-speed data integrity and deterministic processing for mission-critical industrial loops.

Technical Hardware Parameters

The CC-PUI031 is defined by its "any-signal-on-any-channel" architecture and integrated digital communication capabilities.

• Channel Density: 32 Universal Channels

• Configuration Options: Each channel is individually assignable as Analog Input (AI), Analog Output (AO), Digital Input (DI), or Digital Output (DO)

• HART Integration: Dedicated HART modem per channel for concurrent digital instrument communication

• High-Speed Input: 4 channels configurable for pulse input/frequency sensing

• Processing Speed: 10 millisecond input scan rate for rapid signal acquisition

• Safety Logic: User-configurable safe-state (FAILOPT) settings for fault-condition management

• System Platform: Native integration with Honeywell Series C I/O and C300 Controllers

• Physical Profile: 0.4kg weight with dimensions of 7x14x14.5cm

• Manufacturing: Produced in the USA

Industrial Applications

The versatility of the Universal I/O Module CC-PUI031 makes it a preferred choice for modernizing control cabinets and managing complex field instrumentation.

• Flexible Process Automation: Ideal for projects where field device types (sensors vs. actuators) may change during the late stages of engineering, allowing for software-based reconfiguration without re-wiring.

• Smart Instrumentation Management: Utilizing the per-channel HART modems in chemical and power plants to monitor device health and secondary variables alongside primary control signals.

• High-Density Control Cabinets: Reducing the physical footprint of DCS hardware by consolidating multiple I/O types into a single Series C module slot.

• Dynamic Control Loops: Managing high-speed digital pulses for turbine speed monitoring or flow totalization in oil and gas midstream applications.
