Product Overview

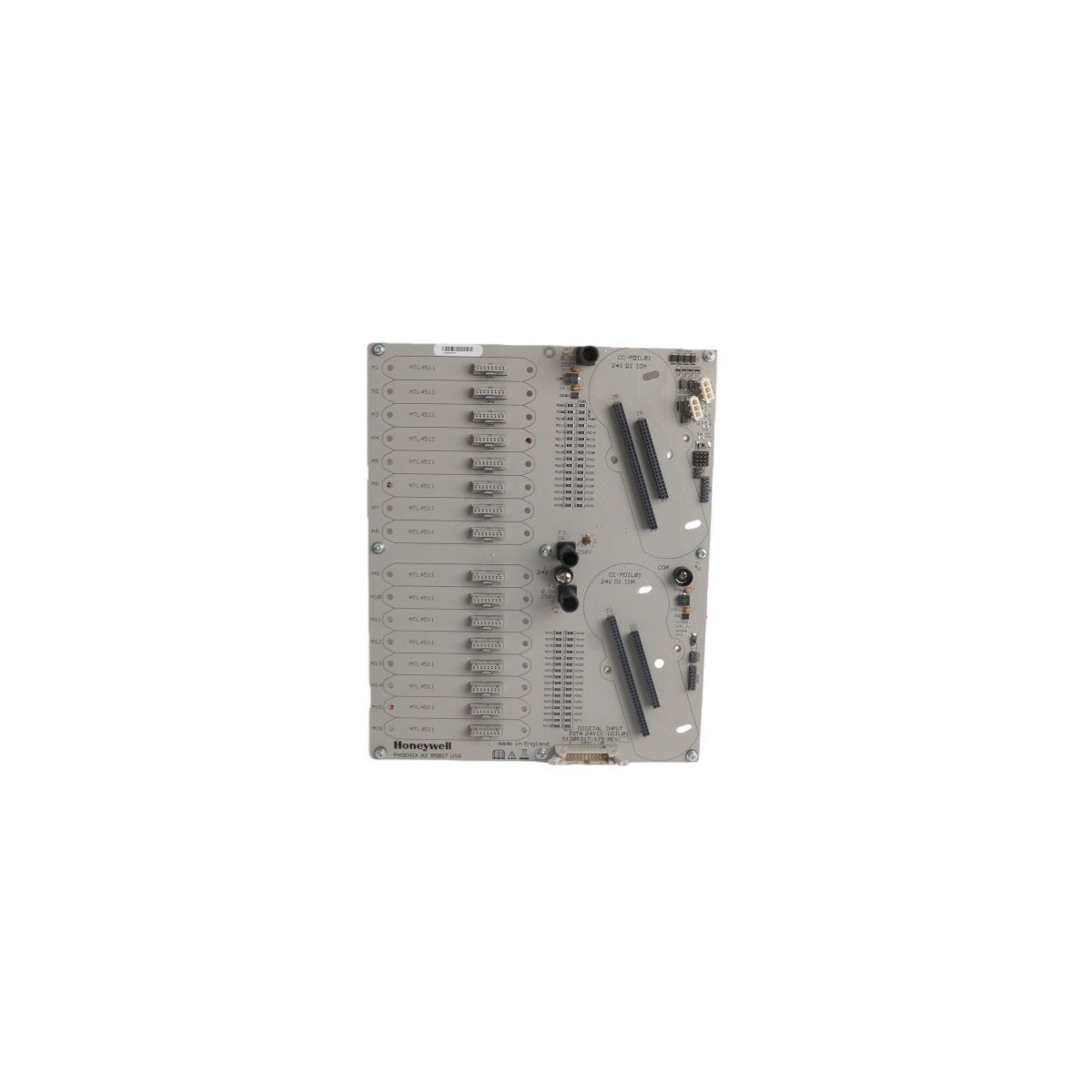

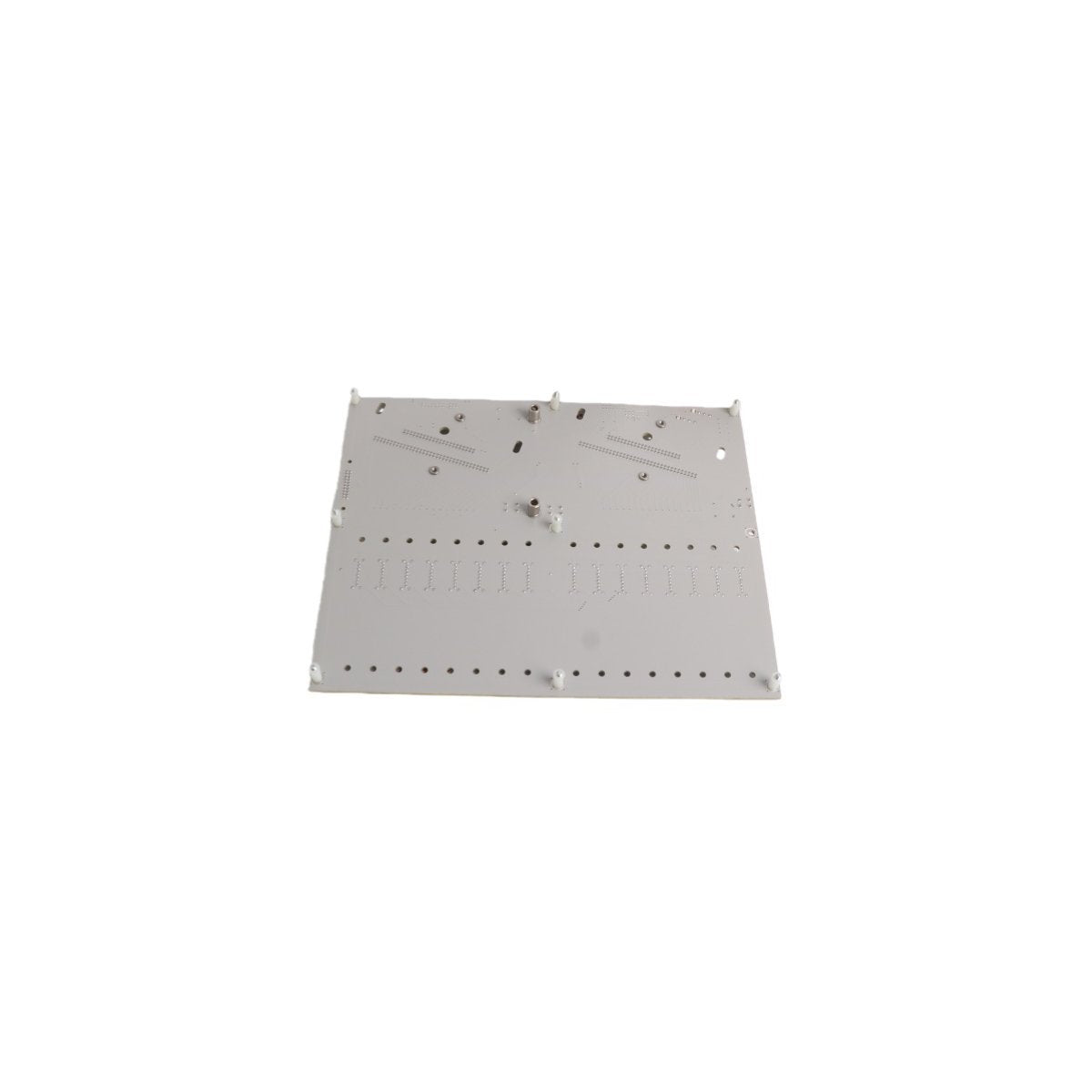

The CC-GDIL11 is a 32-point digital input module used in Honeywell FSC System architectures for acquiring 24 VDC discrete field signals with high integrity. It is designed for applications that require dependable state detection, electrical separation between field wiring and control electronics, and diagnostic capability suitable for safety and critical control environments.

This module is typically paired with compatible intrinsic safety/galvanic isolators (such as MTL45xx series devices) when signals originate from hazardous-area circuits. The design supports clear status representation and event capture options for time-sensitive discrete input monitoring.

Hardware Parameters

• Input capacity: 32 digital inputs

• Signal type: 24 VDC discrete inputs (dry contact or powered discrete, depending on wiring/isolator design)

• Isolation: Galvanic isolation via compatible isolator interface practices to separate field and system domains

• Isolator compatibility: Commonly used with MTL45xx series isolators, including variants with line fault detection and phase reversal diagnostics (model dependent)

• Scan/event performance modes (application dependent):

• Standard monitoring with typical 20 ms update rate

• Sequence of Events capture with 1 ms time-stamp resolution

• Low-latency monitoring with typical 5 ms scan behavior

• Diagnostics and integrity features:

• Open-wire detection support in standard monitoring mode (wiring/isolator dependent)

• Internal self-checks for module health and data validity

• Configurable direct/reverse input state indication

Industrial Applications

• 24 VDC discrete status monitoring in safety and critical control systems

• Hazardous-area discrete input acquisition using galvanic isolators and line-fault diagnostics

• Sequence-of-events recording for trips, permissives, interlocks, and plant upset analysis

• High-speed discrete monitoring where reduced latency improves response or event visibility

• Oil & gas, chemical, and power generation facilities requiring robust DI integrity and maintainable diagnostics
