Product Overview

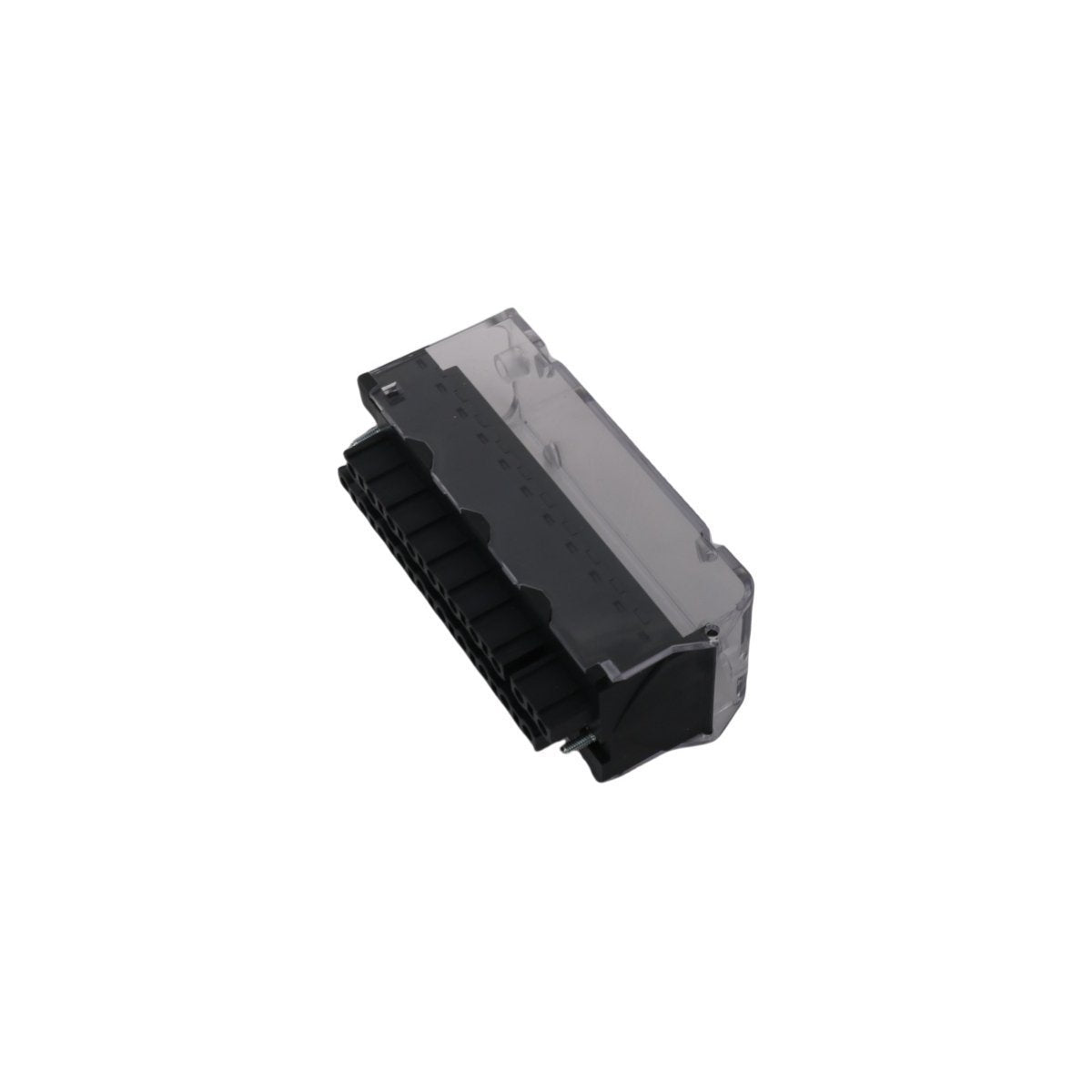

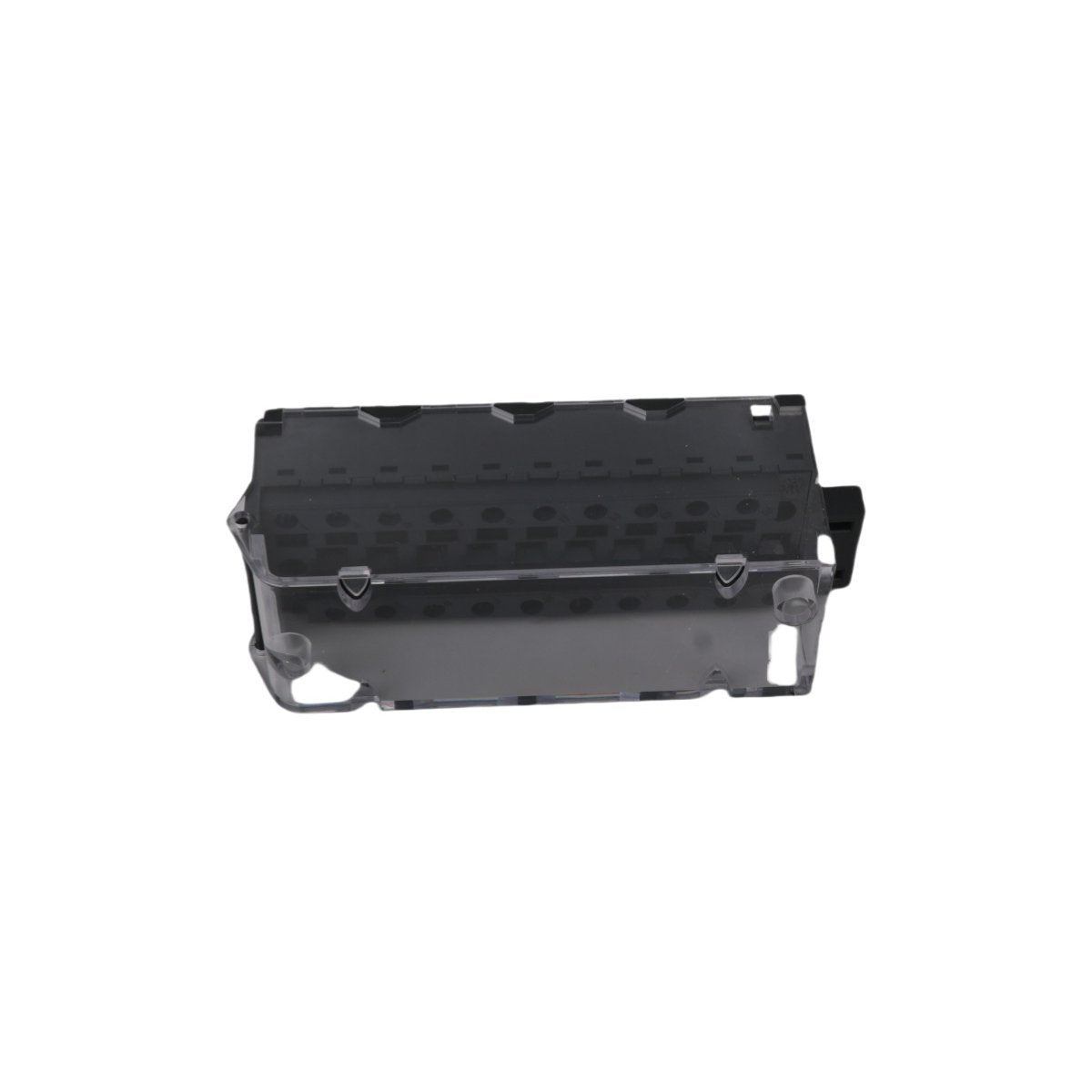

The Schneider Electric BMXFTB2000 is a high-precision 20-pin removable terminal block engineered specifically for the Modicon X80 I/O platform. Serving as the primary physical interface for a wide range of digital and analog modules, this component allows for the secure termination of field wiring before it is mated with the PLC hardware. Its pluggable architecture is a critical feature for industrial uptime, enabling technicians to swap out I/O modules without the need to disconnect individual wires. This ensures that system wiring remains intact and organized, significantly reducing the margin for error during maintenance or hardware migration.

Hardware Parameters and Interface Specs

Built to integrate seamlessly with the Modicon M340 and M580 automation controllers, the BMXFTB2000 prioritizes mechanical stability and electrical continuity.

• Connection Density: 20 distinct points for high-density I/O signal routing.

• Termination Method: Utilizes robust cage clamp technology for high-retention, vibration-proof wiring.

• Module Compatibility: Primarily designed for X80 modules such as the BMXAMI0410 (analog input), BMXAMO0210 (analog output), and BMXAMM0600 (mixed I/O).

• Mechanical Design: Features a removable, pluggable form factor with an integrated protective cover to shield terminals from contaminants.

• Build Quality: Manufactured in France to meet rigorous European industrial standards.

• Compact Footprint: Engineered to maintain a slim profile within tightly packed control cabinets.

Industrial Applications and Deployment Scenarios

The BMXFTB2000 is a staple in modern automation for its ability to simplify complex wiring schematics in various sectors.

Manufacturing Automation: Providing the interface for Modicon X80 digital modules used in assembly line control, where the cage clamp design prevents wire loosening caused by machinery vibration.

Energy and Infrastructure: Employed in remote terminal units (RTUs) for power distribution monitoring, where the removable block allows for rapid field updates without disturbing site wiring.

Water and Wastewater Treatment: Facilitating analog signal connections for flow and pressure sensors, ensuring long-term connection integrity in high-humidity panel environments.

Panel Building and Integration: A preferred choice for system integrators who require standardized, reliable termination points across large-scale M340/M580 PLC architectures.

High-Availability Systems: Used in processes where minimizing Mean Time to Repair (MTTR) is essential; the plug-and-play nature of the terminal block allows for nearly instantaneous module replacements during critical outages.
