Product Overview

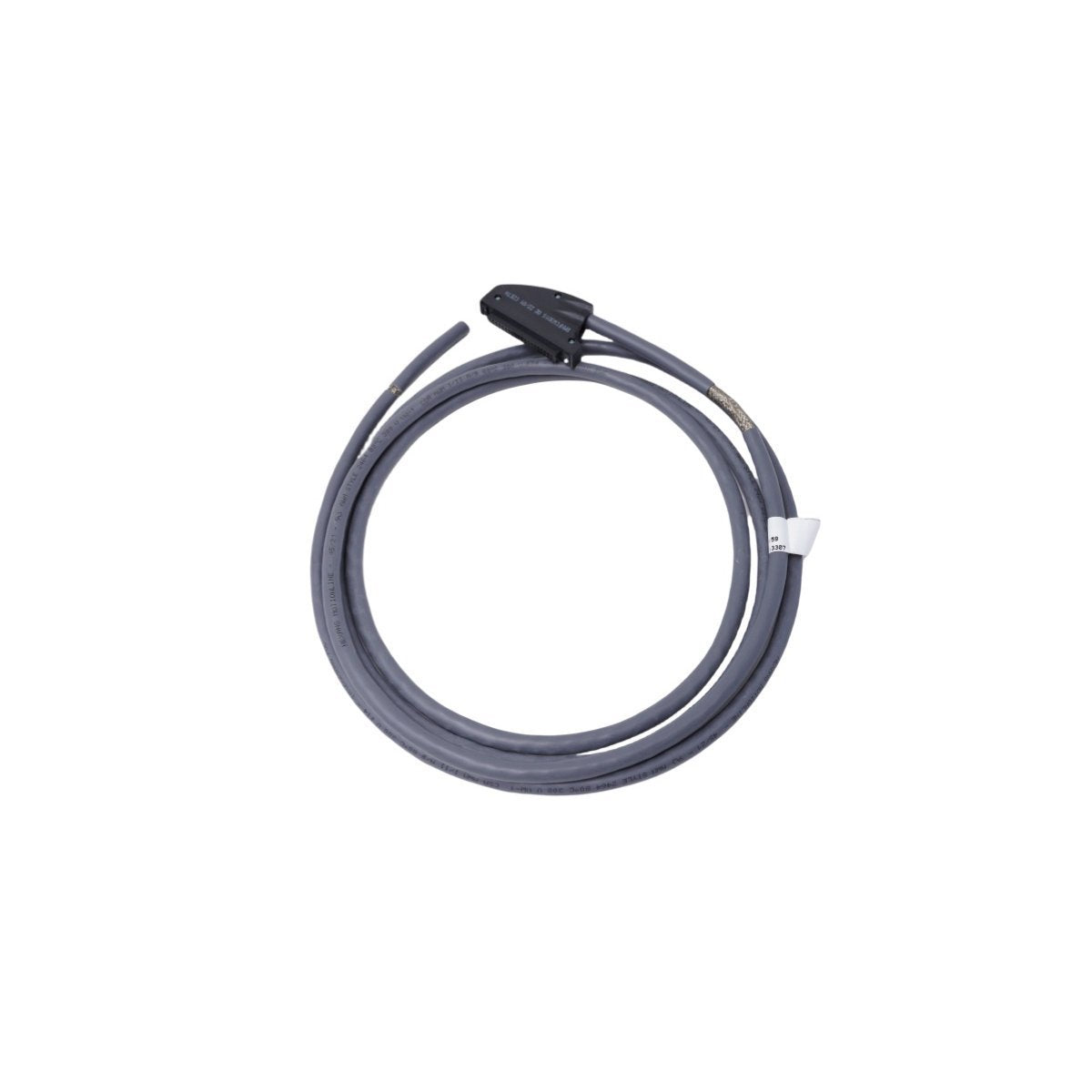

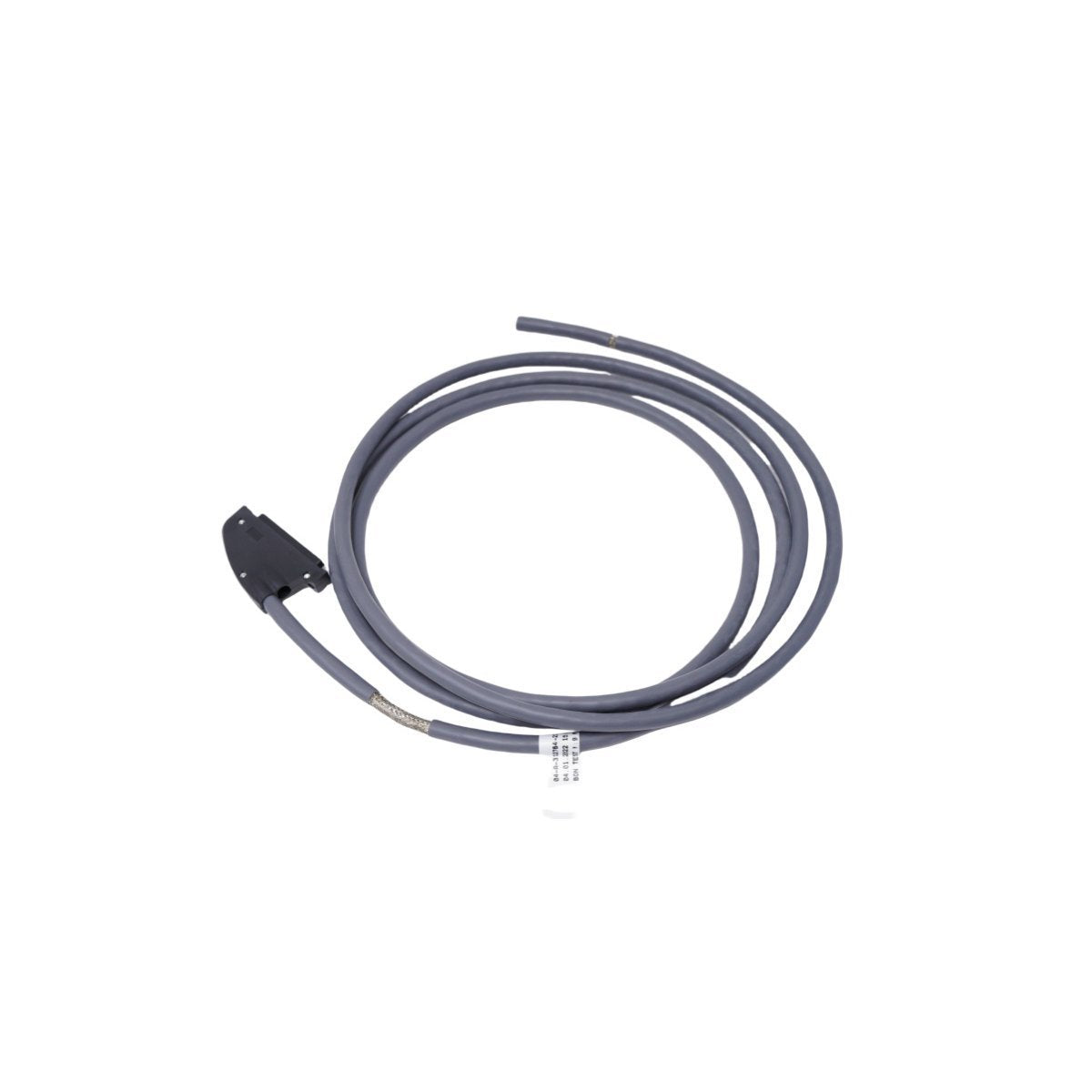

The Schneider Electric BMXFCW303 is a high-performance, 40-way preformed cordset engineered specifically for the Modicon X80 I/O platform. This 3-meter connectivity solution facilitates the transition from high-density PLC modules to field-side wiring via a robust flying lead architecture. By providing a secure, factory-tested connection point for 40-wire configurations, it eliminates the complexity of manual terminal wiring at the module face. This cordset is a fundamental component for engineers utilizing the Modicon M340 and M580 series, ensuring that signal transmission for high-precision analog and digital data remains shielded and stable within demanding industrial automation environments.

Technical Construction and Physical Attributes

Designed to meet the rigorous standards of French manufacturing, the BMXFCW303 utilizes high-gauge multicore cabling to ensure minimal signal attenuation over its 3-meter span.

• Manufacturer Schneider Electric

• Model Identification BMXFCW303

• Connection Interface 40-way connector to flying leads

• Cable Length 3 Meters (9.84 ft)

• Total Mass 0.8 kg

• Product Dimensions 5 x 27 x 27 cm

• Wiring Density 40 wires (Pre-formed)

• Manufacturing Origin France

• HS Classification 8537101190

• Environmental Integrity Standard industrial grade insulation for chemical and thermal resistance

Industrial Integration and Wiring Applications

The BMXFCW303 is essential for streamlining cabinet assembly and maintaining high signal fidelity across the Modicon X80 ecosystem.

• High-Density I/O Interface Seamlessly pairs with 40-pin modules such as the BMXAMI0410 (analog input) and BMXAMM0600 (mixed analog I/O).

• Flexible Cabinet Layouts The 3-meter length provides ample reach for routing through cable ducts to remote terminal blocks or specialized marshaling panels.

• Rapid Commissioning Pre-formed connectors significantly reduce the risk of wiring errors and shorten the time required for loop checks and system start-up.

• Versatile Signal Routing Flying leads allow for direct termination to custom hardware, relays, or standard DIN-rail terminal strips.

• Stable Control Loops Ideally suited for process control industries, including water treatment, food and beverage, and automotive manufacturing, where consistent electrical connectivity is critical for 24/7 operations.
