Product Overview

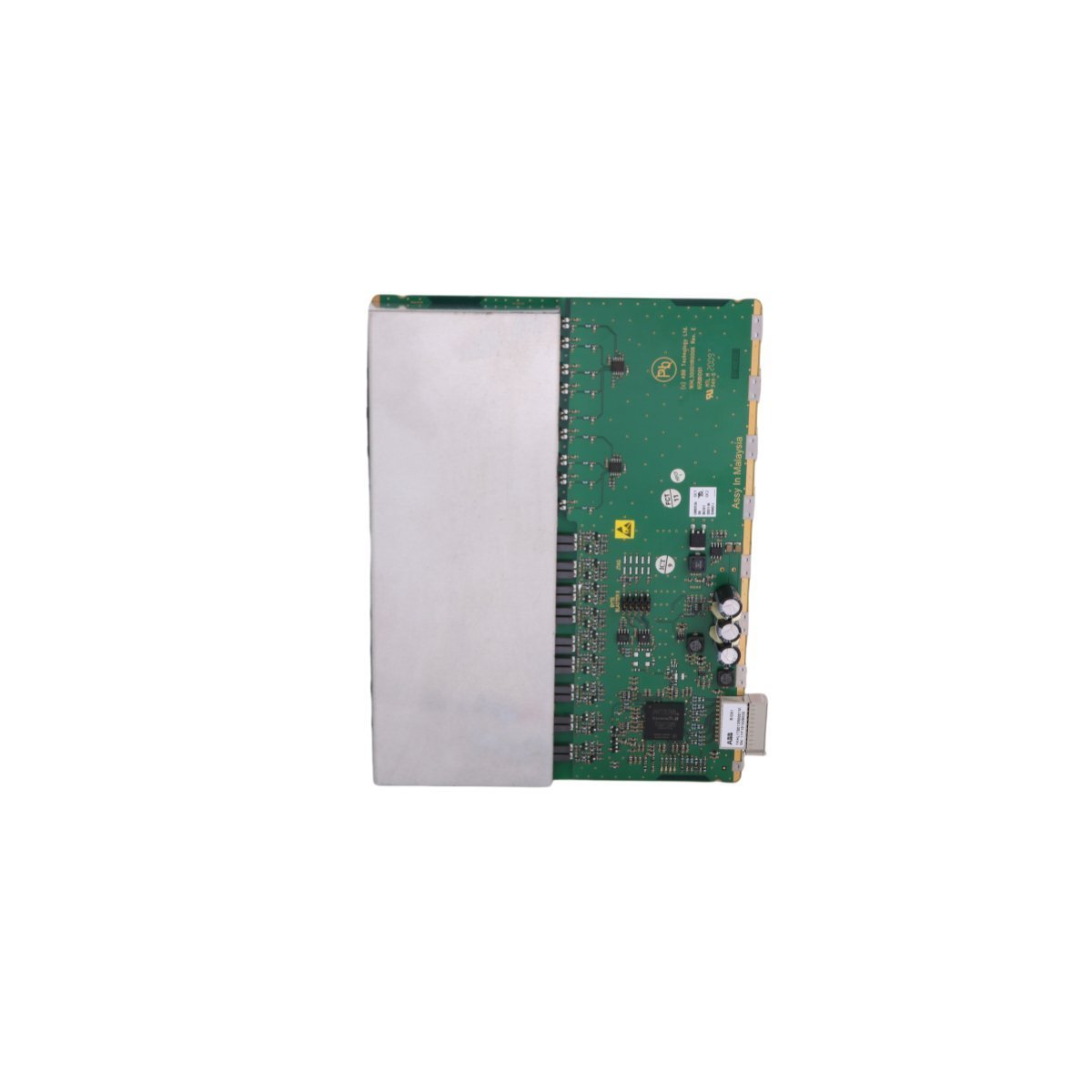

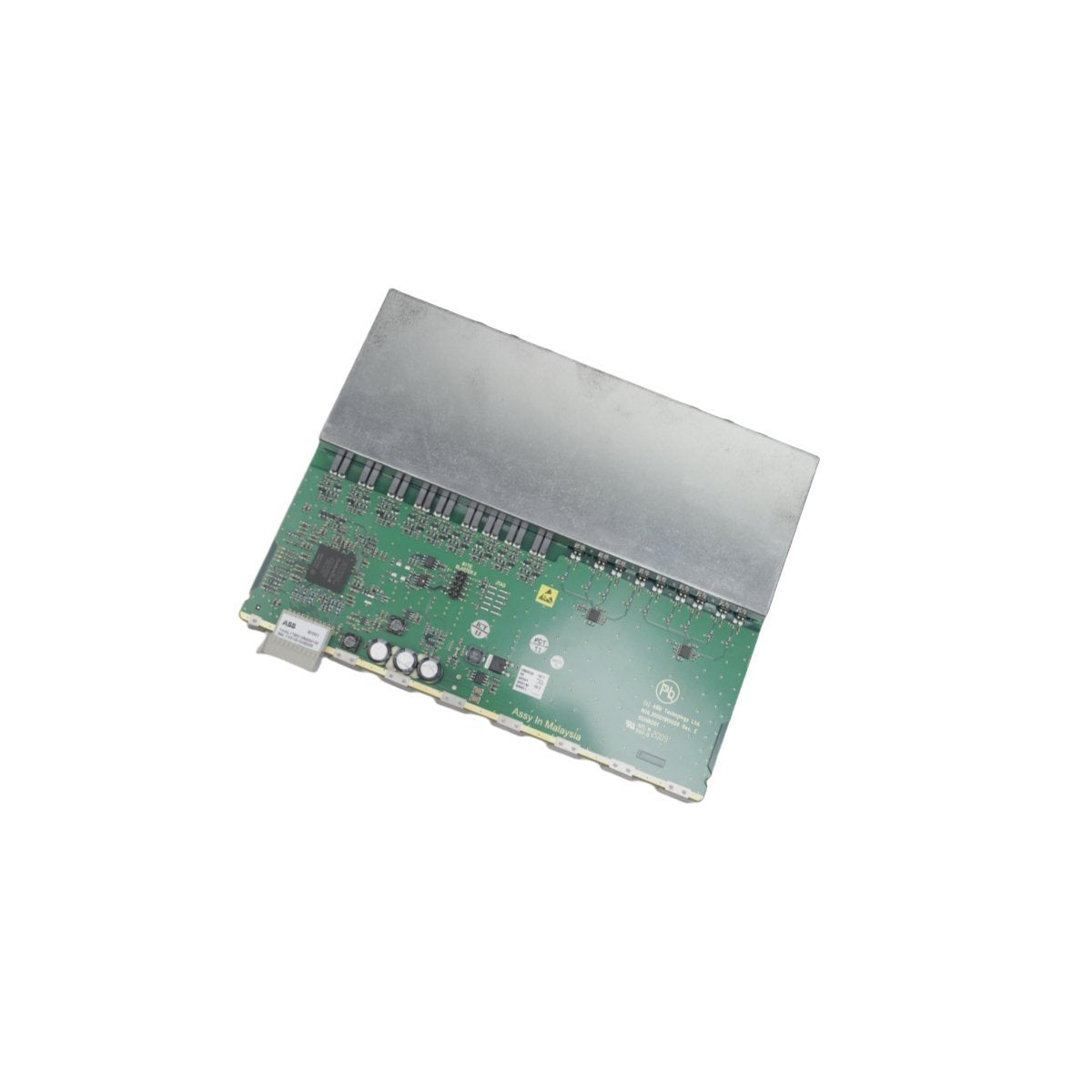

The ABB 1KHL178013R0001M, designated as the BIO01 module, is a high-density binary input/output expansion unit designed for the S800 I/O system and integrated Distributed Control System (DCS) architectures. This module functions as a critical interface for digital signal processing, facilitating the bidirectional flow of information between field-level binary devices—such as limit switches, pushbuttons, and pilot lights—and the central logic controller.

Engineered for modular scalability, the BIO01 allows for the precise monitoring of discrete states and the execution of binary commands with high temporal resolution. Its architecture is optimized for real-time data acquisition, ensuring that state changes in the field are communicated to the control layer with minimal latency. This makes the 1KHL178013R0001M an essential component for high-speed interlocking, sequence control, and general process monitoring in automated industrial environments.

Operational Reliability and System Integration

The BIO01 Binary I/O module is built to maintain signal integrity in electrically noisy industrial settings. It incorporates advanced galvanic isolation and robust filtering to protect the internal system bus from field-side transients and electrical faults. This hardware-level protection is vital for maintaining the stability of the S800 I/O cluster, especially in large-scale deployments where multiple expansion modules are daisy-chained to a single communication interface.

Despite its slim 2.2cm profile, the module provides high-density connectivity, allowing for significant I/O expansion within limited cabinet footprints. The Swedish-engineered design focuses on long-term durability and low thermal dissipation, ensuring that the module performs reliably within its specified temperature range. While the module reached its official discontinuation phase in 2018, it remains a critical legacy spare part for maintaining the operational life of existing Advant OCS and 800xA installations.

Technical Specifications

• Model Number: BIO01

• Order Number: 1KHL178013R0001M

• Module Type: Binary Input/Output Expansion Module

• Product Series: S800 I/O

• Signal Type: Binary (Digital)

• Response Time: Real-time data processing

• I/O Isolation: Individual channel-to-system isolation

• Net Weight: 0.36 kg

• Dimensions: 21.4 x 17.2 x 2.2 cm

• Manufacturing Origin: Sweden

• HS Code: 8537101190

• Lifecycle Status: Discontinued (Legacy Support Available)

Industrial Applications

• Sequence Control: Managing the step-by-step logic of manufacturing production lines.

• Status Monitoring: Tracking the open/closed status of valves and actuators in fluid processing.

• Interlocking Systems: Providing safety-critical feedback for machine guarding and operational permissions.

• DCS Modernization: Serving as a direct replacement part for maintaining legacy S800 I/O clusters.
