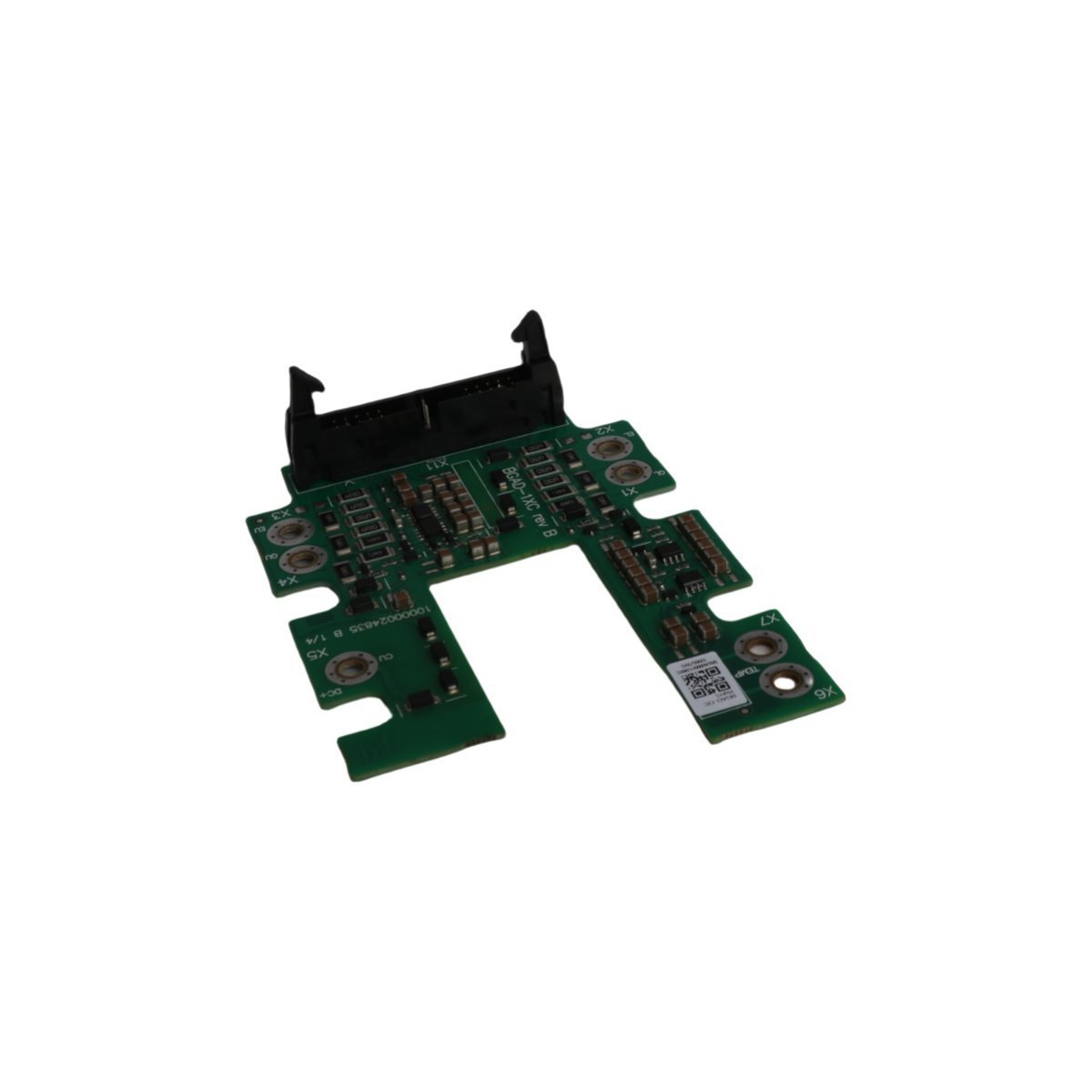

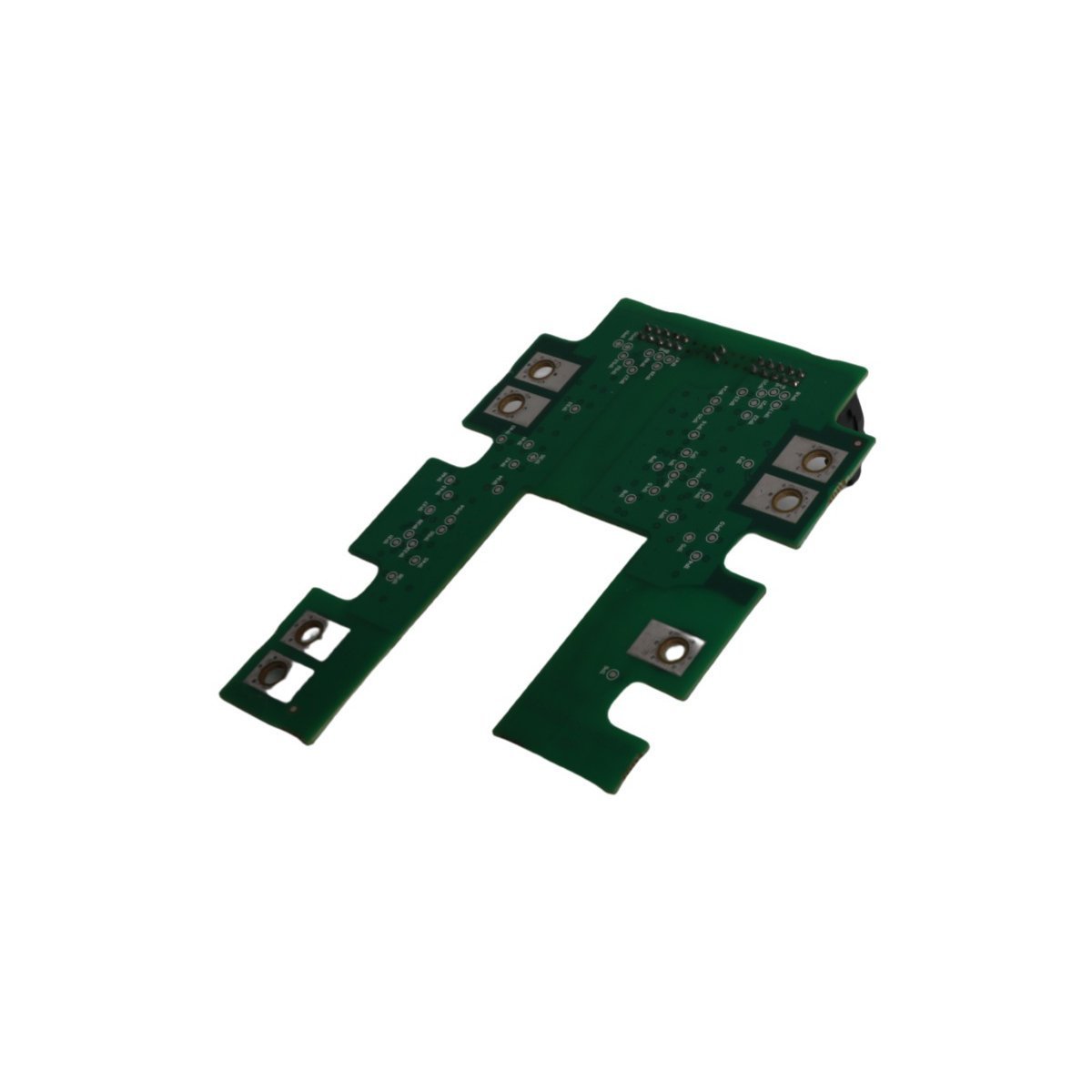

BGAD-12C ABB IGBT Trigger & Protection Board (Gate Driver Interface)
-
Dimensions: 26.2 × 18.7 × 1.9 cm
-
Country of origin: Sweden
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
The ABB BGAD-12C is an IGBT trigger protection board used in power electronics equipment where insulated-gate bipolar transistors require controlled gate firing and protective supervision. In typical drive and converter architectures, this board supports stable switching by managing trigger distribution, monitoring abnormal conditions, and helping protect IGBT stages against fault scenarios that can damage semiconductor devices.
The BGAD-12C is supplied as a replacement PCB for ABB power conversion assemblies. Correct selection is based on the installed equipment type, board revision, and connector/pinout compatibility.
Technical correction note
The provided description incorrectly describes generator differential protection relays (87G, IEC 61850, CT inputs, 19-inch rack), which is not consistent with an “IGBT module trigger protection board.” That relay content has been removed. “Ethernet router” is not applicable to this PCB.
Key Technical Characteristics
| Parameter | Value |
|---|---|
| Model | BGAD-12C |
| Product Type | IGBT Trigger Protection Board |
| Condition | Brand New |
| Status | Active |
| Availability | In Stock |
| Origin | Sweden |
| MOQ | 1 |
| Approx. Weight | 0.4 kg |
| Approx. Dimensions | 26.2 × 18.7 × 1.9 cm |
| HS Code | 8537101190 |
Typical functional capabilities in drive/converter systems (equipment dependent)
-
Gate trigger interface for IGBT firing circuits (distribution and timing coordination)
-
Protective supervision for gate/drive path integrity (e.g., loss-of-trigger detection, fault interlock handling)
-
Interface support to the main control electronics for enable/disable and fault reporting
-
Noise-resilient design practices suitable for high dv/dt switching environments (layout, grounding, shielding considerations)
Service and verification checklist
-
Confirm board revision and connector keying match the existing BGAD-12C being replaced
-
Inspect for damage from prior IGBT failure (burn marks, cracked components, connector heating)
-
After installation, verify firing enable logic, fault reset behavior, and insulation/grounding per equipment procedure
Industrial Applications
Common application environments include:
-
ABB AC drives, DC drives, and industrial converters using IGBT power stages
-
Rectifiers/inverters in power conversion cabinets for manufacturing lines and process plants
-
Retrofit and maintenance programs where spare gate-trigger/protection boards are held to reduce downtime
-
High-reliability motor control systems in metals, mining, pulp & paper, cement, and utilities (equipment dependent
