Product Overview

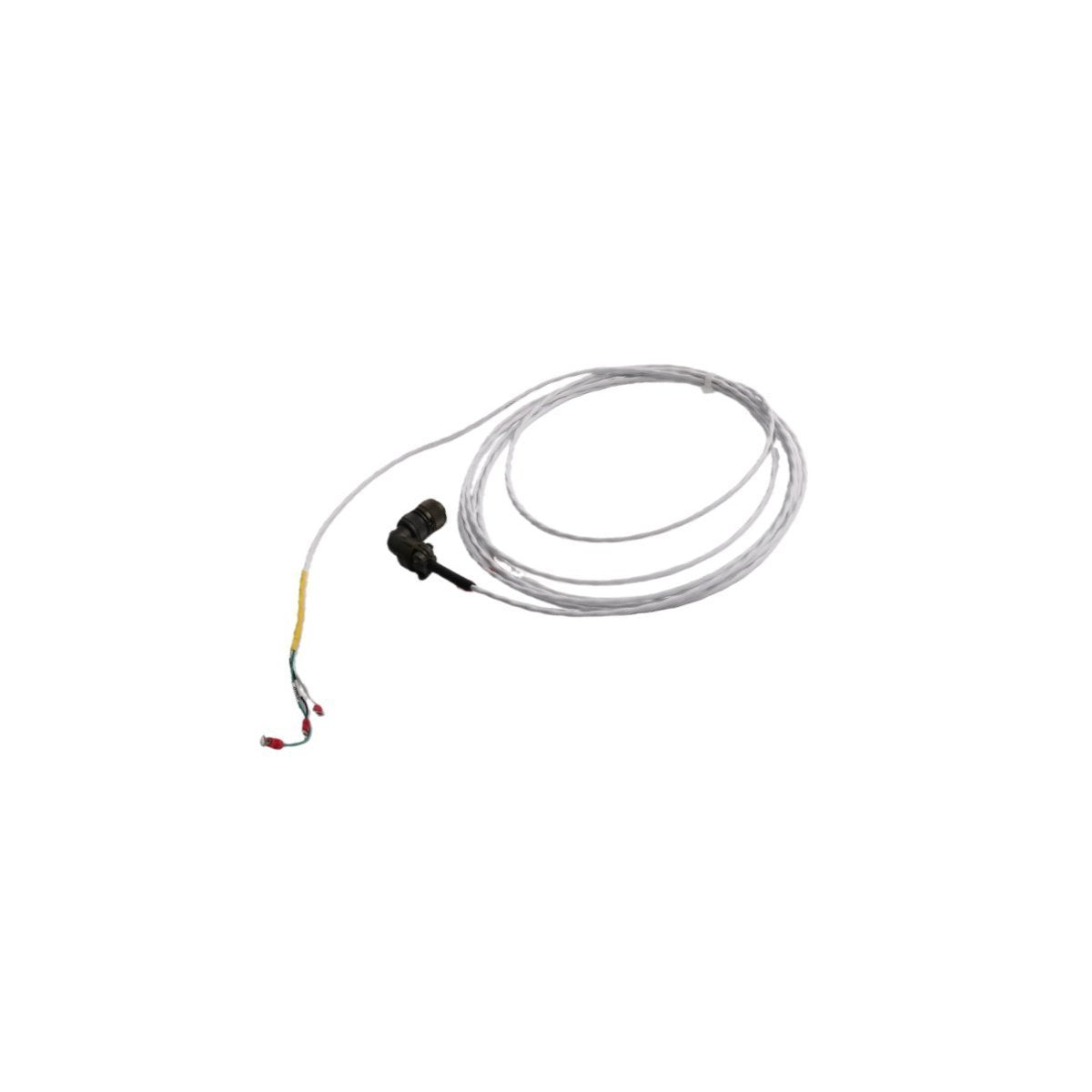

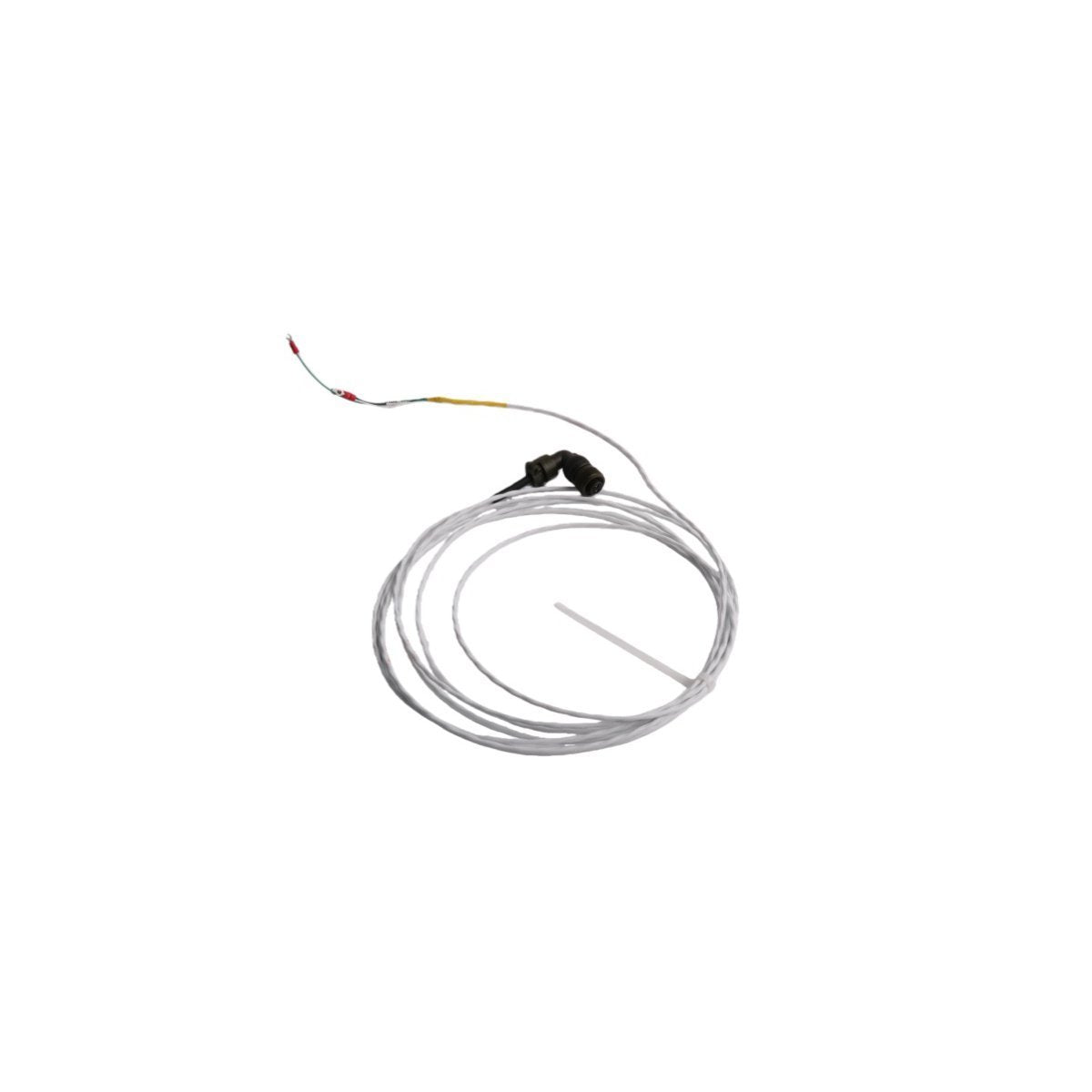

The Bently Nevada 89477-80 Interconnect Cable serves as a critical nervous system component for the 3500 Series Machinery Protection System. This specialized cable assembly facilitates the seamless high-speed transfer of data and power between monitor modules and backplane interfaces, ensuring that critical vibration and position data reach the processing unit without latency or signal degradation.

Engineered specifically for the high-interference environments of power plants and refineries, the 89477-80 provides the shielding necessary to protect low-voltage signals from electromagnetic interference (EMI). Its robust construction minimizes impedance mismatch, which is vital for maintaining the accuracy of Turbine Supervisory Instrumentation (TSI). In emergency shutdown (ESD) scenarios, the reliability of this interconnect cable ensures that trip signals are executed within milliseconds, safeguarding multi-million dollar rotating assets from catastrophic mechanical failure.

System Architecture and Cable Mapping

The 89477-80 is defined by its specific length and termination style, designed to integrate modular components within the 3500 rack environment:

Internal Rack Interconnectivity

This cable handles the complex internal routing required for multi-channel vibration monitoring. It bridges the gap between the Main Module and its associated I/O modules, maintaining a secure, vibration-resistant physical connection.

Shielding and Grounding Logic

The assembly utilizes high-density braided shielding paired with aluminum foil to provide 100% coverage. This dual-layer approach effectively isolates internal data streams from the high-voltage noise generated by nearby variable frequency drives (VFDs) and large induction motors.

Termination Durability

The 80-unit designation typically refers to a specific standardized length or configuration used in high-density rack setups. The gold-plated contact pins prevent oxidation over long-term deployment, ensuring that contact resistance remains negligible throughout the lifecycle of the monitoring system.

Physical and Electrical Parameters

Field Deployment Best Practices

To maintain the E-E-A-T integrity of your monitoring installation, follow these professional engineering guidelines:

Minimum Bend Radius

Avoid sharp turns when routing the 89477-80 within the rack cabinet. Maintain a minimum bend radius of at least 6 times the cable diameter to prevent internal conductor fatigue and signal reflection issues.

Connector Seating

Ensure the locking screws or retention clips are fully engaged. Intermittent vibration data is often traced back to loosely seated interconnect cables. A audible "click" or tactile confirmation of the lock mechanism is essential for high-vibration machinery environments.

Cable Management

Route the 89477-80 away from AC power lines or high-current switching cables. Use dedicated low-voltage cable trays or internal rack clips to organize the interconnects, reducing mechanical stress on the connector headers.

Seamless Integration Performance

The 89477-80 Interconnect Cable provides a "plug-and-play" experience with Bently Nevada 3500/05 racks and 3500/22M Transient Data Interface (TDI) modules. Its low-capacitance design ensures that high-frequency transient data is preserved, allowing for advanced diagnostic plotting in System 1 software. Whether deployed in a Honeywell Experion PKS environment or a standalone protection rack, this cable maintains the strict timing requirements for Modbus and Ethernet communication protocols across the system backplane.
