Product Overview

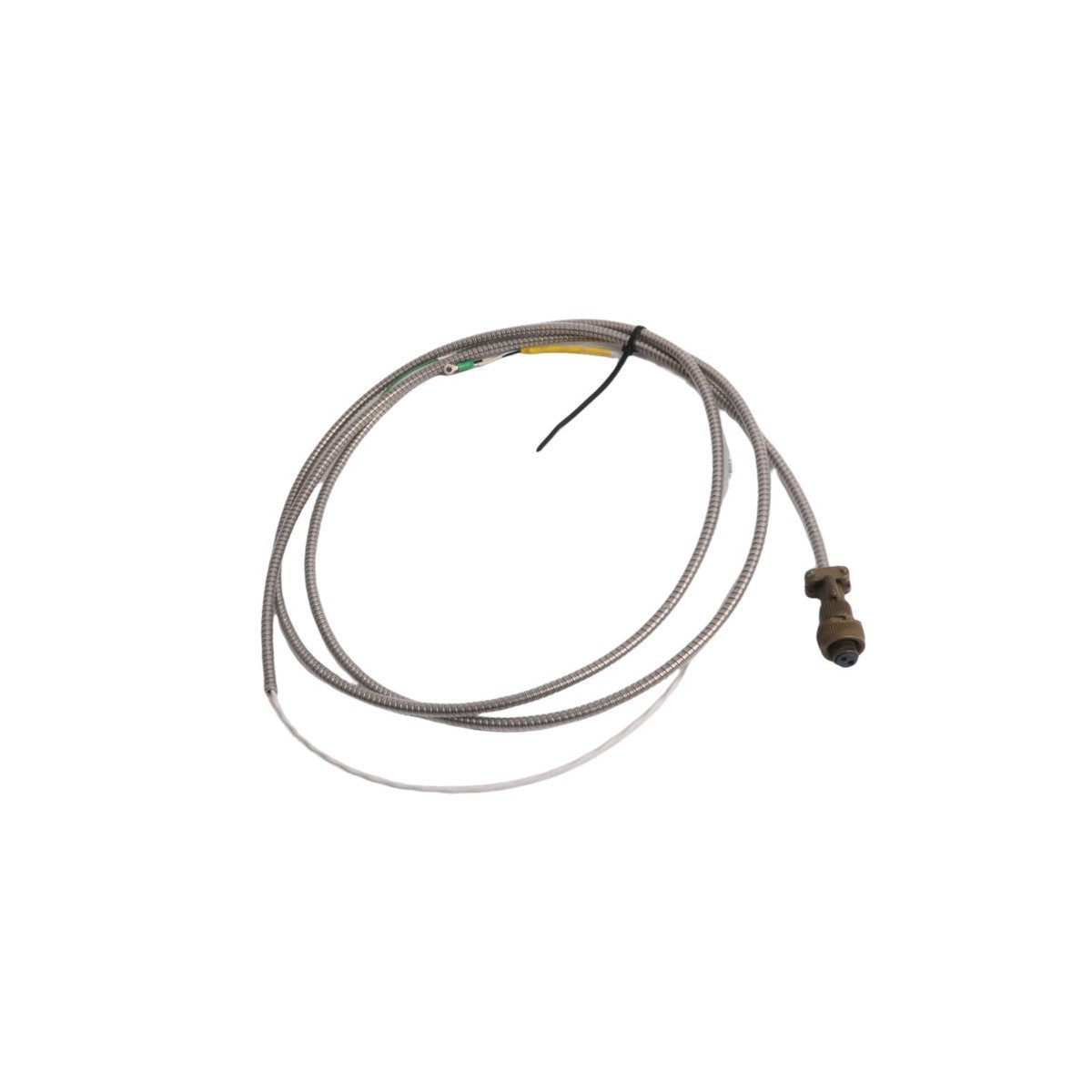

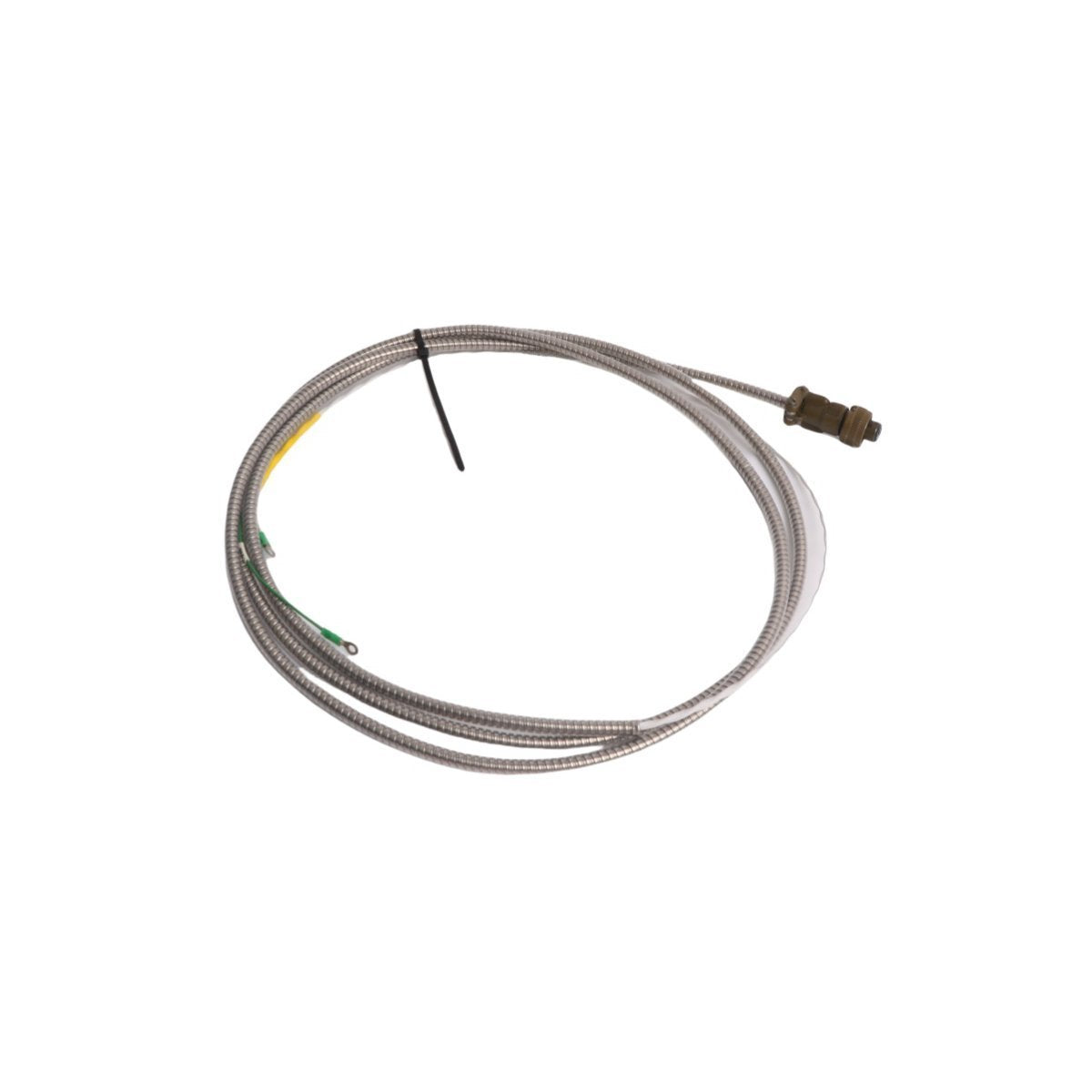

The Bently Nevada 84661-90 Standard Armored Interconnect Cable delivers an armored, heavy-duty signal path within critical machinery casing vibration monitoring networks. This industrial-grade shielded twisted-pair assembly establishes a highly protected electrical link between the standard 330500 Velomitor piezoelectric velocity sensor and a remote junction enclosure or centralized control chassis.

Instrumentation supervisors deploy this long 90-foot armored interconnect link across high-exposure industrial spaces to protect critical plant equipment, including large-scale steam turbines, high-pressure centrifugal process compressors, cooling tower fan boxes, and primary water feed pumps. The internal core carries delicate analog AC waveforms across the long run without suffering phase distortion or signal attenuation. This reliable telemetry feeds your central automated emergency shutdown systems and distributed DCS safety interlocks, allowing the system to execute split-second machinery trips before catastrophic bearing collapse or structural casing failure occurs.

Cable Core Architecture & Suffix Interpretation

84661 [Velomitor Interconnect Series Profile]

Designates the product baseline layout as a 2-conductor shielded twisted-pair electrical line terminated with a heavy-duty, moisture-resistant 2-pin circular socket connector on the transducer end.

-90 [Calibrated Assembly Length]

Specifies a strict physical cable length configuration of 90 feet (approximately 27.4 meters), providing an extended mechanical reach that spans directly from the machine bearing cap to a remote local control cabinet without requiring mid-run junction junctions.

Stainless Steel Internal Armor Sleeve

Wraps the internal polyurethane cable core inside a rugged interlocking stainless steel armor layer to defend the underlying dielectric materials against severe crushing forces, sharp metal cuts, and flying flying debris.

High-Density Shielding and Drain Core

Utilizes a full-coverage aluminum foil shield backed by an integrated tinned copper drain wire to ground out parasitic environmental noise, isolating the underlying raw velocity tracking data from cross-talk.

Transducer Cable Mechanical & Metrological Layout

Cable Performance Parameters

Site Positioning & Shield Grounding Field Guide

Field instrumentation specialists must maintain a strict minimum bend radius of 50.8 mm (2.0 inches) across the interlocking stainless steel armored jacket to prevent pinching the internal twisted-pair conductors or tearing the foil shield barrier. Mount the internal 2-pin circular MIL connector firmly onto the Velomitor header socket, checking that the internal elastomeric sealing ring compresses fully to prevent moisture entry.

Isolate the system shield ground properly to prevent problematic ground loops from injecting electrical noise into the vibration monitoring circuit. Connect the tinned copper drain wire at the blunt-cut terminal end directly to the dedicated instrument ground bar inside the local junction box. Leave the shield wire floating and cut back flush at the sensor end of the loop, using a heat-shrink sleeve over the cable transition point to maintain absolute isolation from the machine frame.

Hardened Environmental Survival & DCS Architecture Integration

The rugged stainless steel interlocking armor on the 84661-90 cable provides premium physical defense against crushing forces, high-pressure spray washes, and severe mechanical impacts on open plant floors. This mechanical protection keeps the internal insulation resistance high across multi-year asset lifecycles, ensuring clean signal delivery over the extended 90-foot run.

The low-loss line streams dynamic casing vibration velocity profiles into a Bently Nevada 3500/42M or 3500/40M monitor module for real-time processing. The monitor splits the processed tracking values out to your plant-wide Honeywell Experion PKS or Siemens S7 PLC architecture via automated Modbus TCP or dedicated 4-20 mA analog output cards. This setup supplies your control room with simultaneous access to high-velocity casing vibration safety trips and deep predictive machine health trending.

Commercial Packing Inventory

The factory-sealed individual shipping carton contains the following equipment:

(1) Original Bently Nevada 84661-90 Standard Armored Velomitor Interconnect Cable (90-foot length)

(2) Factory-terminated 2-Pin MIL-C-5015 female connector head with integrated threaded coupling collar

(3) Pre-stripped blunt cut flying lead wires with an integrated tinned drain line

(4) Material conformity certification and product handling documentation

International Logistic Security & Express Shipment

Our international logistics hub processes and dispatches all verified industrial orders within 2-7 days after confirming payment details. We route all critical asset components through express global carriers, including DHL, FedEx, and UPS, to ensure rapid, fully trackable, and insured delivery to your plant site.

Our warehouse wraps each 90-foot armored cable assembly within heavy-duty anti-static industrial packaging sheets before securing it into customized shock-absorbing foam inserts. This strict packaging process provides complete protection against electrostatic discharge, severe transit drops, and ambient moisture entry along international shipping routes.

Transducer Loop Field Troubleshooting

Q1: Can I use this 84661-90 armored cable to connect an 8mm 3300 XL proximity probe directly to a Proximitor?

A1: No. This cable features a 2-conductor twisted-pair layout terminated with a large 2-pin circular MIL connector, designed specifically for the 330500 Velomitor casing velocity sensor. Proximity probes use high-frequency coaxial lines terminated with miniature ClickLoc connectors to manage specific loop impedance. Mixing these cable types will cause immediate physical incompatibility and loop failure.

Q2: What specific field benefit does the integrated stainless steel armor layer provide for a 90-foot cable run?

A2: Over an extended 90-foot run, cables face high exposure to structural crushing, foot traffic, and sharp mechanical edge hazards. The interlocking stainless steel armor provides an exceptionally tough outer shell that protects the internal cores from physical damage along the entire run, eliminating the need to install separate, expensive rigid steel conduits across open plant floors.

Q3: Why does this cable leave the shield drain wire un-terminated at the sensor connector end?

A3: Leaving the shield floating at the sensor end is a required grounding protocol that prevents electrical ground loops. If the shield connects to ground at both the machine frame (via the sensor) and the control cabinet, small differences in ground potential will drive parasitic currents through the shield. This creates electrical noise that distorts the analog vibration telemetry. Grounding the shield exclusively at the junction box safely drains away electromagnetic interference.

Q4: What action should I take if the monitoring rack reports a "Not OK" status with high bias voltage?

A4: A "Not OK" status accompanied by a high bias voltage (typically near open-circuit levels) indicates a break or high resistance in the sensor path. Inspect the 2-pin circular connector at the Velomitor base to ensure it is tightened fully and free of moisture or corrosion. Use a digital multimeter to test continuity along both internal conductors from the junction box terminals to isolate the break.
