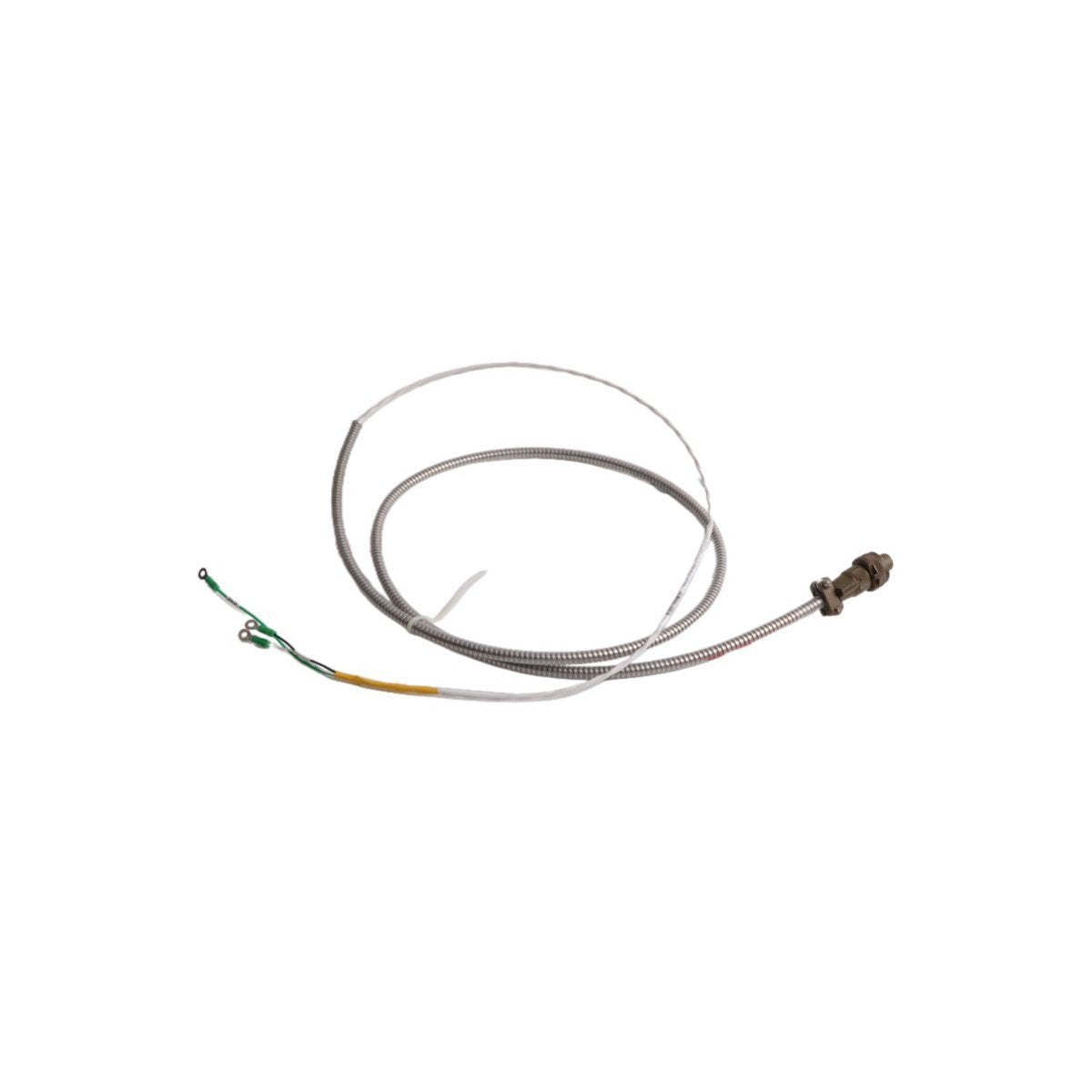

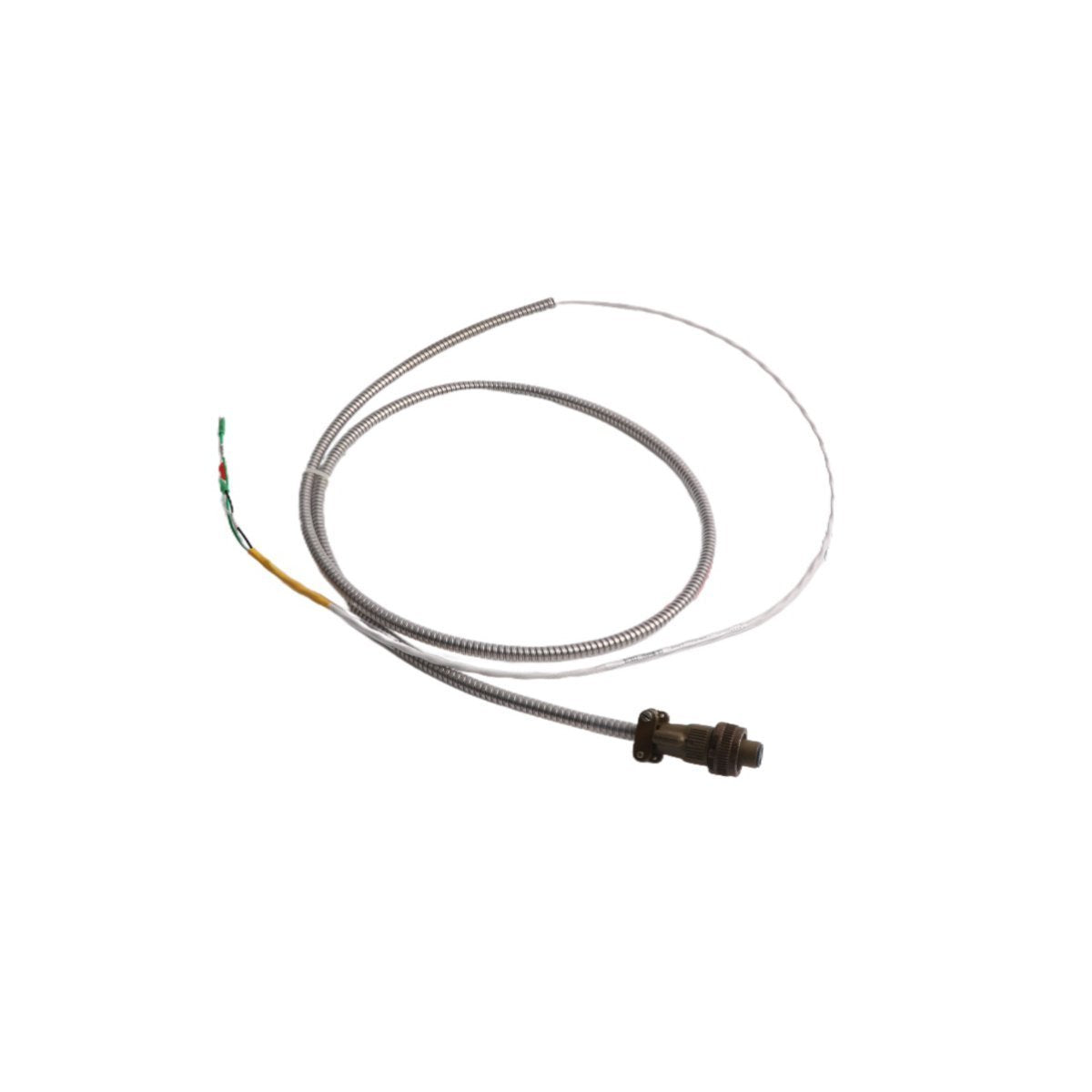

The Bently Nevada 84661-60, also cataloged as the 84661 Standard Armored Interconnect Cable, operates as a dedicated hardware component for high-frequency signal transmission within Bently Nevada Asset Condition Monitoring Systems. It forms the physical interface that routes analog voltage outputs from seismic vibration sensors or proximity transmitters directly to rack-mounted monitor modules without attenuating critical dynamic wave profiles.

Hardware Specifications

Rotor Dynamics and Cross-Talk Suppression

The 84661-60 is engineered to transfer high-fidelity vibration wave frequencies caused by fast-moving rotor dynamics without induction anomalies or impedance mismatches. The internal 22 AWG twisted pair geometry provides passive cross-talk suppression by cross-canceling capacitive fields leaking from adjacent high-voltage power lines inside dense industrial conduit paths.

Unlike standard proximity loops that rely on specialized eddy-current probe scaling or stationary gap voltage validation (-10 VDC targets), this armored interconnect assembly acts as a neutral electrical path that preserves both the phase angles and peak-to-peak amplitudes generated by acceleration or velocity transducers.

Frequently Asked Questions

Q: Does the 84661-60 interconnect assembly support on-line hot-swap replacement on an active machinery protection loop?

A: Yes, because the assembly is a passive conductor path. However, breaking the 3-socket MIL-C-5015 connection while the monitoring channel is active instantly triggers a Transducer Fault (NOT OK) condition on the host monitor module. The corresponding channel must be switched into software bypass mode prior to cable swap procedures.

Q: What is the maximum continuous voltage limit supported across the internal tinned copper conductors?

A: The insulation jacket is rated for a continuous operating ceiling of 600 Vrms. Operating above this threshold risks dielectric breakdown and short-circuit faults between the internal conductor pairs or the outer shield.

Q: How does a rupture or puncture in the outer stainless steel armor affect signal loop metrics?

A: A break in the armor exposes the inner polymer insulation sleeve to external oil, chemicals, or moisture. If fluids penetrate the shielding, the core-to-shield capacitance shifts away from nominal factory specifications, causing high-frequency signal dampening and calibration drift.

Field Installation Guidelines

• Minimum Bend Radius Rules: To prevent physical pinching of the internal conductors and binding of the interlocking armor joints, maintain a minimum static bend radius of 76.2 mm (3.0 in) across all routing runs.

• Terminal Ring Splicing: When connecting the raw pigtail wires to a junction box terminal strip, terminate the shield drain wire to the proper chassis ground lug while keeping the positive and negative signal leads tightly twisted up to the terminal clamp to maintain cross-talk suppression.

• Thread Engagement at Sensor Head: Hand-tighten the knurled MIL-C-5015 coupling nut onto the sensor mating connector until fully seated, then apply a final quarter-turn using proper connector pliers to ensure a permanent environmental seal.

• Isolation from High-Voltage Trays: Do not lay the interconnect cable parallel to or inside the same conduit tray as heavy motor drive cables or high-voltage AC mains. Maintain a minimum physical segregation distance of 305 mm (12.0 in) to prevent capacitive noise injection.

Dispatch Manifest

The package contains the following verifiable hardware units:

1. (1) Bently Nevada 84661-60 Armored Interconnect Cable assembly.

2. (2) Heavy-duty adhesive-lined polyolefin heat-shrink sleeves for field lead termination.

3. (1) Factory technical tracking checklist.

Shipping Logistics & Package Treatment

• Fulfillment Timeline: Forwarded within 2-7 days when payment finish through confirmed industrial commercial clearing operations.

• Carrier Methods: Dispatched internationally via high-priority global express options including DHL, FEDEX, or UPS.

• Packaging Defense Profile: Ships packed inside a sealed, specialized anti-static industrial packaging wrap enclosed within a double-walled corrugated fiberboard outer shell to protect the interlocking steel armor from crushed links during global transport.
