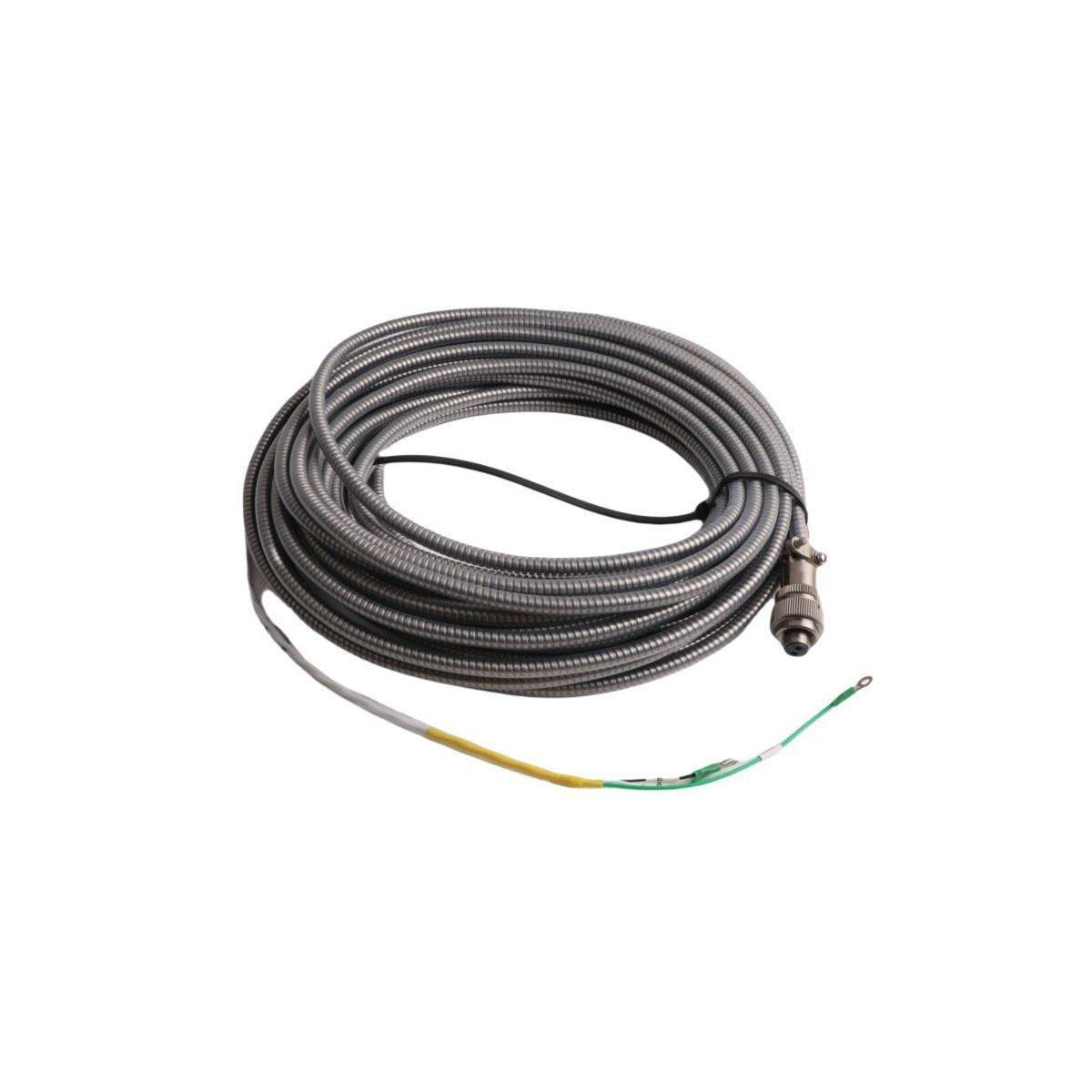

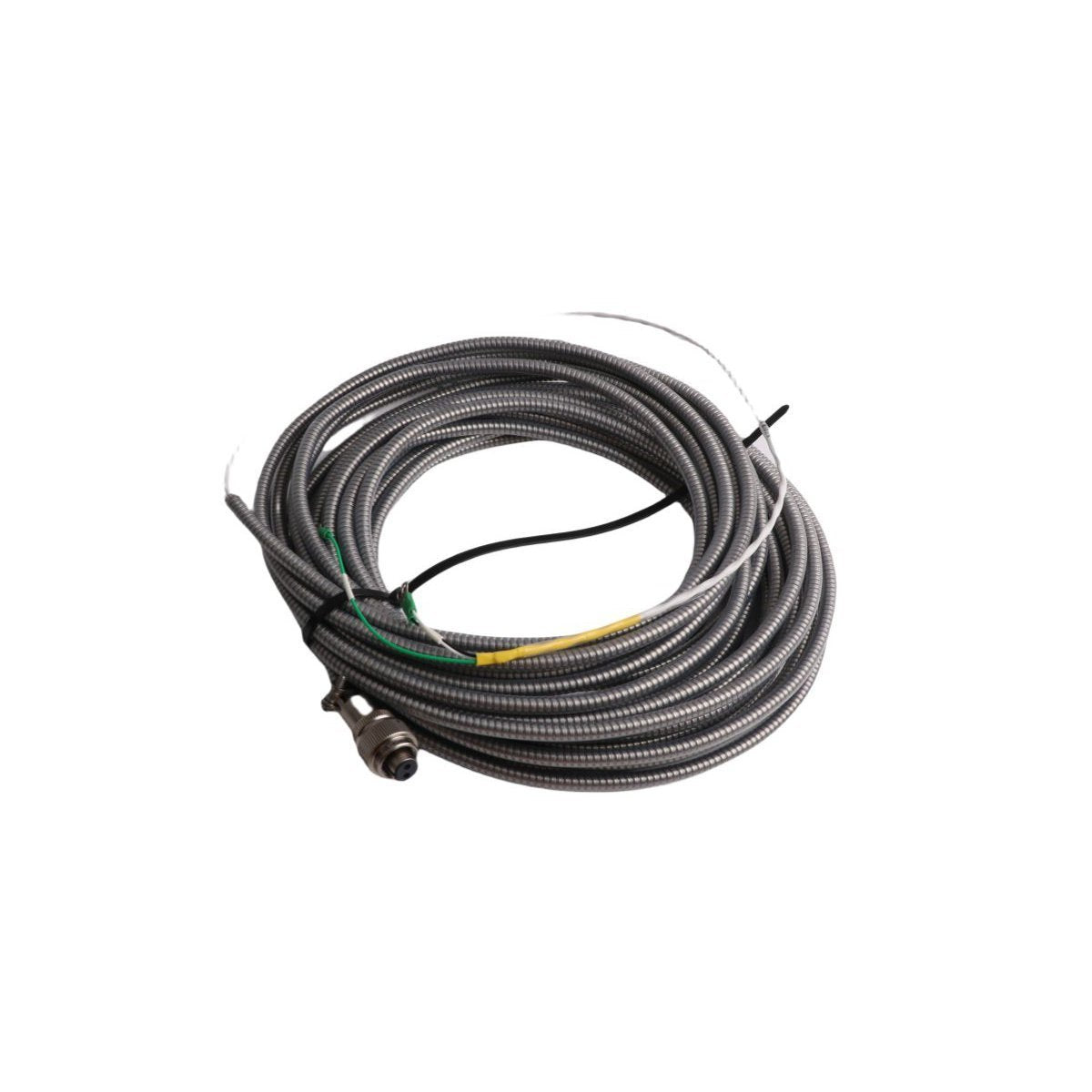

The Bently Nevada 84661-50 serves as the primary 84661 Interconnect Cable utilized to execute analog vibration signal transmission across Velomitor Piezoelectric Velocity Transducer platforms. The component establishes a constant physical and electrical connection between the field-mounted velocity sensor and the central machinery protection monitor rack, routing dynamic casing vibration data without signal degradation.

Hardware Specifications

Rotor Dynamics and Cross-Talk Suppression

The 84661-50 cable assembly is engineered to maintain analog transmission precision under harsh operating parameters driven by high-velocity rotor dynamics. The twisted-pair geometry delivers a balanced impedance path that optimizes cross-talk suppression and isolates the low-voltage vibration signal from adjacent electromagnetic noise generated by heavy industrial machinery.

Unlike proximity systems that focus on gap voltage validation (-10 VDC targets) and eddy-current probe scaling, this interconnect link focuses entirely on preserving the integrity of alternating current (AC) signals representing absolute casing velocity. The shielded architecture ensures that phase and amplitude data remain uncorrupted over the entire 50-foot run.

Frequently Asked Questions

Q: Can this interconnect cable line be severed and spliced manually in the field if physical length adjustments are required?

A: No. Splicing raw conductors introduces localized impedance variances and compromises the continuous shield barrier. This disrupts cross-talk suppression and introduces stray noise into the vibration loop. If alternative distances are required, a factory-terminated length must be specified.

Q: Is this specific cable model designed to withstand continuous exposure to submerged synthetic lubricating oil environments?

A: No. The outer polyurethane jacket provides splash resistance against industrial oils, but it is not specified for permanent immersion. For continuous immersion, a Teflon or stainless steel armored outer casing option must be used.

Q: What component prevents the MIL-C-5015 connection point from backing off under high mechanical vibration?

A: The connector assembly uses a threaded coupling ring that locks onto the transducer base. Field practice requires tightening the ring completely to ensure the internal rubber boot compresses, providing both moisture exclusion and mechanical friction locking.

Field Installation Guidelines

• Conduit Routing Constraints: Pull the cable through dedicated, grounded metal conduit paths. Do not route the interconnect link inside trays containing high-power AC lines, variable frequency drive motor wiring, or switching inductive loads to prevent electromagnetic coupling.

• Drain Wire Shield Grounding: Connect the tinned copper drain wire exclusively at one single point, typically inside the monitor rack terminal strip or an intermediate junction box. Keep the transducer end of the shield isolated and floated to prevent ground loop currents.

• Minimum Bend Radius Specifications: Maintain a minimum static bend radius of 38.0 mm (1.5 in) during installation routing. Avoid tight kinks or hard compression clamps that distort the internal twisted-pair symmetry or tear the aluminum foil layer.

• Connector Weatherproofing: Before engaging the 2-pin socket interface, ensure the contacts are free of moisture and grease. Thread the collar tightly by hand to seal the boot against the sensor housing.

Supply Manifest

The standard package contains the following components:

1. (1) Bently Nevada 84661-50 Interconnect Cable assembly.

2. (1) Integrated moisture-resistant terminal connector boot.

3. (1) Technical installation guide insert.

Procurement Logistics Profile

• Dispatch Window: Material moves to active shipment within 2-7 days when payment finish through verified institutional commercial banking networks.

• Transit Routing: Forwarded globally using priority express carriers including DHL, FEDEX, or UPS.

• Packaging Integrity: Enclosed inside thick anti-static industrial packaging sleeves to safeguard the internal copper conductors and shielding layers against environmental oxidation and static discharges during flight.
