Product Overview

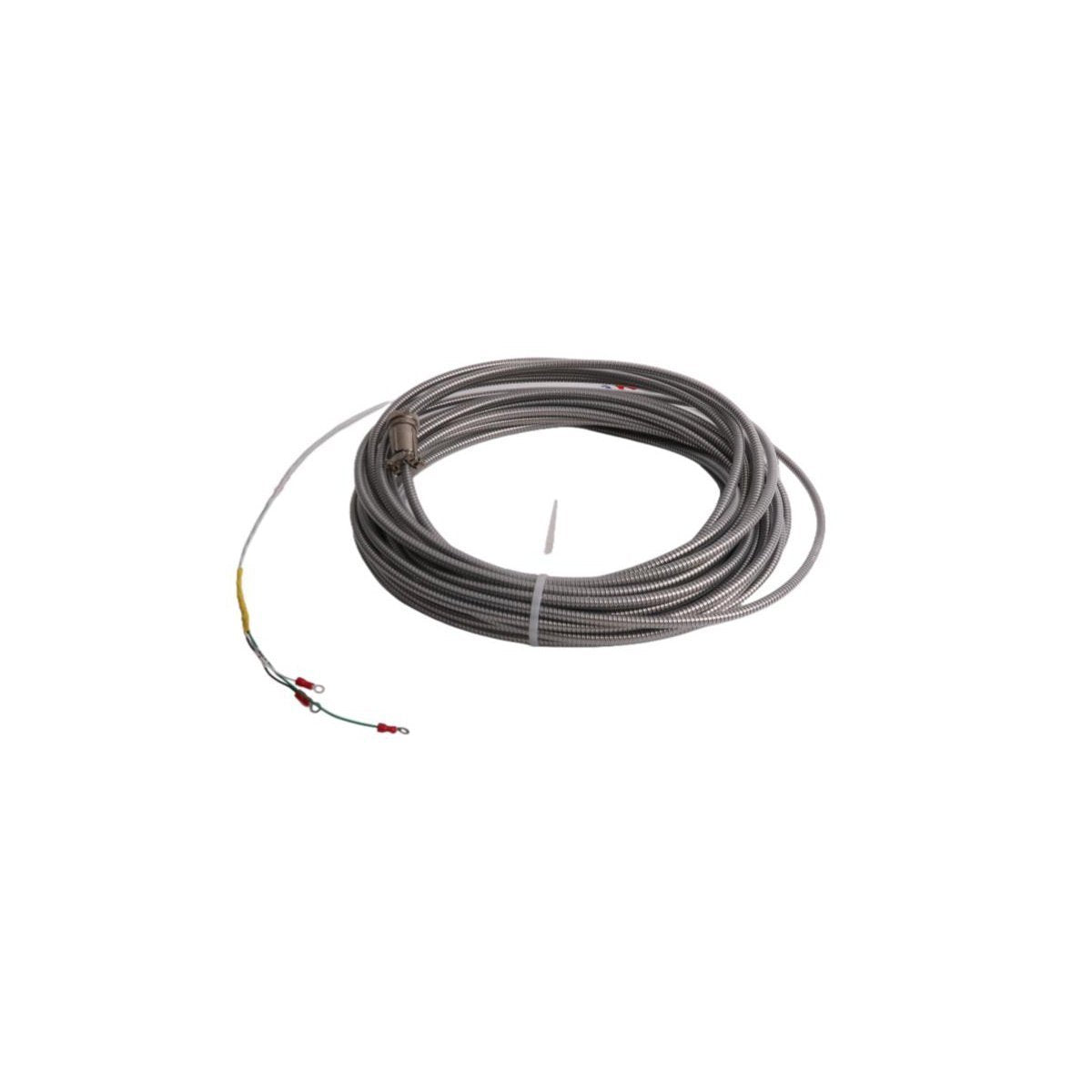

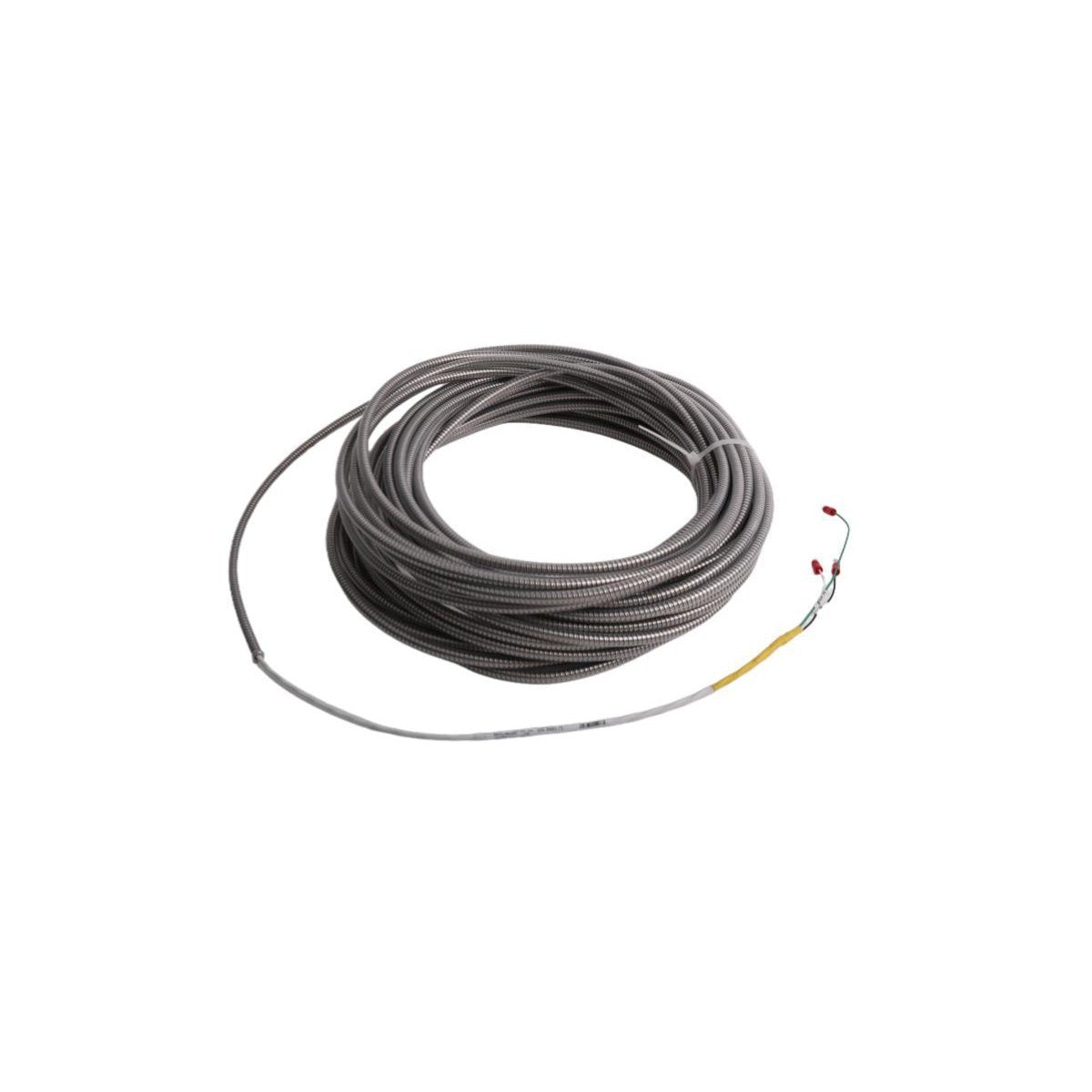

The Bently Nevada 84661-40 Interconnect Cable serves as a vital communication artery within the world-renowned 3500 Series Machinery Protection System. This specialized cable ensures high-integrity signal transmission between the internal backplane and specific I/O modules, maintaining the strict data timing required for real-time machinery diagnostics. Engineered to military-grade standards, the 84661-40 eliminates signal crosstalk and electromagnetic interference, providing the clean data stream necessary for the 3500 rack to execute emergency trip logic.

By facilitating seamless internal connectivity, this cable supports the overall reliability of your Turbine Supervisory Instrumentation (TSI). Whether deployed in power generation facilities or petrochemical refineries, the 84661-40 guarantees that critical vibration, position, and speed data reach the processing units without attenuation. Its robust construction minimizes mechanical wear at connector points, significantly extending the service life of the monitoring rack and reducing the frequency of unplanned maintenance intervals.

Internal Architecture and Logic

84661-40 System Integration

This cable utilizes a high-density multi-pin configuration designed specifically for the proprietary architecture of the Bently Nevada 3500 platform.

Pin Assignment Integrity

The 84661-40 features precision-crimped contacts that maintain ultra-low contact resistance. This ensures that low-voltage analog signals from proximity probes and seismic sensors are processed with absolute fidelity, preventing the "false trips" often associated with inferior generic cabling.

Shielding and EMI Suppression

Bently Nevada incorporates specialized foil shielding within the 84661-40 jacket to repel high-frequency noise generated by nearby variable frequency drives (VFDs) and large switchgear. This localized protection is essential for maintaining the 200 mV/mil scale factor accuracy throughout the signal chain.

Suffix Length Specification

The "-40" designation indicates a specific length requirement tailored for standard and extended 3500 rack configurations. This length ensures clean cable management without excessive looping, which can introduce parasitic inductance into sensitive monitoring circuits.

Technical Performance Profile

Precision Deployment Directives

Connector Orientation and Seating

Ensure the multi-pin connectors are perfectly aligned before applying pressure. The 3500 series backplane pins are delicate; forced insertion can lead to bent pins and expensive backplane replacements. You must hear a definitive "click" to confirm that the locking mechanism has fully engaged for high-vibration environments.

Routing and Strain Relief

Route the 84661-40 through the designated cable management channels within the 3500 rack. Avoid sharp bends that exceed the 50 mm minimum bend radius. Use non-conductive cable ties to provide strain relief, ensuring the weight of the cable does not pull on the module connectors.

Grounding and Interference

The 84661-40 maintains the ground continuity of the 3500 rack. Never modify the cable shield or bypass the factory grounding pins. Inconsistent grounding at the interconnect level often manifests as "glitch" or high-frequency spikes in the System 1 diagnostic software.

Core Engineering Advantages

Thermal and Chemical Immunity

The cable jacket utilizes high-grade polymers that resist degradation from airborne oil mist and industrial cleaning agents. This ensures the insulation remains flexible and intact even after years of continuous operation in high-temperature turbine decks.

Seamless TSI Ecosystem Integration

This component functions as a native link between Bently Nevada 3500 monitors and the external DCS interfaces, such as Honeywell Experion PKS. Its impedance-matched design ensures that the high-speed data bus remains synchronized, facilitating rapid fault detection and SOE (Sequence of Events) logging.

Signal Path Optimization

The 84661-40 reduces the total loop impedance within the rack. By optimizing the signal path, it ensures that the transient data captured by 3500/42M or 3500/45 modules remains representative of actual machinery dynamics, providing the foundation for accurate predictive maintenance.

Logistics and Global Fulfillment

Accelerated Delivery Standards

We facilitate a delivery time of 3-5 days when payment finish. All international shipments are dispatched via premium air freight including DHL, FEDEX, or UPS, ensuring your facility receives these critical interconnects within a minimal operational window.

Anti-Static Industrial Packaging

Every 84661-40 cable is shipped in New Original Pack condition. Our logistics team employs vacuum-sealed anti-static industrial packaging and reinforced cushioning to protect the sensitive connector pins from ESD (Electrostatic Discharge) and mechanical shock during transcontinental transit.

Technical Field FAQs

Q1: Can I repair a damaged 84661-40 cable by splicing the wires?

A1: Splicing is strictly prohibited for machinery protection circuits. Any alteration to the cable length or shield integrity changes the impedance and EMI protection, which can lead to inaccurate vibration readings or system failure. Always replace damaged cables with a new, sealed unit.

Q2: Is the 84661-40 compatible with the older Bently Nevada 3300 system?

A2: No. The 84661-40 is designed specifically for the 3500 Series architecture. The connectors and pin configurations are not compatible with 3300 series backplanes.

Q3: How do I verify the cable is properly seated if the module shows a "NOT OK" status?

A3: Power down the rack (or follow Hot-Swap protocols), remove the module, and inspect the 84661-40 connectors for any debris or bent pins. Re-insert the cable and ensure the locking tabs are secure before re-seating the I/O module.

Q4: Does the cable length impact the calibration of the proximity probes?

A4: No. As an internal interconnect cable, the 84661-40 carries processed digital or high-level analog signals. It does not affect the tuned resonant frequency of the probe/extension cable/proximitor chain.
