Product Overview

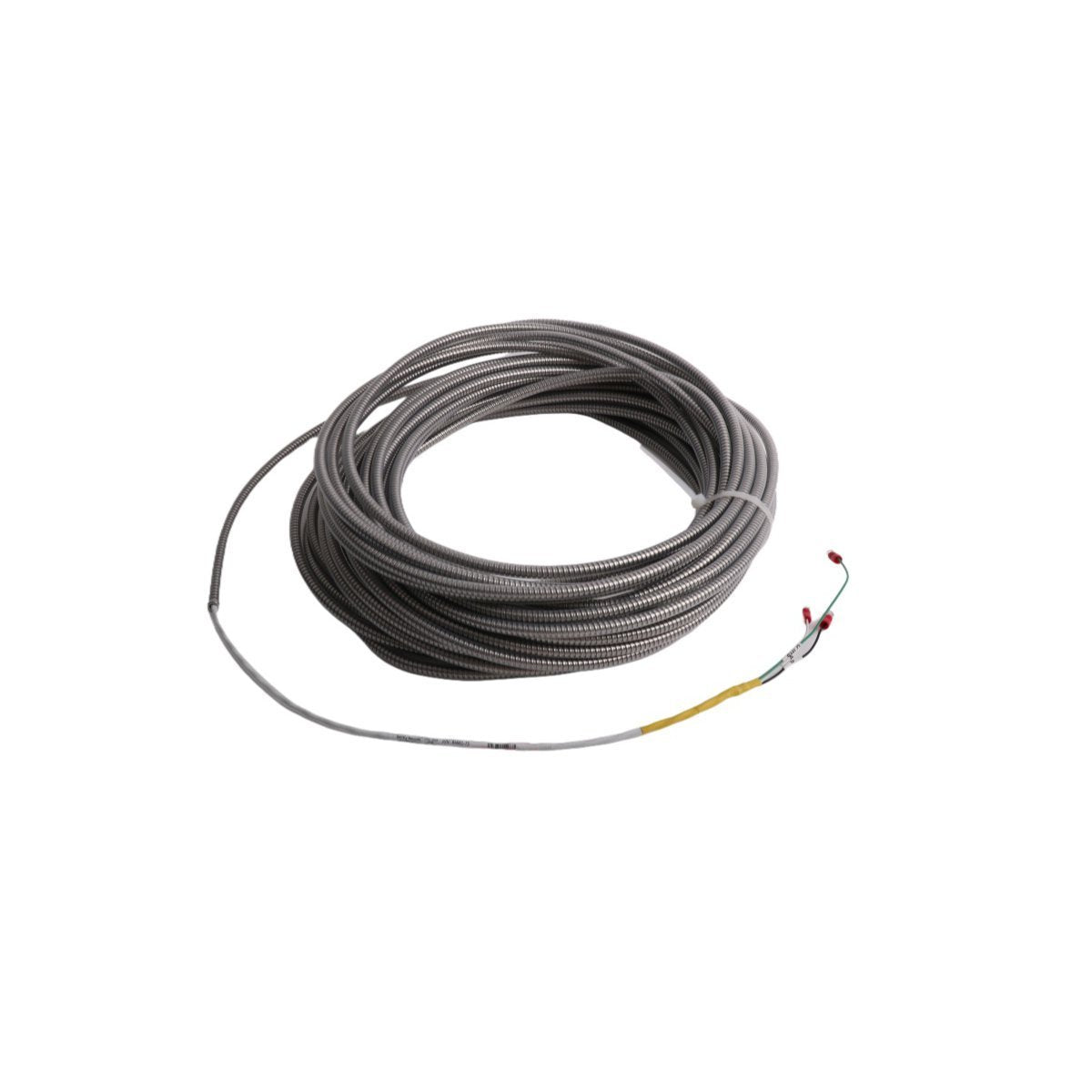

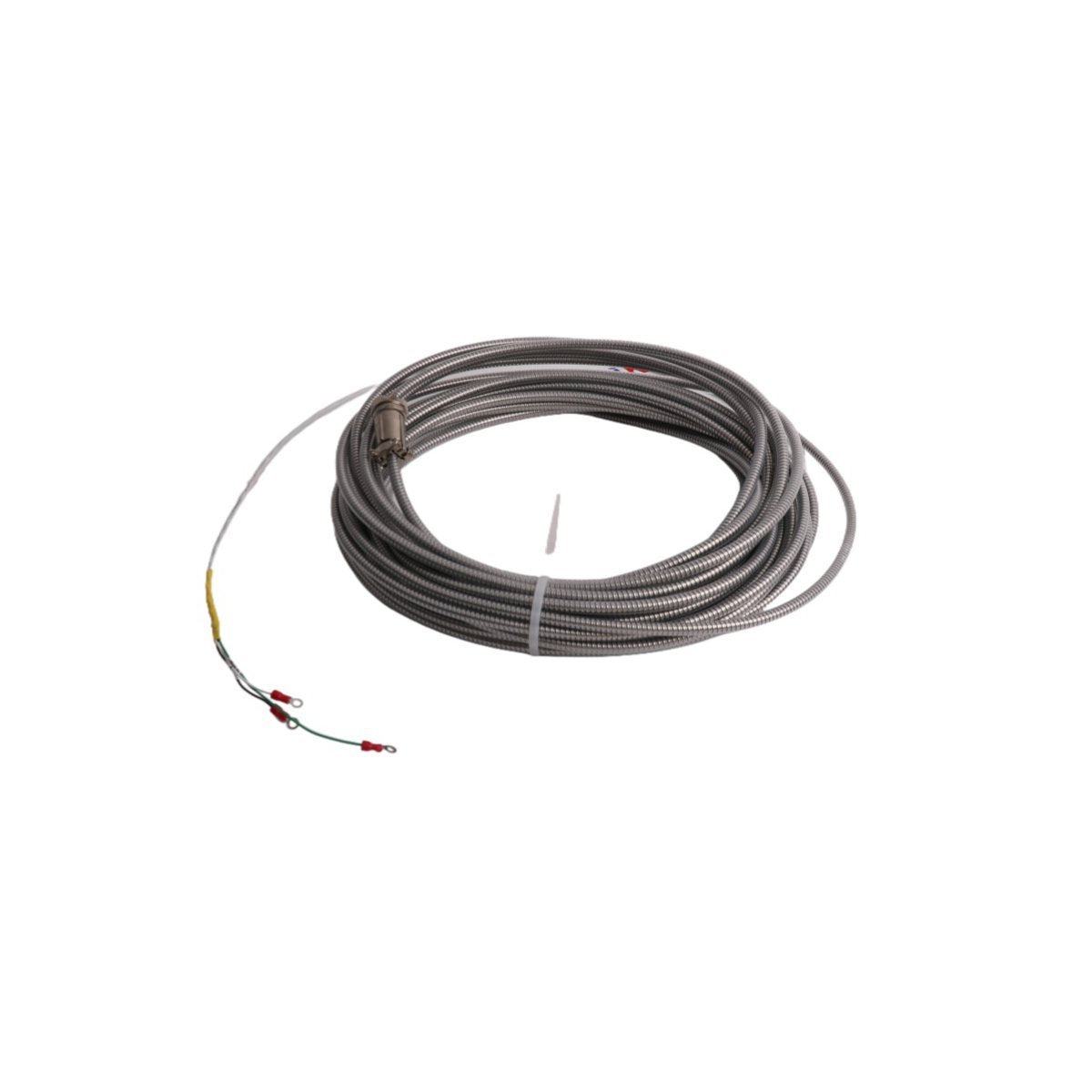

The Bently Nevada 84661-16 Velomitor Interconnect Cable provides an exceptionally secure, low-noise signal transmission path within machinery casing vibration monitoring networks. This industrial-grade shielded twisted-pair assembly establishes the critical connection between the standard 330500 Velomitor piezoelectric velocity sensor and a remote terminal enclosure or centralized machinery protection monitor.

Instrumentation engineers deploy this 16-foot high-performance interconnect link across critical Balance of Plant (BOP) assets, including gas and steam turbines, heavy industrial centrifugal pumps, induction fans, and cooling tower gearboxes. The custom cable dielectric profile handles sensitive analog AC signals flawlessly, shielding the micro-voltage telemetry from high-frequency electromagnetic fields. This continuous data feed drives your automated emergency shutdown loops and centralized DCS safety interlocks, supplying the predictive analytics required to execute timely machinery trips before bearing destruction or high-amplitude casing failures occur.

Cable Core Architecture & Suffix Interpretation

84661 [Velomitor Interconnect Series Profile]

Identifies the baseline hardware standard as a custom 2-conductor shielded twisted-pair cable assembly terminated with a heavy-duty, moisture-resistant 2-pin circular socket connector on the transducer end.

-16 [Calibrated Length Metric]

Specifies a strict physical cable length configuration of 16 feet (4.88 meters), providing the optimal installation length to route from the machine bearing housing directly out to an adjacent local junction junction box.

Twisted-Pair Polyurethane Core Construction

Features two high-purity copper conductors wrapped in a tight spiral braid configuration inside a heavy-duty outer elastomer jacket, reducing mutual capacitance while providing high mechanical flexibility during pull-through operations.

High-Density Shielding Grid

Utilizes a full-coverage aluminum foil shield backed by an integrated tinned copper drain wire to ground out parasitic environmental noise, isolating the underlying raw velocity tracking data from cross-talk.

Structural and Performance Layout Metrics

Cable Performance Parameters

Field Deployment & Grounding Protocols

Field technicians must maintain a strict minimum bend radius of 38 mm (1.5 inches) along the unarmored 16-foot polyurethane run to prevent stretching the internal conductor wire or tearing the internal foil shield. Prior to running the line through protective rigid conduit layouts, check that the conduit interior remains dry and free of sharp metal burrs. Thread the heavy-duty 2-pin circular MIL connector tightly onto the Velomitor housing connection base, ensuring the internal elastomeric seal seats fully to lock out process fluids.

Isolate the system shield ground properly to prevent problematic ground loops from injecting electrical noise into the vibration monitoring circuit. Connect the tinned copper drain wire at the blunt-cut terminal end directly to the dedicated instrument ground bar inside the local junction box. Leave the shield wire floating and cut back flush at the sensor end of the loop, using a heat-shrink sleeve over the cable transition point to maintain absolute isolation from the machine frame.

Asset Integration & Environmental Survivability

The advanced elastomer outer jacket of the 84661-16 interconnect cable resists structural deterioration when exposed to continuous industrial contamination, including hot synthetic lube oils, caustic washdown chemicals, and airborne moisture. This high durability keeps insulation resistance values high across multi-year operating campaigns, preventing signal damping over the 16-foot run.

The low-capacitance line streams dynamic casing vibration velocity profiles into a Bently Nevada 3500/42M or 3500/40M monitor module for real-time processing. The monitor splits the processed tracking values out to your plant-wide Honeywell Experion PKS or Siemens S7 PLC architecture via automated Modbus TCP or dedicated 4-20 mA analog output cards. This setup supplies your control room with simultaneous access to high-velocity casing vibration safety trips and deep predictive machine health trending.

Commercial Packing Inventory

The factory-sealed individual carton contains the following equipment:

(1) Original Bently Nevada 84661-16 Velomitor Interconnect Cable (16-foot length)

(2) Factory-terminated 2-Pin MIL-C-5015 female connector with threaded coupling ring

(3) Pre-stripped blunt cut flying lead wires with an integrated tinned drain line

(4) Material conformity certification and product handling documentation

International Logistic Security & Express Shipment

Our international logistics facility inspects, packages, and dispatches all equipment inventory within 2-7 days following payment finalization. We route all critical machinery components via premium express air carriers, including DHL, FedEx, and UPS, to guarantee fast, tracked, and insured delivery to your facility.

Our warehouse packages each sensor cable assembly inside heavy-duty anti-static industrial packaging sheets before securing it within custom, shock-absorbing foam padding inserts. This strict packaging process provides complete protection against electrostatic discharge, severe transit drops, and ambient moisture entry along international shipping routes.

Transducer Loop Field Troubleshooting

Q1: Can I use this 84661-16 interconnect cable to connect a standard 330100 proximity probe to a Proximitor?

A1: No. This cable features a 2-conductor twisted-pair layout terminated with a large 2-pin circular MIL connector, designed specifically for the 330500 Velomitor casing velocity sensor. Proximity probes use high-frequency coaxial lines terminated with miniature ClickLoc connectors to manage specific loop impedance. Mixing these cable types will cause immediate physical incompatibility and loop failure.

Q2: What action should I take if the monitoring rack reports a "Not OK" status with high bias voltage?

A2: A "Not OK" status accompanied by a high bias voltage (typically near open-circuit levels) indicates a break or high resistance in the sensor path. Inspect the 2-pin circular connector at the Velomitor base to ensure it is tightened fully and free of moisture or corrosion. Use a digital multimeter to test continuity along both internal conductors from the junction box terminals to isolate the break.

Q3: Why does this cable leave the shield drain wire un-terminated at the sensor connector end?

A3: Leaving the shield floating at the sensor end is a required grounding protocol that prevents electrical ground loops. If the shield connects to ground at both the machine frame (via the sensor) and the control cabinet, small differences in ground potential will drive parasitic currents through the shield. This creates electrical noise that distorts the analog vibration telemetry. Grounding the shield exclusively at the junction box safely drains away electromagnetic interference.

Q4: Does the unarmored polyurethane outer jacket require additional protection in harsh areas?

A4: While the heavy-duty polyurethane jacket provides excellent resistance to oil splash and chemical vapors, it lacks defense against heavy mechanical crushing, foot traffic, or flying debris. If your cable path passes through high-exposure maintenance zones or runs next to heavy machinery pathways, you should route the unarmored line inside grounded, rigid steel conduit to prevent physical cutting or tearing.
