Product Overview

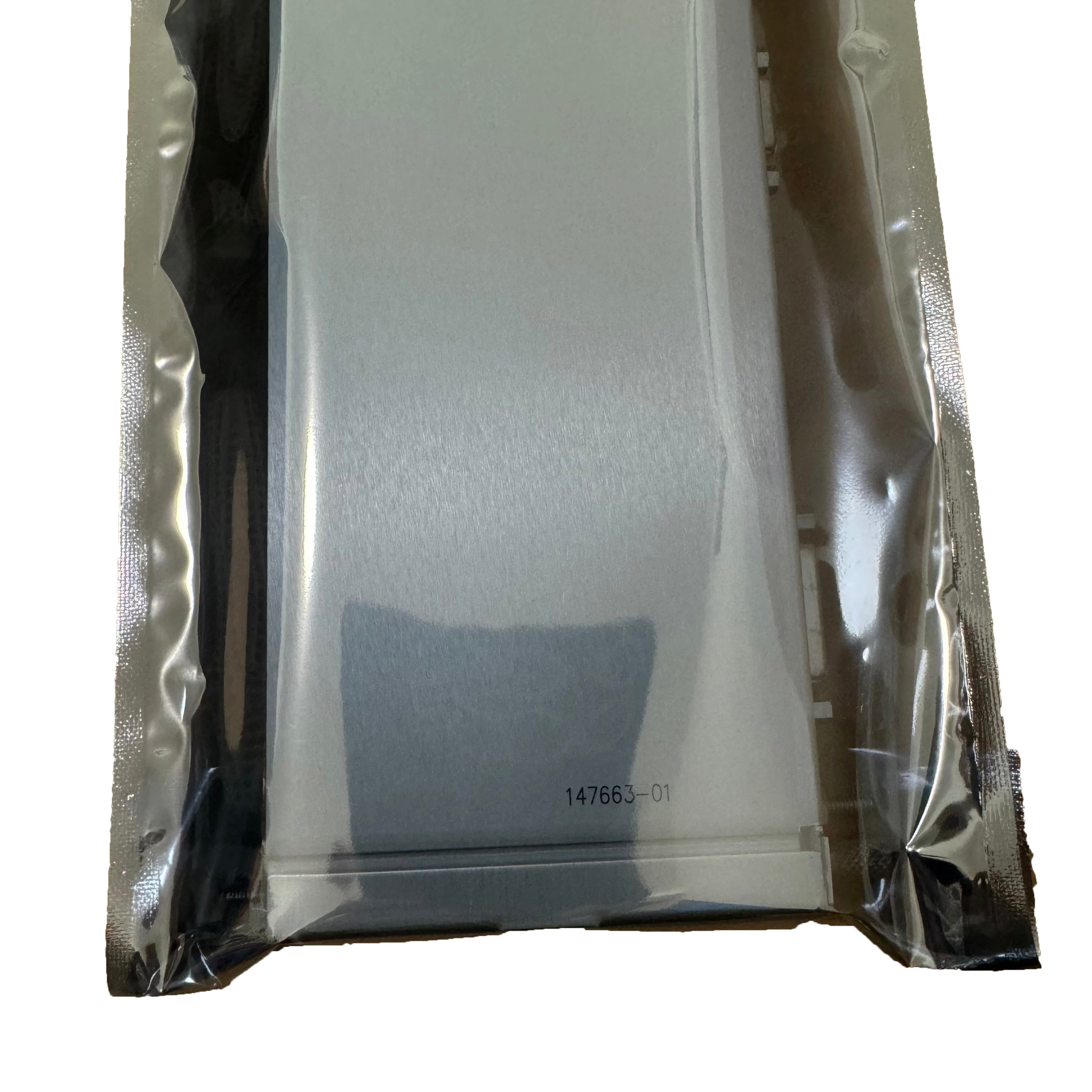

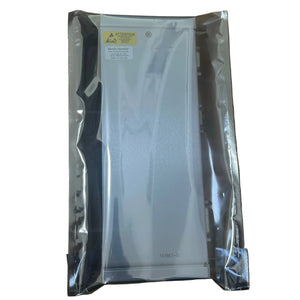

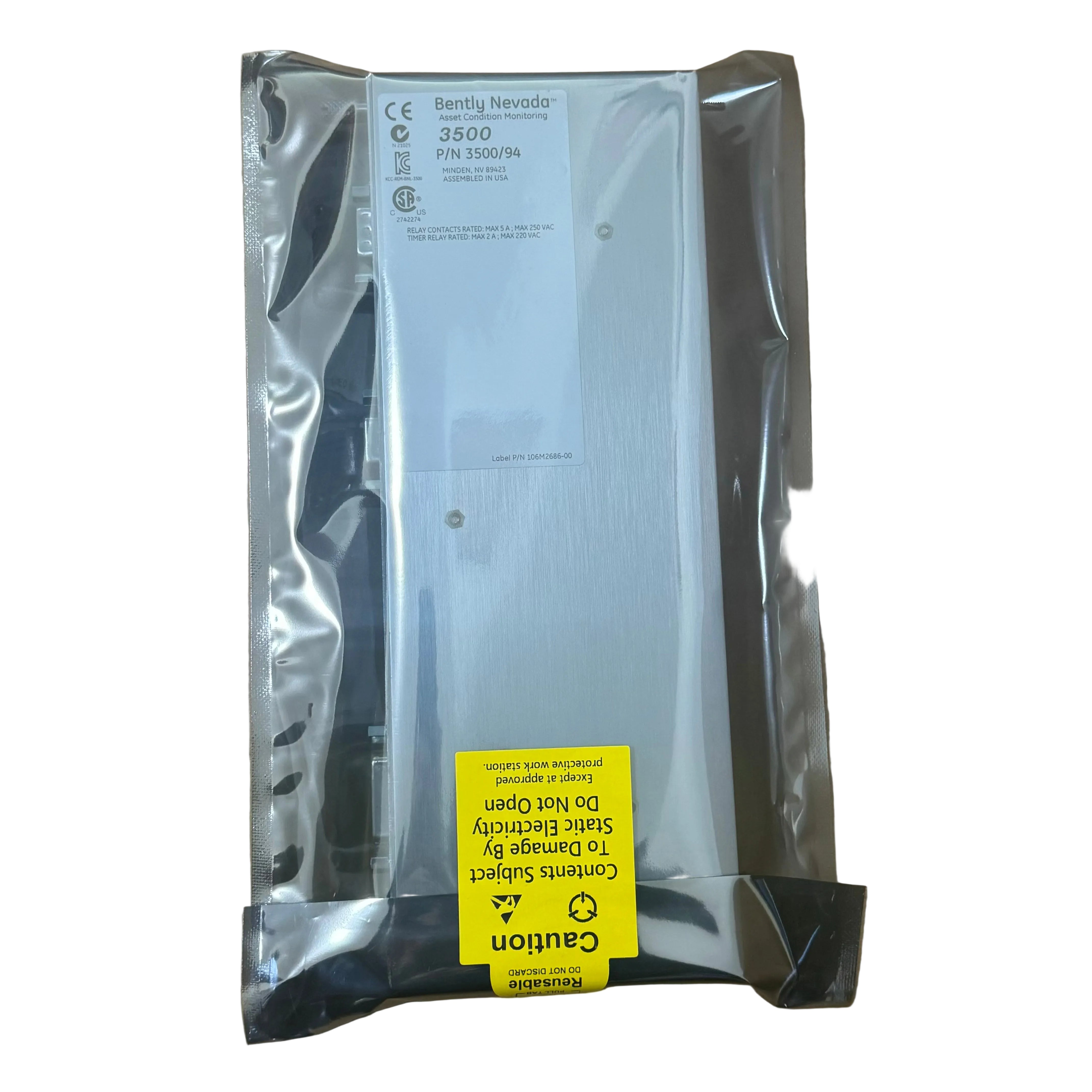

The 147663-01 is a high-performance Display Interface I/O Module specifically engineered for the Bently Nevada 3500/94 VGA Display system. This module serves as the primary bridge between the 3500 Machinery Protection System’s internal data bus and a high-resolution VGA monitor. Unlike standard display cards, the 147663-01 is optimized for touch-screen technology, enabling field operators to interact directly with the hardware for rapid parameter adjustment, data querying, and alarm management. By translating complex backplane signals into a graphical user interface, it provides a centralized point for real-time asset health visualization, ensuring that critical vibration and status information is accessible right at the machine site.

Hardware Infrastructure & Control Parameters

• Module Type: VGA Display Interface with Touch-Screen Support

• Order Number: 147663-01

• System Series: Bently Nevada 3500/94

• Module Weight: 0.55 kg (Approximately 1.21 lbs)

• Chassis Dimensions: 241.3 mm x 24.4 mm x 103.1 mm (Standard 3500 I/O Form Factor)

• Power Loading: 15.5 Watts maximum for combined interface and display unit

• Interface Energy Consumption: 5.6 Watts maximum

• Mounting Adaptability: Compatible with 19-inch EIA racks, panel cutouts, or independent face-mounting

• Operational Capacity: Supports connection of up to two displays per monitoring rack

• Origin: United States (USA)

Strategic Industrial Implementations

The 147663-01 is indispensable in facilities where local, interactive monitoring is required for immediate troubleshooting. Key industrial applications include:

• Interactive Turbine Dashboards: Providing a touch-responsive interface on the turbine deck for operators to view bar graphs and alarm lists without a remote workstation.

• On-Machine Fault Diagnostics: Utilizing the data logging and historical trend display features to identify vibration patterns during machinery startup.

• Hazardous Area Remote Display: Mounting the VGA screen in a safe area while the 147663-01 remains in the 3500 rack, allowing remote visual oversight of critical compressors.

• Customized Monitoring Arrays: Allowing plant engineers to select specific data points and graphics for a tailored view of power generation or oil and gas extraction equipment.

FAQ

Q: How does the 147663-01 handle touch-screen input?

A: The module contains a specialized controller that processes touch-coordinate data from the VGA monitor, allowing the 3500/94 software to respond to user gestures for navigation and settings changes.

Q: Is this module compatible with standard computer VGA monitors?

A: While it uses a VGA signal, it is specifically designed to work with Bently Nevada approved industrial touch-screen monitors to ensure compatibility with the proprietary communication protocol and environmental standards.

Q: Can I replace a 135813-01 (3500/93) with this 147663-01 (3500/94)?

A: The 3500/94 is the more advanced VGA-based system. While they both provide display functions, you must ensure your display hardware and rack configuration support the VGA touch-screen features of the 147663-01.

Q: Does the module store historical data locally?

A: The 147663-01 facilitates the display of logged information; however, historical data storage is typically managed in conjunction with the system's Rack Interface Module (RIM) or Transient Data Interface (TDI).

Q: Does this I/O module require a separate power supply for the monitor?

A: The interface module provides data and signal power; however, the actual VGA display unit usually requires its own dedicated power source or is powered via a specific cable assembly provided with the 3500/94 kit.
