Product Overview

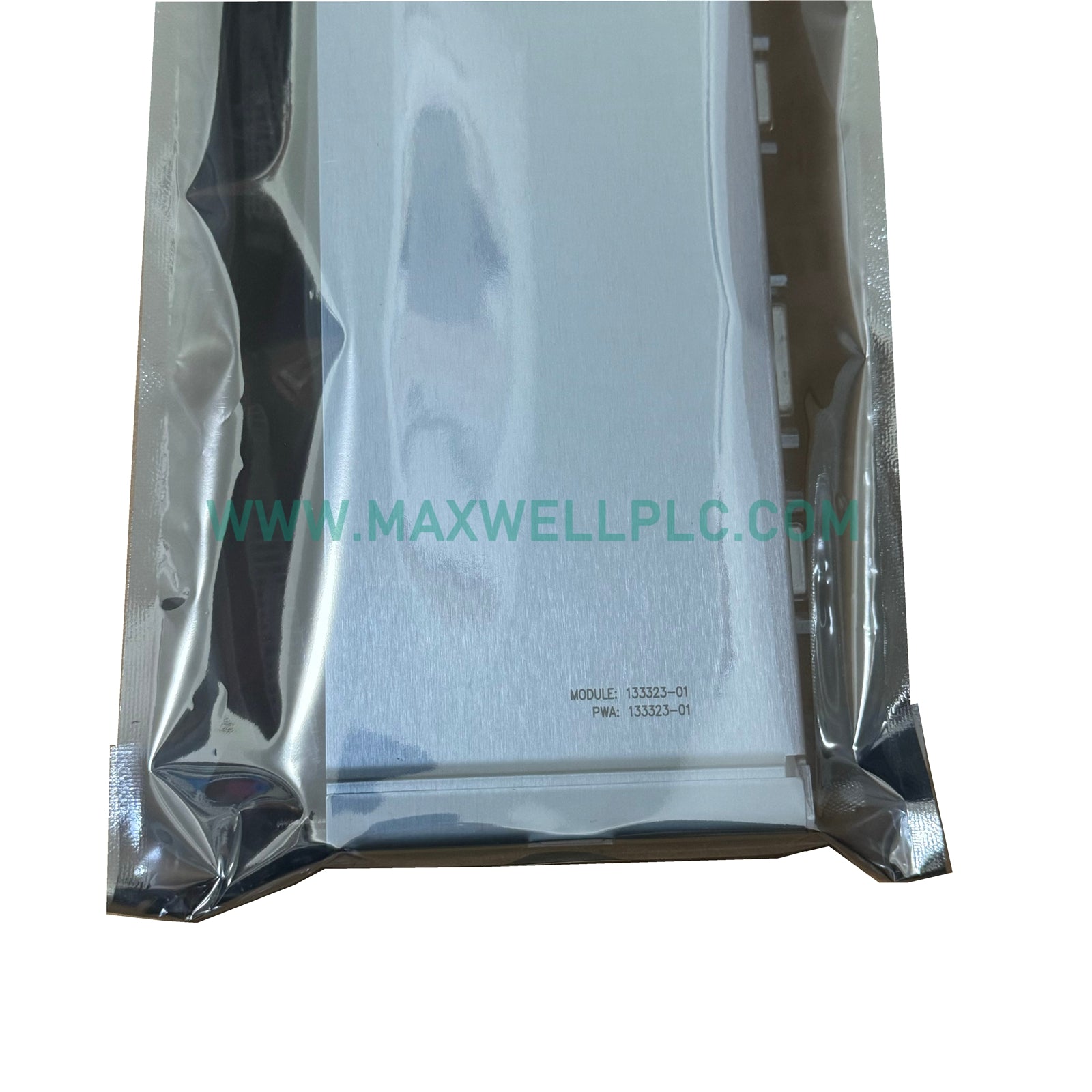

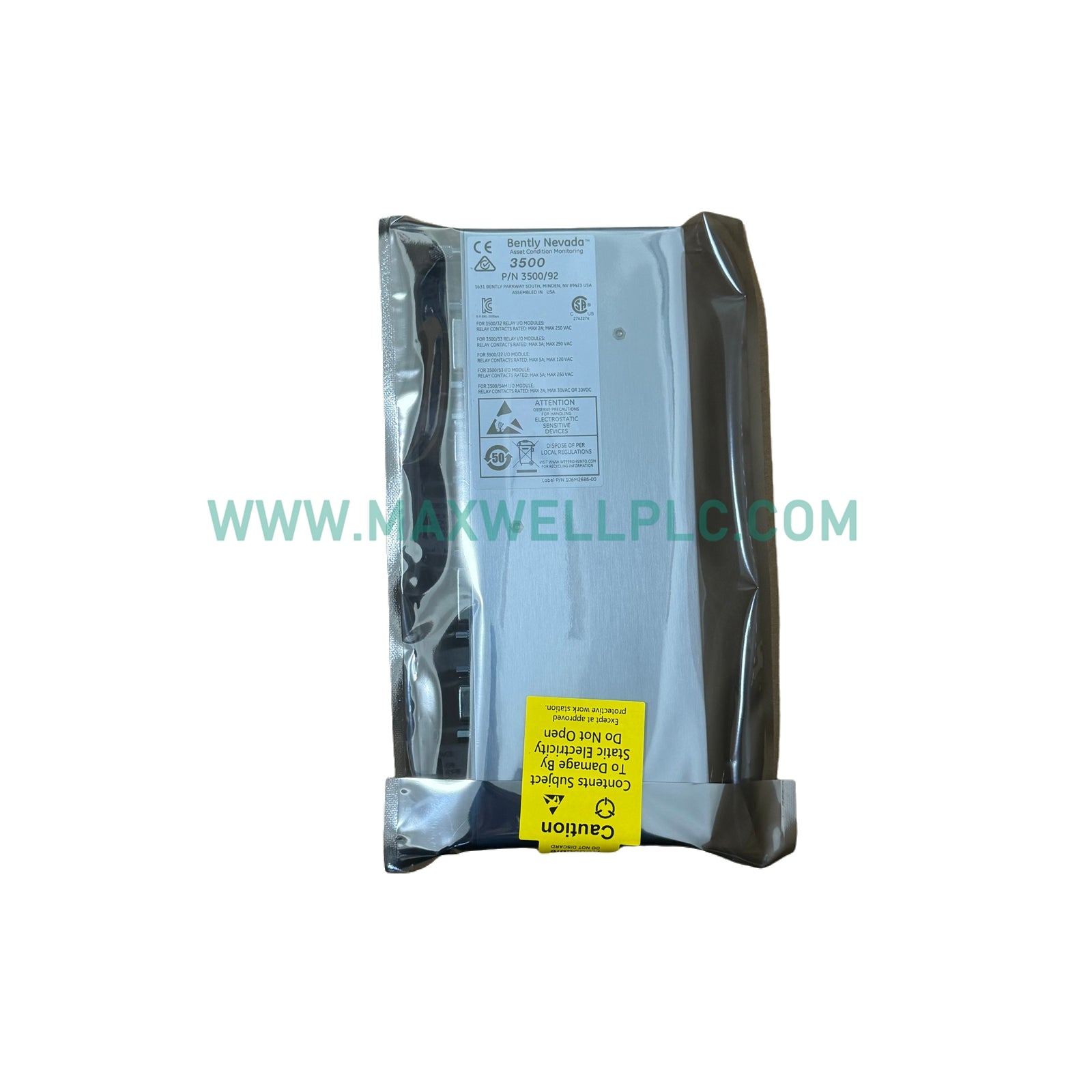

The Bently Nevada 133323-01 is a high-performance communication I/O module designed for the 3500/92 Gateway system. This component serves as the physical communication bridge between the 3500 Machinery Protection System and external plant-wide networks. By supporting both high-speed Ethernet and long-distance RS485 serial connections, the 133323-01 enables the seamless export of critical vibration, position, and status data to Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC).

Designed for the rear of the 3500 rack, this module facilitates the transmission of rack values using the Modbus protocol. It is engineered to maintain high signal integrity over long distances, making it an ideal choice for large-scale industrial facilities where the control room is located far from the machinery being monitored.

Technical Characteristics

• Communication Protocols: Supports Modbus RTU (Serial) and Modbus TCP/IP (Ethernet)

• Serial Interface: RS485 differential signaling for high noise immunity

• Ethernet Interface: RJ45 port for 10BASE-T star configuration networks

• Transmission Distance: Up to 1200 meters (4000 feet) for RS485 serial links

• Programmable Baud Rates: 9600, 19200, 38400, 57600, 115200, or 230400 bps

• Power Consumption: 7.7 Watts (typical)

• Input Signal Range: -10 Vdc to +10 Vdc logic levels

• Backplane Power: Utilizes -24 Vdc supply from the 3500 rack

• Utility Software: Includes a configurable Modbus Register Utility for customized data mapping

• Dimensions: 23 cm x 9 cm x 3 cm

• Weight: 0.4 kg

• Origin: Manufactured in the USA

Industrial Integration and Data Management

The 133323-01 is essential for modernizing machinery monitoring through digital integration. By utilizing the RS485 port, users can daisy-chain multiple 3500 racks into a single serial network, significantly reducing cabling costs for large-scale deployments. Meanwhile, the Ethernet port provides a robust path for integration with modern IT infrastructures, allowing maintenance teams to access real-time diagnostic data via the plant's LAN.

The module’s configurable Modbus Register Utility allows engineers to tailor the data output to match the specific requirements of the host system, ensuring that only relevant parameters are polled. This reduces network congestion and improves data refresh rates. Built to withstand the rigorous conditions of industrial environments, the 133323-01 provides the high availability and deterministic performance required for the protection of high-value rotating assets such as steam turbines, cooling towers, and centrifugal compressors.
