Product Overview

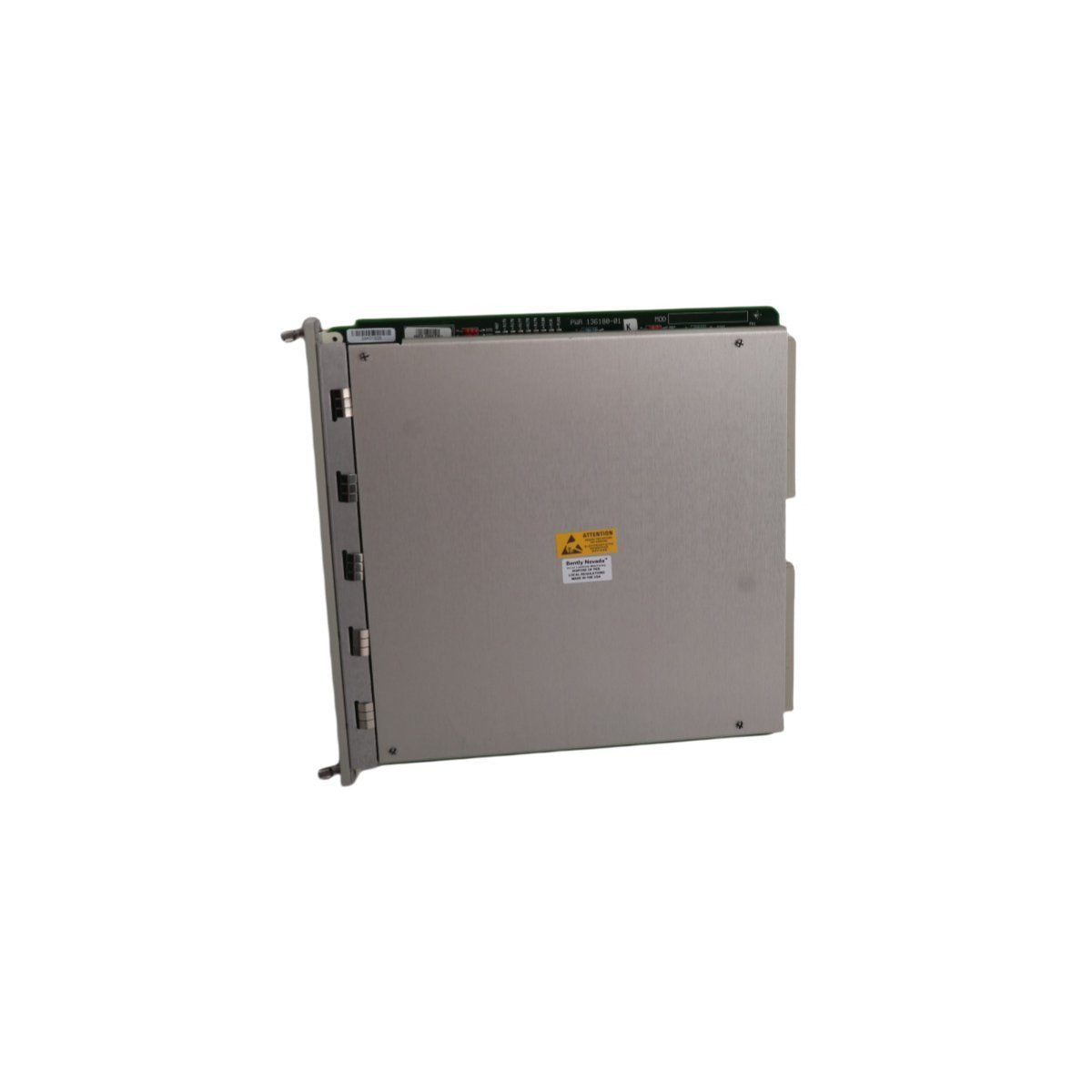

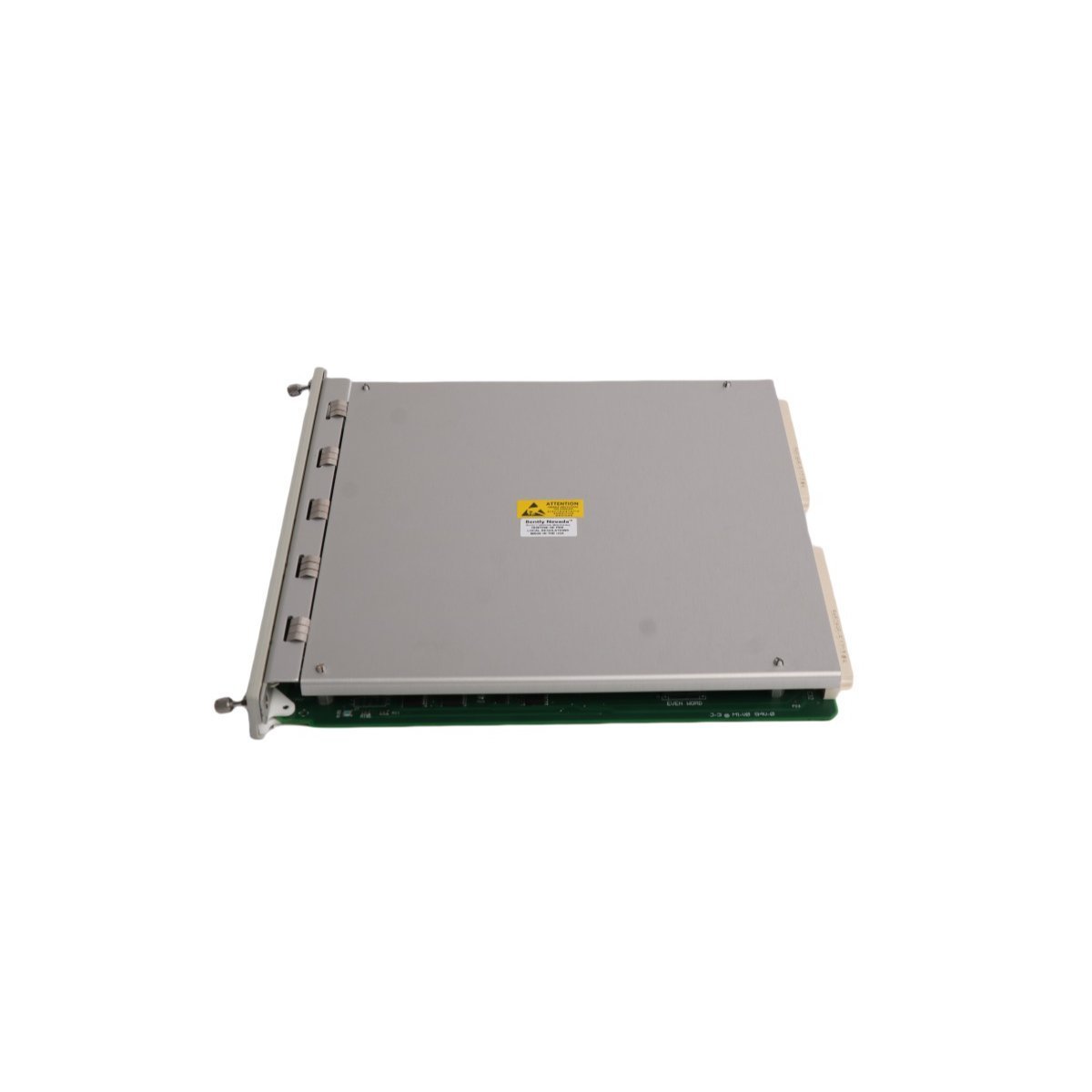

The 136180-01 serves as the primary data integration node for the Bently Nevada 3500 Series Machinery Protection System. This specific gateway module acts as a sophisticated translator, bridge-linking the proprietary internal rack backplane with standardized external industrial networks. It facilitates the high-speed collection of static data and system health diagnostics from all localized monitor modules without impacting the rack's autonomous safety logic. By providing a digital window into the 3500 system, it enables operators to view critical machinery parameters—including vibration, position, and temperature—directly within their primary control environment.

Core Technical Architecture and Physical Dimensions

• Protocol Support: Modbus RTU (Serial) and Modbus TCP/IP (Ethernet)

• Physical Interfaces: One 10/100 Base-T Ethernet port and one RS232/RS422/RS485 Serial port

• Galvanic Isolation: 500 Vrms for serial communication protection

• Operating Range: -30°C to +65°C (-22°F to +150°F)

• System Resolution: 16-bit internal data processing

• Hardware Dimensions: 241 mm x 24.4 mm x 103.1 mm (9.50 in x 0.96 in x 4.06 in)

• Unit Weight: 0.82 kg (1.8 lbs)

• Installation: Single full-height slot in 3500 series chassis

Professional Deployment Environments

The 136180-01 is typically deployed to streamline the flow of information from the protection hardware to the management layer. Common applications include:

• DCS and PLC Interfacing: Direct integration of machinery health data into Emerson DeltaV, Honeywell Experion, or Siemens PCS7 systems.

• Centralized Asset Management: Consolidating data from multiple 3500 racks across a facility into a unified Ethernet-based monitoring station.

• Diagnostic Archiving: Providing a steady stream of static variables to historian databases for long-term trend analysis and predictive maintenance scheduling.

• Sequence of Events Recording: Utilizing gateway-transmitted timestamps to reconstruct the timeline of machinery trips or alarm states during forensic audits.

• Power Generation Monitoring: Functioning as the communication core for Turbine Supervisory Instrumentation (TSI) in gas and steam utility plants.

FAQ

Q: Does the 3500/92-02-01-00 handle the actual machinery shutdown logic?

A: No, the gateway is strictly for data communication. The machinery protection and trip logic are executed independently by the monitor modules and relay cards, ensuring protection remains active even if communication is lost.

Q: Is it possible to adjust module settings using the rack's front display?

A: Configuration of the 136180-01 must be performed through the 3500 Rack Configuration Software on a connected PC; it cannot be managed via the hardware faceplate.

Q: What is the primary benefit of the 500 Vrms isolation on the serial ports?

A: This level of isolation prevents ground loops and electrical surges from damaging the internal 3500 rack electronics, which is critical in electrically noisy industrial environments.

Q: Can this module support redundant network architectures?

A: Yes, the 3500/92 is designed to support redundant communication setups, providing a failover path to ensure the control system maintains continuous visibility of machine health.

Q: What specific data types are transmitted by this gateway?

A: The module transmits static data including overall vibration levels, thrust position, temperatures, and speeds, along with comprehensive system status and alarm flags.
