Product Overview

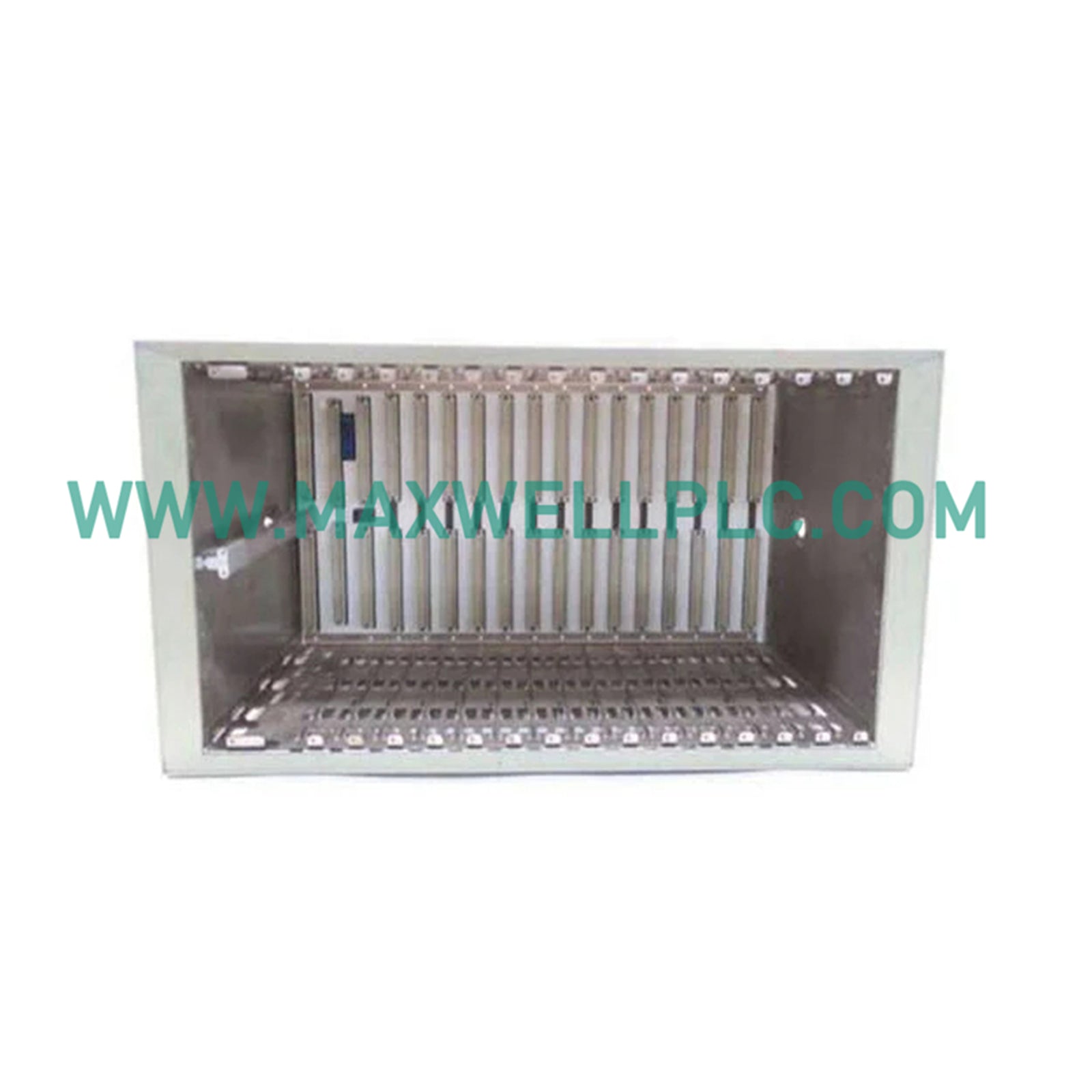

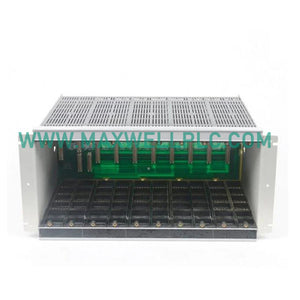

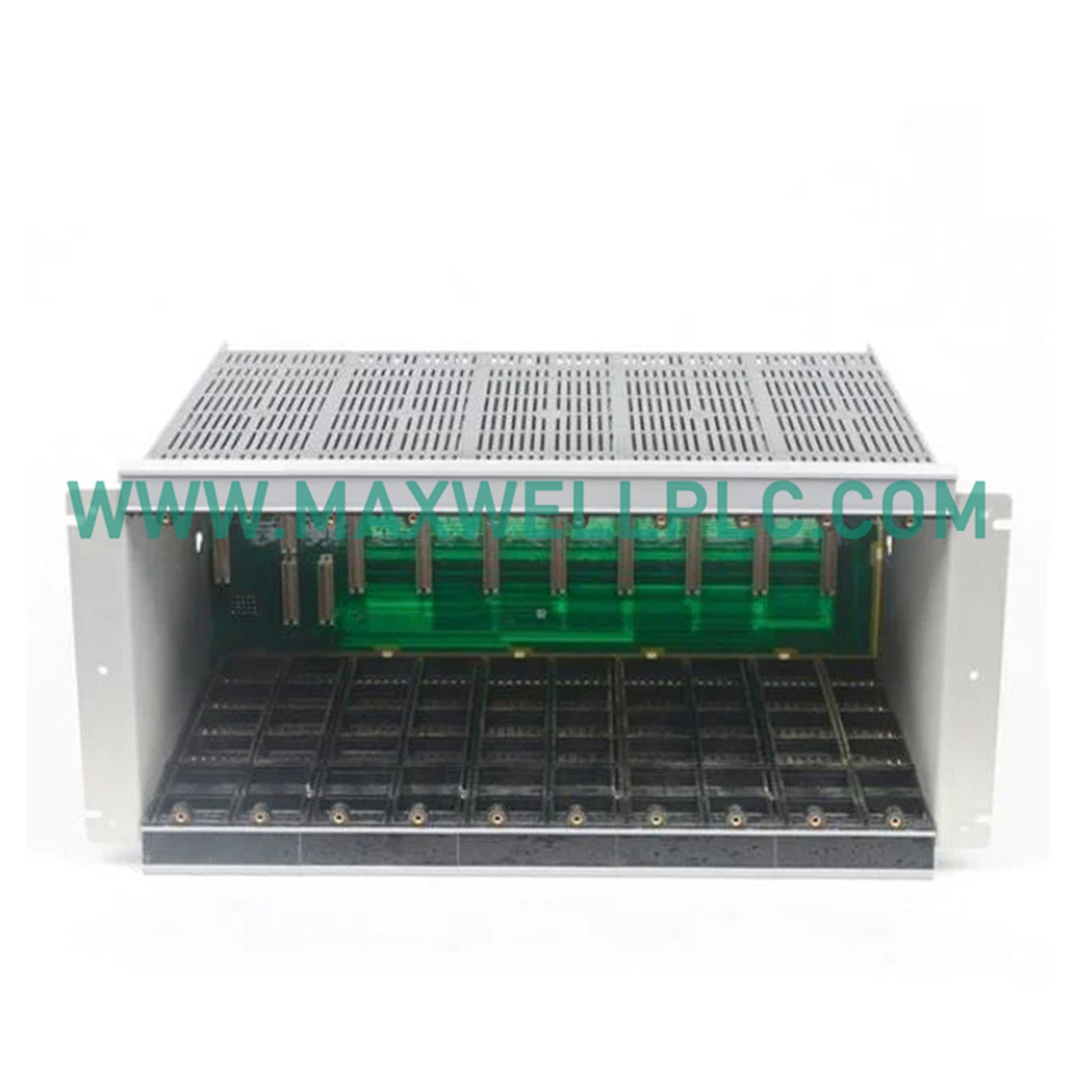

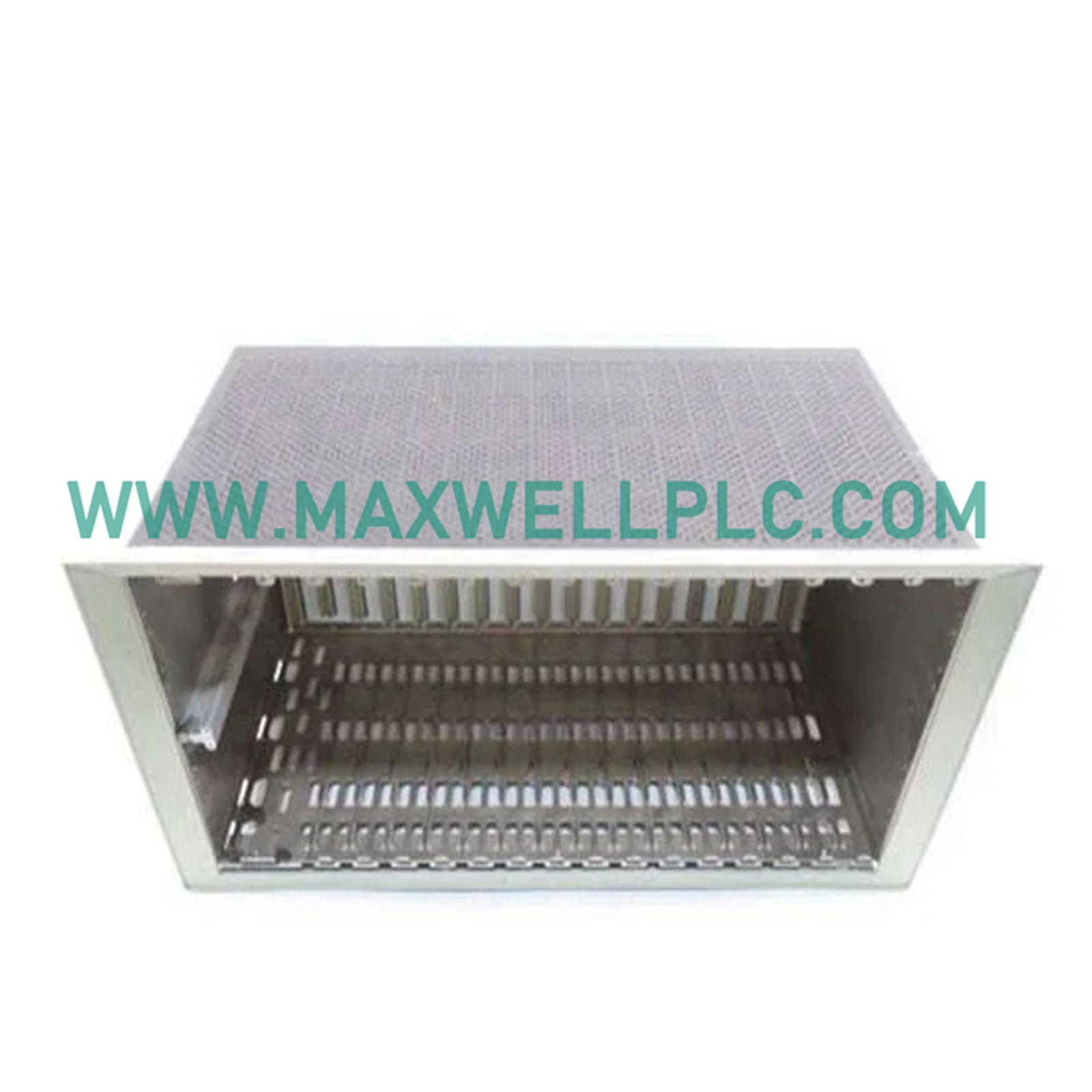

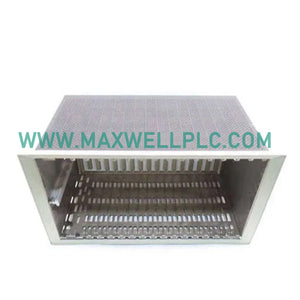

The Bently Nevada 3500/05-02-04-00-00-01 serves as the hardened backbone for high-reliability Turbine Supervisory Instrumentation (TSI) networks. Engineered for facilities where panel real estate is at a premium, this 12-inch Mini-Rack consolidates up to five monitoring or relay modules alongside redundant power supplies. In critical assets such as gas compressors, steam turbines, and turbo-generators, this chassis ensures unwavering communication between modules, facilitating millisecond-level response times for emergency shutdown sequences. Its robust construction guarantees signal integrity in electrically noisy environments, making it an indispensable asset for maintenance engineers demanding zero downtime in oil refineries and power generation plants.

Decoding the Part Number: 3500/05-02-04-00-00-01

Understanding the suffix logic is critical for engineering procurement.

3500/05: Base model, System Chassis Rack.

-02: 12-inch Mini-Rack configuration (7 total slots).

-04: Panel Mount hardware option, designed for secure clamping into control panels.

-00: No Agency Approval option (Standard).

-00: Reserved field (None).

-01: European Compliance (CE Marking) for international deployment.

Technical Specifications

Panel Integration & Wiring Protocols

When integrating this mini-rack into existing control cabinets, ensure the panel cutout matches the 12-inch width precisely. Unlike bulkhead configurations, this specific model requires rear access for I/O wiring; ensure sufficient clearance behind the panel. Maintain a minimum bend radius of 1 inch (25.4 mm) for all interconnecting cables to prevent impedance changes. For optimal noise immunity in high-voltage switchyards, ground the chassis directly to the plant earth grid using a dedicated, low-impedance grounding strap rather than relying on panel mounting screws alone. Always verify the gap voltage stability after initial power-up to confirm proper signal coupling.

Operational Resilience & System Synergy

This chassis exhibits exceptional thermal stability, maintaining signal fidelity even when ambient temperatures spike near cooling tower exhausts. Its anodized aluminum frame resists corrosive offshore atmospheres, making it ideal for FPSO vessels and coastal refineries. The internal backplane architecture facilitates seamless "hot-swapping" of modules without disrupting adjacent channel operations—a vital feature during planned maintenance windows. Furthermore, the 3500/05 chassis integrates natively with Honeywell Experion PKS and Emerson DeltaV via the TDI module, translating raw vibration data into actionable asset health insights without requiring complex protocol gateways.

Ordering Information

(1) Bently Nevada 3500/05-02-04-00-00-01 12" Mini-Rack Chassis (CE Compliant)

(2) Set of Panel Mounting Clamps and Hardware

(3) Factory Seal and Protective Covers

Note: Modules (Power Supply, TDI, Monitors) and interconnect cables are sold separately.

Technical Deep Dive: Q&A

Q1: Can I mix full-size 3500 modules with this mini-rack?

A1: Yes, all standard 3500 series modules are fully compatible with both full-size and mini-racks. The physical depth and connector pinouts remain consistent across the platform.

Q2: How many power supplies can this specific chassis hold?

A2: The 3500/05-02 configuration reserves the two leftmost slots for power supplies, allowing for redundant (1:1) or non-redundant configurations depending on your reliability requirements.

Q3: Is the Rack Interface Module (RIM) included with this chassis?

A3: No, the chassis is the physical housing only. You must purchase the 3500/01 or 3500/02 RIM module separately to manage communications and rack reset functions.

Q4: What is the significance of the "-04" suffix for my installation team?

A4: The "-04" denotes the Panel Mount option. Your team must cut a rectangular aperture in the panel and use the supplied clamps to secure the rack from the front side.

Q5: Does this chassis support the newer 3500/22M TDI module?

A5: Absolutely. The backplane is designed to support the entire 3500 ecosystem, including the 3500/22M Transient Data Interface for advanced diagnostics via System 1 software.

Q6: What is the maximum power draw supported by the backplane?

A6: While dependent on the installed PSUs, the backplane supports the standard 3500 power budget, ensuring stable voltage delivery to high-current output modules even under full load conditions.

Q7: Is this unit suitable for Class I, Division 2 hazardous locations?

A7: This specific configuration (-00 Agency Approval) is not certified for hazardous locations. For Div 2 environments, you would require the specific 3500/05 variant with CSA or ATEX approvals.
