Product Overview

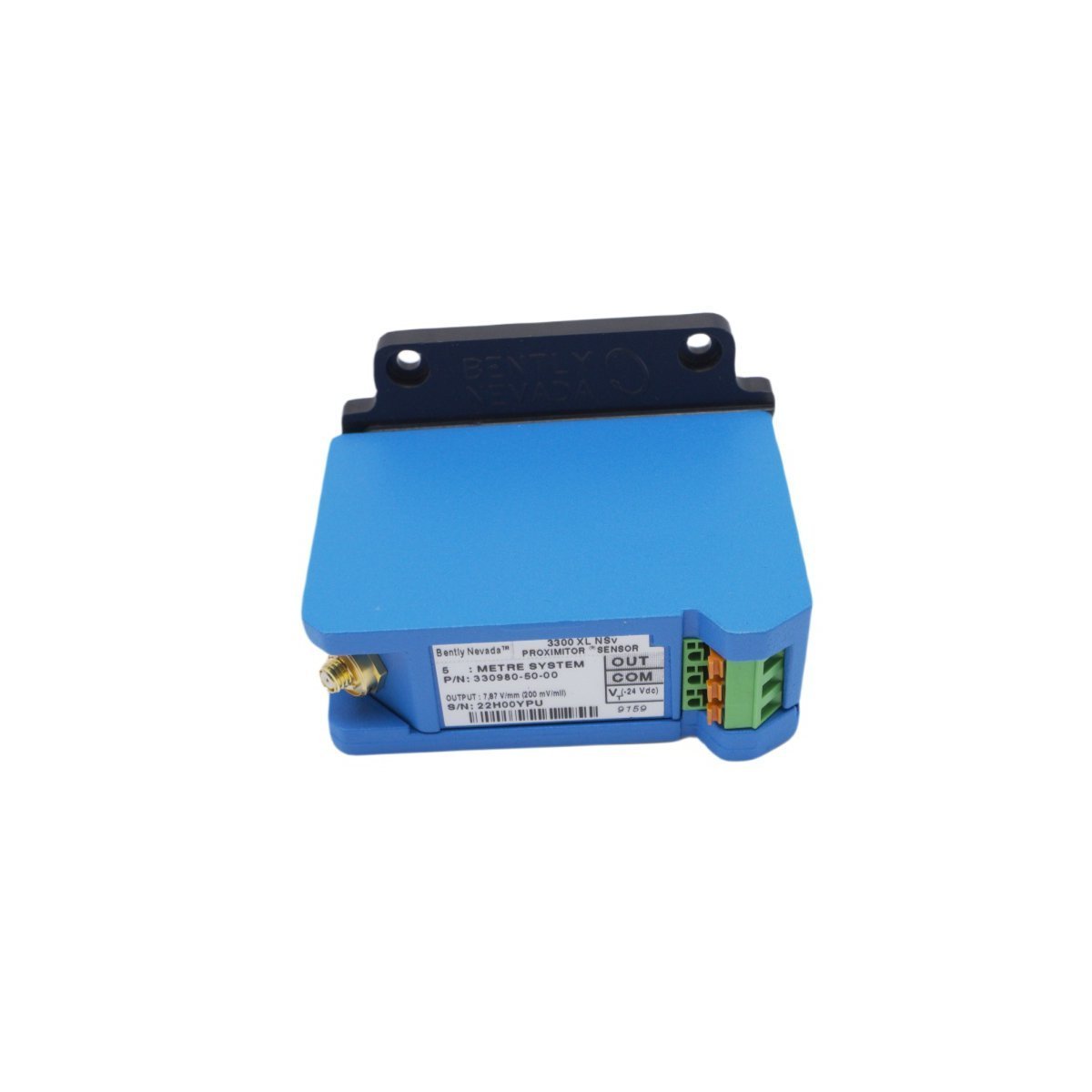

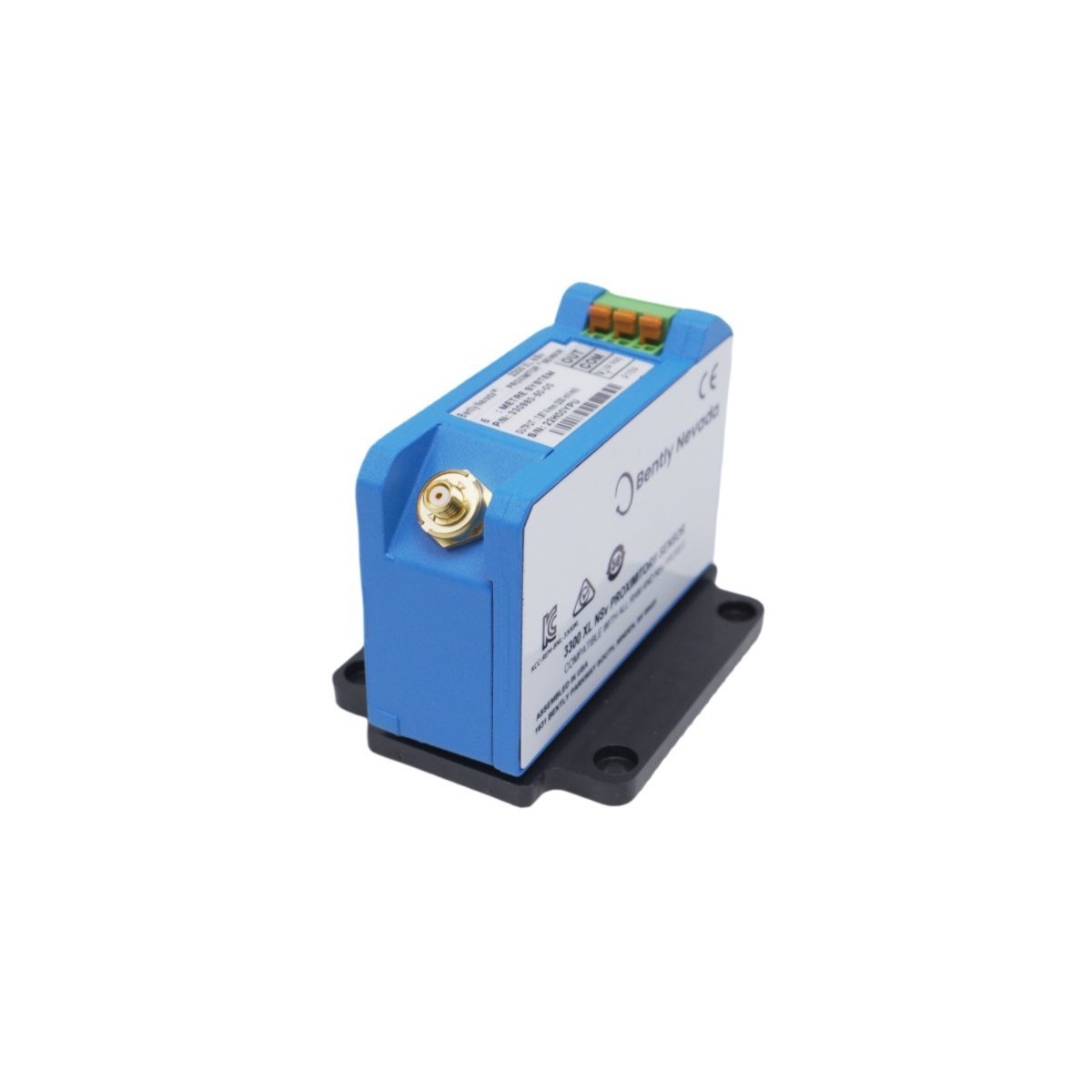

The 330980-50-00 is a high-precision signal conditioner belonging to the Bently Nevada 3300 Narrow Side View (NSv) Proximity Transducer System. This Proximitor sensor is specifically engineered for critical machinery where standard 8 mm or 5 mm proximity probes cannot be utilized due to extreme spatial constraints. The NSv system is uniquely designed to operate in tight counterbores and areas with limited "side-view" clearance, as it is immune to the magnetic interference from surrounding metal that often distorts signals in standard eddy-current sensors. This model is factory-calibrated for a 5.0-meter total system length, providing a linear voltage output proportional to the gap between the probe tip and the target material.

Technical Performance and Signal Integrity

The 330980-50-00 provides advanced diagnostic data for Turbine Supervisory Instrumentation (TSI) applications:

• Signal Output: -4 to -20 Vdc linear output, facilitating direct integration with Bently Nevada 3500 series racks or PLC/DCS systems.

• Average Scale Factor (ASF): 7.87 V/mm (200 mV/mil), offering high sensitivity for detection of minute vibration levels.

• System Calibration: Fixed for 5.0-meter system length (50 option), requiring matching 5m probes and extension cables for verified accuracy.

• Linear Range: 1.5 mm (60 mils), delivering consistent measurement across a wide operating gap.

• Small Target Accuracy: Optimized for monitoring radial vibration on shafts as small as 51 mm (2 inches) or axial position on targets down to 15 mm (0.6 inches).

Engineering for Challenging Environments

Constructed to withstand the rigors of heavy industrial sectors, the 330980-50-00 features:

• Electromagnetic Compatibility: Built-in RFI/EMI immunity that meets European CE standards, ensuring stable measurement signals without the need for specialized shielded conduits in high-noise environments.

• Mounting Versatility: The compact housing supports both high-density DIN-rail mounting and traditional bulkhead installation, maximizing cabinet space efficiency.

• Field Connection Stability: Utilizes SpringLoc terminal strips to provide tool-free, vibration-resistant wiring connections, significantly reducing the risk of signal loss due to mechanical loosening.

• Legacy Compatibility: Serves as a modern, high-performance replacement for older 3300 RAM, 3000-series, and 7000-series transducer systems, simplifying facility modernization.

Primary Industrial Applications

The 3300 NSv Proximitor is a vital component for protecting high-speed rotating assets, including:

• Centrifugal Air Compressors: Reliable vibration monitoring in the restricted internal housings of air and process gas compressors.

• Refrigeration Units: Monitoring thrust position and radial motion in compact chilling equipment.

• Fluid-Film Bearing Machinery: Essential for tracking shaft dynamic motion, misalignment, and bearing wear in medium-sized rotating assets.

• Phase Reference Generation: Providing the clean, stable pulse signals necessary for Keyphasor measurements and advanced rotor dynamic diagnostics.
